Fuses

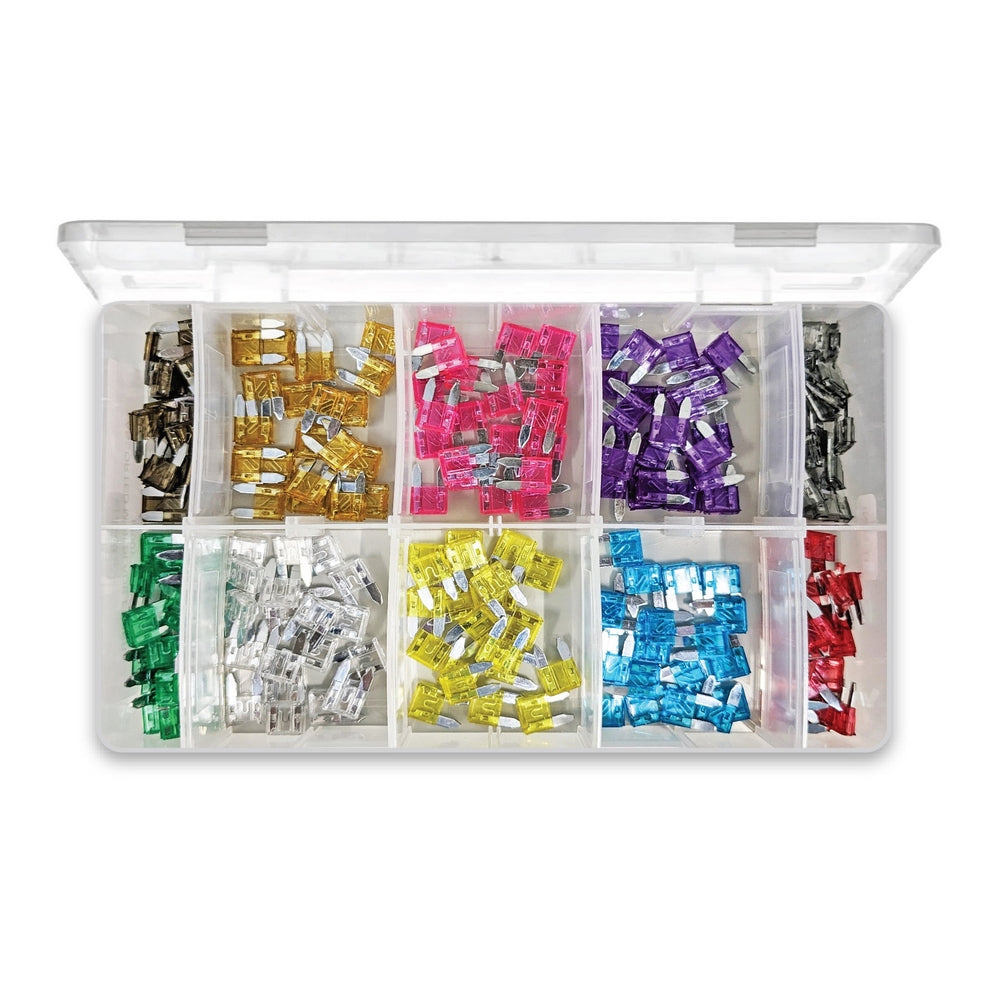

• Mini Blade Fuses.
• 2-30A
• 16.2 x 11 x 4mm (H,W,D)

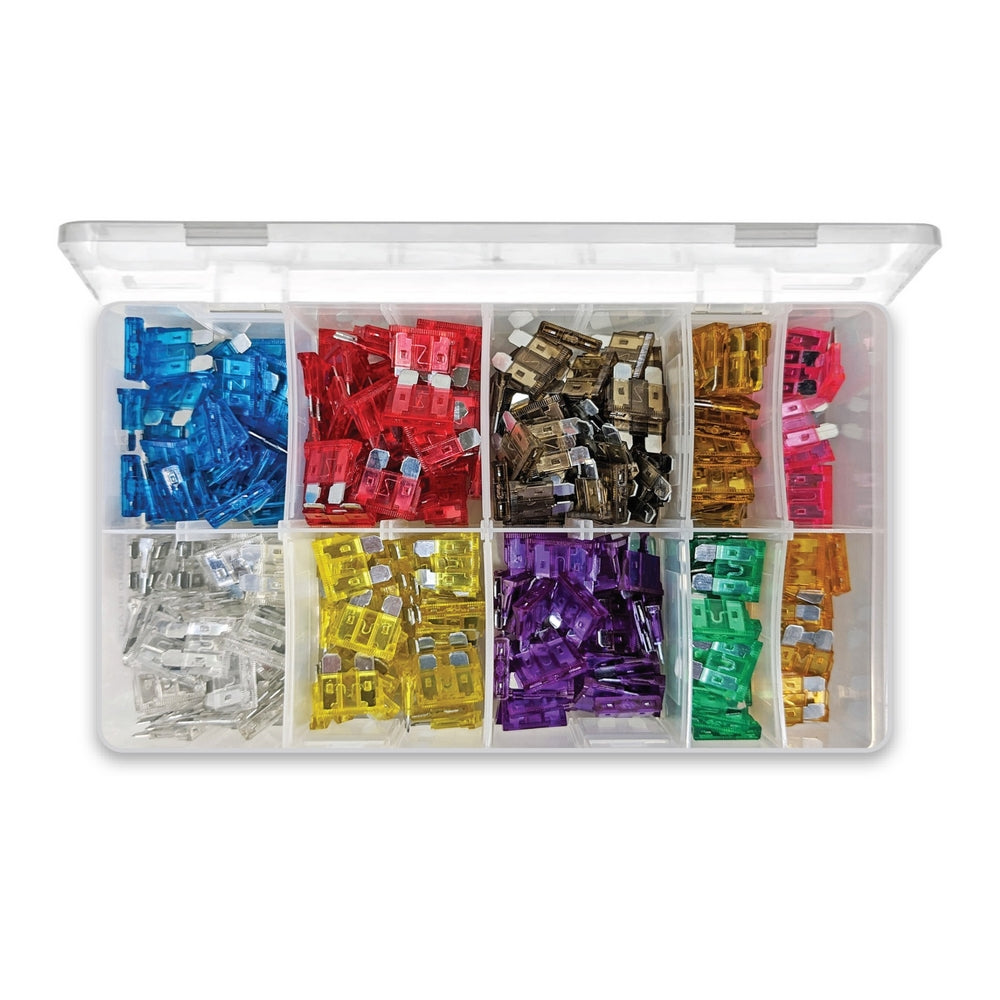

Standard Blade Fuse.

Fuse Range: 1 - 40 amps

19.5 x 19 x 5mm (H,W,D)

Maxi Blade Fuses.

Fuse Range: 20-100A

Size: 34 x 29.2 x 9mm (H,W,D)

Sold Individually

Protect high-current DC circuits directly at the battery terminal. Standard inline fuses leave the initial cable length unprotected against short circuits and fire hazards. The fuse itself consists of a metal strip mounted in an insulated ceramic block, which is fitted to a holder or clamp with an isolation nut, ensuring that all current passes through the fuse and not through the stud itself.

Their ultra-compact footprint simplifies mounting in tight battery boxes, offering a far more space-efficient and cost-effective solution. Each fuse features a clear inspection window to easily verify if the fuse has blown.

Key Features

• Terminal-Direct Protection: Mounts directly at the battery post via Single Stud or Twin Stud holders.
• Isolated Current Flow: Engineered with an insulating bushing and isolation nut so full current routes strictly through the fuse element.
• Compact & Easy Mounting: Minimal footprint fits effortlessly into restricted engine bays and small battery enclosures.
• Cost-Effective Alternative: Provides high-capacity protection at a fraction of the cost.
• Visual Indicator: Clear inspection window to easily verify if the fuse has blown.
• High Interrupt Rating (AIC): Built to safely clear high short-circuit currents on large battery banks.

Specification:

• Voltage Rating: Up to 58V DC (suitable for 12V, 24V, and 48V systems)
• Interrupt Rating (AIC):
  • 10,000A @ 14V DC
  • 5,000A @ 32V DC
  • 2,000A @ 58V DC
• Available Amperages: 50A, 60A, 80A, 100A, 125A, 150A, 200A, 250A, 300A
• Dimensions: 23 mm (L) × 20 mm (W) × 12 mm (H)
• Mounting Hole Size: M8

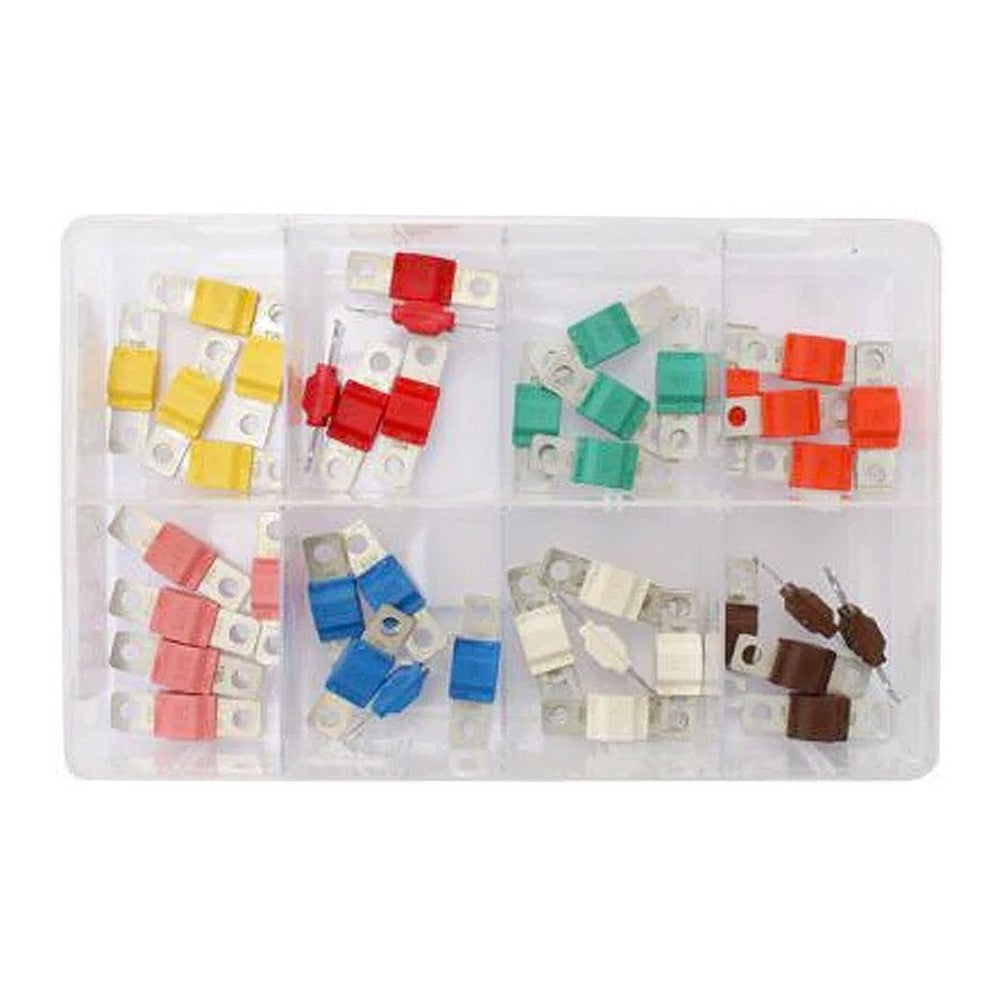

Amp Range: 30-150A

Size: 8 x 41.5 x 12mm (H,W,D)

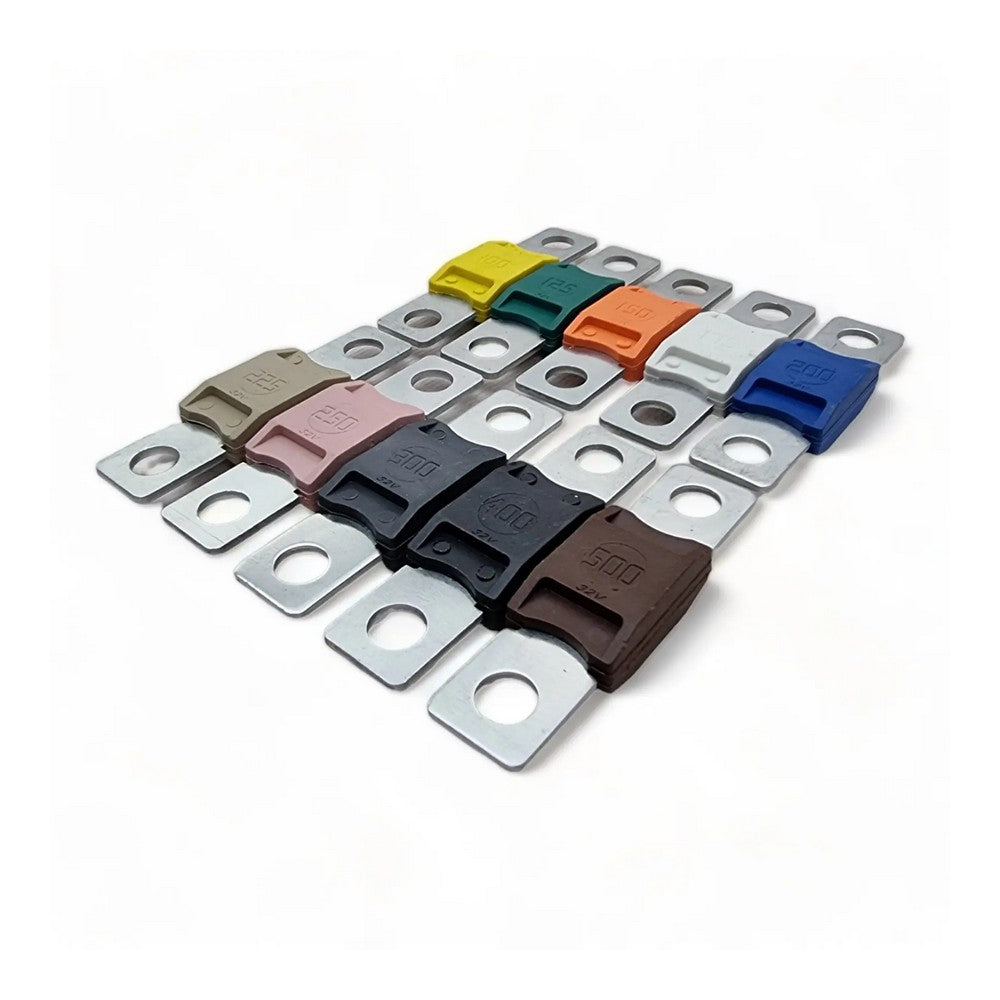

• Current Rating 40-500A (please select)
• Voltage Rating 32V dc
• Length 68mm
• Width 19mm
• Height 10mm

Corrosion resistant fuse which are time delayed to allow temporary harmless in-rush currents to pass, but open quickly on sustained overloads to protect circuits from overloads and short circuits.

• Current Rating 35-500A (please select)
• Voltage Rating 80V DC
• Ceramic Housing with Window
• Length 82mm
• Width 22mm
• Height 10mm

Class-T fuses are highly recommended for high power circuits that require extremely fast acting overload or short circuit protection.

Class-T fuses are the ideal choice for inverter and charger installations.

• Extremely current limiting - Stops damaging short circuit current faster than any mechanical protective device.
• Fast-Acting - Provides fast-acting overload protection
• Longer Equipment Life
• Series: JLLN
• Current Rating: 110-600A (please select)
• Voltage Rating: 125V DC
• Material: Melamine body, copper caps
• Standards: UL 248-15, Class T
• RoHS Compliant

Download Class-T Datasheet

20mm x 5mm Glass Fuse

Fuse Range: 1-10A

30mm x 6.3mm Glass Fuse

Fuse Range 1-35A
