Fuse Boxes

The DC Modular fuse holder for ATO Blade type fuses rated up to 300A. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 1-30A
• Max Voltage: 60V DC
• Stud Size: M8
• Dimensions: 150 x 50 x 66.5mm (L x W x H)

4 way fuse carrier with transparent cover to take standard blade fuses.

Side Entry 6.3mm Spade Terminals

36 x 80 x 29mm (L,W,H)

4 way fuse carrier with transparent cover.

Rear Entry.

53.5 x 25.8 x 57mm (L,W,H)

6 way fuse carrier with transparent cover.

Side Entry.

100 x 27 x 36.5mm (L,W,H)

6 way fuse carrier with transparent cover.

Rear Entry.

73.5 x 25.8 x 57mm (L,W,H)

8 way fuse carrier with transparent cover.

Side Entry.

120 x 27 x 36.5mm (L,W,H)

8 way fuse carrier with transparent cover.

Rear Entry.

120 x 27 x 36.5mm (L,W,H)

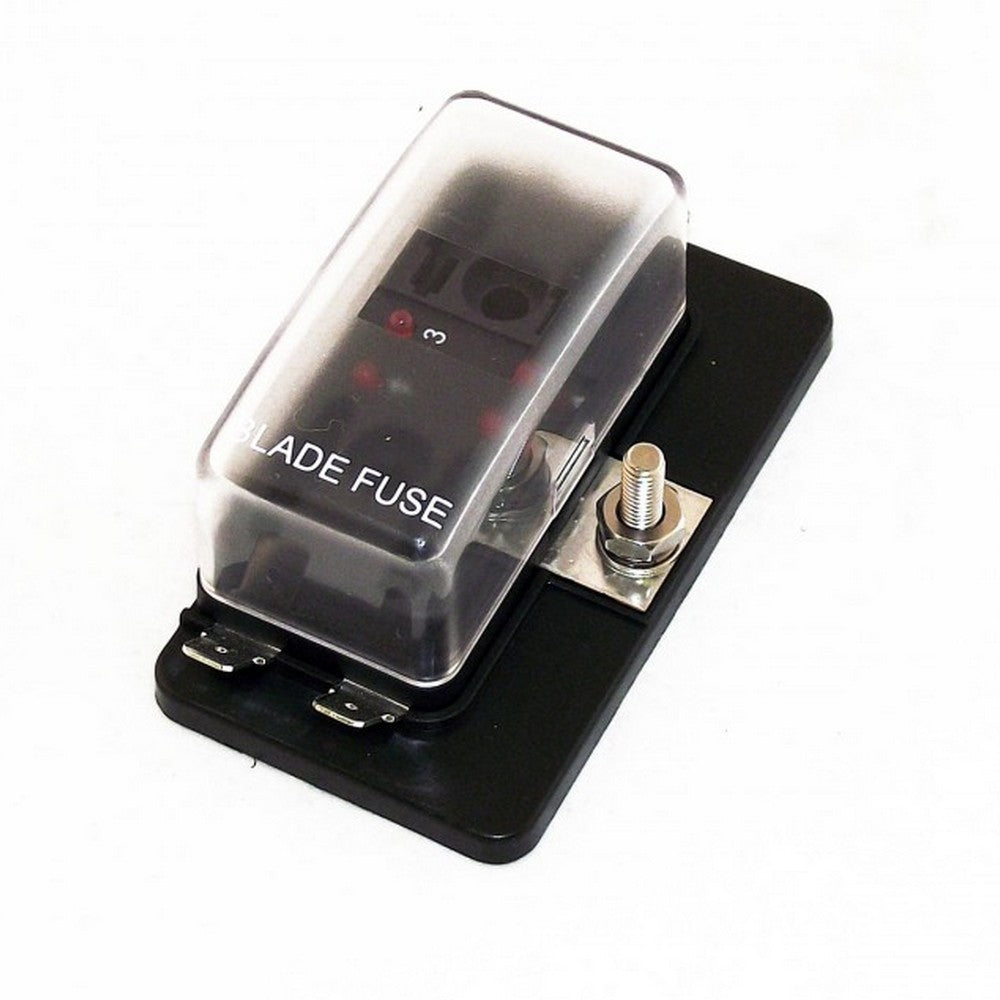

• Easy Open Latch Cover
• LED indicators for broken circuit
• Max 30A per circuit
• M5 Stud (input)
• 6.3mm Spade (output)
• 85 x 46 x 35mm

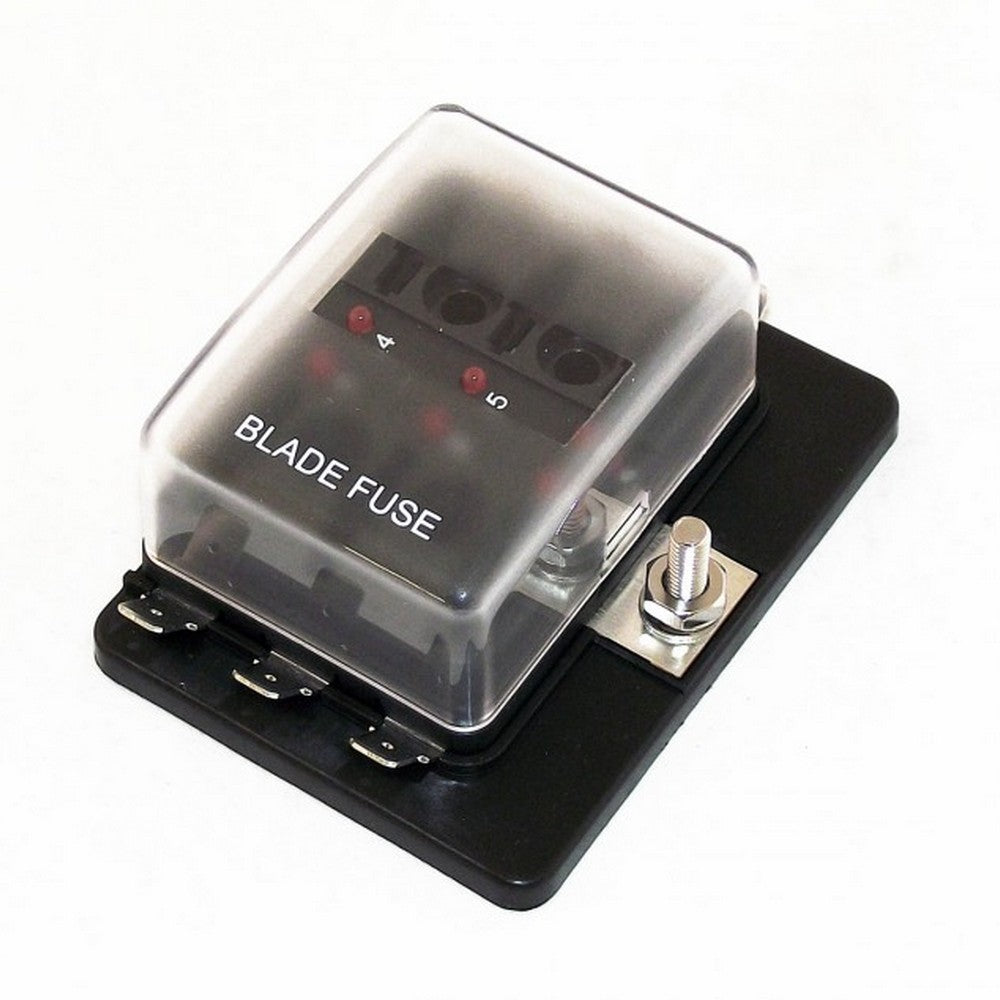

• Easy Open Latch Cover
• LED indicators for broken circuit
• Max 30A per circuit
• M5 Stud (input)
• 6.3mm Spade (output)
• 85 x 62 x 35mm

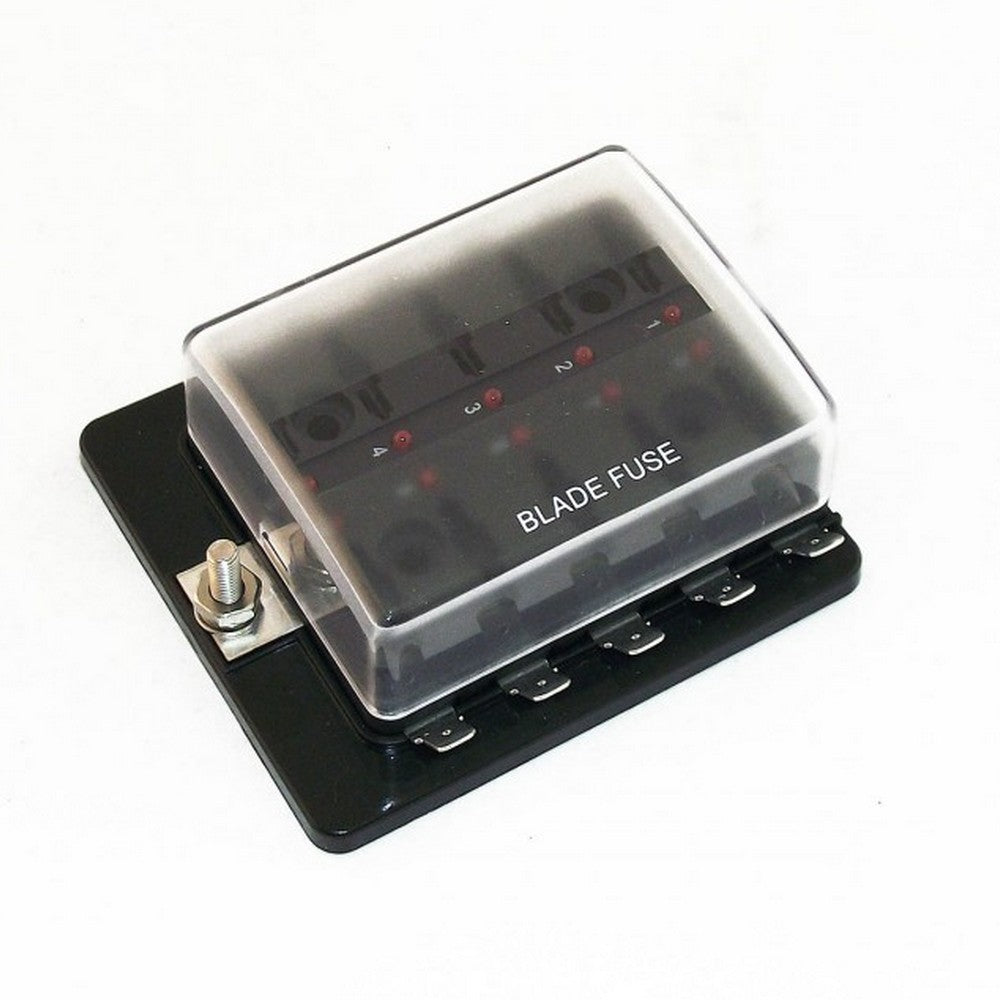

• Easy Open Latch Cover
• LED indicators for broken circuit
• Max 30A per circuit
• M5 Stud (input)
• 6.3mm Spade (output)
• 85 x 94 x 35mm

• Easy Open Latch Cover
• LED indicators for broken circuit
• Max 30A per circuit
• M5 Stud (input)
• M4 Screws (output)
• Screws and Legend Sheet Included
• 88 x 88 x 37mm (includes lid)

• Easy Open Latch Cover
• LED indicators for broken circuit
• Max 30A per circuit
• M5 Stud (input)
• M4 Screws (output)
• Screws and Legend Sheet Included
• 138 x 88 x 37mm (includes lid)

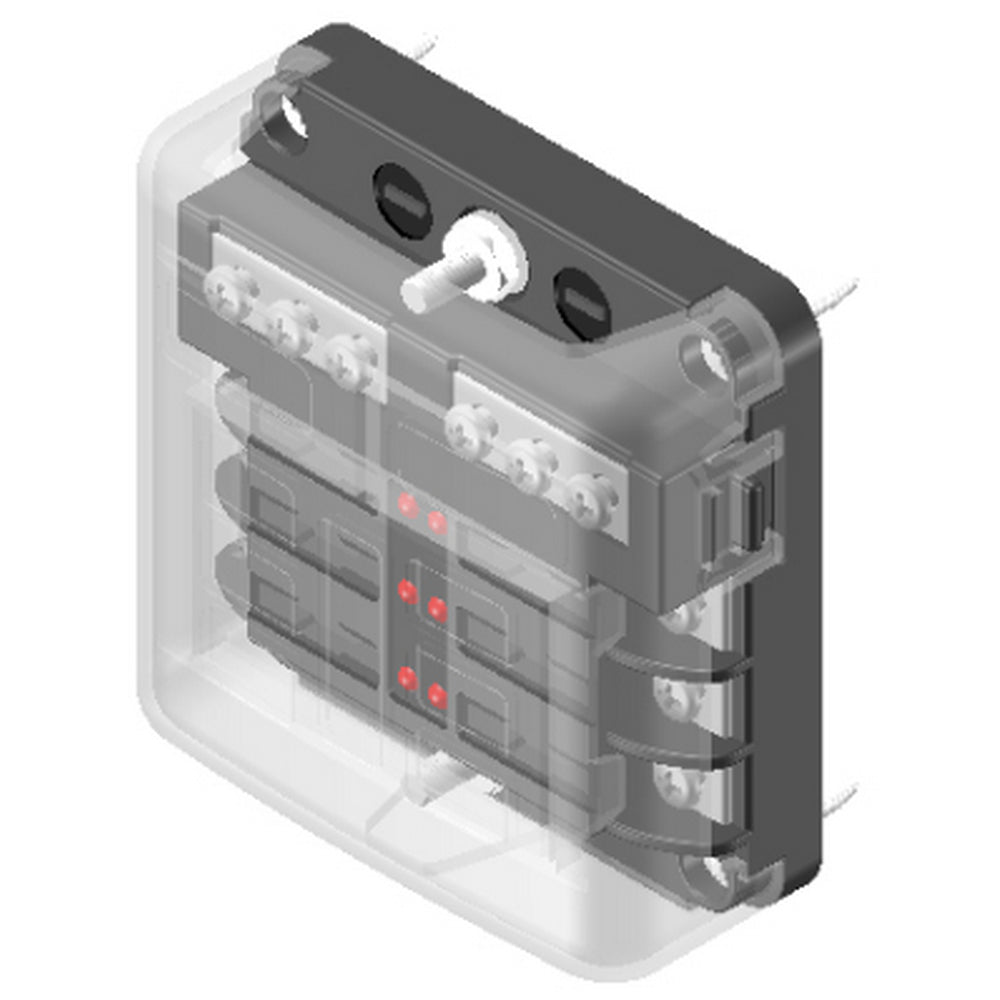

6 way blade fuse box consisting of 2 positive & 1 negative busbar.

Identification Labels included.

• Positive Circuit A: 1 x common busbar and 3 x individual circuits protected by standard blade fuses
• Positive Circuit B: 1 x common busbar and 3 x individual circuits protected by standard blade fuses
• Negative Circuit: 1 x common busbar (un-fused) plus 6 x individual connection blocks

The clear cover incorporates a twist & lock opening mechanism and sunken sides for easy opening with one hand. There is space inside the cover to hold 2 spare fuses and label recesses on the outside for easy circuit identification. The built in negative busbar can make this unit popular on boats, where the ground returns from each load needs to be collected together and run back to the battery.

Specification

• Voltage (Max): 32DC
• Input Terminal Rating: M5 threaded studs (100A max)
• Output Terminal Rating: 30A/30A max load per circuit
• Torque Rating: 20 in-lb (2.25Nm) max
• Mounting Torque Rating: 8 in-lb (0.9Nm) max
• Temperature Rating: -25°C to +85°C
• Material: Cover PC (clear)
• Housing & Base: PBT (black)
• Terminal: Tinned Copper
• Rating: 100A Max
• Dimensions: L125 x W95 x D59 mm (includes lid)

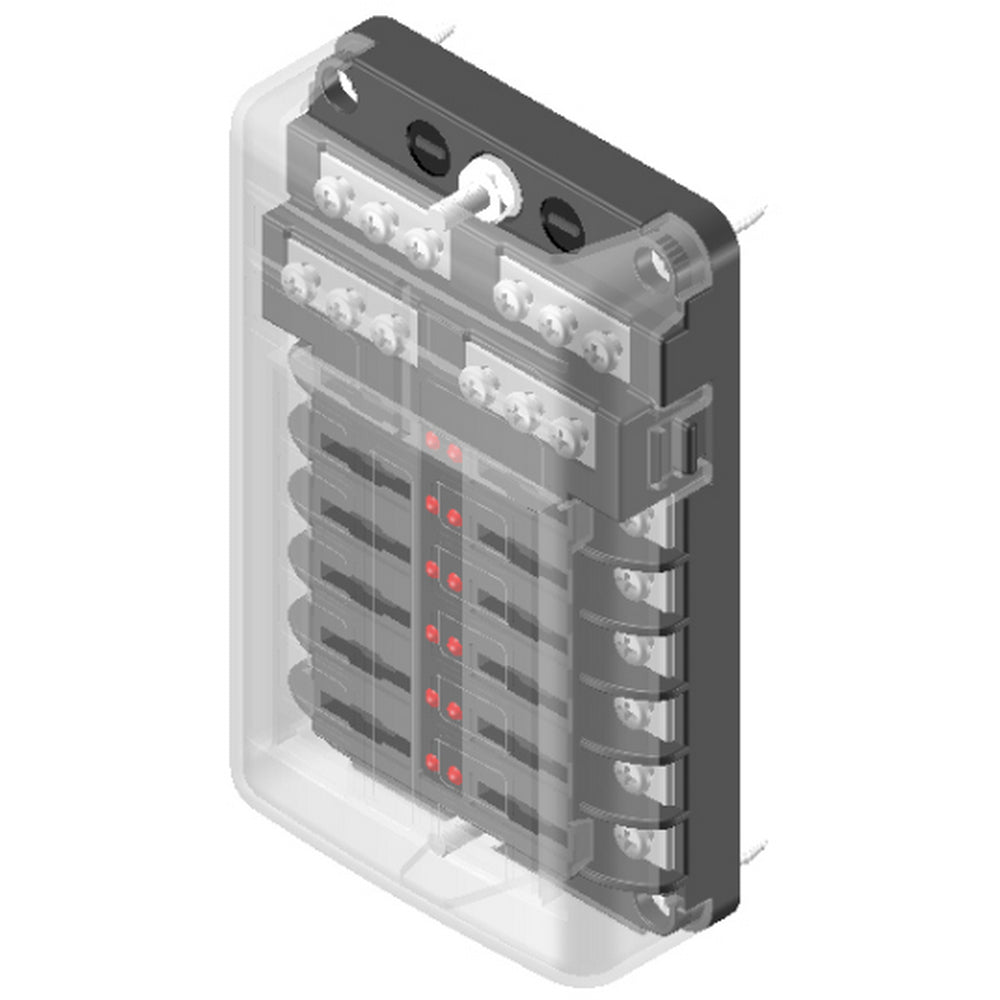

12 way blade fuse box consisting of 2 positive & 1 negative busbar.

Identification Labels included.

• Positive Circuit A: 1 x common busbar and 6 x individual circuits protected by standard blade fuses
• Positive Circuit B: 1 x common busbar and 6 x individual circuits protected by standard blade fuses
• Negative Circuit: 1 x common busbar (un-fused) plus 12 x individual connection blocks

The clear cover incorporates a twist & lock opening mechanism and sunken sides for easy opening with one hand. There is space inside the cover to hold 2 spare fuses and label recesses on the outside for easy circuit identification. The built in negative busbar can make this unit popular on boats, where the ground returns from each load needs to be collected together and run back to the battery.

Specification

• Voltage (Max): 32DC
• Input Terminal Rating: M5 threaded studs (100A max)
• Output Terminal Rating: 30A/30A max load per circuit
• Torque Rating: 20 in-lb (2.25Nm) max
• Mounting Torque Rating: 8 in-lb (0.9Nm) max
• Temperature Rating: -25°C to +85°C
• Material: Cover PC (clear)
• Housing & Base: PBT (black)
• Terminal: Tinned Copper
• Rating: 100A Max
• Dimensions: L164 x W95 x D59 mm (includes lid)

• The Mega fuse location has 2 cable entry options with a further 6 cable entry options for the 4 midi fuse locations, providing a number of versatile wiring configurations to suit your application.
• Nuts and locking washers are provided for all fuse locations and the body of the box incorporates 2 feet for mounting to a flat surface.
• Connection post sizes: 2 x M8, 8 x M5
• Tinned copper strips
• Max Total Load: 300A
• Overall size (with lid closed): 116 (L) x 94 (W) x 38(H) mm
• Note: The fuses should be installed underneath the copper strips so that they sit flat and are not distorted when the nuts are tightened down.
