Fuse Holders

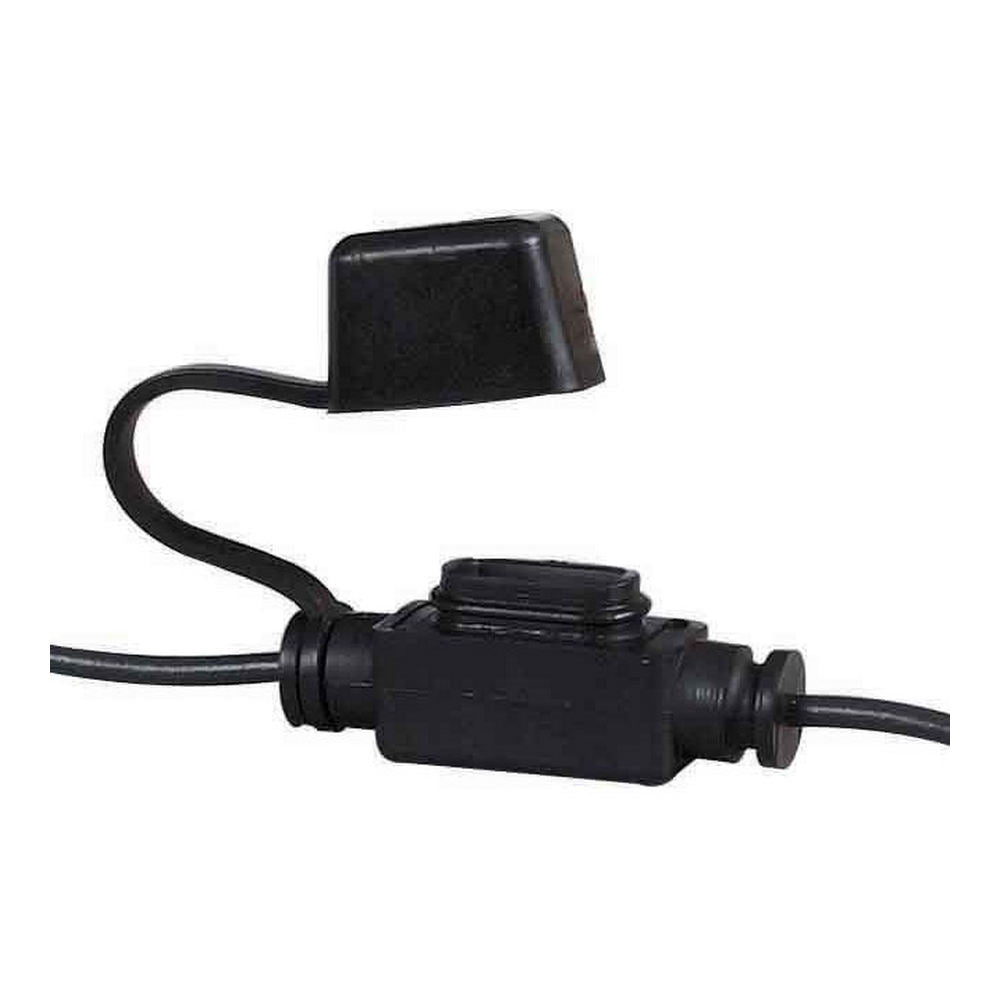

In-line splash proof mini blade fuse holder.

Designed to provide an additional fused feed in a mini blade fuse box.

In-line fuse holder with clip for gang mounting.

20A Max Rated

6.3 Spade Tabs.

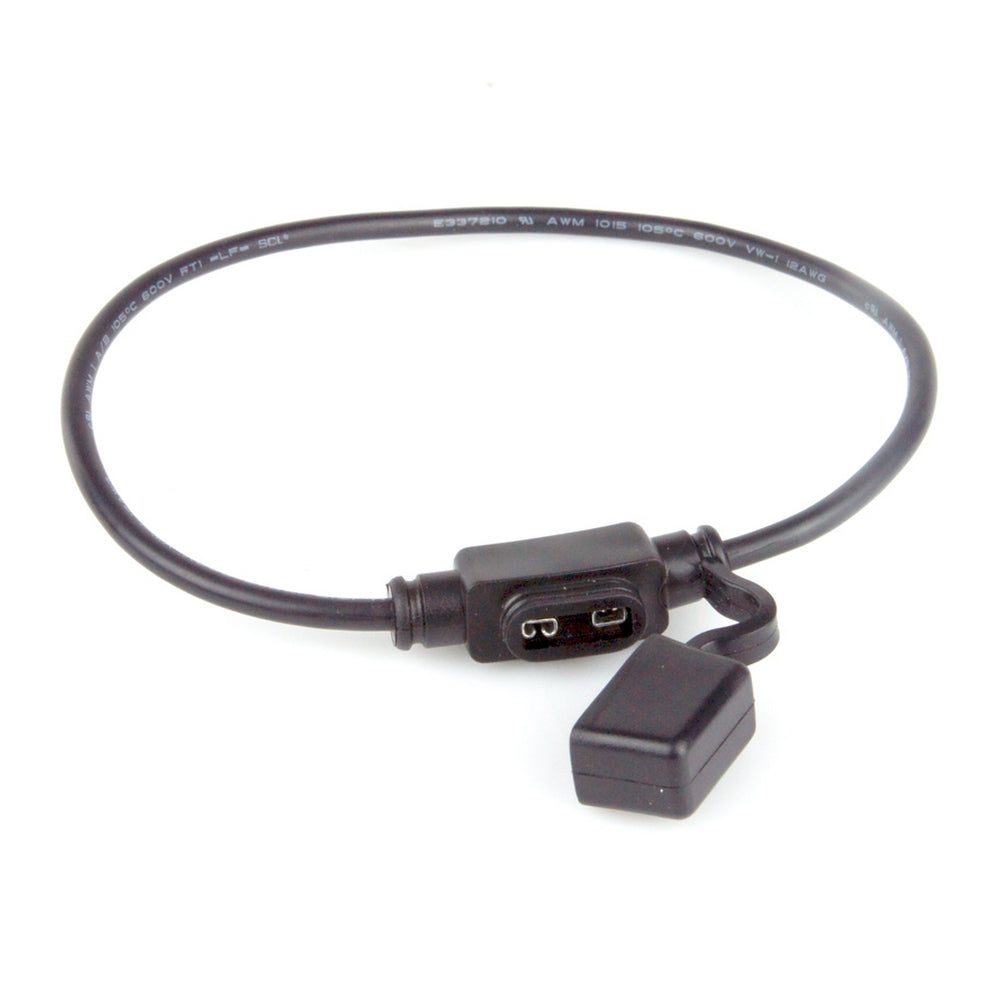

In-line splash proof fuse holder.

1-20 Amp.

Cable: 2.5mm².

In-line splash proof fuse holder.

1-30 Amp.

Cable: 4.0mm².

Blade fuse holder that clips to relay holders: 072900 & 072901

Designed to provide an additional fused feed in a standard blade fuse box.

Mount high-current circuit protection directly onto your battery post with this compact single-stud MRBF terminal fuse holder. Engineered to solve the danger of unprotected cable runs, it connects straight to an M10 battery stud or terminal clamp, allowing you to secure your main DC feeds right at the power source.

The holder features an isolated M8 stainless steel stud design with an insulating cap to prevent accidental shorts. It handles heavy current loads up to 300A in restricted spaces, making it an ideal, space-saving solution for campervans, marine craft, commercial vehicles, and off-grid solar battery banks.

Key Features

• Terminal-Direct Mounting: Secures straight onto an M10 battery post or terminal clamp.
• Isolated Stud Engineering: Isolated stainless steel stud, ensuring full circuit current flows strictly through the fuse element rather than the mounting hardware.
• Protective Insulating Cap: Includes a flexible red vinyl cover to shield live connections and prevent accidental short circuits.
• Compact Footprint: Space-saving design eliminates heavy inline fuse holders in tight battery enclosures and engine bays.
• Ignition Protected: Safe for installation in petrol-powered engine compartments and enclosed battery spaces when paired with an MRBF fuse.

Specification:

• Max Amperage Rating: 300A
• Max Voltage Rating: 58V DC (suitable for 12V, 24V, and 48V systems)
• Mounting Hole Size: Fits M10 battery terminal studs
• Fuse Stud Size: M8 threaded stud for ring terminals
• Maximum Torque: 8.47 Nm

• Compatible Fuses: Accepts standard MRBF cube fuses (50A – 300A)

Protect two independent high-current DC circuits directly from a single battery post using this compact twin-stud MRBF fuse holder. Designed to eliminate unprotected cable runs, it mounts straight onto an M10 battery stud or terminal clamp, allowing you to feed two separate loads—such as  inverter, windlass, bow thruster, etc—right at the energy source.

The dual-stud arrangement features isolated M8 stainless steel studs and an insulating base designed to handle up to 300A total combined. It includes a flexible insulating cap to guard against accidental shorts, making it an essential space-saver for campervans, marine, commercial vehicles, and motorhomes.

Key Features

• Dual-Circuit Terminal Protection: Consolidates protection for two independent circuits onto a single M10 battery terminal connection.
• Isolated Stud Engineering: Isolated stainless steel stud, ensuring full circuit current flows strictly through the fuse element rather than the mounting hardware.
• Protective Insulating Cap: Includes a flexible red vinyl cover to shield live connections and prevent accidental short circuits.
• Compact Footprint: Space-saving design eliminates heavy inline fuse holders in tight battery enclosures and engine bays.
• Ignition Protected: Safe for installation in petrol-powered engine compartments and enclosed battery spaces when paired with an MRBF fuse.

Specification:

• Max Amperage Rating: 300A
• Max Voltage Rating: 58V DC (suitable for 12V, 24V, and 48V systems)
• Mounting Hole Size: Fits M10 battery terminal studs
• Fuse Stud Size: M8 threaded stud for ring terminals
• Maximum Torque: 8.47 Nm

• Compatible Fuses: Accepts standard MRBF cube fuses (50A – 300A)

Individual fuse holder, accepts midi fuses.

The cable connections are made using the 2 x 5mm studs.

Multiple fuse holders can be clipped together to form a fuse block.

Max Voltage: 32V

Amperage Range: 30-200A

Individual fuse holder, accepts midi fuses or strip fuses. The cable connections are made using the 2 x 5mm studs.

Maximum cable size for this unit is 16mm².

Max Voltage: 32V

Amperage Range: 30-125A

Individual fuse holder, accepts mega fuses.

The cable connections are made using the 2 x 8mm studs.

Multiple fuse holders can be clipped together to form a fuse block.

Max Voltage: 32V

Amperage Range: 40-500A

The DC Modular fuse holder for Mega type fuses rated up to 300A. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 40-300A
• Max Voltage: 60V DC
• Stud Size: M8
• Dimensions: 89 x 50 x 53mm (L x W x H)

The DC Modular fuse holder for Mega type fuses rated up to 500A. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 40-500A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

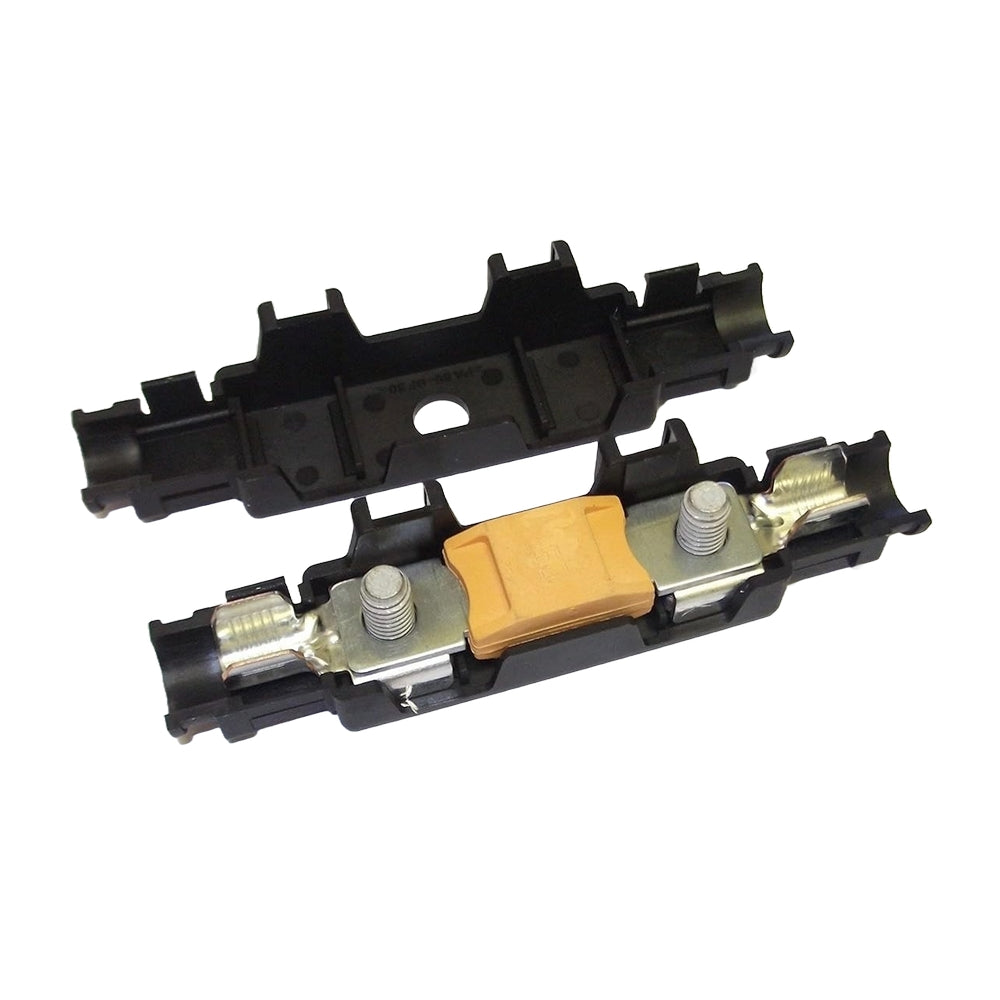

Individual fuse holder featuring a low profile design, suitable for use with mega fuses up to 500A. The fuse holder is supplied complete with 2 M8 Studs and non-insulated terminals suitable for crimping to 25-35mm² cable.

• Voltage rating: 32V DC
• Current rating: 500A
• Fixing hole diameter: 9.9mm
• Cable size: 25-35mm2
• Overall dimensions: 123 x 33.3 x 24.7mm (L x W x H)

The DC Modular fuse holder for ANL type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 35-300A
• Max Voltage: 60V DC
• Stud Size: M8
• Dimensions: 100 x 50 x 53mm (L x W x H)

The DC Modular fuse holder for ANL type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 35-300A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 100 x 50 x 53mm (L x W x H)

The DC Modular fuse holder for ANL type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 35-600A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

The DC Modular fuse holder for CLASS-T type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 110-200A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

The DC Modular fuse holder for CLASS-T type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 225-400A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

The DC Modular fuse holder for CLASS-T type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 450-600A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

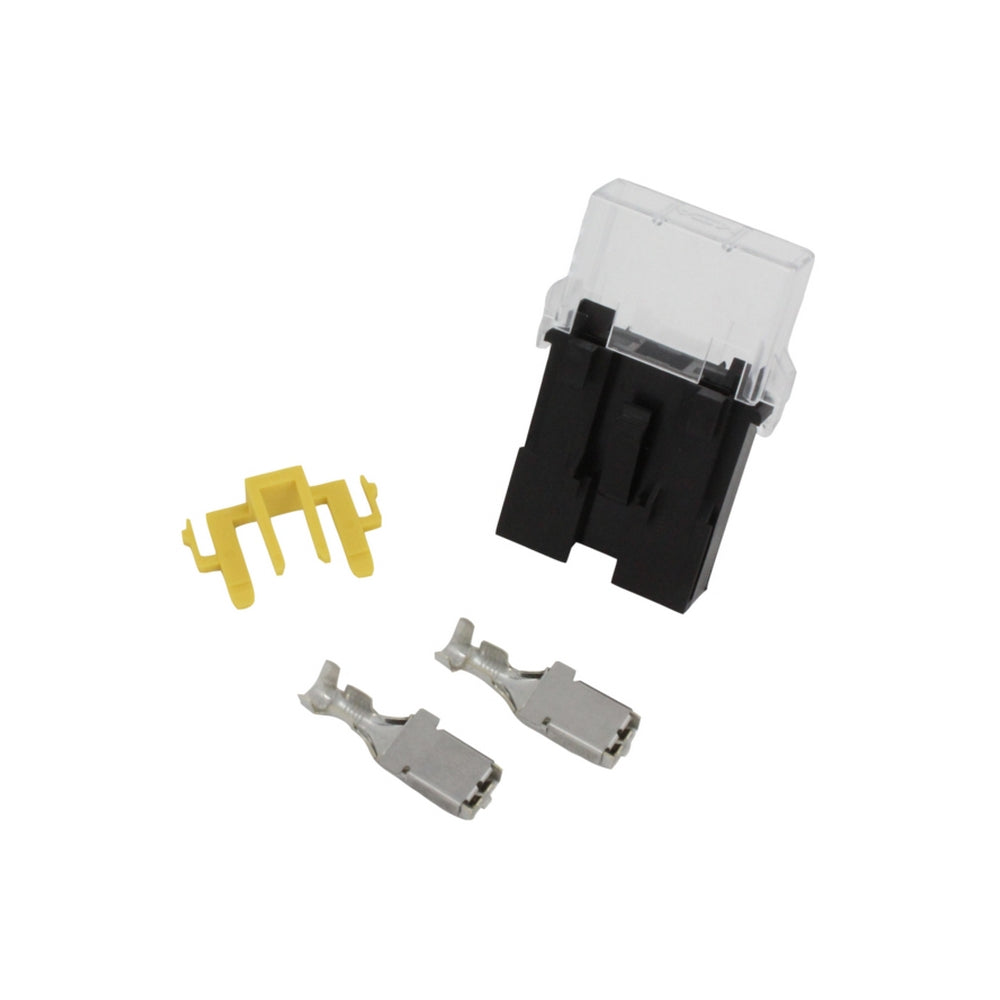

Single way fuse holder with clip for gang mounting.

To fit cable size: 4 - 6mm²

Single way fuse holder with clip for gang mounting.

To fit cable size: 6 - 10mm²

White nylon In-line fuse holder complete with 2mm cable & 6.3mm spade terminals.

Clear in-line screw fit fuse holder to IP66.
