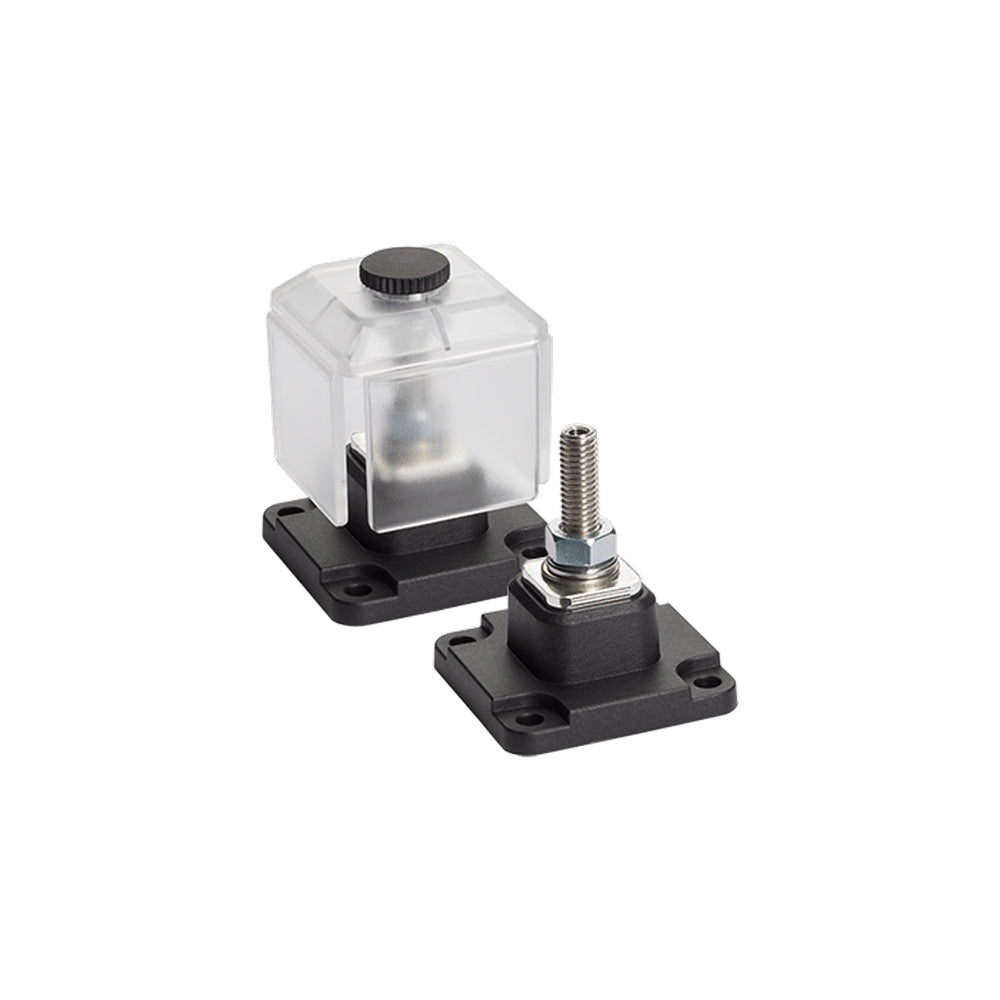

The DC Modular single insulated studs are ideal parts to extend cables, add power taps or form termination end-points.
The solid and compact design, as well as the possibility to link these up with other DC Modular family members, make these products the best choice for all professional
DC power systems. The insulated studs are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Top sides of transparent covers are equipped with recessed locations to properly add custom labels (Dual insulated stud only)
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 1 x M8 Single Stud
• Max Voltage: 60V DC
• Operating Temperature Range: -25°C - +80°C
• Dimensions: 50 x 50 x 64.56 (L x W x H)

The DC Modular single insulated studs are ideal parts to extend cables, add power taps or form termination end-points.
The solid and compact design, as well as the possibility to link these up with other DC Modular family members, make these products the best choice for all professional
DC power systems. The insulated studs are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Top sides of transparent covers are equipped with recessed locations to properly add custom labels (Dual insulated stud only)
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 1 x M10 Single Stud
• Max Voltage: 60V DC
• Operating Temperature Range: -25°C - +80°C
• Dimensions: 50 x 50 x 64.56 (L x W x H)

The DC Modular single insulated studs are ideal parts to extend cables, add power taps or form termination end-points.
The solid and compact design, as well as the possibility to link these up with other DC Modular family members, make these products the best choice for all professional
DC power systems. The insulated studs are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Top sides of transparent covers are equipped with recessed locations to properly add custom labels (Dual insulated stud only)
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 2 x M8 Dual Stud
• Max Voltage: 60V DC
• Operating Temperature Range: -25°C - +80°C
• Dimensions: 75 x 50 x 64.56 (L x W x H)

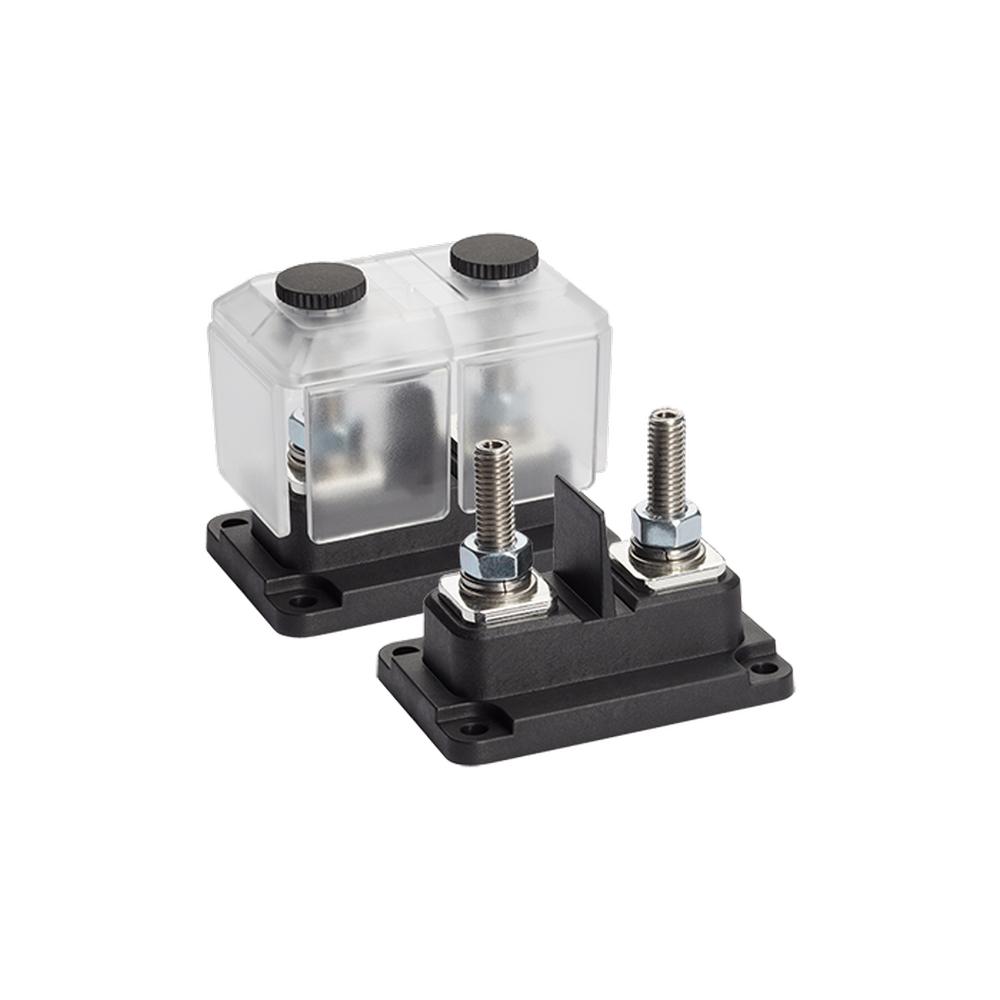

The DC Modular single insulated studs are ideal parts to extend cables, add power taps or form termination end-points.
The solid and compact design, as well as the possibility to link these up with other DC Modular family members, make these products the best choice for all professional
DC power systems. The insulated studs are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Top sides of transparent covers are equipped with recessed locations to properly add custom labels (Dual insulated stud only)
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 2 x M10 Dual Stud
• Max Voltage: 60V DC
• Operating Temperature Range: -25°C - +80°C
• Dimensions: 75 x 50 x 64.56 (L x W x H)

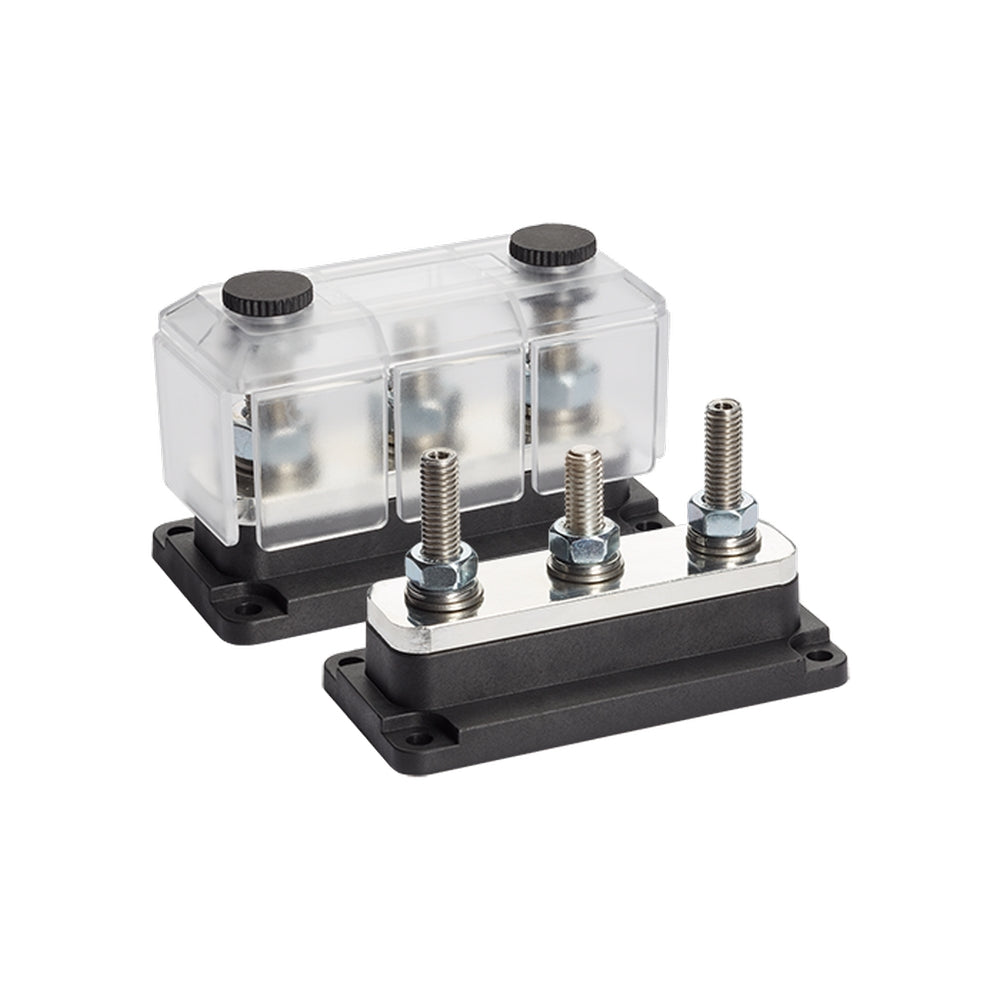

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 3 x M8 Stud Busbar
• Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 100 x 50 x 64.5mm (L x W x H)


The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 3 x M10 Stud Busbar
• Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 100 x 50 x 64.5mm (L x W x H)

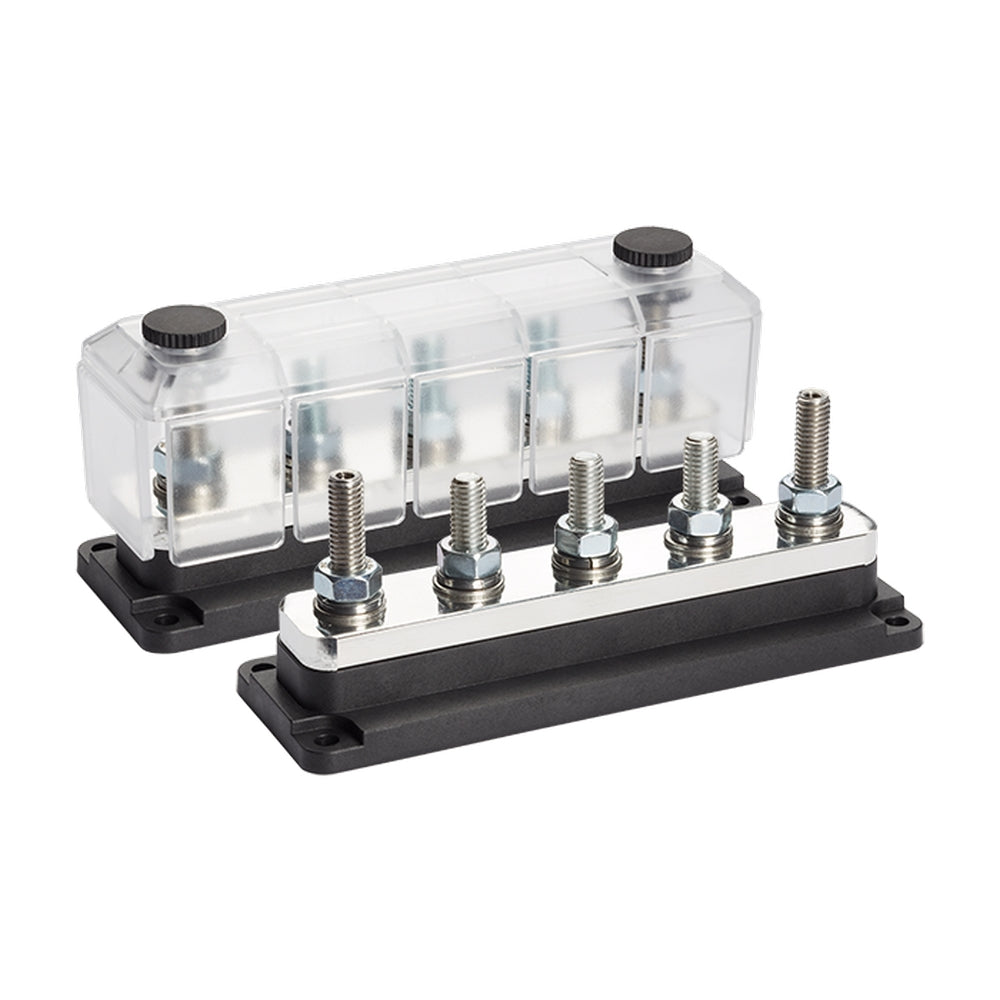

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 5 x M8 Stud Busbar
• Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

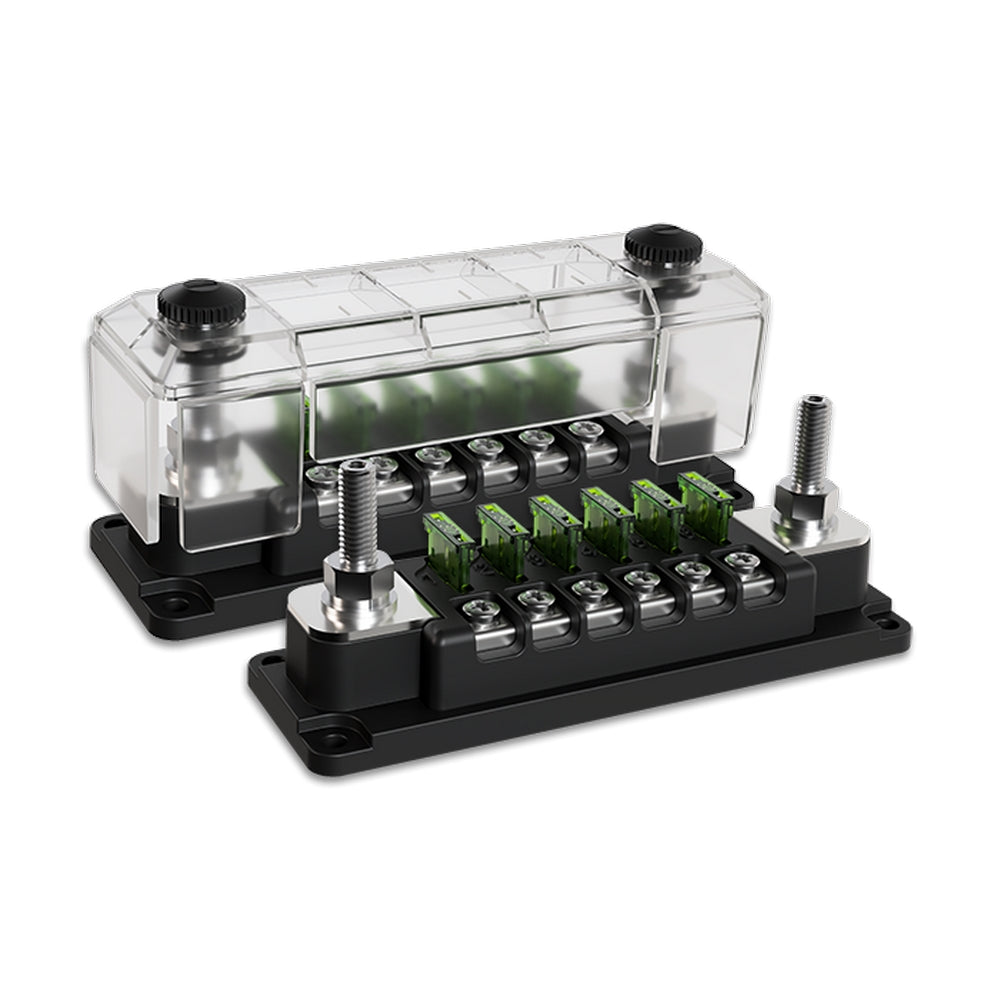

The DC Modular fuse holder for ATO Blade type fuses rated up to 300A. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 1-30A
• Max Voltage: 60V DC
• Stud Size: M8
• Dimensions: 150 x 50 x 66.5mm (L x W x H)

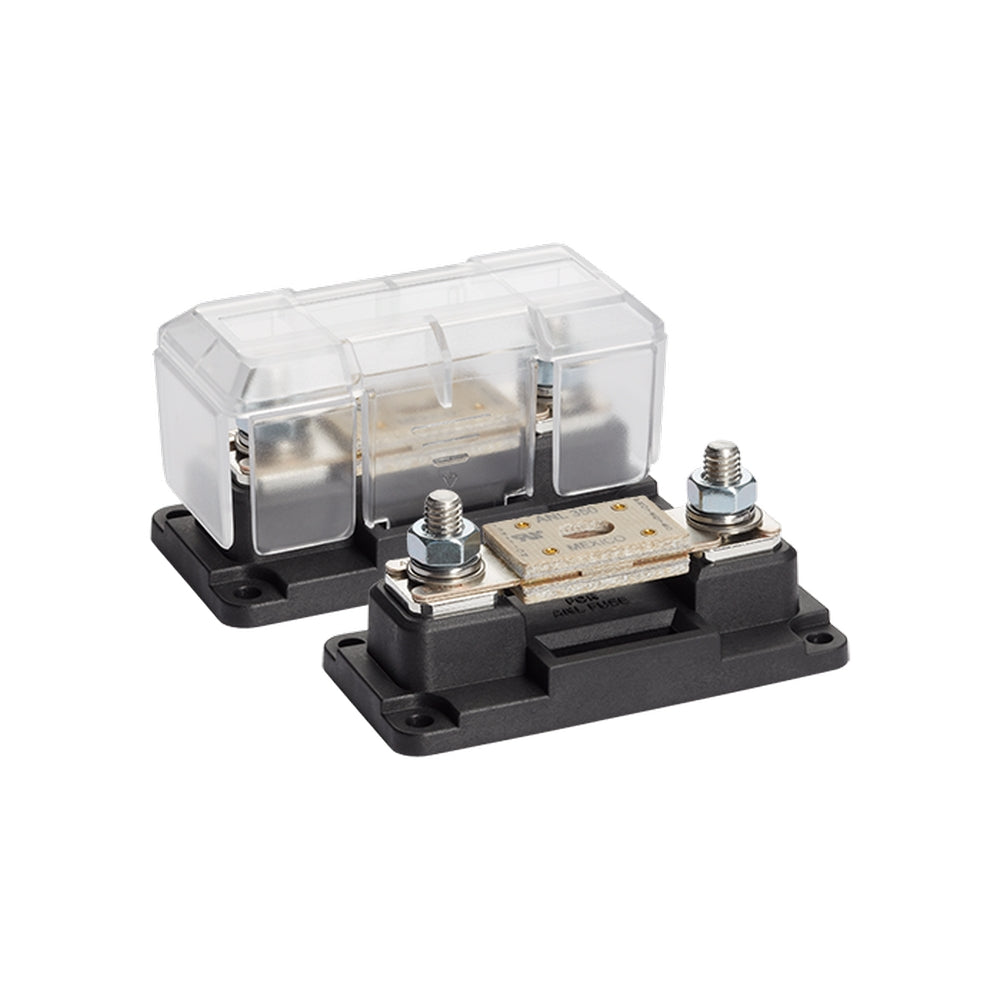

The DC Modular fuse holder for ANL type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 35-300A
• Max Voltage: 60V DC
• Stud Size: M8
• Dimensions: 100 x 50 x 53mm (L x W x H)

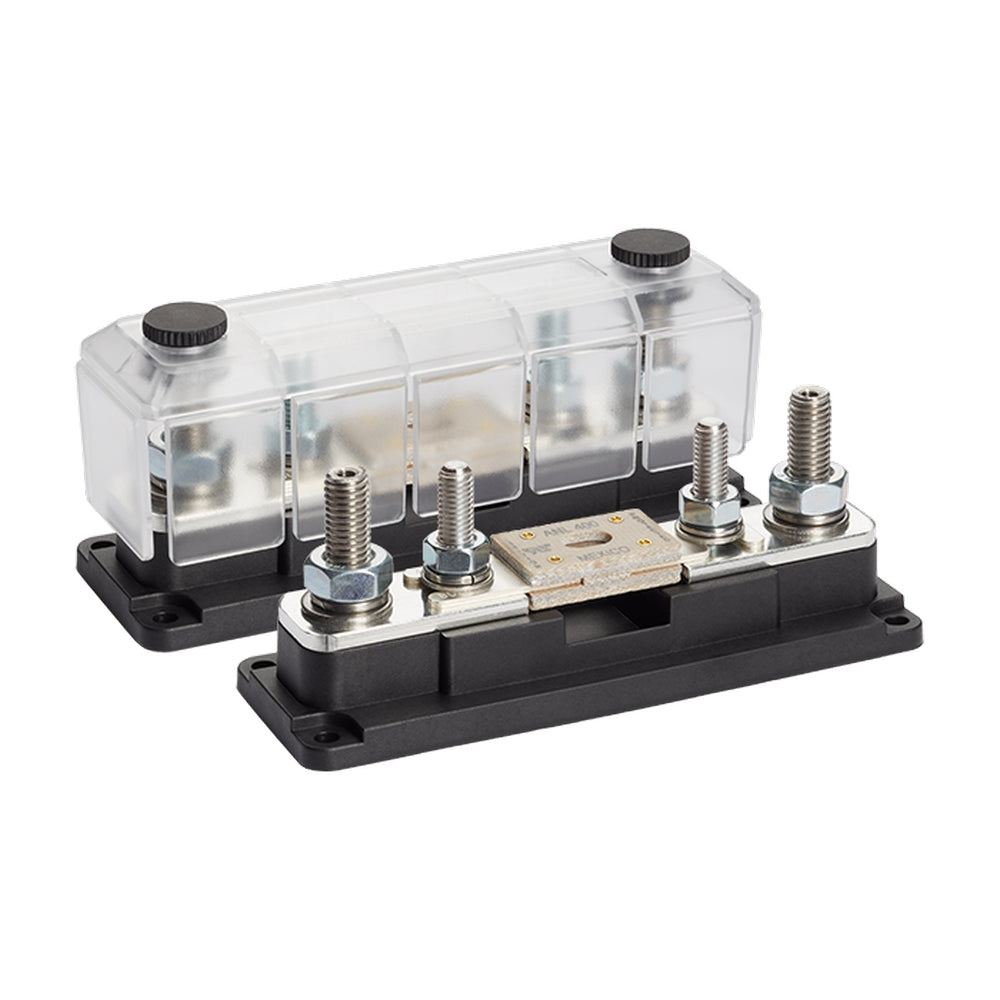

The DC Modular fuse holder for ANL type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 35-600A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

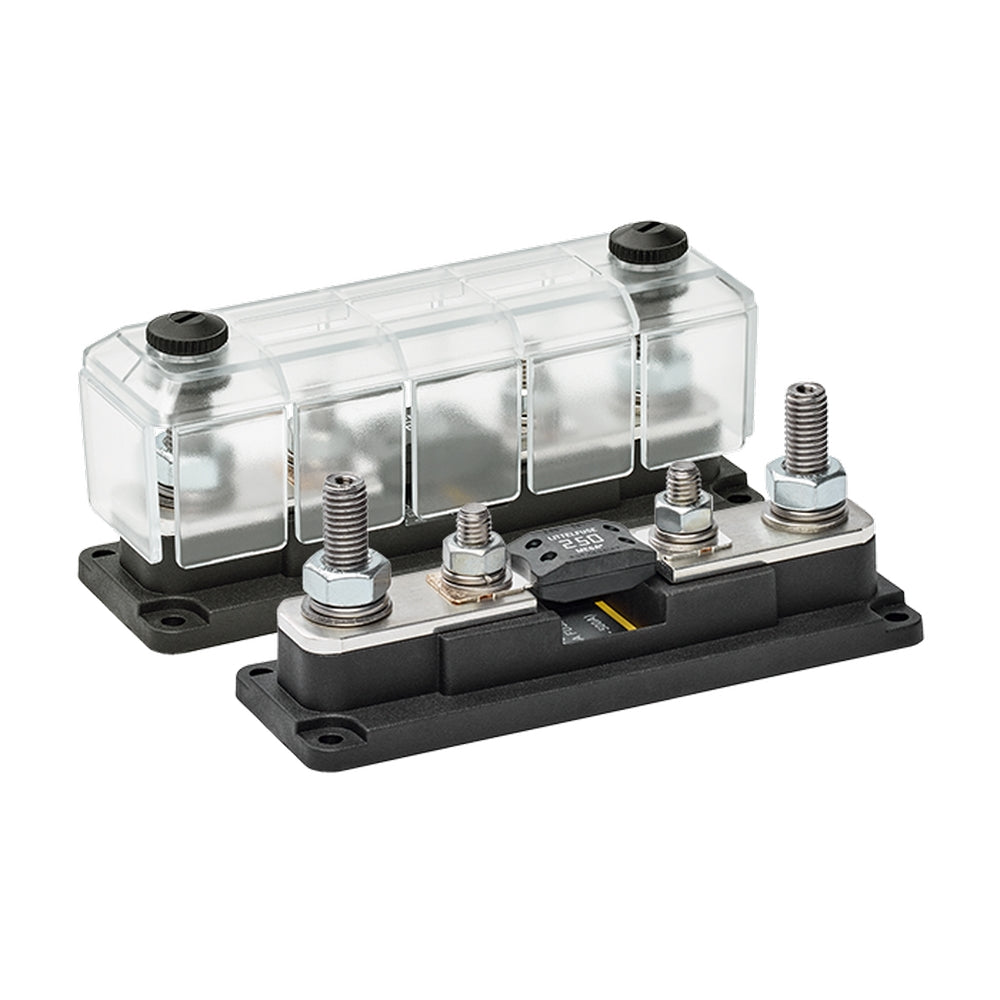

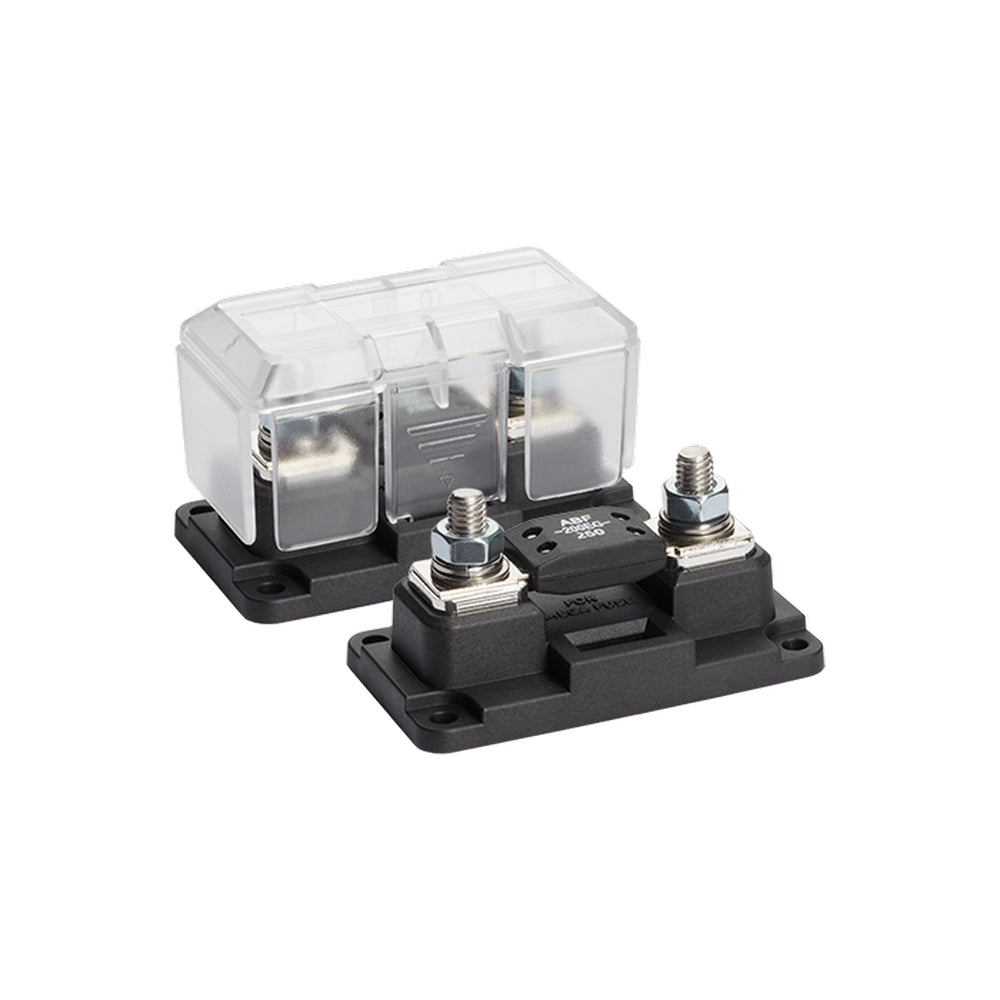

The DC Modular fuse holder for Mega type fuses rated up to 300A. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 40-300A
• Max Voltage: 60V DC
• Stud Size: M8
• Dimensions: 89 x 50 x 53mm (L x W x H)

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

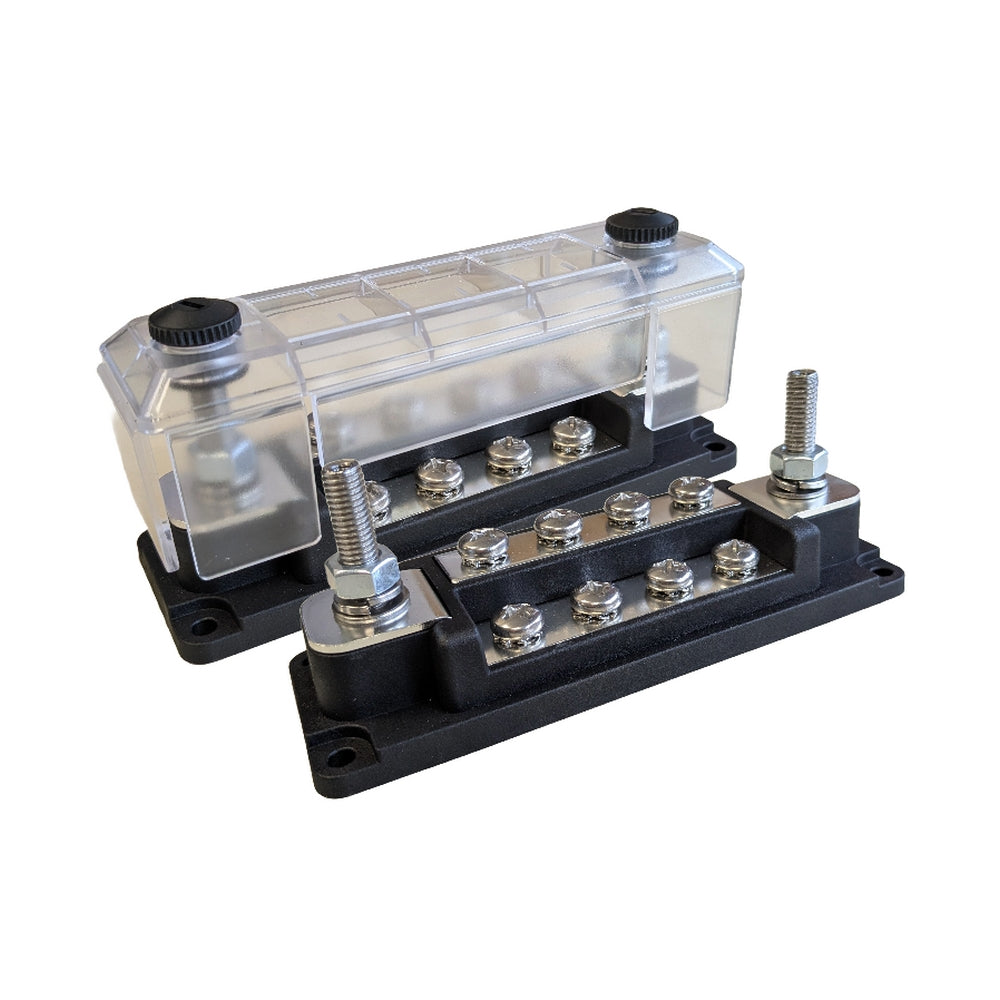

• 8 x M6 Screws
• 2 x M8 Studs
• Max Current: 300A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 600A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 66.5mm (L x W x H)

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

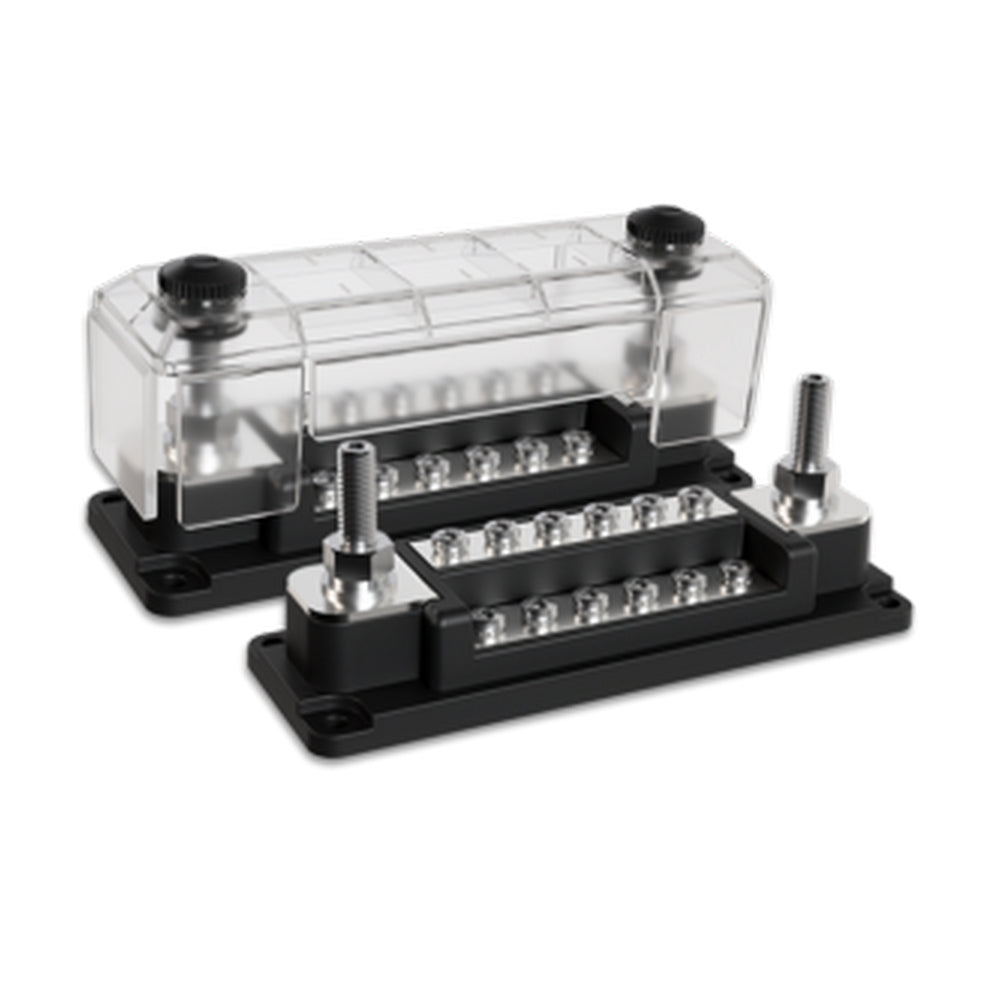

• 12 x M4 Screws
• 2 x M8 Studs
• Max Current: 300A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 600A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 66.5mm (L x W x H)

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 5 x M10 Stud Busbar
• Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

The DC Modular fuse holder for Mega type fuses rated up to 500A. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 40-500A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

The DC Modular fuse holder for ANL type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 35-300A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 100 x 50 x 53mm (L x W x H)

The DC Modular fuse holder for CLASS-T type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 450-600A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

The DC Modular fuse holder for CLASS-T type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 225-400A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

Spare fastening screw for the TBS DC Modular series.

75A Link plate suitable for side by side linking of TBS DCM Mega (300A) and ANL (300A) fuse holders in a cluster. Also compatible with other DCM modules.

A higher current can be achieved by stacking the link plates alternately up to a maximum of 4 plates (300A).

Click here for document download

Product Info:

• Max Current: 75A
• Accepts Stud Size: M8 + M10

Adapter Plate which allows a mixture of high and low power cables to be connected to the same stud. The Adapter Plate can be used on M8 and M10 studs and offers four connection points for smaller cables

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A
• Dimensions: 46 x 25mm
• Accepts Stud Size: M8 + M10
• See image for linking options

Due to the common interconnection heights, smart space saving arrangements of multiple DC Modular products can be made by linking these together using the optional Link Plates

We have managed to offer only three Link Plate sizes to create all possible combinations. All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with two M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders
• Current capacity can be doubled by stacking two Link Plates (after removal of M4 screws)

Product Info:

• Max Current: 600A
• Dimensions: 63 x 25mm
• Accepts Stud Size: M8 + M10
• See image for linking options

Due to the common interconnection heights, smart space saving arrangements of multiple DC Modular products can be made by linking these together using the optional Link Plates

We have managed to offer only three Link Plate sizes to create all possible combinations. All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with two M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders
• Current capacity can be doubled by stacking two Link Plates (after removal of M4 screws)

Product Info:

• Max Current: 600A
• Dimensions: 75 x 25mm
• Accepts Stud Size: M8 + M10
• See image for linking options

Due to the common interconnection heights, smart space saving arrangements of multiple DC Modular products can be made by linking these together using the optional Link Plates

We have managed to offer only three Link Plate sizes to create all possible combinations. All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with two M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders
• Current capacity can be doubled by stacking two Link Plates (after removal of M4 screws)

Product Info:

• Max Current: 600A
• Dimensions: 125 x 25mm
• Accepts Stud Size: M8 + M10
• See image for linking options

Dual Row Link Plates simplify multi-cluster connections by replacing multiple 41mm or 50mm link plates with a single large plate, making installations more efficient.

All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A

• Accepts Stud Size: M8 + M10


Dual Row Link Plates simplify multi-cluster connections by replacing multiple 41mm or 50mm link plates with a single large plate, making installations more efficient.

All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A

• Accepts Stud Size: M8 + M10


Dual Row Link Plates simplify multi-cluster connections by replacing multiple 41mm or 50mm link plates with a single large plate, making installations more efficient.

All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A

• Accepts Stud Size: M8 + M10


The DC Modular Remote Battery Switch (RBS) is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500Amps. The RBS can easily be installed in an engine room or battery compartment, while being controlled from a more convenient location by a small panel mounted switch. But the RBS can for instance also be controlled by a battery monitor or managed Lithium battery.

Besides controlling the RBS remotely, buttons positioned at the top also provide a way to open or close the main contact locally. For external control, the RBS is equipped with a 5 wire interface cable. It can be configured to accept two wire or single wire ON/OFF commands for optimal flexibility.

The RBS is a magnetic latching relay, which means that there is no current draw from the battery when the contact is closed. This is a great benefit compared to regular relays which do require a (sometimes significant-) hold current to keep the contact closed.

Another benefit of the RBS are the built in protections. It is protected against high/low supply voltage and high temperature. On top of this, there is a smart function available to automatically fix light to medium contact weldings. And finally, the RBS is also ignition protected according to ISO8846.

• Electronically controlled magnetic latching contactor
• Extremely low power consumption (< 100µA)
• 500Amp nominal current
• 60Vdc contact rating
• Local and external open / close control
• Visual status indicators
• Small footprint
• DC Modular grid compatible for compact and easy arrangements of multiple devices
• Selectable control modes
• Panel Switch included

Download Datasheet

The DC Modular Remote Battery Switch (RBS) is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500Amps. The RBS can easily be installed in an engine room or battery compartment, while being controlled from a more convenient location by a small panel mounted switch. But the RBS can for instance also be controlled by a battery monitor or managed Lithium battery.

Besides controlling the RBS remotely, buttons positioned at the top also provide a way to open or close the main contact locally. For external control, the RBS is equipped with a 5 wire interface cable. It can be configured to accept two wire or single wire ON/OFF commands for optimal flexibility.

The RBS is a magnetic latching relay, which means that there is no current draw from the battery when the contact is closed. This is a great benefit compared to regular relays which do require a (sometimes significant-) hold current to keep the contact closed.

Another benefit of the RBS are the built in protections. It is protected against high/low supply voltage and high temperature. On top of this, there is a smart function available to automatically fix light to medium contact weldings. And finally, the RBS is also ignition protected according to ISO8846.

• Electronically controlled magnetic latching contactor
• Extremely low power consumption (< 100µA)
• 500Amp nominal current
• 60Vdc contact rating
• Local and external open / close control
• Visual status indicators
• Small footprint
• DC Modular grid compatible for compact and easy arrangements of multiple devices
• Selectable control modes
• Panel Switch Included

Download Datasheet

TBS panel switch enables you to send open and close commands to the TBS Remote Battery Switch contactors from a convenient location.

This switch is a Single Pole Double Throw (ON)-OFF-(ON) variant that is optimized for the two wire (Set / Reset) control method. The integrated low current LED indicates when the contact is closed or when the contactor is running in a certain mode.

This switch is IP65 rated when installed together with the supplied rubber panel seal.

These switches are now included with the remote switch modules. Purchase this switch for replacement only.

The Expert Lite is an entry level battery monitor offered at a very competitive price.
