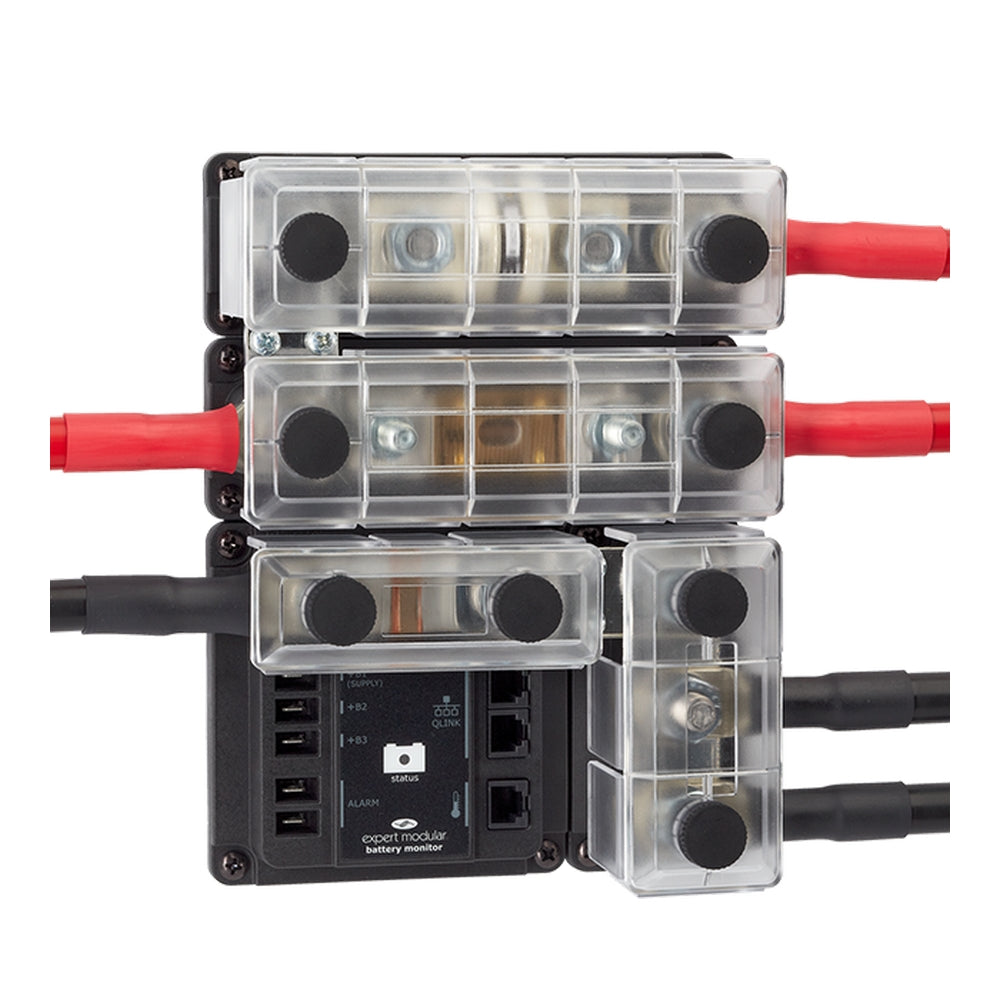

TBS DCM Mega Fuse Holder M8 - 300A

The DC Modular fuse holder for Mega type fuses rated up to 300A. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 40-300A
• Max Voltage: 60V DC
• Stud Size: M8
• Dimensions: 89 x 50 x 53mm (L x W x H)
