TBS/5073880

TBS DCM Class-T Fuse Holder M10 (450-600A)

(£46.43 Inc. VAT at 20%)
Product Description+

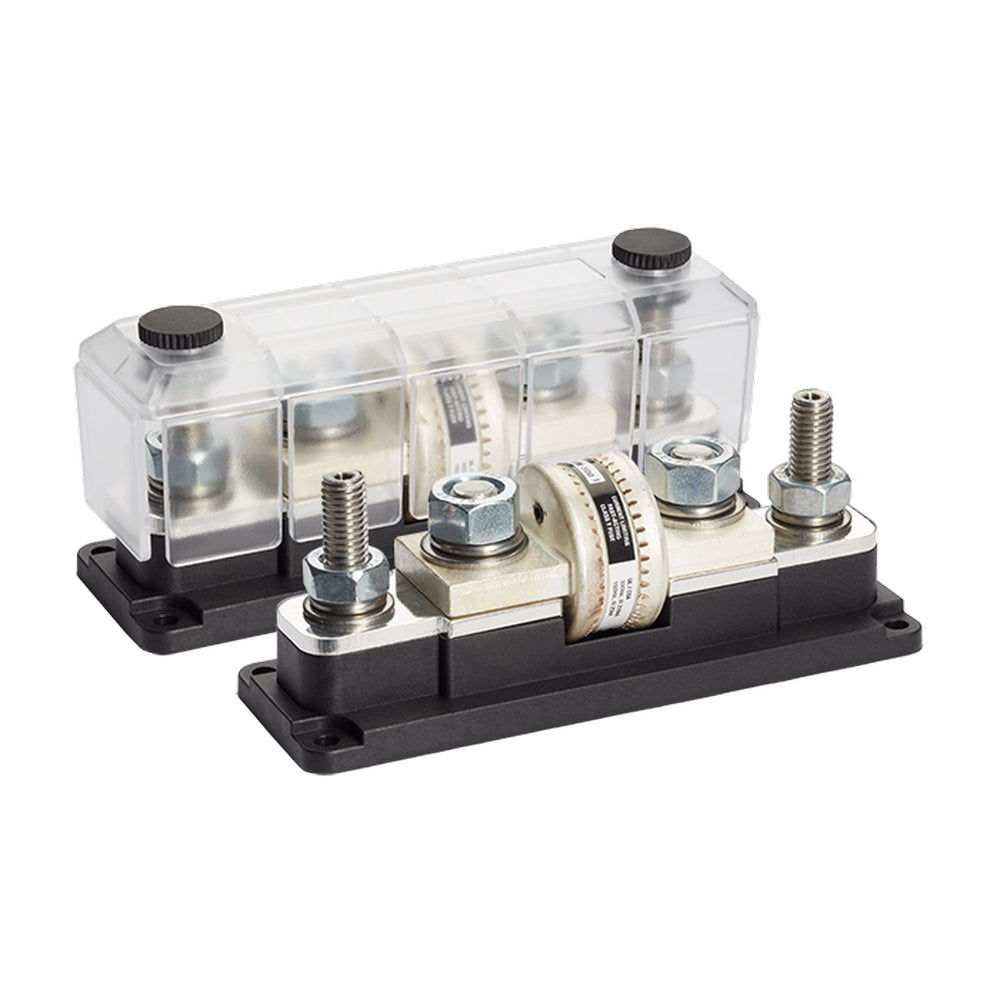

The DC Modular fuse holder for CLASS-T type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Smart terminal design allows dual mirrored cable lug connections

Product Info:

  • Fuse Range: 450-600A
  • Max Voltage: 60V DC
  • Stud Size: M10
  • Dimensions: 150 x 50 x 64.5mm (L x W x H)
