TBS Expert Lite Battery Monitor with 500A Shunt

The Expert Lite is compatible with lead based and Lithium batteries (LiFePO4).

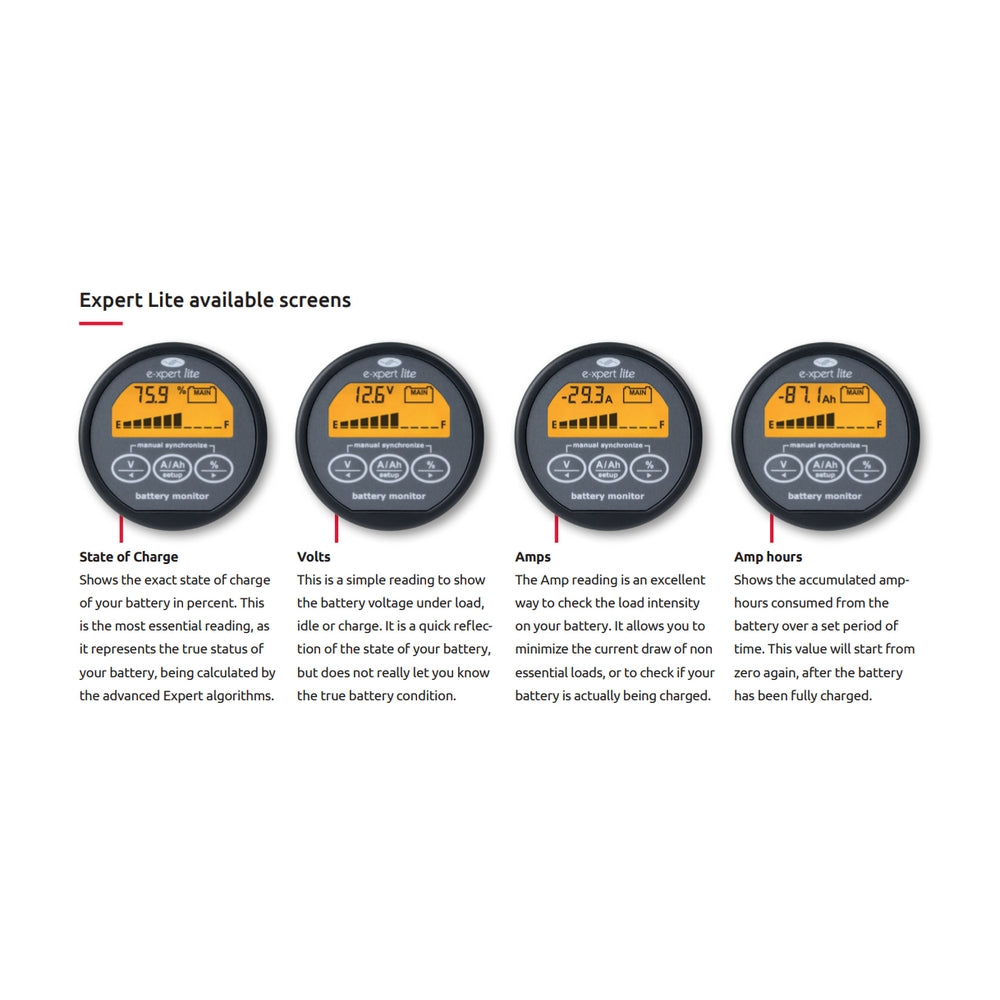

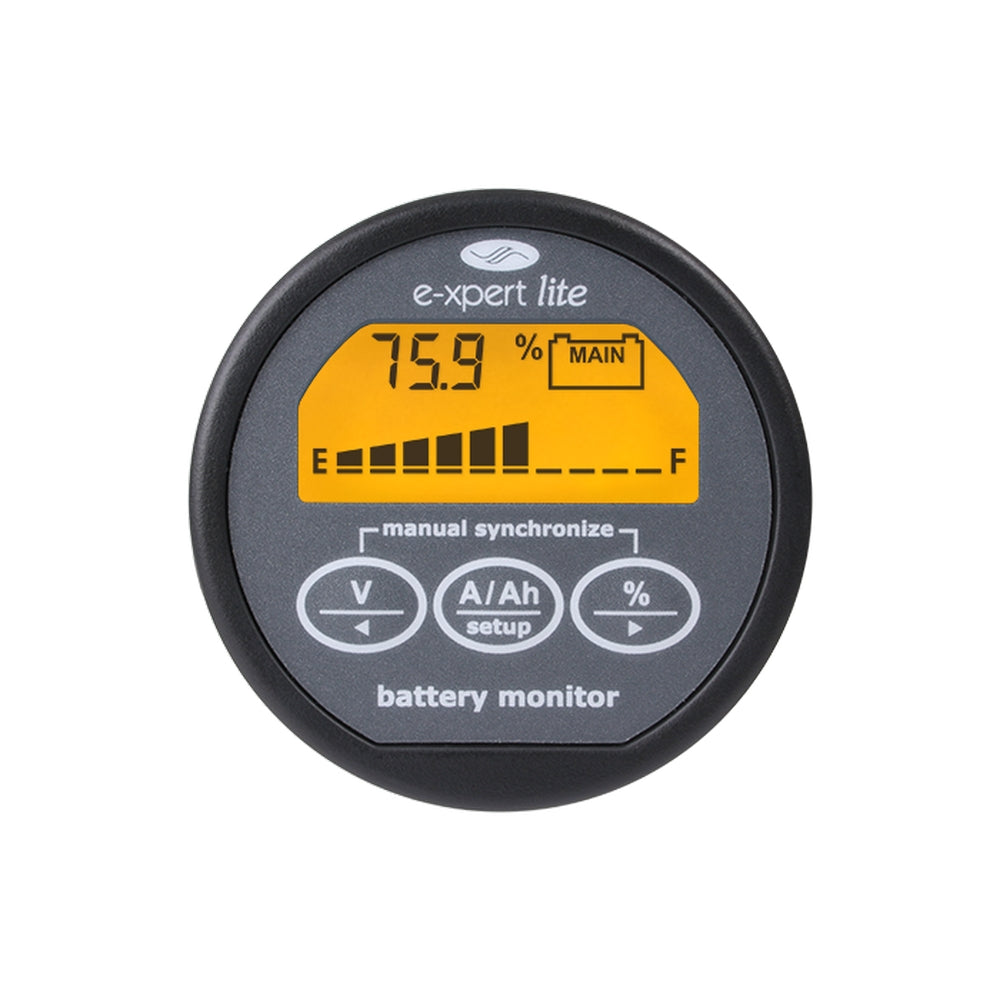

The Expert Lite battery monitor is a perfect fit for users that are only focussed on accurate state of charge readout and easy setup. The Expert Lite battery monitor selectively displays battery voltage, charge- and discharge current, consumed amphours and the remaining battery capacity.

Using the internal alarm relay, it is possible to for example start a generator once the battery state of charge has reached a certain discharge level.

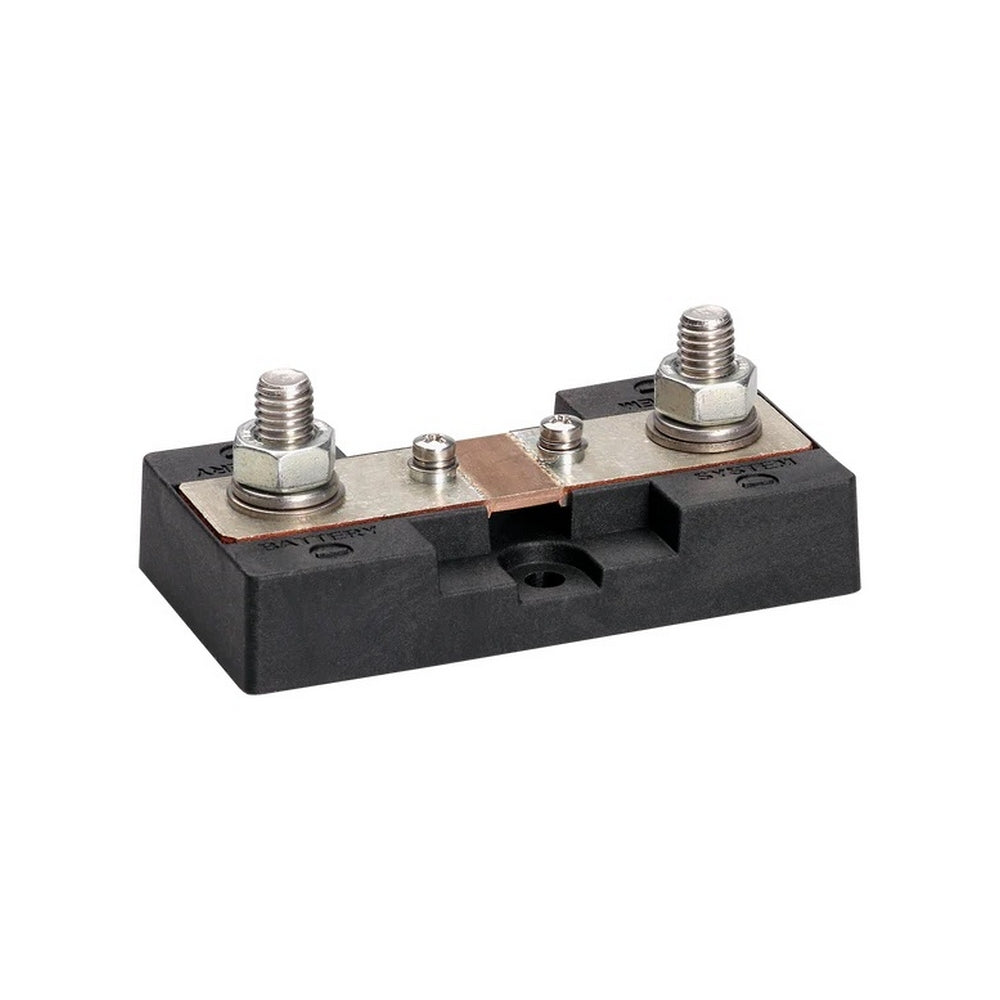

The Expert Lite is easy to install and user friendly in operation. The monitor comes standard with a high precision 500A (350A continuous) shunt and a very clear installation and operating instruction manual.

• Read your battery bank like a fuel gauge
• Provides critical information about the status of your battery bank
• Displays voltage, current, consumed amphours, remaining battery capacity
• Two battery inputs
• Large display with backlight

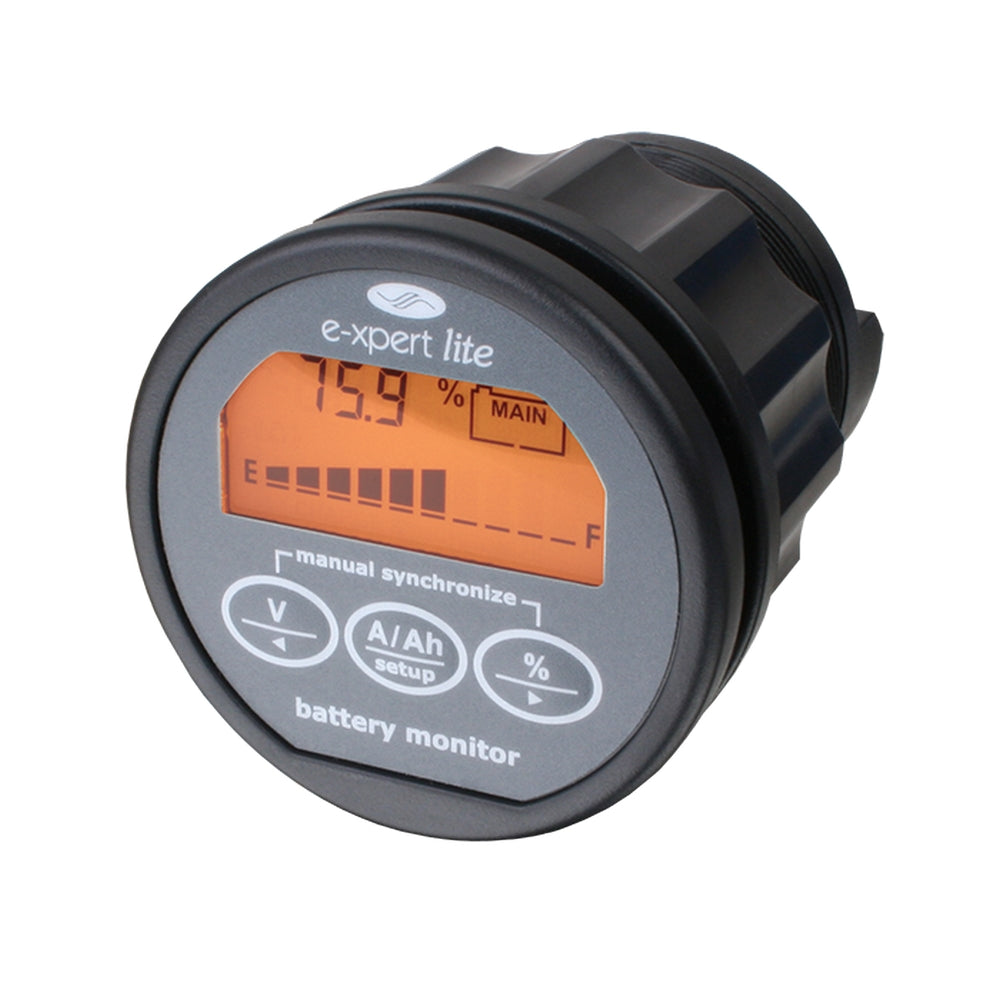

• Quick nut mounting construction
• Programmable alarm relay
• Shunt selection capability, enables flexible system integration
• Splash proof frontpanel
• 500 Amp shunt included
• CE and e-mark certified
• 2 year warranty

Download Full Datasheet
