TBS DCM Dual Row Link Plate 2x3 (600A)

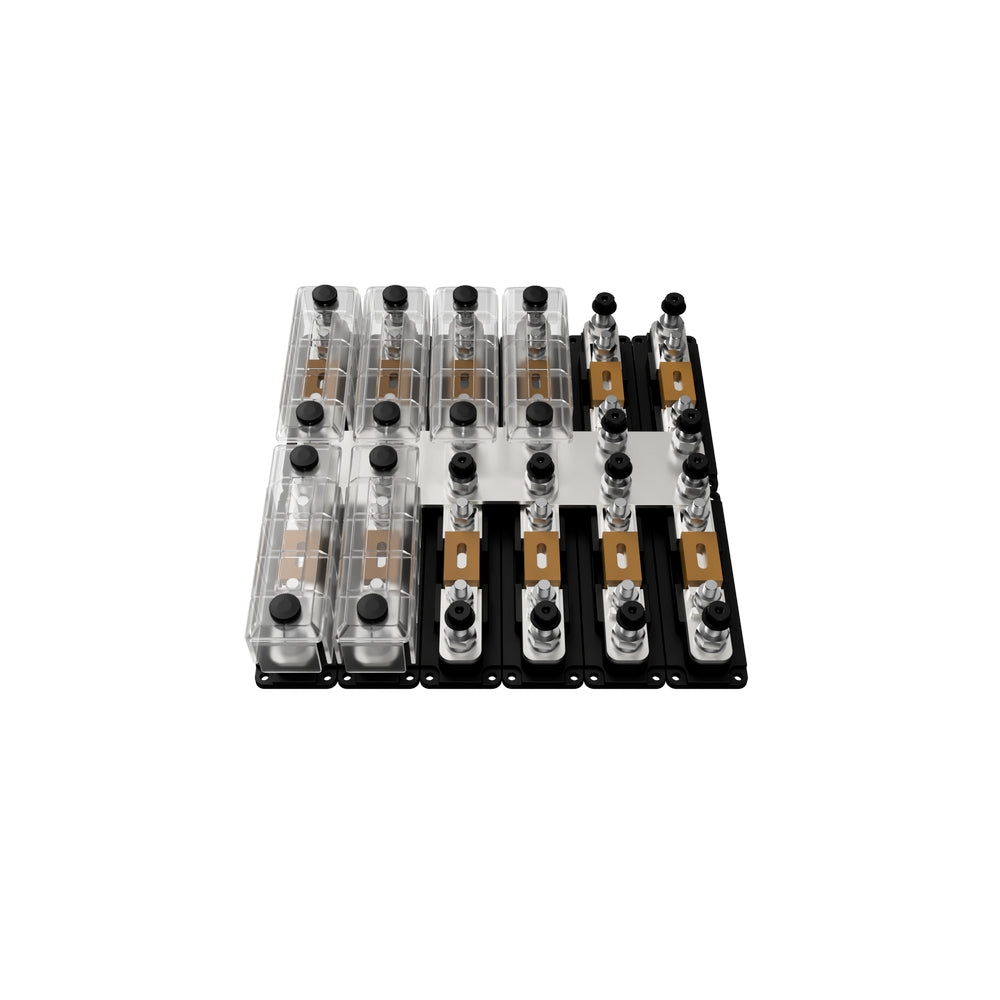

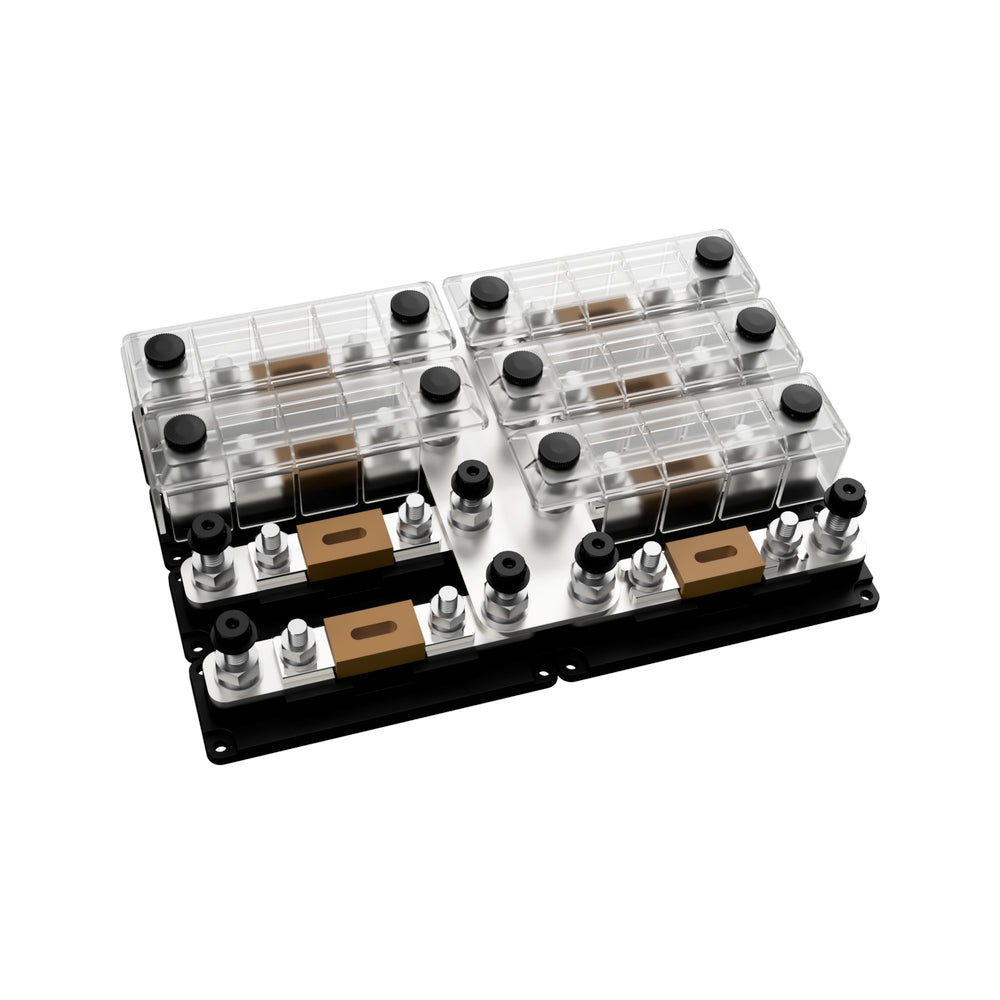

Dual Row Link Plates simplify multi-cluster connections by replacing multiple 41mm or 50mm link plates with a single large plate, making installations more efficient.

All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A

• Accepts Stud Size: M8 + M10
