Bus Bars

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 3 x M8 Stud Busbar
• Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 100 x 50 x 64.5mm (L x W x H)


The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

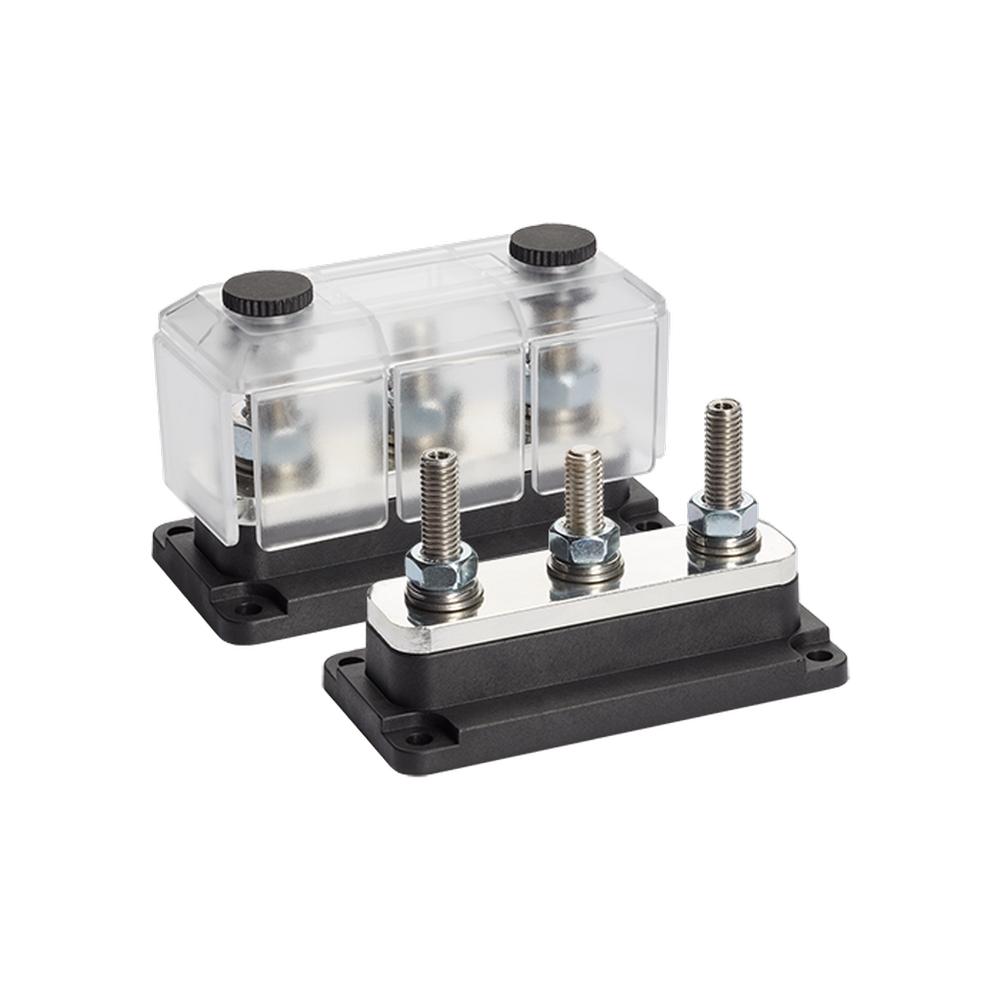

• 3 x M10 Stud Busbar
• Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 100 x 50 x 64.5mm (L x W x H)

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 5 x M10 Stud Busbar
• Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 5 x M8 Stud Busbar
• Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 64.5mm (L x W x H)

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

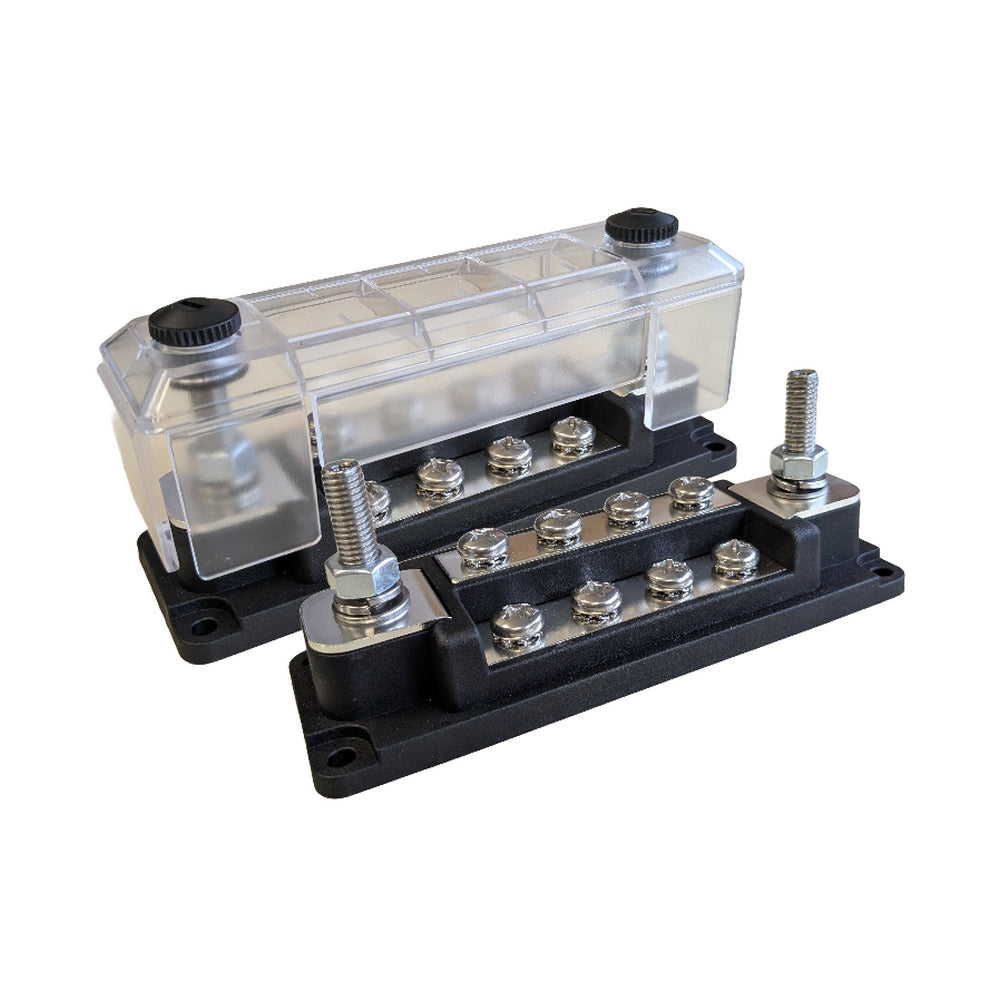

• 8 x M6 Screws
• 2 x M8 Studs
• Max Current: 300A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 600A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 66.5mm (L x W x H)

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 12 x M4 Screws
• 2 x M8 Studs
• Max Current: 300A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 600A) is permitted for a maximum duration of 5 minutes)
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 66.5mm (L x W x H)

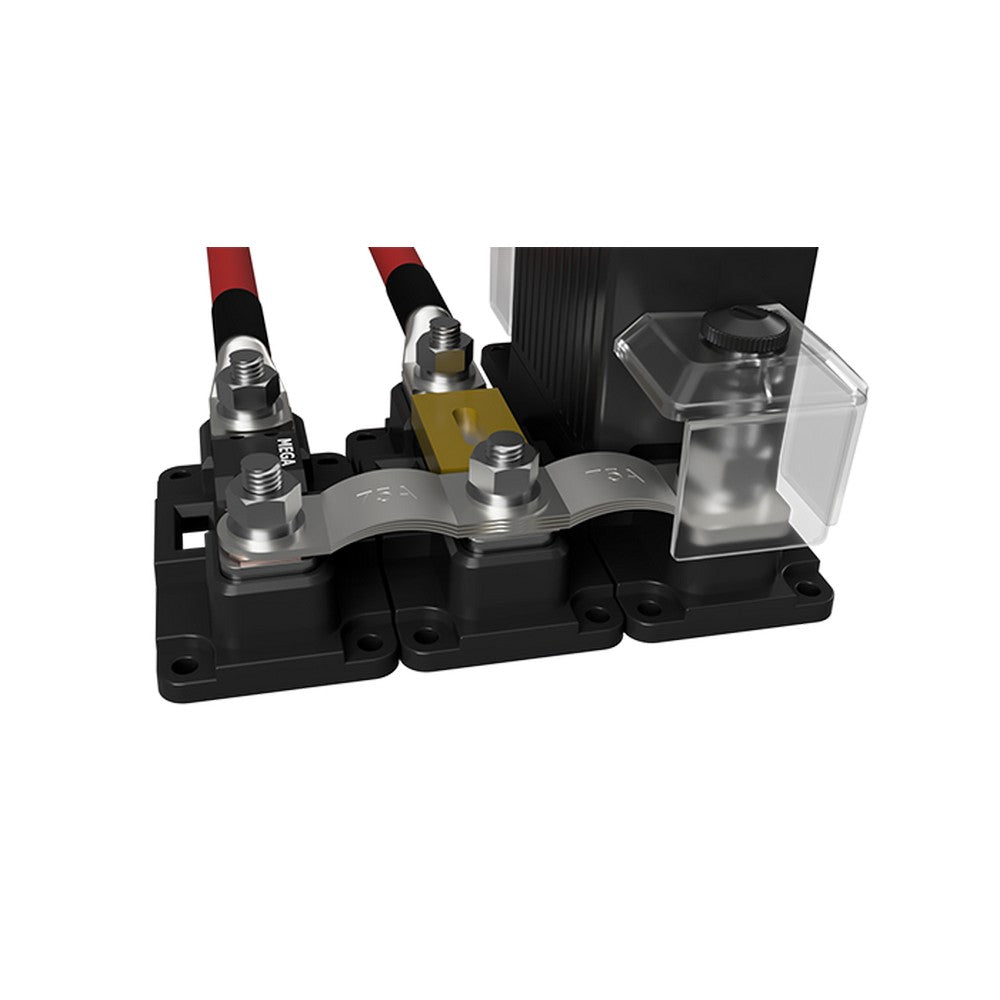

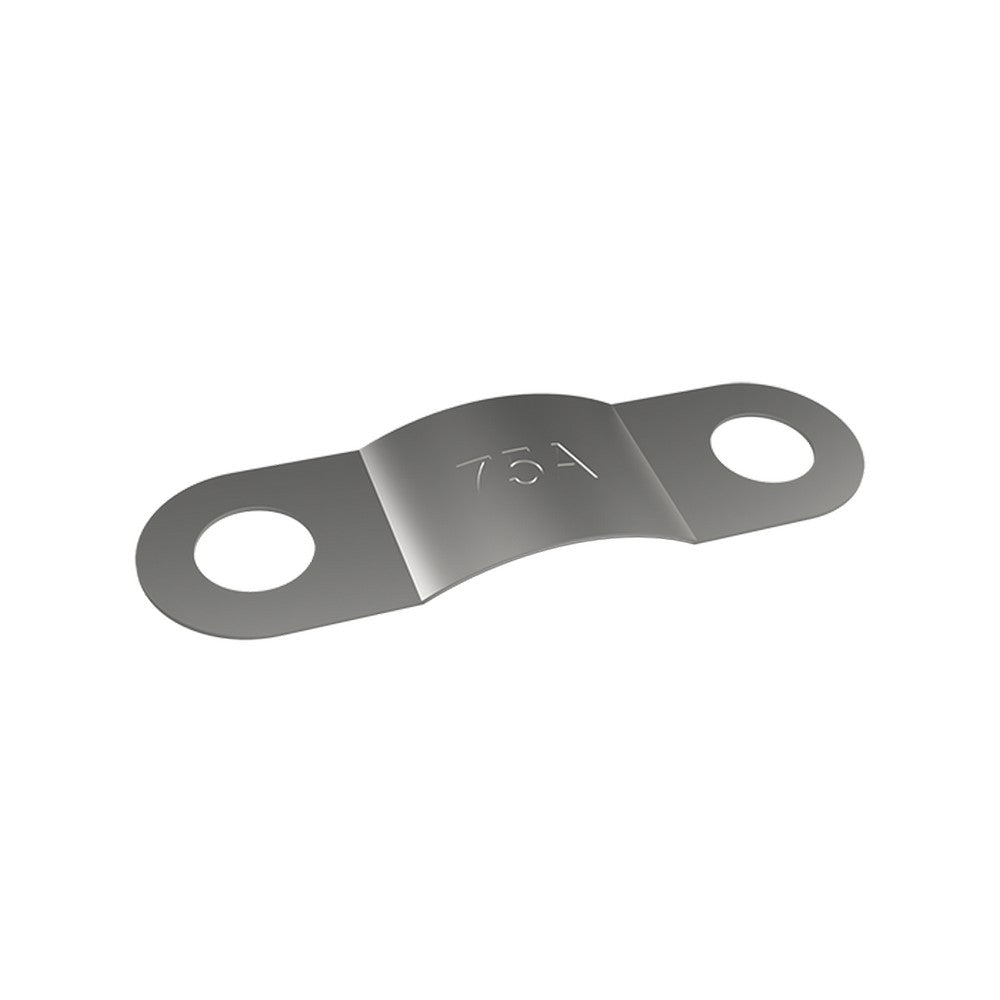

75A Link plate suitable for side by side linking of TBS DCM Mega (300A) and ANL (300A) fuse holders in a cluster. Also compatible with other DCM modules.

A higher current can be achieved by stacking the link plates alternately up to a maximum of 4 plates (300A).

Click here for document download

Product Info:

• Max Current: 75A
• Accepts Stud Size: M8 + M10

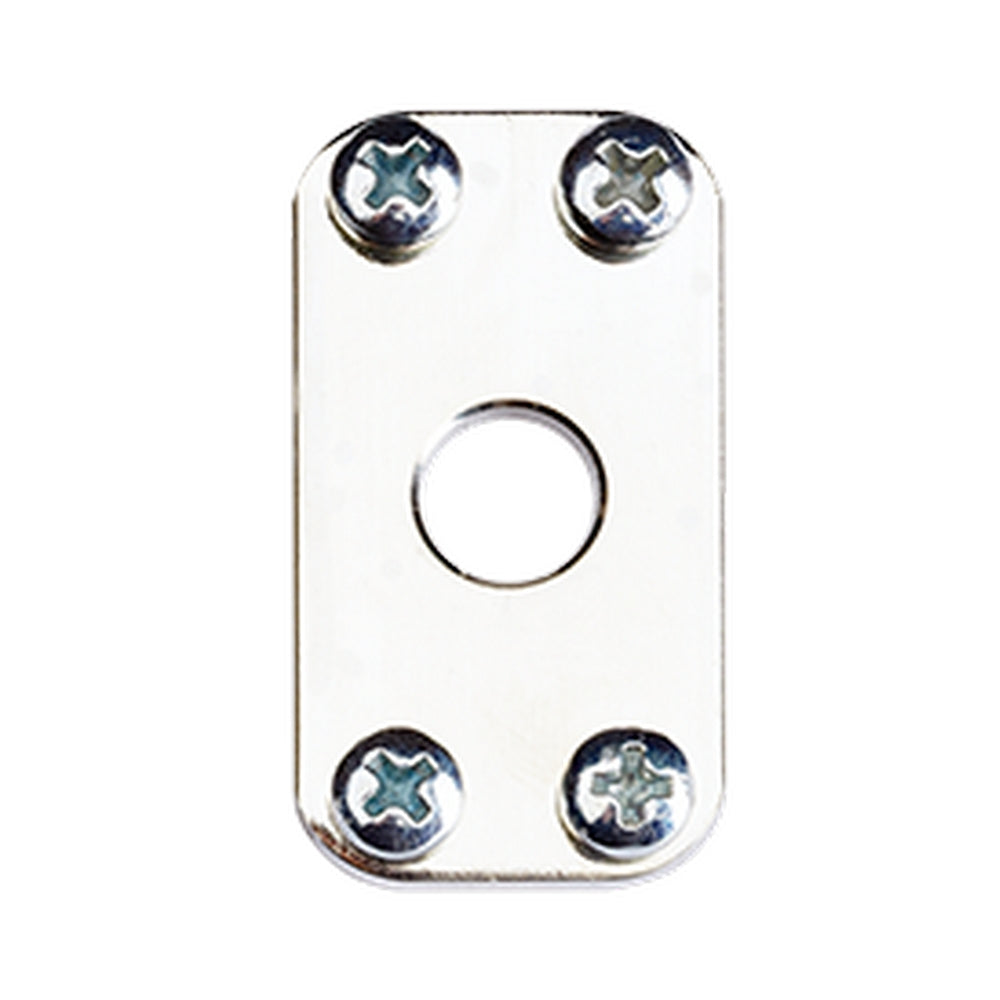

Adapter Plate which allows a mixture of high and low power cables to be connected to the same stud. The Adapter Plate can be used on M8 and M10 studs and offers four connection points for smaller cables

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A
• Dimensions: 46 x 25mm
• Accepts Stud Size: M8 + M10

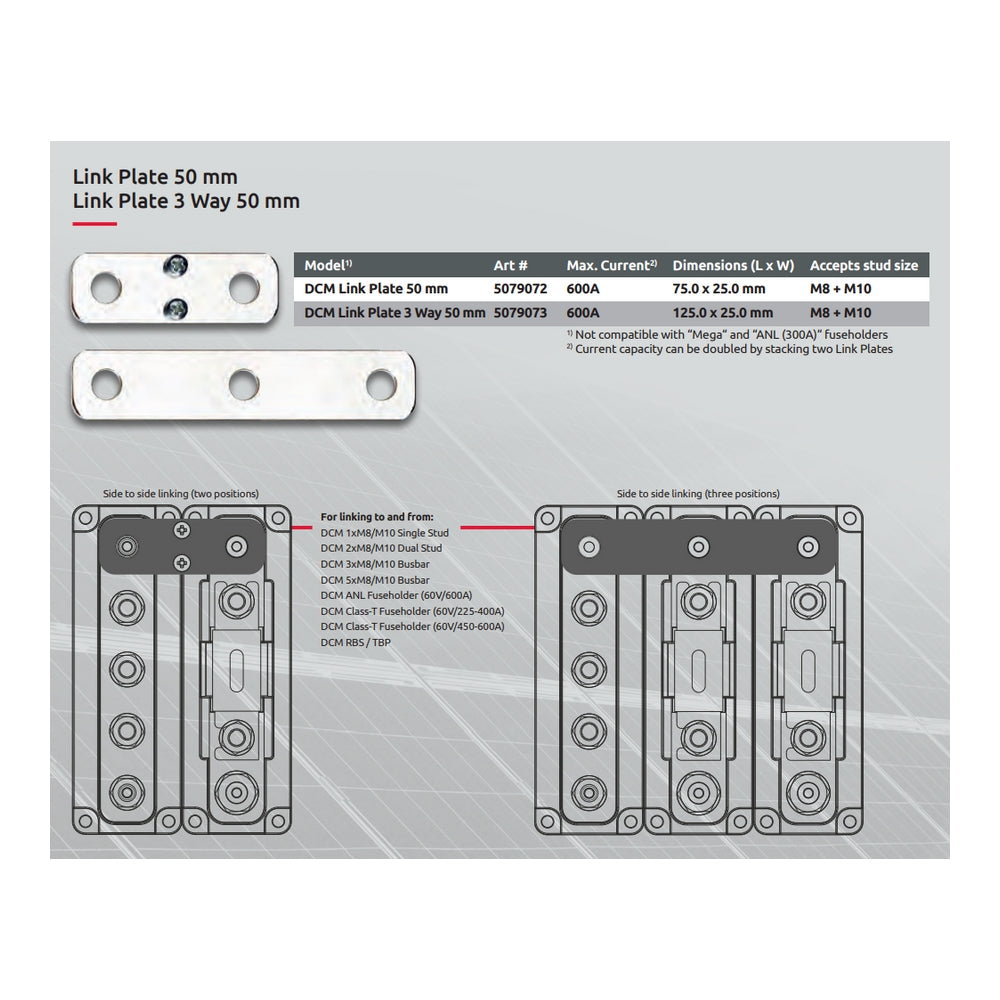

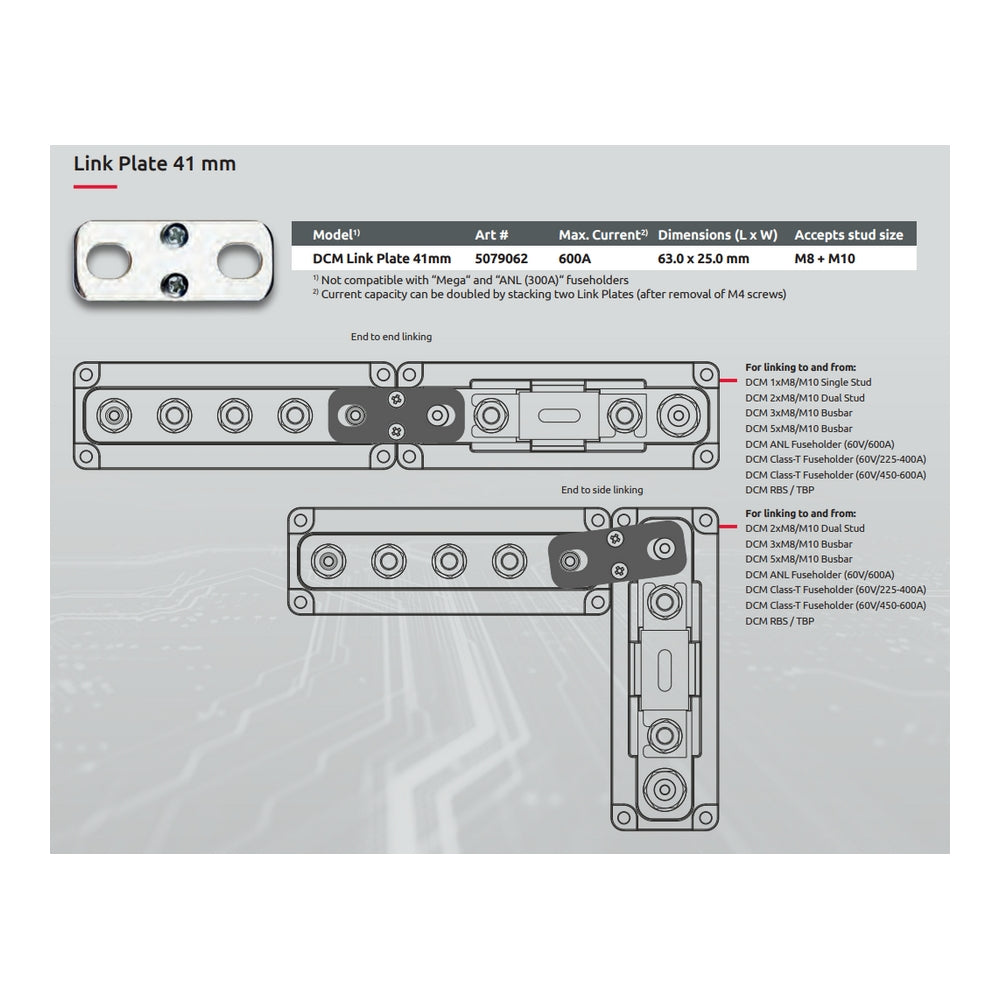

• See image for linking options

Due to the common interconnection heights, smart space saving arrangements of multiple DC Modular products can be made by linking these together using the optional Link Plates

We have managed to offer only three Link Plate sizes to create all possible combinations. All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with two M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders
• Current capacity can be doubled by stacking two Link Plates (after removal of M4 screws)

Product Info:

• Max Current: 600A
• Dimensions: 63 x 25mm
• Accepts Stud Size: M8 + M10
• See image for linking options

Due to the common interconnection heights, smart space saving arrangements of multiple DC Modular products can be made by linking these together using the optional Link Plates

We have managed to offer only three Link Plate sizes to create all possible combinations. All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with two M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders
• Current capacity can be doubled by stacking two Link Plates (after removal of M4 screws)

Product Info:

• Max Current: 600A
• Dimensions: 75 x 25mm
• Accepts Stud Size: M8 + M10
• See image for linking options

Due to the common interconnection heights, smart space saving arrangements of multiple DC Modular products can be made by linking these together using the optional Link Plates

We have managed to offer only three Link Plate sizes to create all possible combinations. All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with two M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders
• Current capacity can be doubled by stacking two Link Plates (after removal of M4 screws)

Product Info:

• Max Current: 600A
• Dimensions: 125 x 25mm
• Accepts Stud Size: M8 + M10
• See image for linking options

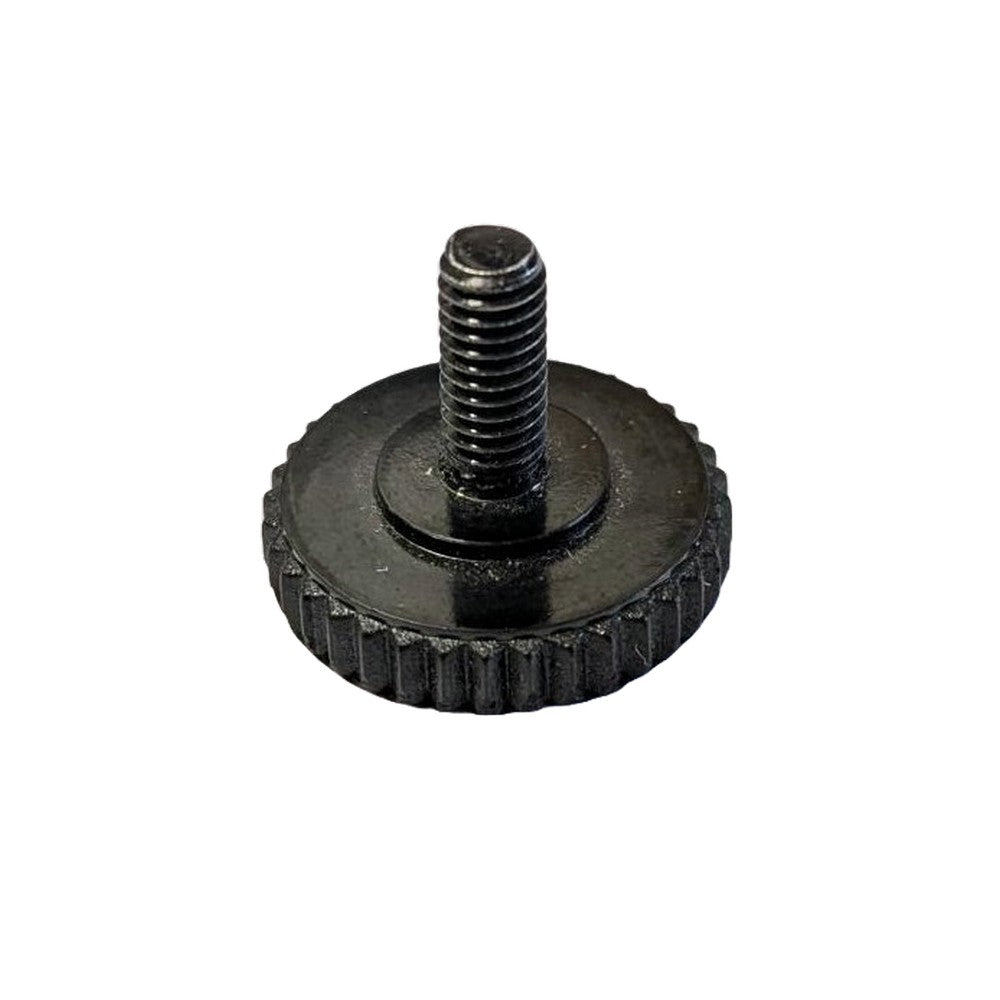

Spare fastening screw for the TBS DC Modular series.

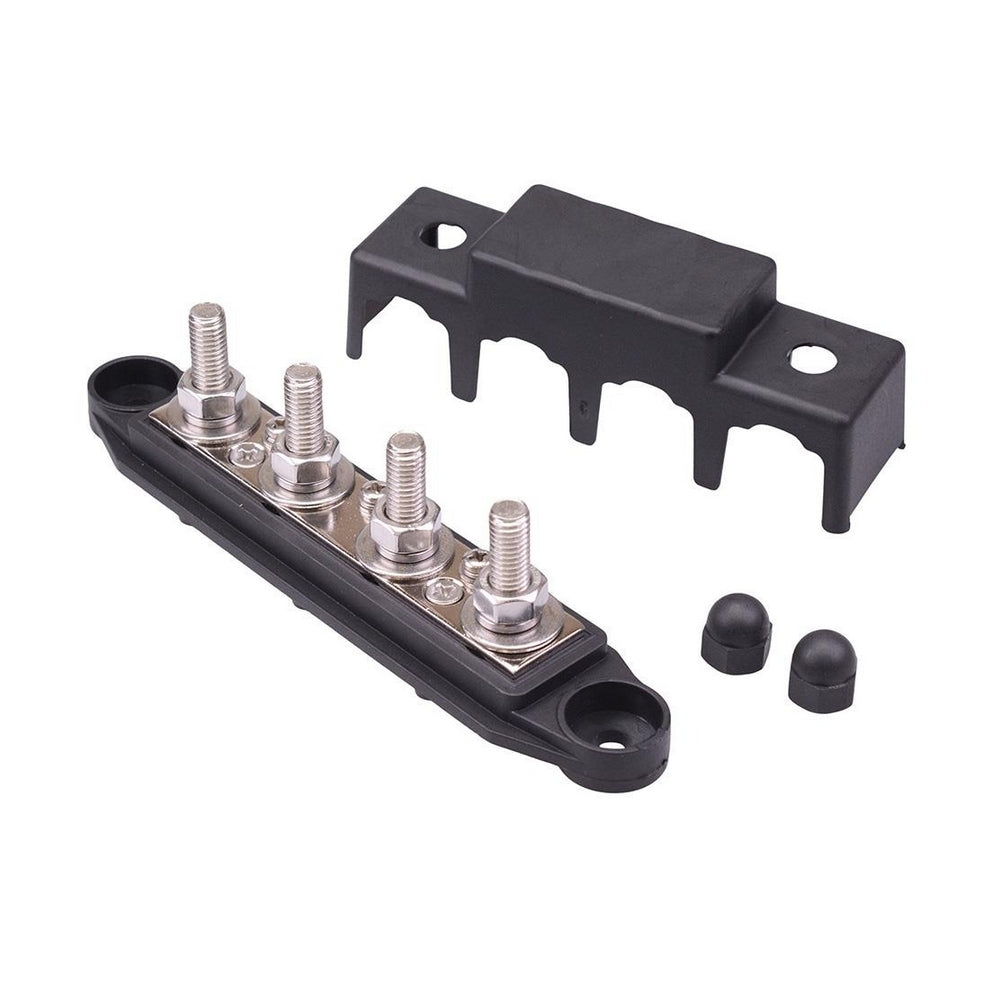

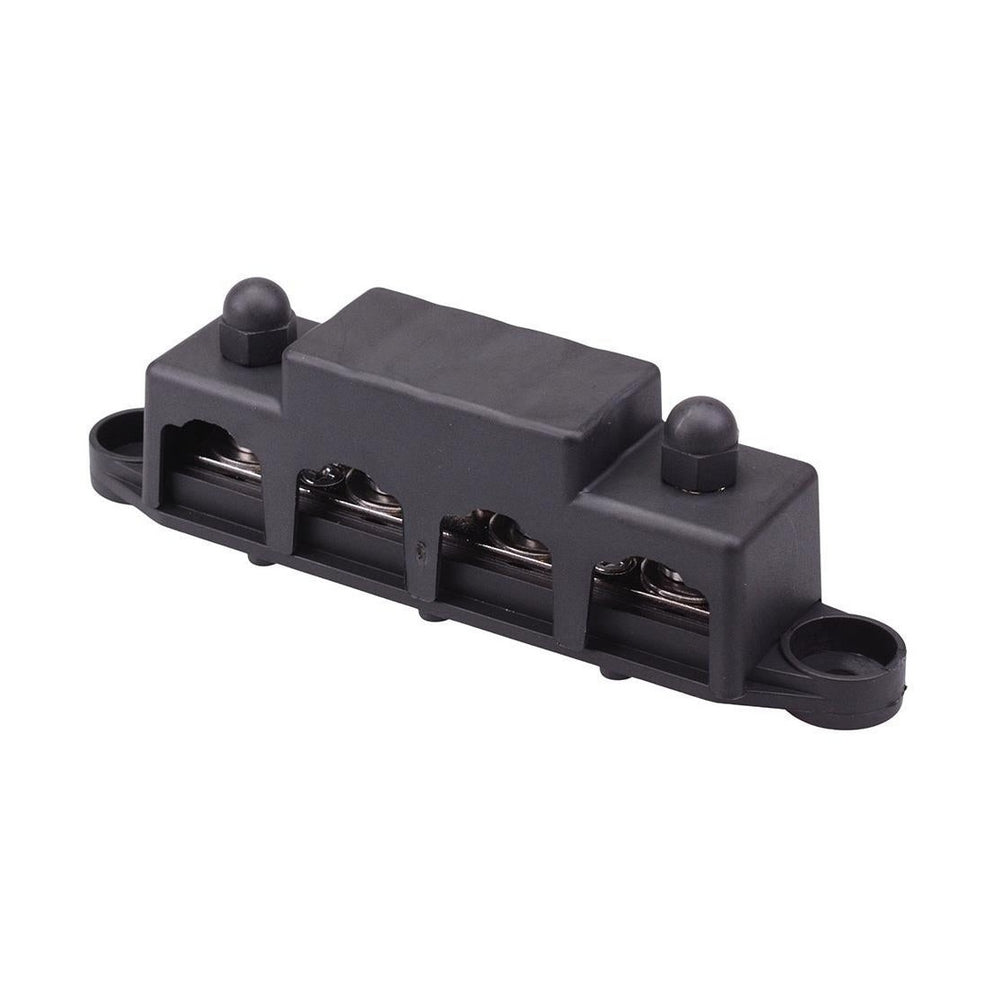

This 250A, 48V DC busbar provides a reliable power distribution solution for high-current auto/marine systems. Featuring four stainless steel M8 studs, it allows for the clean, secure consolidation of multiple electrical connections. The unit comes complete with a red or black base and protective, lockable cover, ensuring critical connections remain shielded from accidental shorts in demanding environments.

• 4 x M8 Studs
• Colour: Black
• Cover is locked into place with nylon nuts
• Max Rating: 250A DC
• Max Voltage: 48V DC
• Fixings included
• Dimensions: 168.5 x 34.5 x 47.5mm (L,W,H)
• Mounting Hole Pitch: 146mm

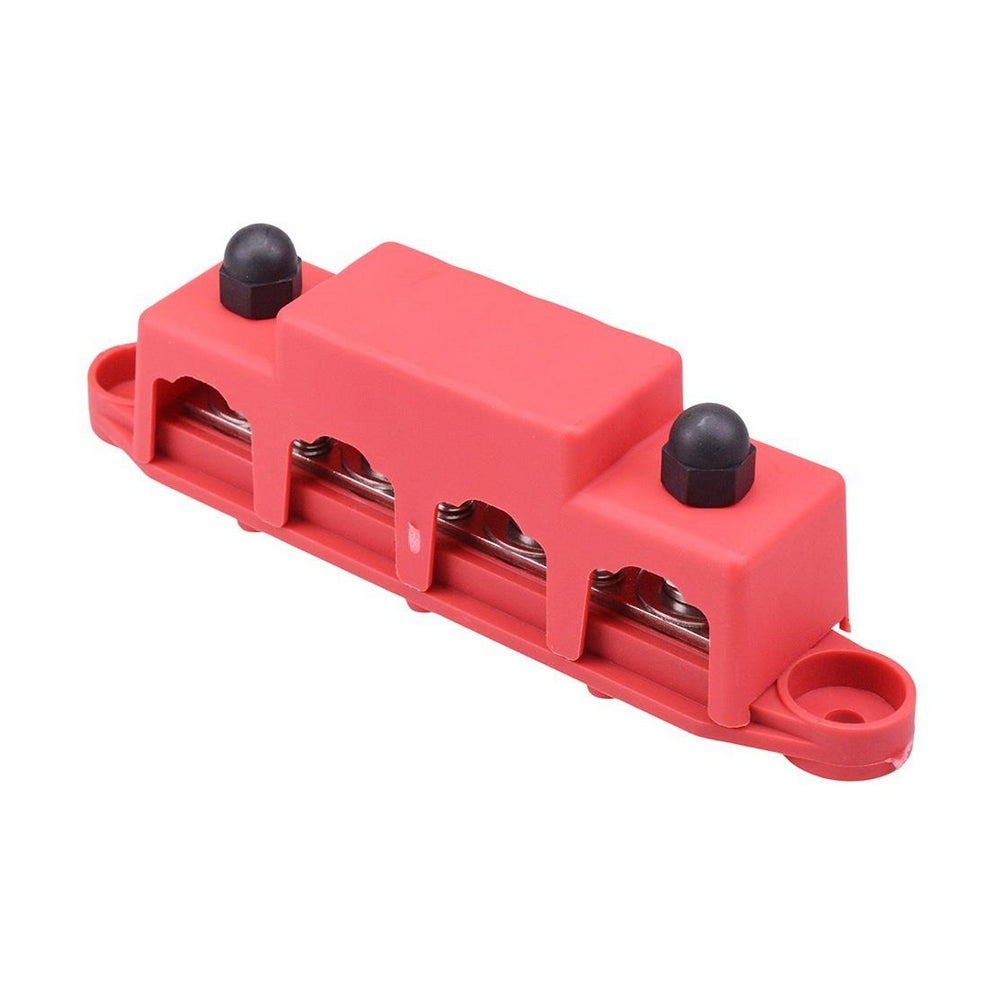

This 250A, 48V DC busbar provides a reliable power distribution solution for high-current auto/marine systems. Featuring four stainless steel M8 studs, it allows for the clean, secure consolidation of multiple electrical connections. The unit comes complete with a red or black base and protective, lockable cover, ensuring critical connections remain shielded from accidental shorts in demanding environments.

• 4 x M8 Studs
• Colour: Red
• Cover is locked into place with nylon nuts
• Max Rating: 250A DC
• Max Voltage: 48V DC
• Fixings included
• Dimensions: 168.5 x 34.5 x 47.5mm (L,W,H)
• Mounting Hole Pitch: 146mm

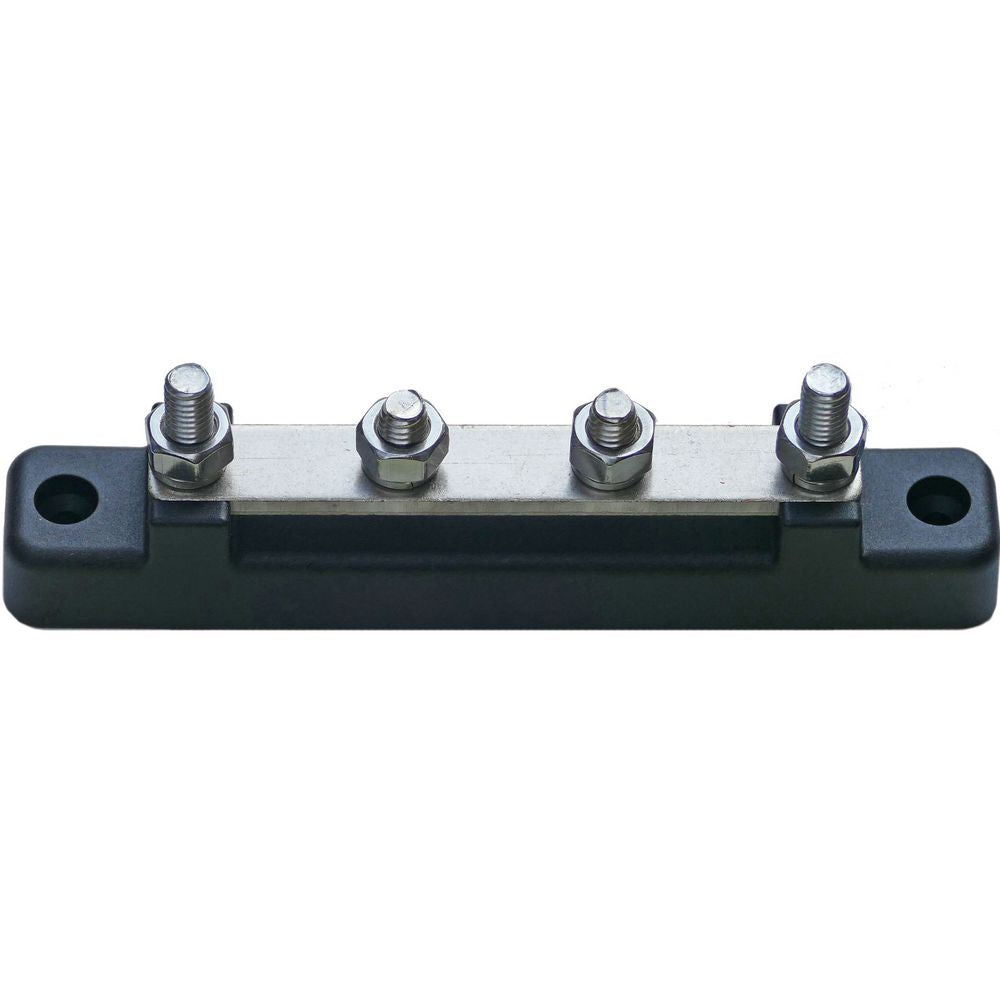

• 2 x M6 Studs / 2 x M6 Studs
• Cover is locked into place with nylon nuts
• Max Rating: 150A DC
• Max Voltage: 48V DC
• Fixings included
• Dimensions: 120 x 20 x 42.8mm (L,W,H)

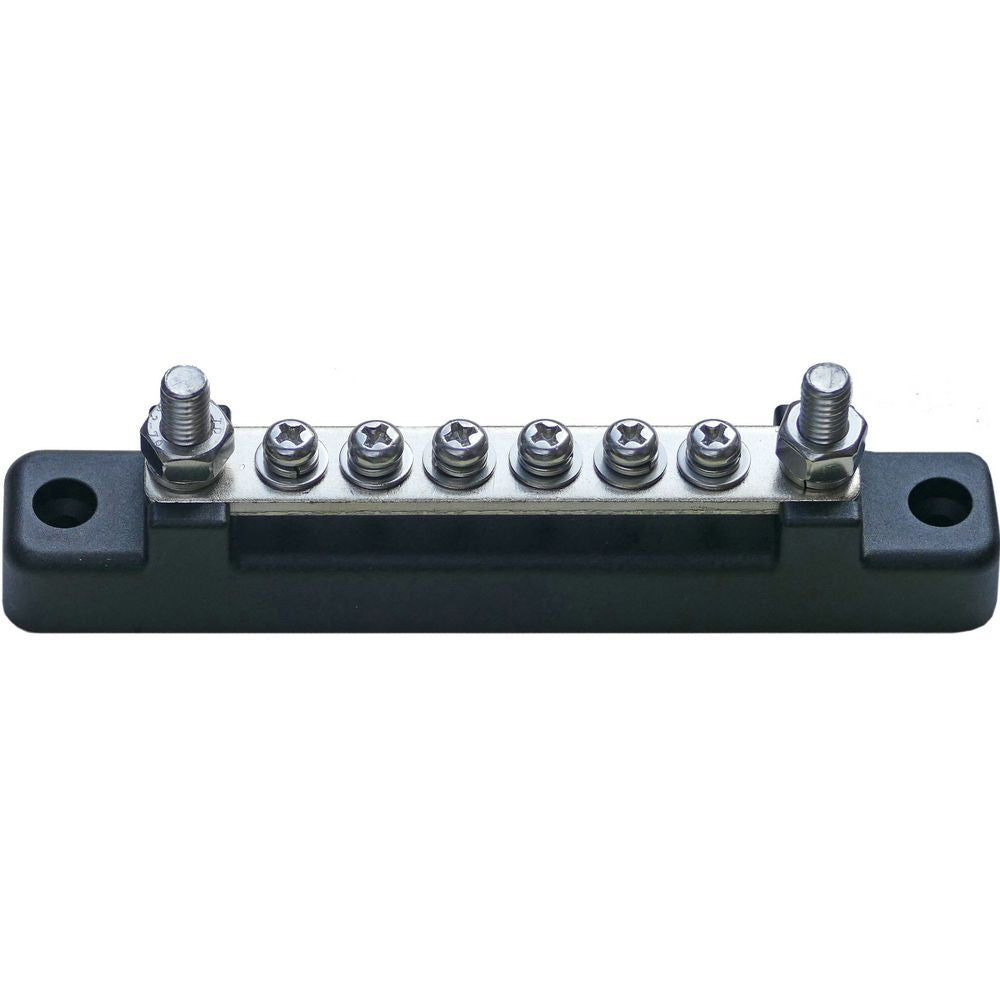

• 6 x M4 Screws / 4 x M6 Studs
• Cover is locked into place with nylon nuts
• Max Rating: 150A DC
• Max Voltage: 48V DC
• Fixings included
• Dimensions: 120 x 40 x 42.8mm (L,W,H)

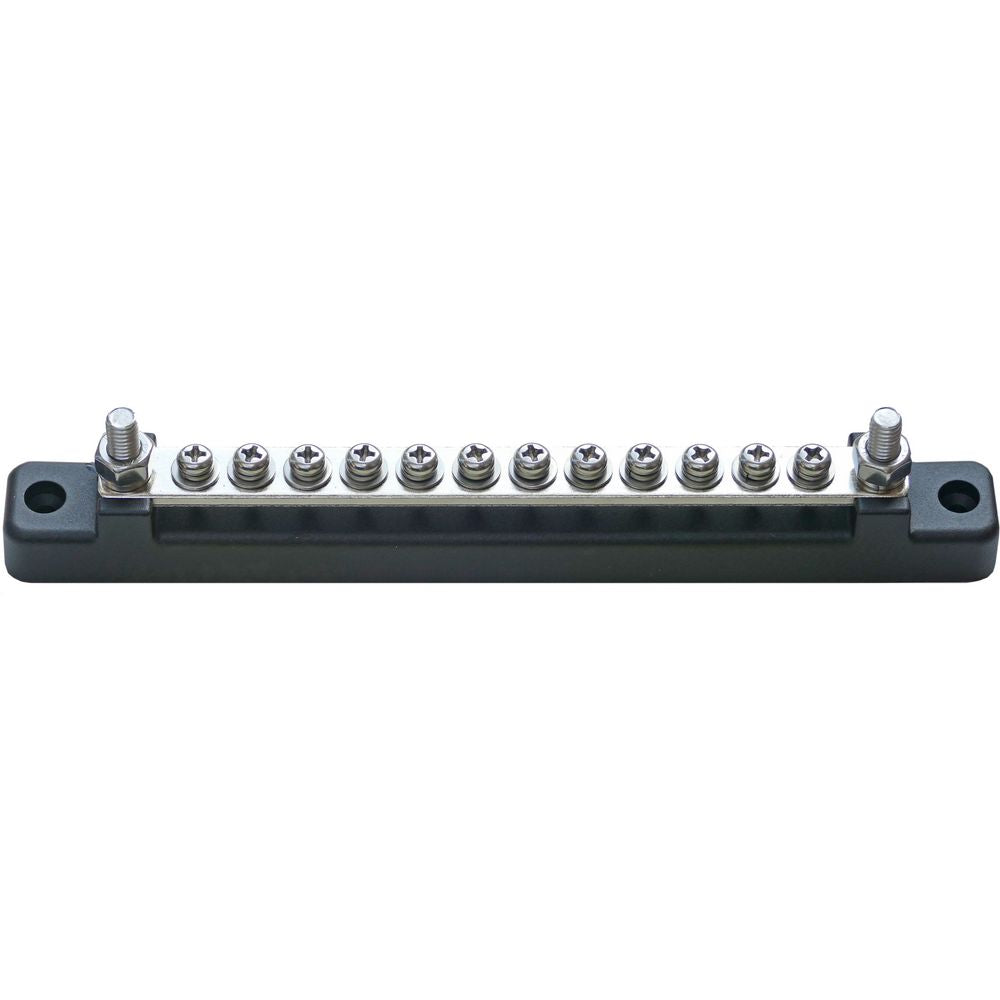

• 12 x M4 Screws / 2 x M6 Studs
• Cover is locked into place with nylon nuts
• Max Rating: 150A DC
• Max Voltage: 48V DC
• Fixings included
• Dimensions: 180 x 20 x 42.8mm (L,W,H)

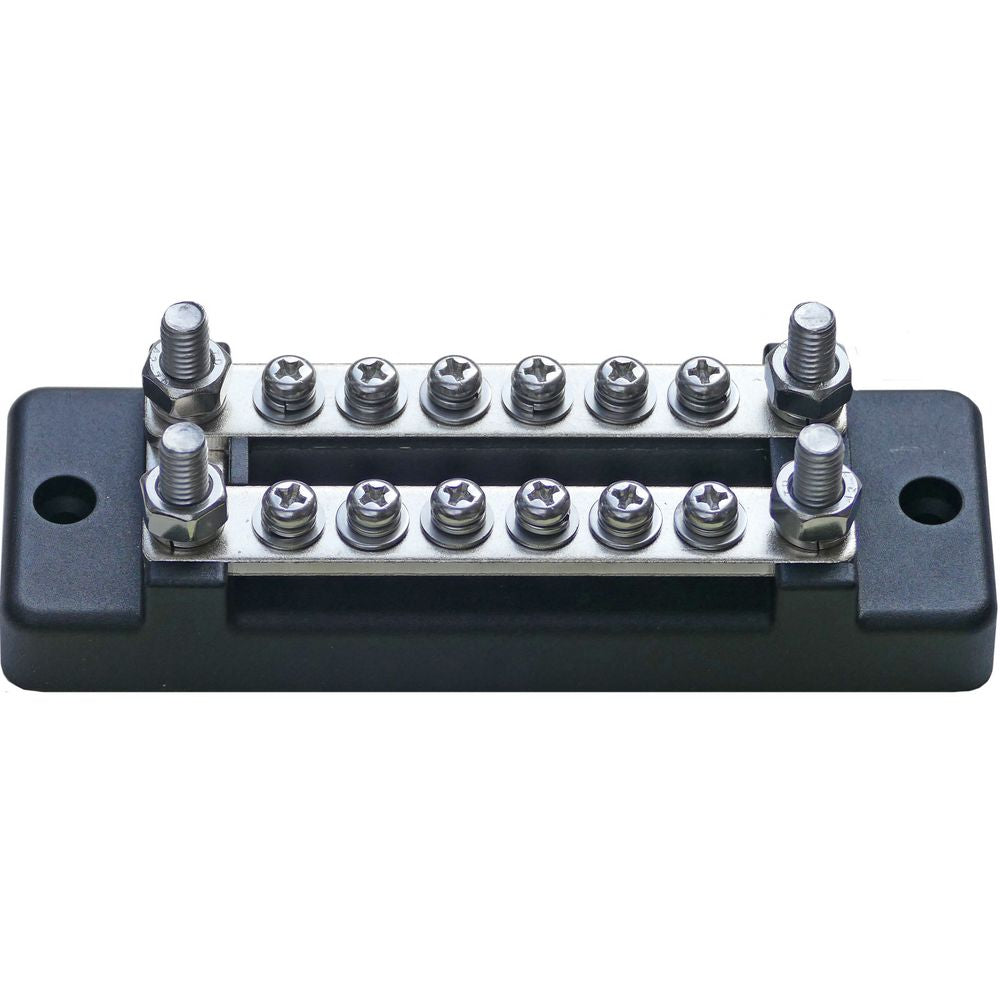

• 2 x 12 M4 Screws / 2 x M6 Studs
• Cover is locked into place with nylon nuts
• Max Rating: 150A DC
• Max Voltage: 48V DC
• Fixings included
• Dimensions: 180 x 40 x 42.8mm (L,W,H)

• 4 x M6 Studs / 2 x M6 Studs
• Cover is locked into place with nylon nuts
• Max Rating: 150A DC
• Max Voltage: 48V DC
• Fixings included
• Dimensions: 180 x 20 x 42.8mm (L,W,H)

• 2 x 4 M6 Studs / 2 x M6 Studs
• Cover is locked into place with nylon nuts
• Max Rating: 150A DC
• Max Voltage: 48V DC
• Fixings included
• Dimensions: 180 x 40 x 42.8mm (L,W,H)

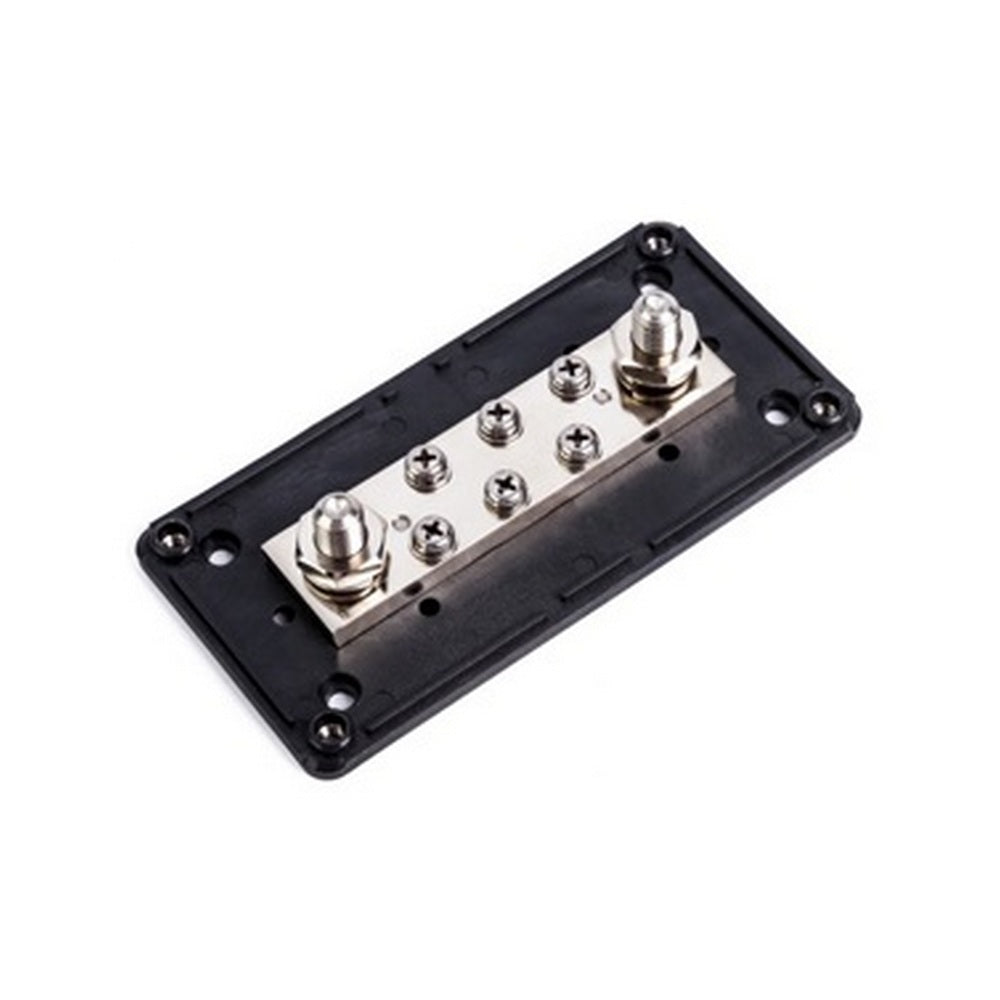

• Features removable windows for easy wiring.
• Material - nickel plated brass, stainless steel studs & screws.
• Box Dimensions: 45 x 138 x 69mm
• Contains: 2 x 10mm Studs & 6 x 5mm Screws
• Rating: 300 amps

• Transparent Cover

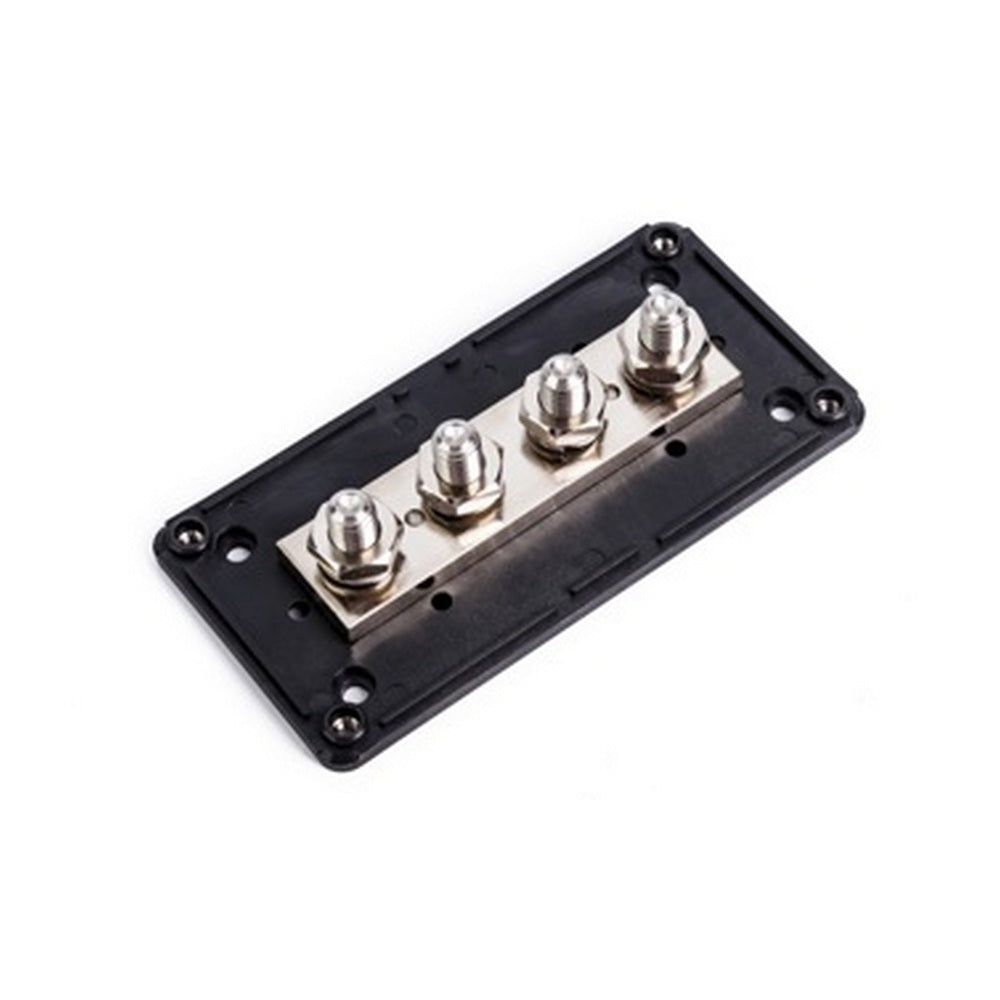

• Features removable windows for easy wiring.
• Material - nickel plated brass, stainless steel studs & screws.
• Box Dimensions: 45 x 138 x 69mm
• Contains: 4 x 10mm Studs
• Rating: 300 amps

Dual Row Link Plates simplify multi-cluster connections by replacing multiple 41mm or 50mm link plates with a single large plate, making installations more efficient.

All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A

• Accepts Stud Size: M8 + M10


Dual Row Link Plates simplify multi-cluster connections by replacing multiple 41mm or 50mm link plates with a single large plate, making installations more efficient.

All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A

• Accepts Stud Size: M8 + M10


Dual Row Link Plates simplify multi-cluster connections by replacing multiple 41mm or 50mm link plates with a single large plate, making installations more efficient.

All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

• Max Current: 600A

• Accepts Stud Size: M8 + M10
