TBS DCM Adapter Plate (600A)
TBS DCM Adapter Plate (600A)
TBS DCM Adapter Plate (600A)

TBS DCM Adapter Plate (600A)

SKU: TBS/5079020
Brand: TBS

£12.90 inc VAT£10.75 ex VAT

Description

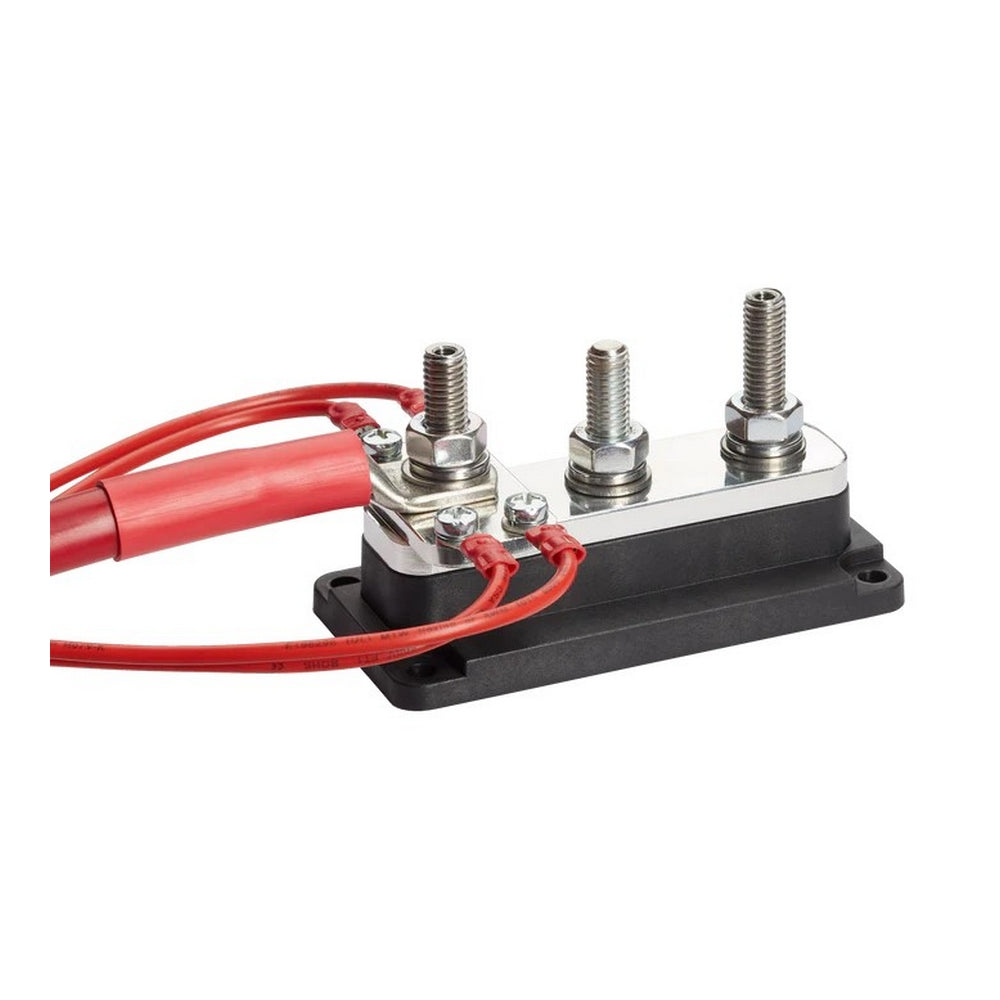

Adapter Plate which allows a mixture of high and low power cables to be connected to the same stud. The Adapter Plate can be used on M8 and M10 studs and offers four connection points for smaller cables

In stock
TBS DCM Adapter Plate (600A)

£12.90 inc VAT£10.75 ex VAT

£12.90 inc VAT£10.75 ex VAT

    Description Description Description
    Features Features Features

Adapter Plate which allows a mixture of high and low power cables to be connected to the same stud. The Adapter Plate can be used on M8 and M10 studs and offers four connection points for smaller cables

Features:

  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Stainless steel M4 screws and washers provide convenient connection points for smaller cables
  • Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
  • Not compatible with “Mega“ and “ANL (300A)“ fuse holders

Product Info:

  • Max Current: 600A
  • Dimensions: 46 x 25mm
  • Accepts Stud Size: M8 + M10

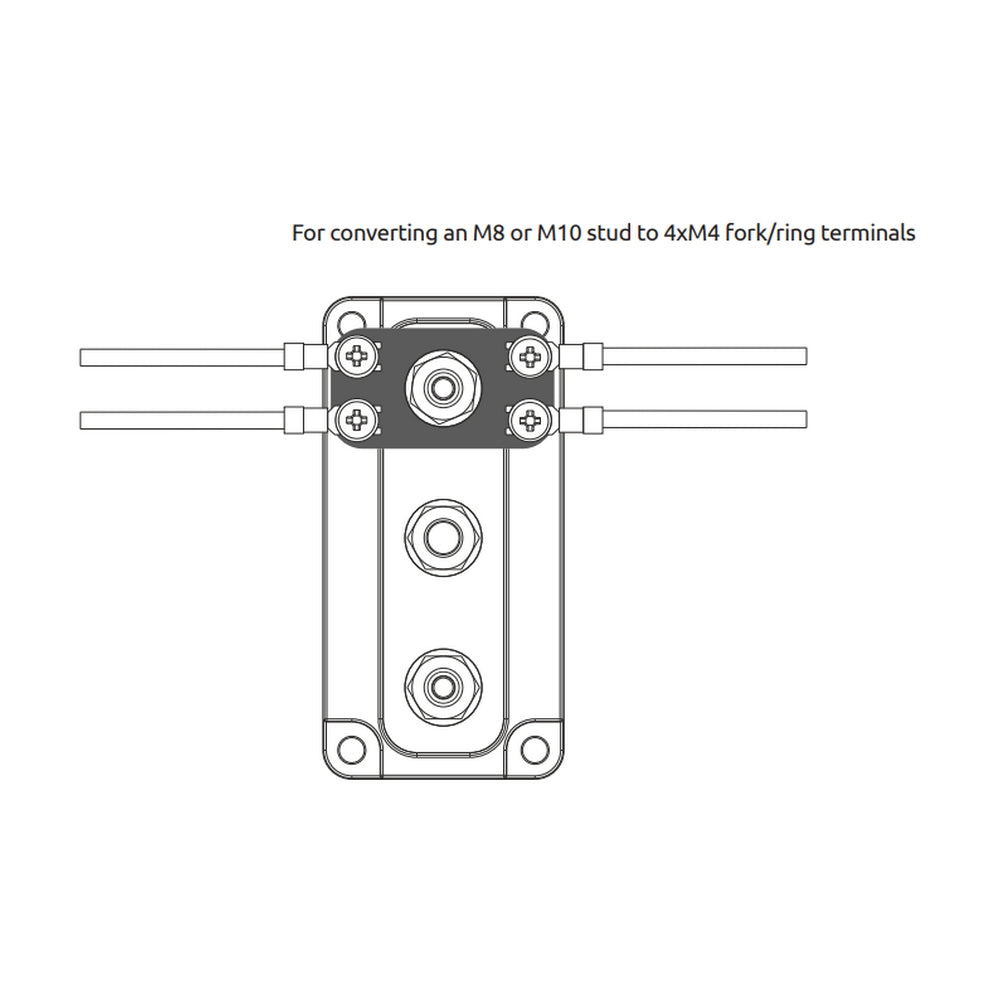

  • See image for linking options
