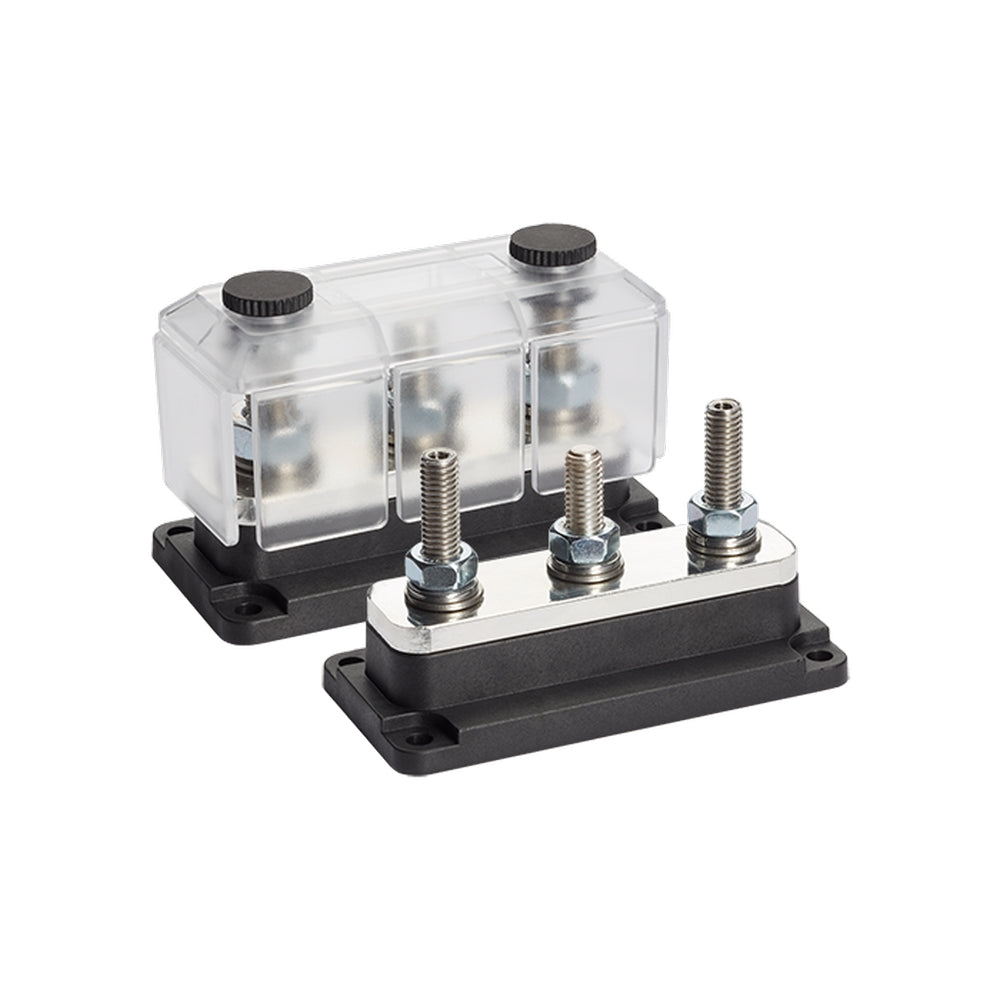

TBS DCM 3xM8 Insulated Busbar 600A

TBS DCM 3xM8 Insulated Busbar 600A

SKU: TBS/5073160
Brand: TBS

£58.80 inc VAT£49.00 ex VAT

Description

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

In stock
TBS DCM 3xM8 Insulated Busbar 600A

£58.80 inc VAT£49.00 ex VAT

£58.80 inc VAT£49.00 ex VAT

    Description Description Description
    Features Features Features

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Common interconnection heights for easy combining of multiple products using link plates
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Smart terminal design allows dual mirrored cable lug connections
  • Easy in-system connection access due to top locked covers

Product Info:

  • 3 x M8 Stud Busbar
  • Max Current: 600A (Nominal current at +40°C ambient temperature. Overloading the busbar up to twice its nominal capacity (= 1200A) is permitted for a maximum duration of 5 minutes)
  • Max Voltage: 60V DC
  • Dimensions: 100 x 50 x 64.5mm (L x W x H)
