Scanstrut Ventura Series XT60 Waterproof Solar Connection

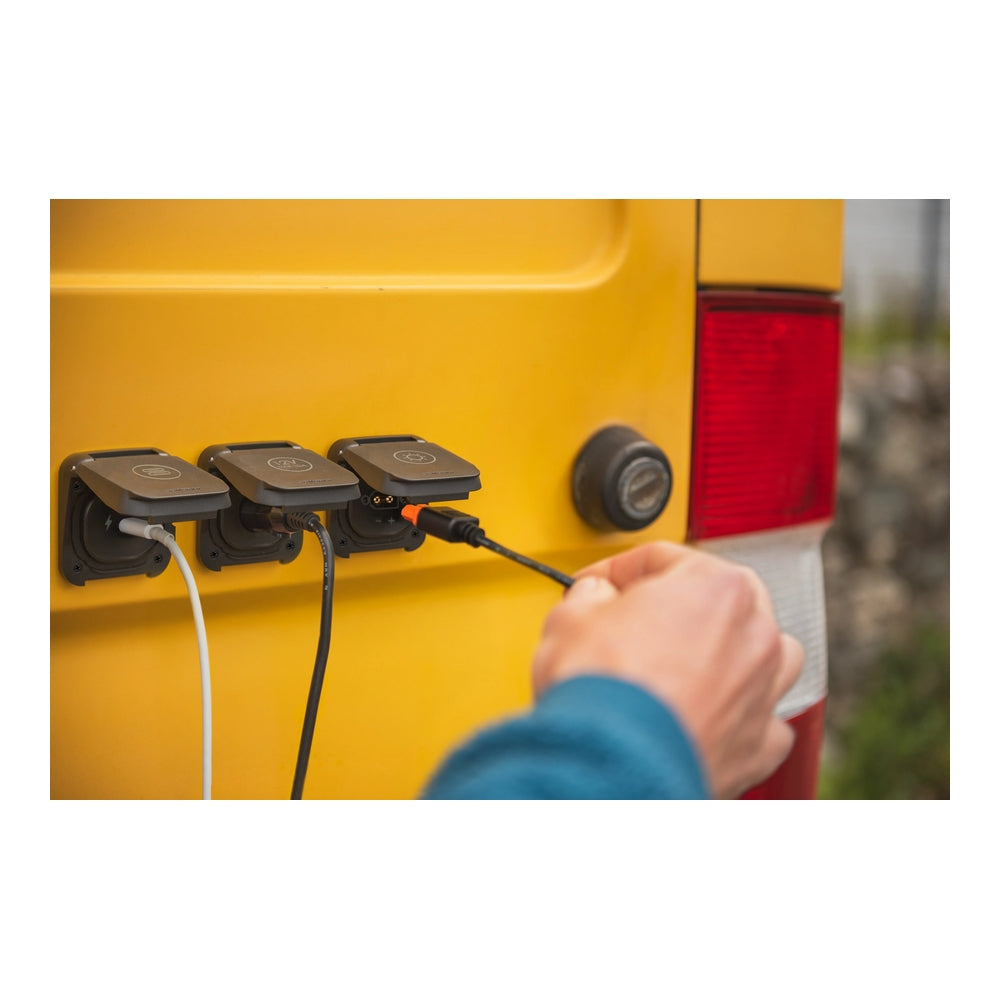

The Scanstrut Ventura Series XT60 Solar Connection (SC-V-S3) is a premium, marine-grade external power socket designed to provide a secure, watertight connection point for portable solar panels and DC equipment.

Unlike standard plastic inlets, the Ventura XT60 features a low-profile, sleek design with a spring-loaded lid and marine grade 316 stainless steel hardware, ensuring your vehicle or vessel remains watertight and stylish when the sun isn't shining.

Key Features

• High-Current Performance: Equipped with an original Amass XT60EW-M gold-plated connector, supporting up to 30A continuous and 60A peak current.
• Extreme Weatherproofing: Rated IP68 and IP69K (when closed), offering total protection against dust and high-pressure water jets—ideal for pressure washing.
• Marine-Grade Materials: Constructed using UV-stable plastics and 316 stainless steel hardware to prevent corrosion and fading in harsh coastal environments.

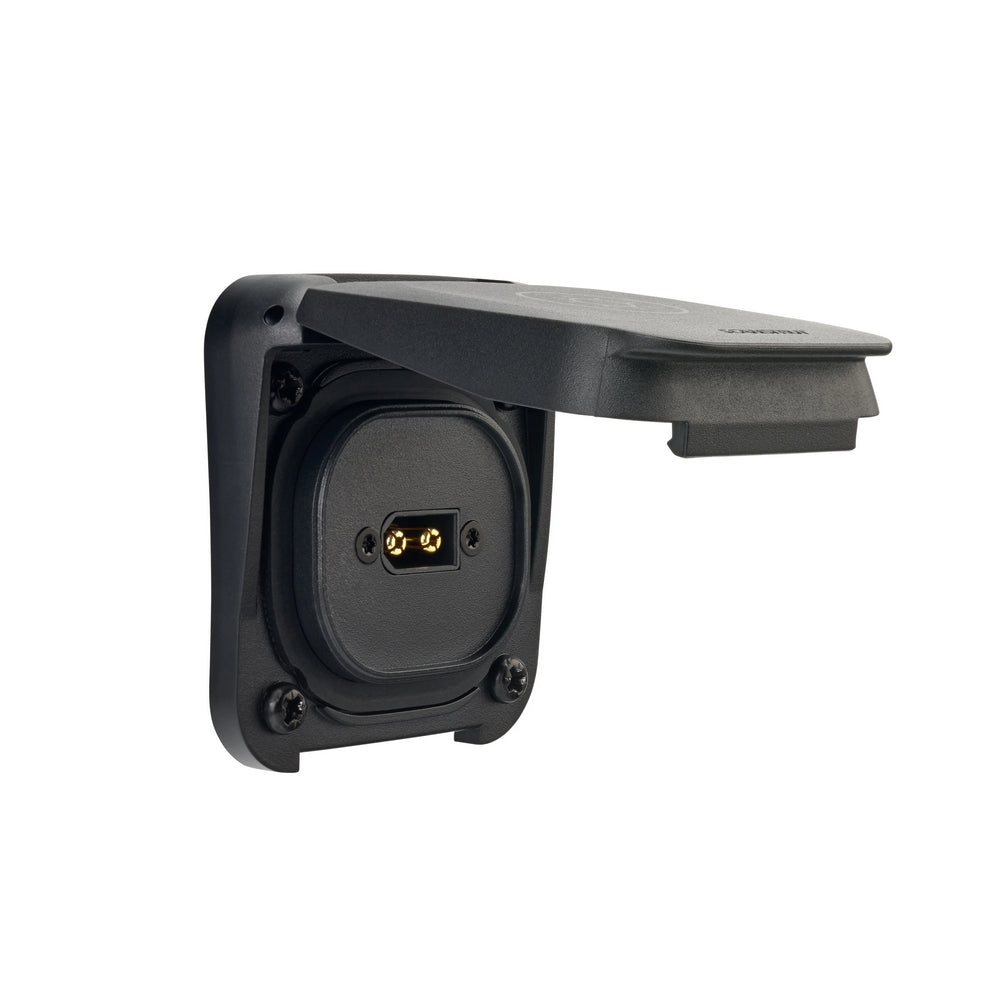

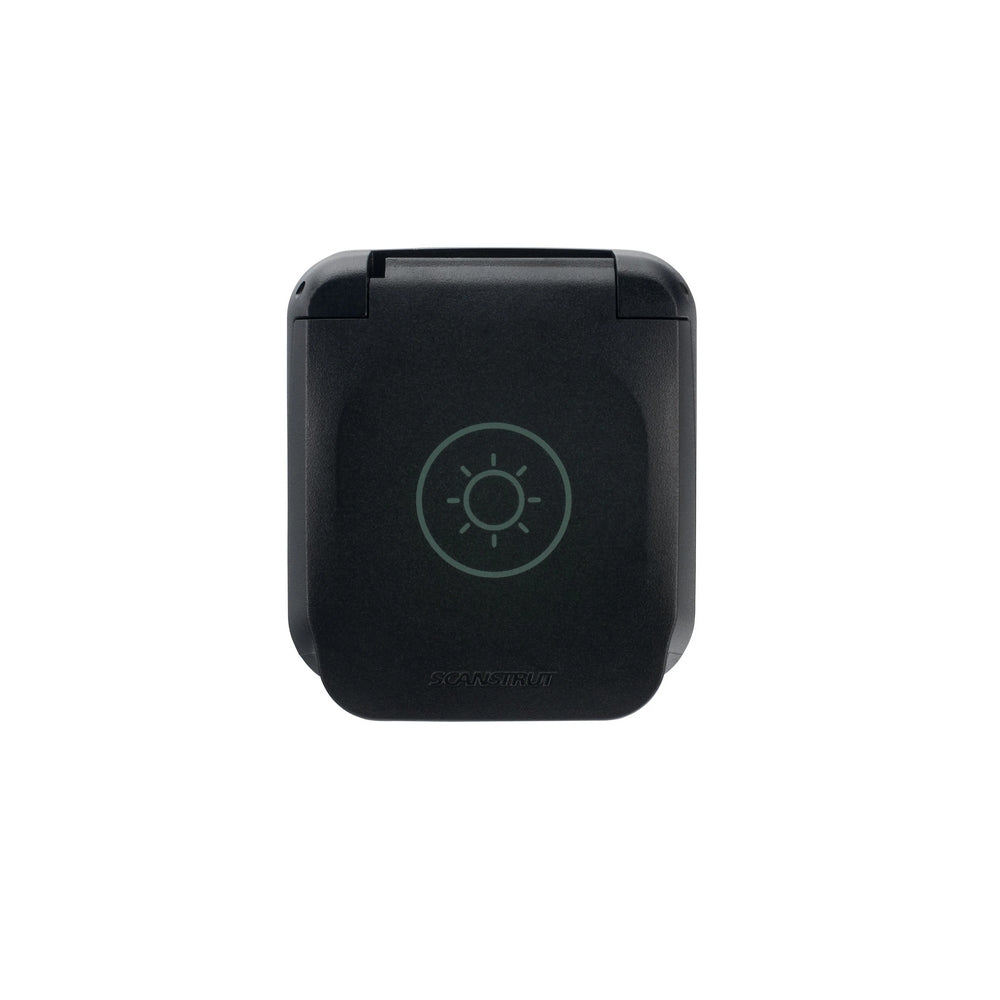

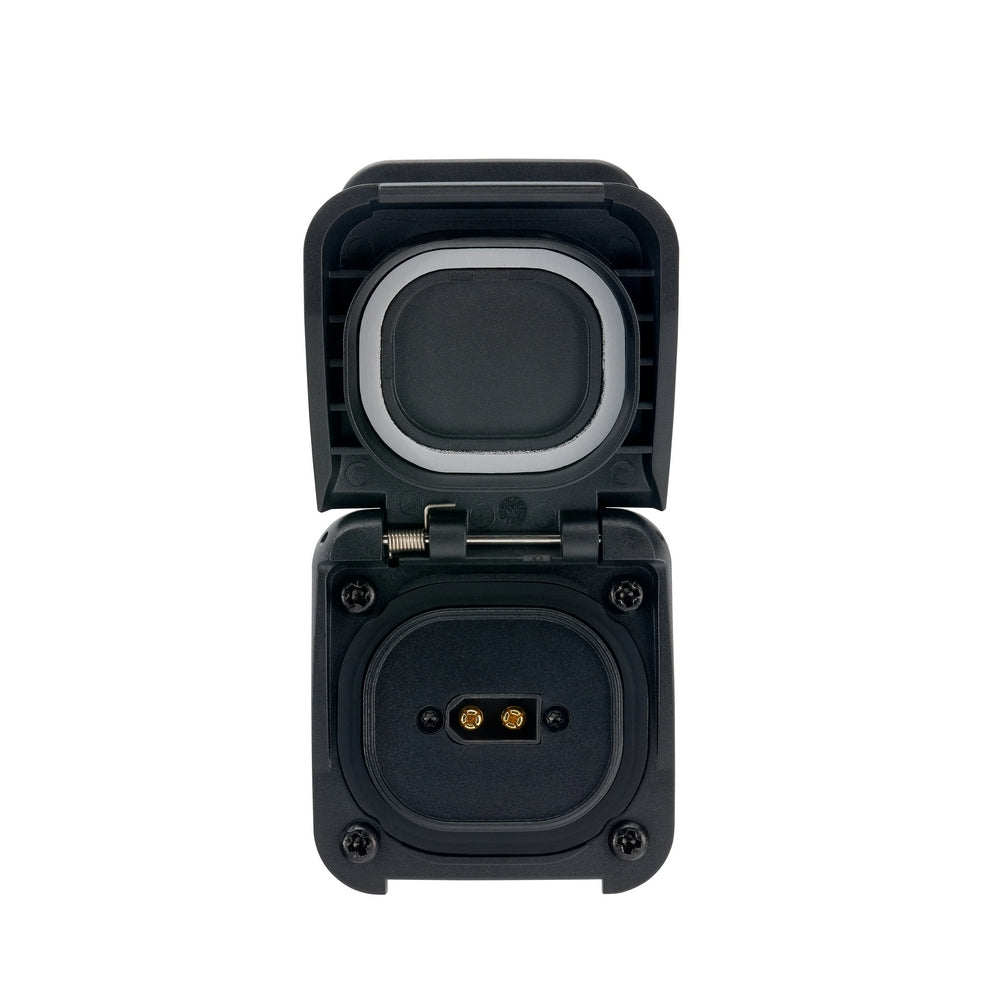

• Intuitive Design: Features a spring-loaded "click-shut" lid that opens a full 180° for easy access and stays out of the way during use with a 90° holding feature.
• Easy Installation:Designed for a simple fit using a standard 25mm (1") hole saw, with a built-in gasket.
• Universal Compatibility: Works seamlessly with standard XT60-F and waterproof XT60W-F female connectors (achieving IP65 protection while in use)

Technical Specification

• Model Number: SC-V-S3
• Connector Type: Amass XT60EW-M (Male)
• Max Current:30A Continuous / 60A Instantaneous
• Max Voltage: 500V DC
• Power Delivery: 360W @ 12V | 720W @ 24V | 1440W @ 48V
• Waterproof Rating: IP68 & IP69K (Lid Closed) / IP65 (In-use with XT60W-F)

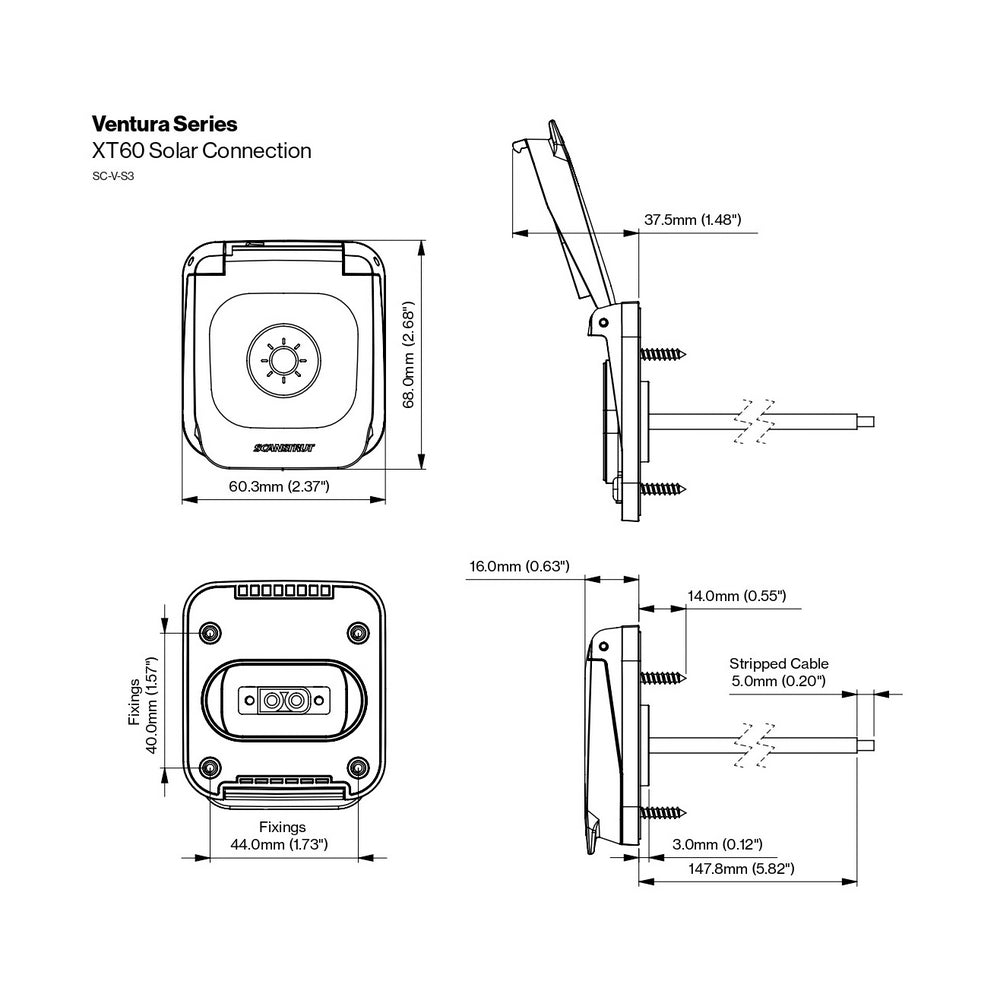

• Mounting Hole Size: 25mm (1.00”)

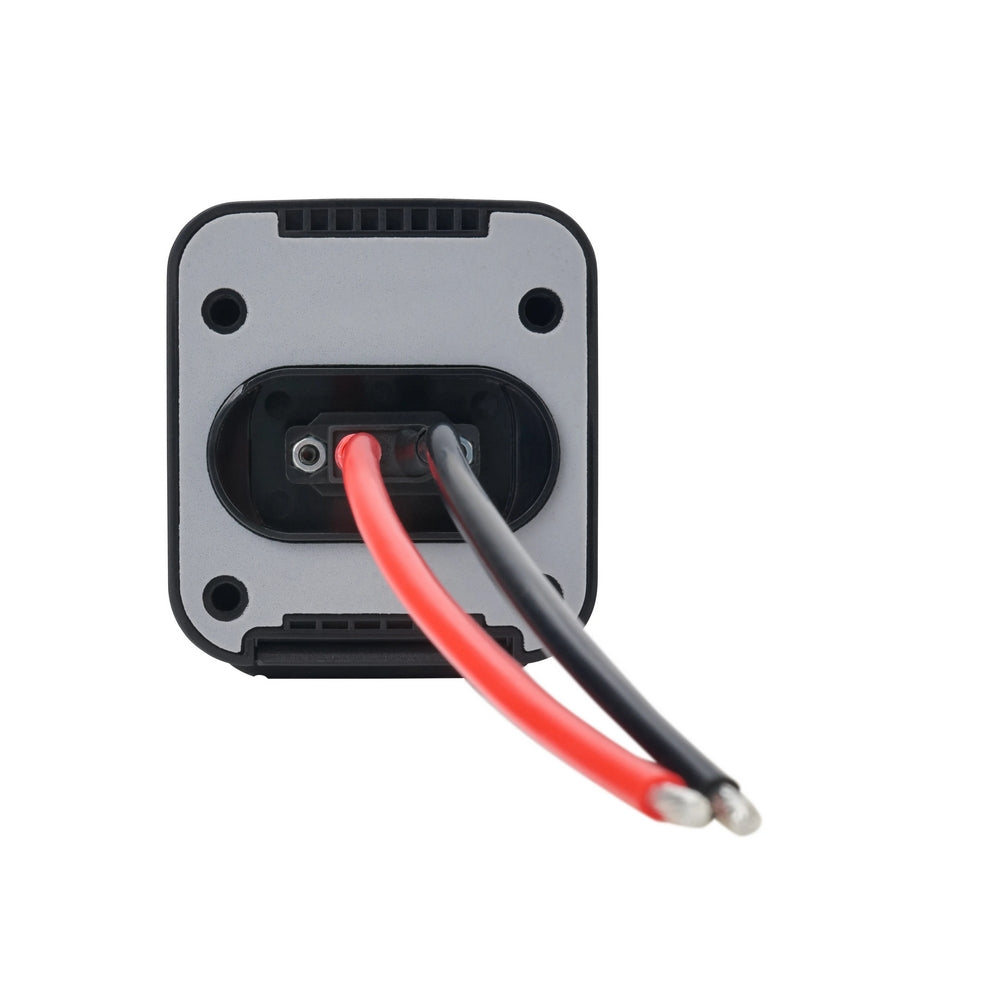

• Cable Specification: 150mm tinned copper flying lead (4mm² / 12AWG)
• Materials: UV-stable plastic & 316 Stainless Steel
• Certifications: CE, UKCA, RoHS
