Scanstrut Ventura Series Anderson 50A Waterproof Solar Connection

The Scanstrut Ventura Anderson SB50 Connection (SC-V-S1) is specifically designed for high-power off-grid applications. Whether you are connecting large portable solar arrays or high-draw DC equipment, this socket provides a rugged, flush-mount interface that eliminates the need for trailing cables or makeshift connections.

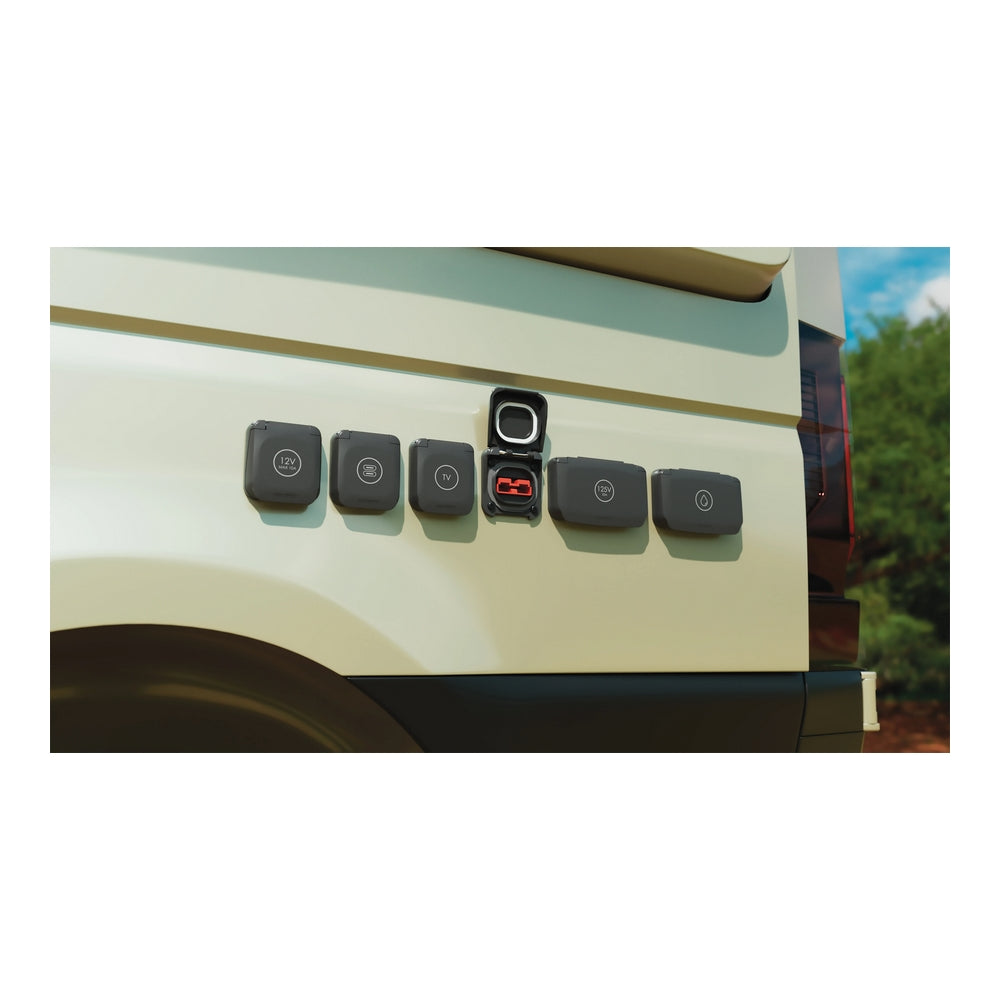

Using the industry-standard Anderson SB50 format, it brings genuine marine-grade durability to campervans and boats.

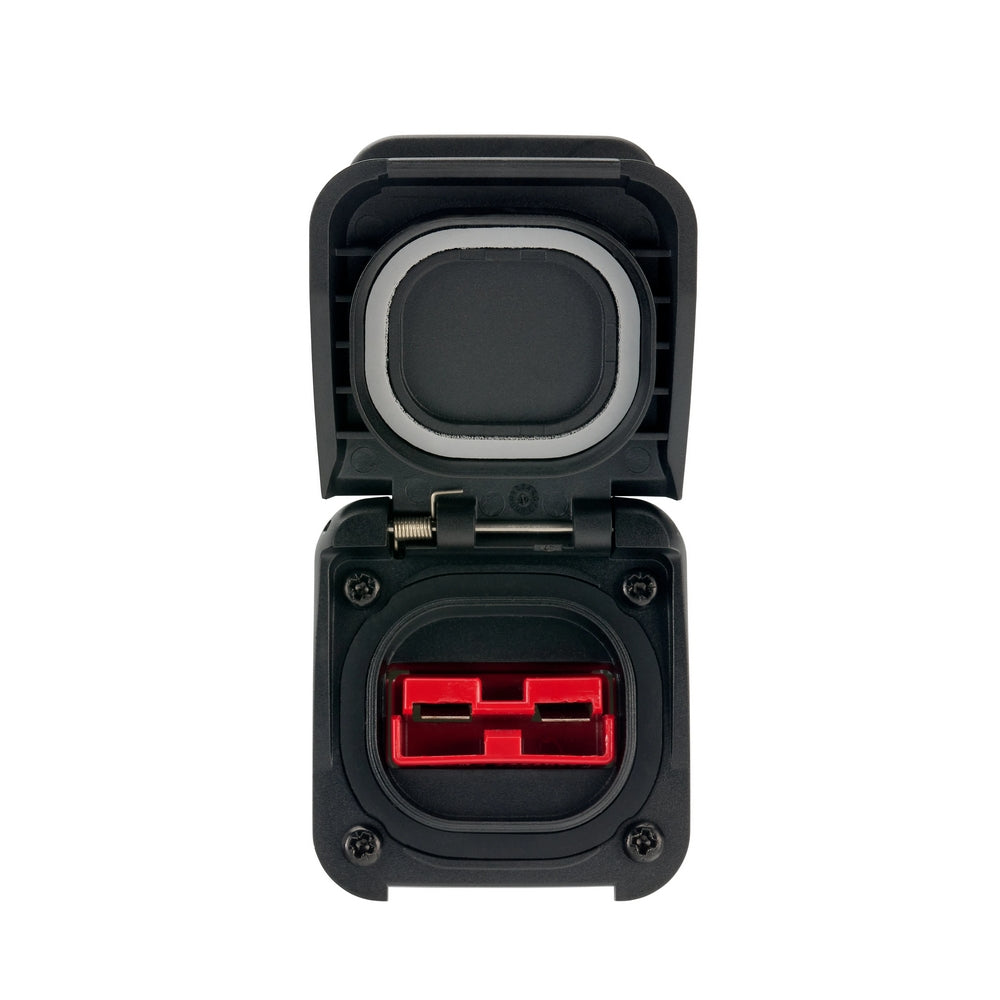

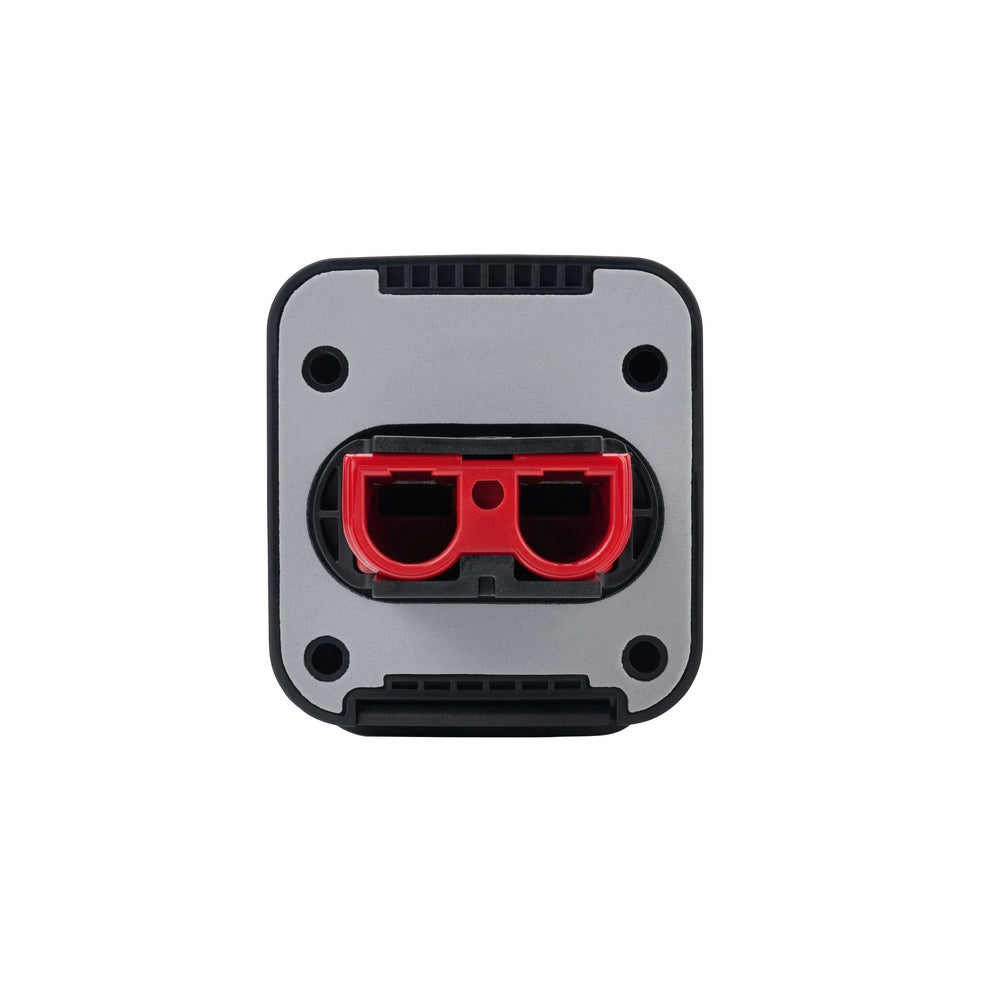

Note: This socket is pre-installed with an Anderson SB50 (Red) connector and does not include the terminal crimps. Also the Anderson SB50 (Red) is not compatible with the SB50 (Grey) variant. However they can be swapped over quite simply via two torx screws holding the connector in place. See link here if you wish to change them: Anderson SB50 (Grey)

Key Features

• High-Power Capacity: Genuine Anderson SB50 (Red) housing, capable of handling up to 50A, making it perfect for large-scale solar charging and battery maintenance.

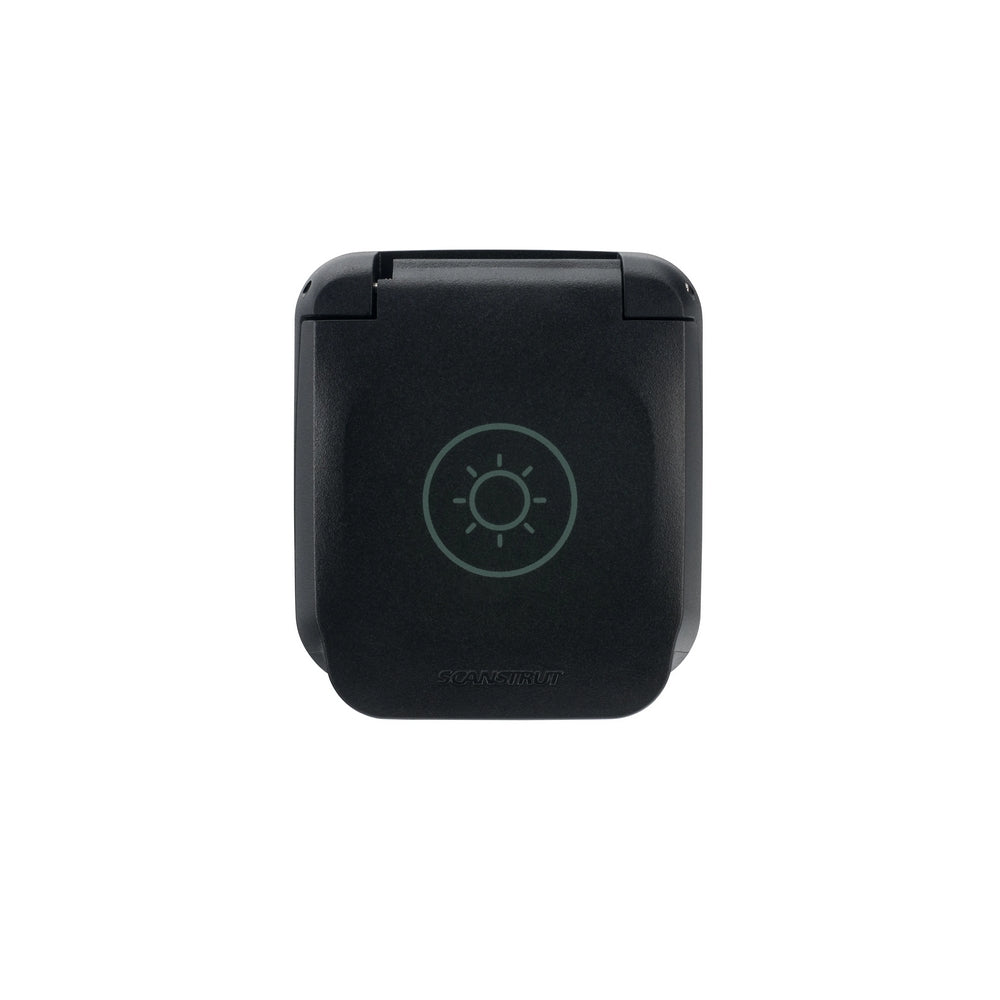

• Extreme Weatherproofing: IP68 and IP69K rated (with the lid closed) for total protection against dust, driving rain, and high-pressure washdowns.

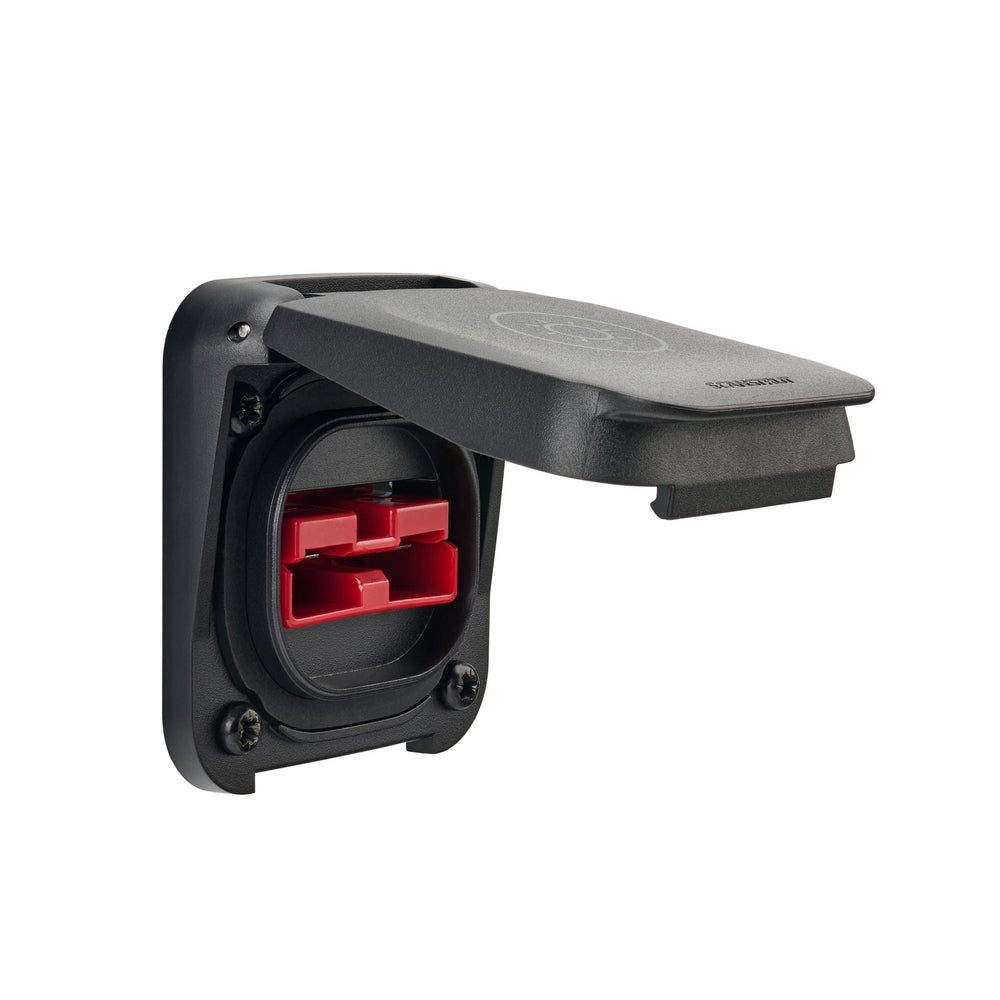

• Smart Lid Design: The spring-loaded lid opens to 180° for unobstructed access and features a 90° "holding" position during use.

• Marine-Grade Materials: Constructed using UV-stable plastics and 316 stainless steel hardware to prevent corrosion and fading in harsh coastal environments.

Technical Specification

• Model Number: SC-V-S1
• Connector Type: Genuine Anderson SB50 (Red)
• Max Current:50A
• Max Voltage: 600V DC
• Power Delivery: 600W @ 12V | 1200W @ 24V | 2400W @ 48V
• Waterproof Rating: IP68 & IP69K (Lid Closed)

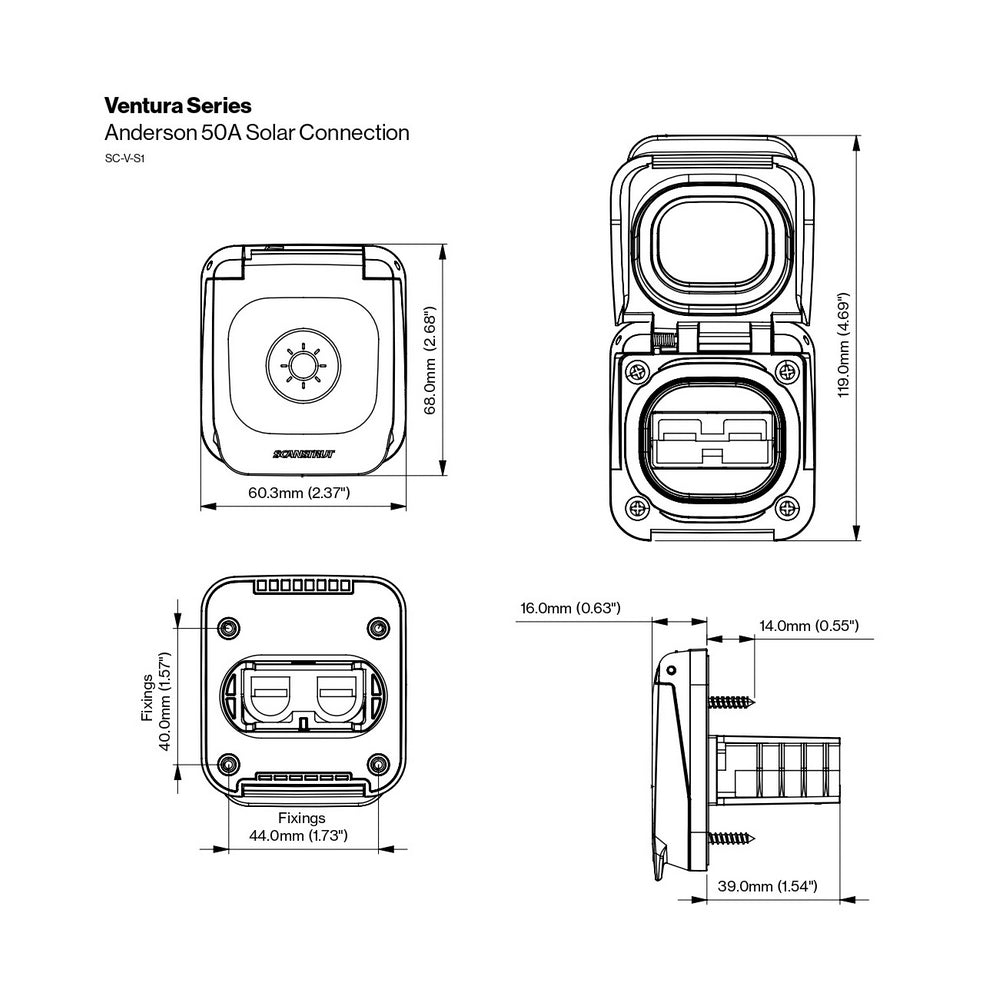

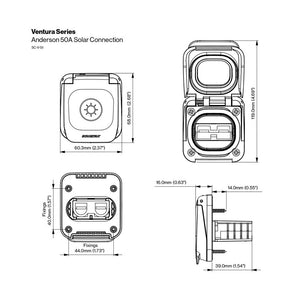

• Mounting Hole Size: 25mm (1.00”)
• Materials: UV-stable plastic & 316 Stainless Steel
• Terminals: SB50 crimp terminals (not included)
• Certifications: CE, UKCA, RoHS
