Floodlights

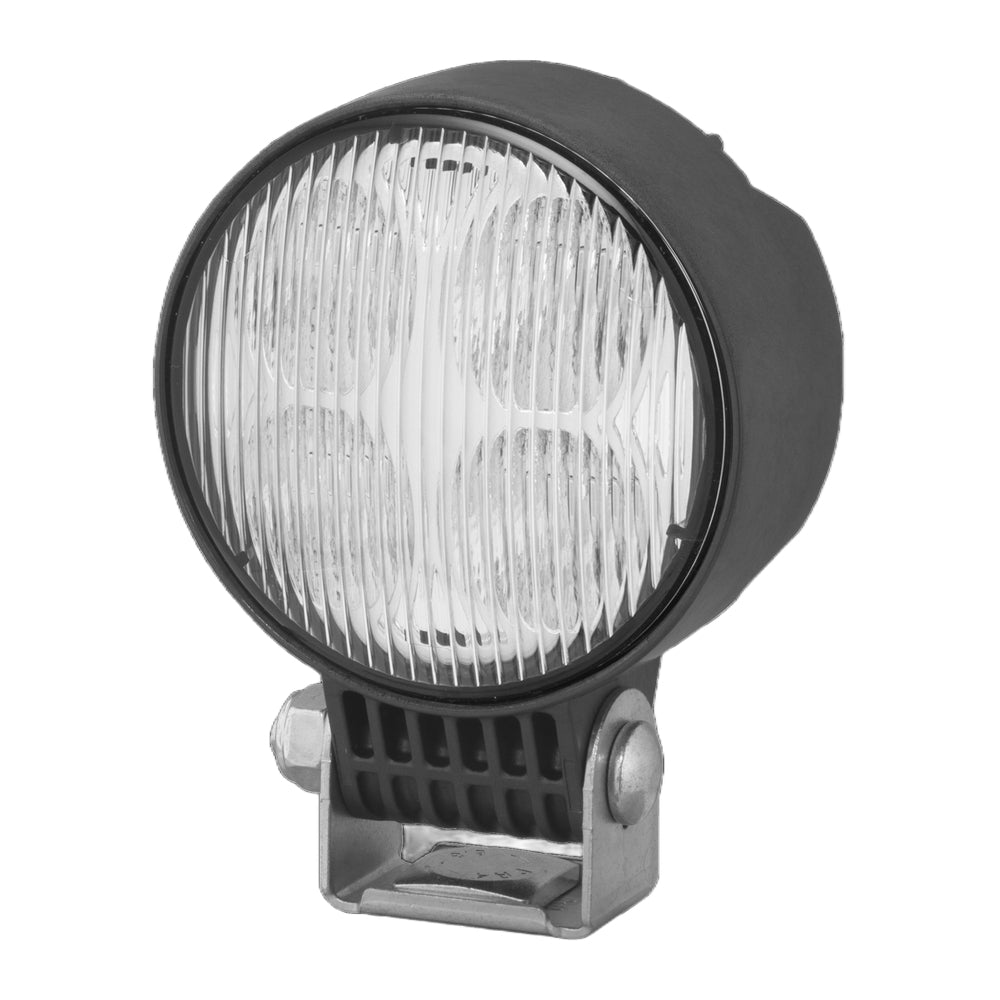

The Hella Marine Module 70-S LED Floodlight is a compact, high-output, energy-efficient LED replacement for traditional halogen lighting. Delivering an impressive 1,850 lumens while consuming just 17W, it features advanced thermal polymer housing and intelligent temperature control for reliable performance in harsh marine environments.

Key Features:

• High-Efficiency LED Performance: Delivers 1,850 lumens of output while using significantly less power than halogen alternatives.

• Advanced Thermal Management: Engineered with cooling fins and temperature-controlled automatic dimming to maintain maximum light output without overheating.

• Corrosion-Resistant Build: Constructed from a durable, heat-dissipating thermal polymer housing with a high impact-resistant plastic cover lens.


• Close Range Beam Optics: Optimized specifically for broad, close-range illumination across working decks, cockpits, and docks.

• Secure Upright or Pendant Mounting: Equipped with a robust stainless steel bracket designed for stable mounting either above or below mounting surfaces.

• Fully Submersible Protection: Completely dust- and waterproof (IP 6K7 / IP 6K9K), designed to withstand high-pressure washdowns and operational submersion.

Specifications:

• Light Output: 1,850 Lumens

• Beam Pattern: Close Range (Deck / Working Area Illumination)

• Colour Temperature: 6500K (Daylight White)

• Operating Voltage: 9–32V DC Multi-voltage (12/24V DC nominal)

• Power Consumption: 17W (1.29A @ 12V DC / 0.61A @ 24V DC)

• IP Rating: IP 6K7, IP 6K9K (Completely sealed)

• Materials: Advanced Thermal Polymer housing, plastic lens, Stainless Steel bracket

• Mounting: Upright or Pendant

• Connection: 2-pin DEUTSCH DT connector (sold separately)

• Circuit Protection: Polarity reversal & overvoltage protection

• Compliance: ECE-R10, ADR/GGVSEB, RCM, CISPR 25 Class 5 (12V) / Class 4 (24V)

Powerful LED work light With its Module 70 LED Generation V, HELLA has introduced a compact work light that offers very high light output. For the first time, LED output is on par with that of xenon in a compact design. Equipped with 3 high-performance multichip LEDs, the Module 70 LED is rated to 3,500 lumens while consuming just 30 watts of energy. The work light’s black housing is made of aluminium and incorporates cooling fins. These ensure sufficient heat dissipation from the high-power LEDs.

• 316 Stainless Steel Bracket
• Pre-wired with 0.5m of twin core marine cable
• 30W, 9-33V DC
• 3500 Lumens
• Flood Lamp
• White Housing
• 83 x 110 x 74 (W,H,D)

Powerful LED work light With its Module 70 LED Generation V, HELLA has introduced a compact work light that offers very high light output. For the first time, LED output is on par with that of xenon in a compact design. Equipped with 3 high-performance multichip LEDs, the Module 70 LED is rated to 3,500 lumens while consuming just 30 watts of energy. The work light’s black housing is made of aluminium and incorporates cooling fins. These ensure sufficient heat dissipation from the high-power LEDs.

• 316 Stainless Steel Bracket
• Pre-wired with 0.5m of twin core marine cable
• 30W, 9-33V DC
• 3500 Lumens
• Spot Lamp
• Black Housing
• 83 x 110 x 74 (W,H,D)

Powerful LED work light With its Module 70 LED Generation V, HELLA has introduced a compact work light that offers very high light output. For the first time, LED output is on par with that of xenon in a compact design. Equipped with 3 high-performance multichip LEDs, the Module 70 LED is rated to 3,500 lumens while consuming just 30 watts of energy. The work light’s black housing is made of aluminium and incorporates cooling fins. These ensure sufficient heat dissipation from the high-power LEDs.

• 316 Stainless Steel Bracket
• Pre-wired with 0.5m of twin core marine cable
• 30W, 9-33V DC
• 3500 Lumens
• Spot Lamp
• White Housing
• 83 x 110 x 74 (W,H,D)

Energy efficient Hella marine Sea Hawk lamps are completely sealed, lightweight and ultra durable offering powerful illumination with significantly less consumption than halogen deck floodlights.

• 7W / 550 Lumens
• 'Fit and forget'
• Fully sealed and salt water durable - IP67
• Polished 316 stainless steel bracket
• Multivolt 9-33V
• 7W Consumption (0.58A @ 12V)
• Pre-wired with 2.5m twin marine grade cable
• Friction mounts allow adjustment without tools
• 5 Year Warranty

Energy efficient Hella marine Sea Hawk lamps are completely sealed, lightweight and ultra durable offering powerful illumination with significantly less consumption than halogen deck floodlights.

• 7W / 550 Lumens
• 'Fit and forget'
• Fully sealed and salt water durable - IP67
• Polished 316 stainless steel bracket
• Multivolt 9-33V
• 7W Consumption (0.58A @ 12V)
• Pre-wired with 2.5m twin marine grade cable
• Friction mounts allow adjustment without tools
• 5 Year Warranty

Integrated Dimming Built-in convenience of switching between High level full intensity and low level dimmed output.

• 1300 Lumens (Effective)
• High & Low Mode Feature
• 'Fit and forget'
• Fully sealed and salt water durable - IP67
• Polished 316 stainless steel bracket
• Multivolt 9-33V
• Power Consumption: 18W (High Mode) / 2W (Low Mode)
• Pre-wired with 2.5m of Marine 3 Core Cable
• Friction mounts allow adjustment without tools
• 5 Year Warranty

Integrated Dimming Built-in convenience of switching between High level full intensity and low level dimmed output.

• 1300 Lumens (Effective)
• High & Low Mode Feature
• 'Fit and forget'
• Fully sealed and salt water durable - IP67
• Polished 316 stainless steel bracket
• Multivolt 9-33V
• Power Consumption: 18W (High Mode) / 2W (Low Mode)
• Pre-wired with 2.5m of Marine 3 Core Cable
• Friction mounts allow adjustment without tools
• 5 Year Warranty

Integrated Dimming Built-in convenience of switching between High level full intensity and low level dimmed output.

• 1300 Lumens (Effective)
• High & Low Mode Feature
• 'Fit and forget'
• Fully sealed and salt water durable - IP67
• Polished 316 stainless steel bracket
• Multivolt 9-33V
• Power Consumption: 18W (High Mode) / 2W (Low Mode)
• Pre-wired with 2.5m of Marine 3 Core Cable
• Friction mounts allow adjustment without tools
• 5 Year Warranty
*deliveries can take up to 2 weeks

Integrated Dimming Built-in convenience of switching between High level full intensity and low level dimmed output.

• 1300 Lumens (Effective)
• High & Low Mode Feature
• 'Fit and forget'
• Fully sealed and salt water durable - IP67
• Polished 316 stainless steel bracket
• Multivolt 9-33V
• Power Consumption: 18W (High Mode) / 2W (Low Mode)
• Pre-wired with 2.5m of Marine 3 Core Cable
• Friction mounts allow adjustment without tools
• 5 Year Warranty

Even bigger and brighter! The new XLB floodlights generate over 2200 lumens of crisp, white light to illuminate the hardest to see places while continuing the durability and efficiency advantages accustomed to the proven Sea Hawk range. Advanced optical systems deliver incredible illumination without glare. Spread lamps illuminate a wide, closerange spread over a cockpit, foredeck or working area. Unique Corrosion Proof Housing Sea Haw-XLB housings are precision injection moulded from thermally conductive ceramic polymer. This advanced material draws heat from internal electronics for reliable long-term operation and eliminates the need for an aluminium housing removing corrosion risks in the harsh marine environment. Dual Outputs High output (2200 Lumens / 25W) and low light (220 Lumens / 5W)

• 316 stainless steel bracket
• Pre-wired with 0.5m of 3 core marine cable
• 9-33V DC
• 5 Year Warranty

Deck Floodlight and Masthead Lamp combined in a robust housing. Featuring ‘Free Form’ reflector technology, Flexible mounting arms for mounting on a variety of mast profiles, Illuminates large areas of deck or superstructure, Glass lens bonded with reflector to be dust and moisture resistant. All metal parts are stainless steel and 12V bulbs included.

Suitable for vessels up to 20M.

Hella marine introduces the low profile and powerful FMS LED deck lamps. These surface mount scene lamps are purpose designed to integrate discretely into tight spaces and exterior recesses, yet throw a huge amount of light wherever they are installed. With a protrusion of only 38mm, the FMS lamps are sleek and unobtrusive during the day, but make themselves very well-known at night!

Hella marine LED technology is the answer for energy efficient, completely sealed, shock and vibration resistant lighting. Advanced electronics provide consistent illumination and circuit protection across a range of inputs from 9-32V DC for an ultra-long service life.

• Deck Floodlight for surface mounting
• Low profile design
• Close-range illumination
• 2500 Lumens
• Energy efficient and durable LED technology
• IP6K8 (Protection against dust and prolonged water immersion)
• IP6K9K (Protection against dust and high-pressure/steam jet cleaning)
• 9-32V DC
• Pre-wired with 500mm cable
• Housing: Die-cast aluminium with Corosafe coating
• Dimensions: 243 x 66 x 38mm (W, H, D)

Designed for installations through Cabin Roofs

• Two Reflectors and Two Halogen Bulbs on Single Switches
• 2 x 55W (12V) Halogen Bulbs Included (for 24V use 460 bulb)
• 360° Rotation, 30° Vertical Adjustment
• Extended Front Edge for Protection of the Glass Edge
• Pre-Wired with 350mm of Cable O-Ring Included
• 154mm (Ø) x 488mm (H)

The Ultra Beam search light is a through-roof mountable lamp, giving beam direction control from inside the cabin.

The lamp features a powerful light output of 4400 lumen in a search light pattern for illumination distance of 310m @ 1 Lux. The proven mounting system offers operation in any direction from the comfort of the cabin or wheelhouse with 360º of rotation and 30° of vertical adjustment.

The unique corrosion proof housing provides exceptional durability and long-term reliability through unmatched corrosion resistance. Quality materials like the impact resistant polycarbonate lens and the premium aluminium housing ensure a long lifetime, and a maintenance-free lighting product.

Multivolt™ circuitry means the lamp can be used on 12V or 24V DC, whilst only consuming 50W. The Ultra Beam Search will continue to operate at any input between 9-32 volts.

This LED search light uses the same footprint and mounting situation as the Halogen series through cabin light. An upgrade is easily possible.

• Extremely bright 4400 lumen
• Colour Temperature: 6500K
• Low 50W power consumption
• Far reaching 310m spot illumination
• 360° rotation and 30° vertical adjustment
• IP6K9K rated protection (Protection against dust and high-pressure/steam jet cleaning)
• Easy upgrade from previous model
• Cable: Pre-wired with 350mm of cable
• Compliance: CE, EMC, RCM
• 5 year warranty

• Multivolt: 9-33V DC
• Housing Description Premium Corosafe coating
• Light Output 2500 lumens
• Power Consumption 30W
• Cable Spiral cable with cigarette lighter plug (extended length 3500mm)
• Degree of Protection IP6K9K, IP6K8
• Warranty: 5 Years

A Vital tool for night sailing and landing manoeuvres.

• Two reflectors and two halogen bulbs on a single switch
• 55W for Close Range / 100W for Long Range
• Trigger Switch Integrated into the grip allows Morse code operation
• Extended front edge for protection of the glass lens
• Deck Mount Base Included
• 3.5m Extended Length Spiral Cable with Cigarette Lighter Plug
• 154mm (Ø) x 166mm (D)

Optional base mount for Hella Marine LED hand held search light.
