Veratron VMH 70 Multifunction 7" Display - B00129201

(£1,288.14 Inc. VAT at 20%)
10-15 Day Delivery
Product Description+

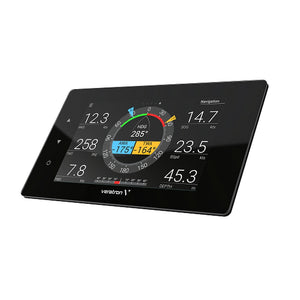

The Veratron VMH 70 can handle large amounts of complex data from your boat's systems, this 7-inch all-in-one display is part of the VMH premium instruments series, designed to create a harmonized dashboard for your vessel.

The VMH 70 has a sun-readable IPS TFT touchscreen display with a mineral glass front lens and an ultra-slim profile. It has an integrated light sensor that adjusts the brightness for easy reading without eye strain, no matter how bright or dark the conditions. It also has two camera inputs that allow you to monitor the engine compartment and the main deck while navigating and manoeuvring.

The VMH 70 can be easily configured to display information from up to four engines when connected to NMEA 2000 or two engines via J1939 or analog inputs simultaneously. You can choose from more than 40 available data types, such as single or dual engines, battery performance, fuel, water, waste, tank level, rudder and trim, onboard systems, navigation and weather, and more. You can also customize the start-up and GUI screens to best suit your needs and preferences.

The VMH 70 is compatible with any VMH master device, such as the VMH 35, which can receive data from various sensors and sources via NMEA 2000, analog, or resistive inputs. The VMH 70 connects to the master device via the EasyLink connection, which provides power and data transmission with a single cable. You can also use your smartphone to configure the VMH 70 thanks to the wireless AirWave technology and the Veratron App.

The VMH 70 is ideal for primary and secondary helm stations, either as a single unit or as part of a bank of units. It has a stylish black-glass design with an aluminium case and a protection class of IP X7.

Highlights:

  • 7-inch sun-readable IPS TFT touchscreen display
  • Slim panel installation profile with mineral glass front lens
  • Dual SAE J1939 CAN ports and two camera inputs
  • Fully configurable analog inputs for direct sensor connections with NMEA 2000 gateway
  • Easily customizable GUI screens with more than 40 available data types

Specifications:

  • Nominal voltage: 12 / 24 V (from EasyLink connection)
  • Operating voltage: 9 - 32 V
  • Current consumption: ≤ 900 mA (normal mode) + 100 mA for each EasyLink satellite gauge
  • Protection class: IP X7
  • Dimensions: 220 x 128 mm (outer) 118 x 206 mm (mounting hole)
  • Resolution: 800 x 480
Download User Manual
