Veratron VMH 35-D Diesel Multifunction 85mm Display 12/24V - B00171201 (no GPS)

(£316.67 Inc. VAT at 20%)
10-15 Day Delivery
Product Description+

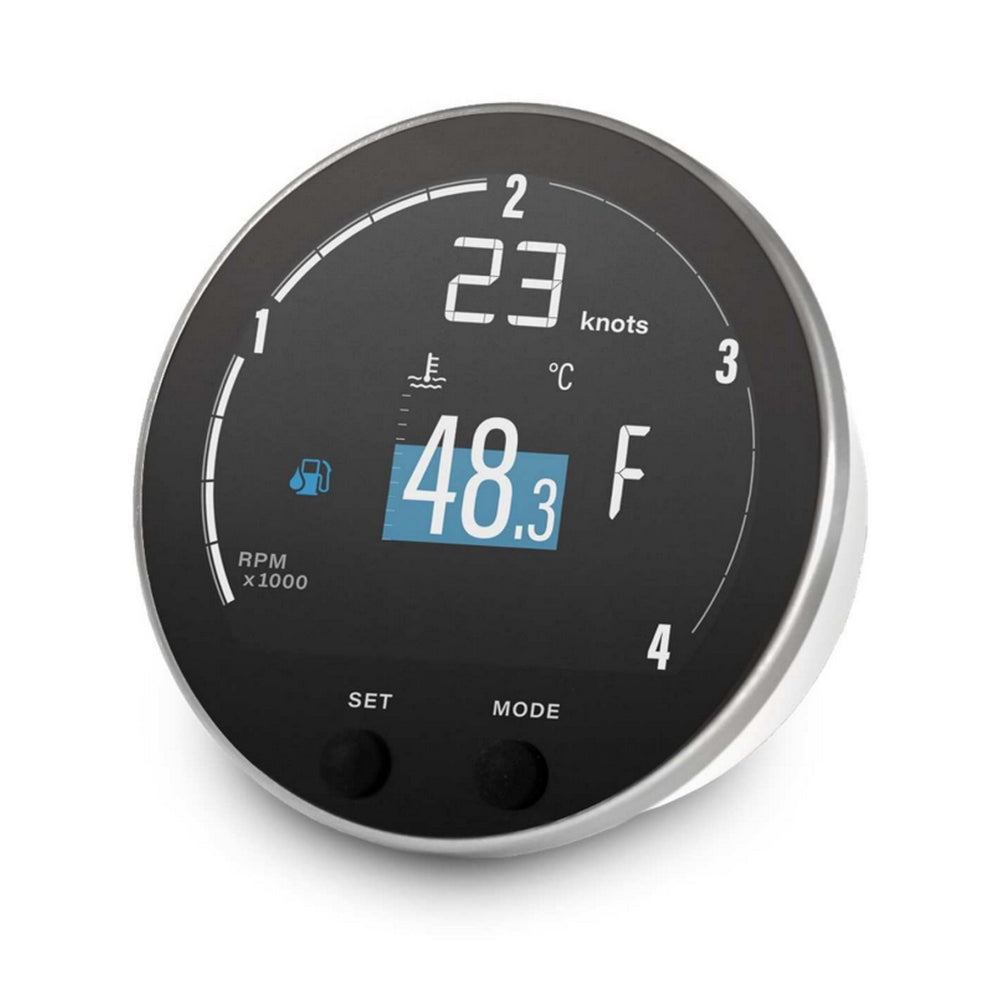

The VMH 35 is now available for diesel engines. Transform your boat from analogue to digital era without expensive converters. Upgrade your boat with a state-of-the-art multifunction digital display. With a powerful embedded gateway, it converts from CAN and/or analogue to NMEA 2000® certified output.

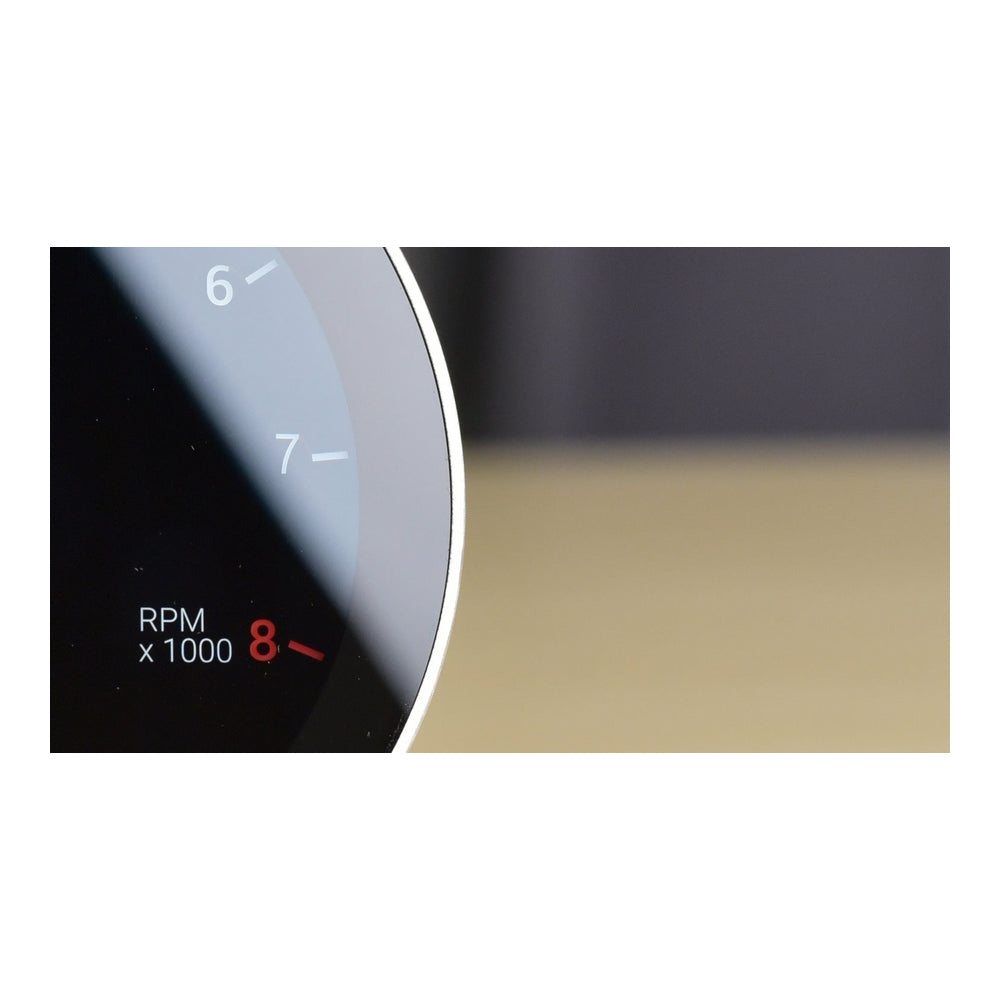

The VMH 35-D is the perfect solution for monitoring your diesel engine. With a configurable dial scale of 3000 or 4000 RPM, the VMH 35-D is a compact display capable of showing a wide amount of data from your engine, battery and tank. Specific information about your diesel engine is provided together with alarms, either received from the SAE J1939 bus or locally set through the embedded menu. Both 12V and 24V systems are supported.

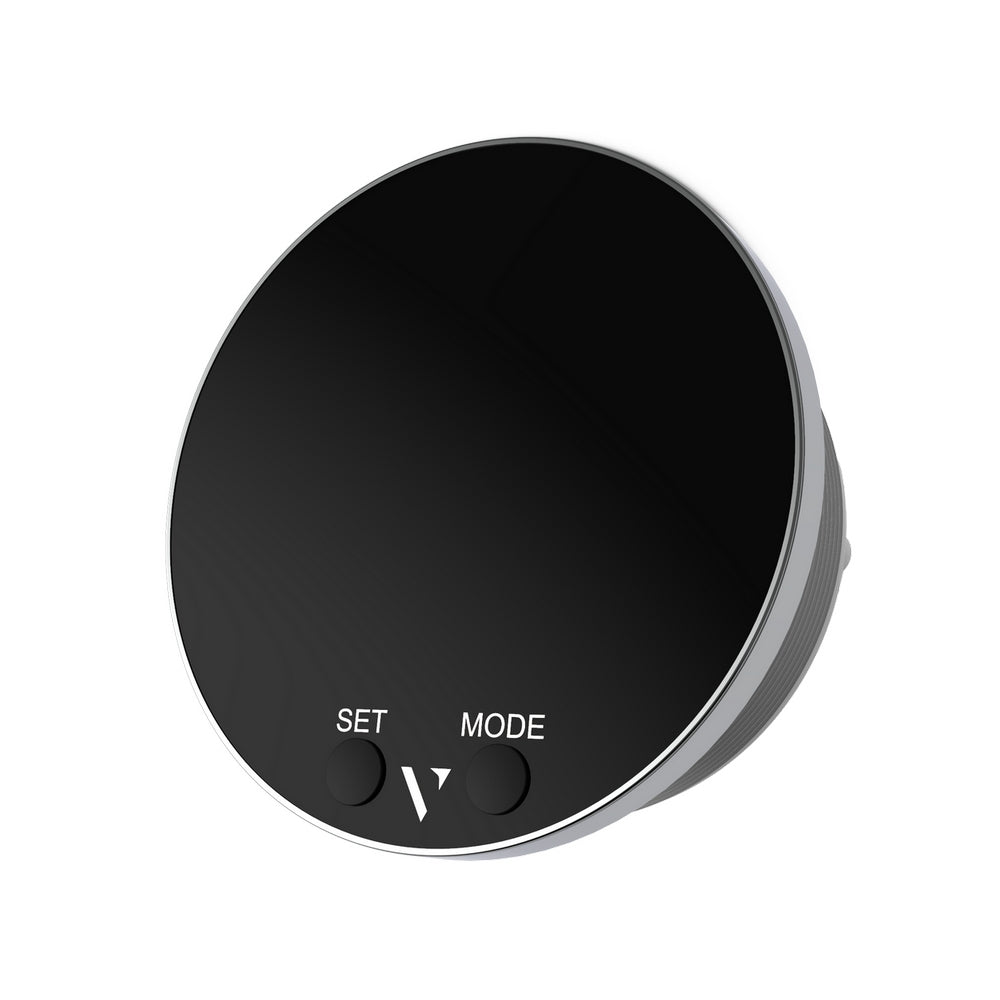

The VMH 35 has a sun-readable colour hybrid display with a mineral glass front lens and a brushed stainless-steel ring. It has an integrated light sensor that adjusts the brightness for optimal visibility and comfort, as well as two soft-touch buttons for easy navigation and configuration.

The VMH 35 is compatible with any VMH master device, such as the VMH 70, which can receive data from various sensors and sources via NMEA 2000, analog, or resistive inputs. The VMH 35 connects to the master device via the EasyLink connection, which provides power and data transmission with a single cable. You can also use your smartphone to configure the VMH 35 thanks to the wireless AirWave technology and the Veratron App.


  • Stylish black-glass design with brushed stainless-steel ring
  • Sun-readable colour hybrid display with intelligent light sensor
  • Analog/CAN to NMEA 2000 gateway
  • More than 30 data types displayed
  • 4 x analog input for external sensors
  • NMEA 2000 certified


  • Nominal voltage: 12/24 V
  • Operating voltage: 9 - 32 V
  • Current consumption: ≤ 150 mA (normal mode)
  • Protection class: IP X7
  • Dimensions: 100 mm (outer) 85 mm (mounting hole)
  • Display: Colour IBN + 1.44" TFT optically bonded
  • Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
Download User Manual
