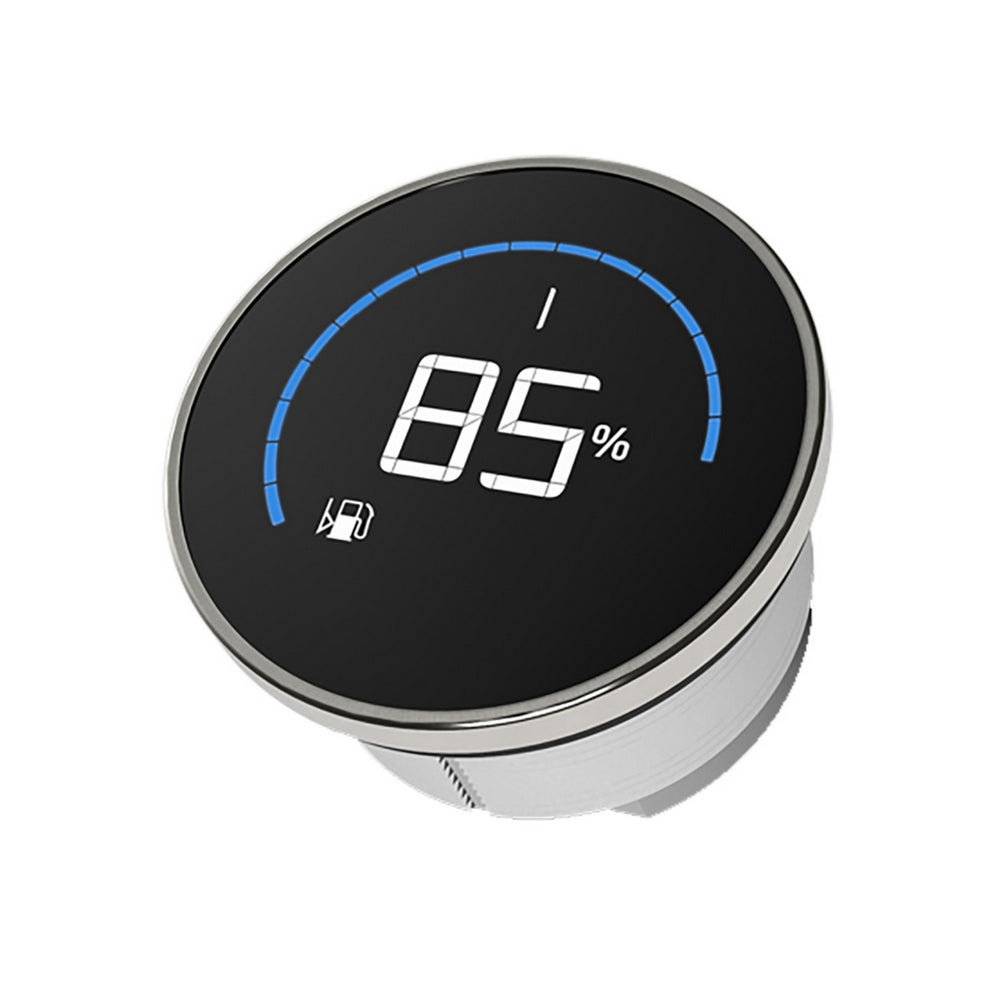

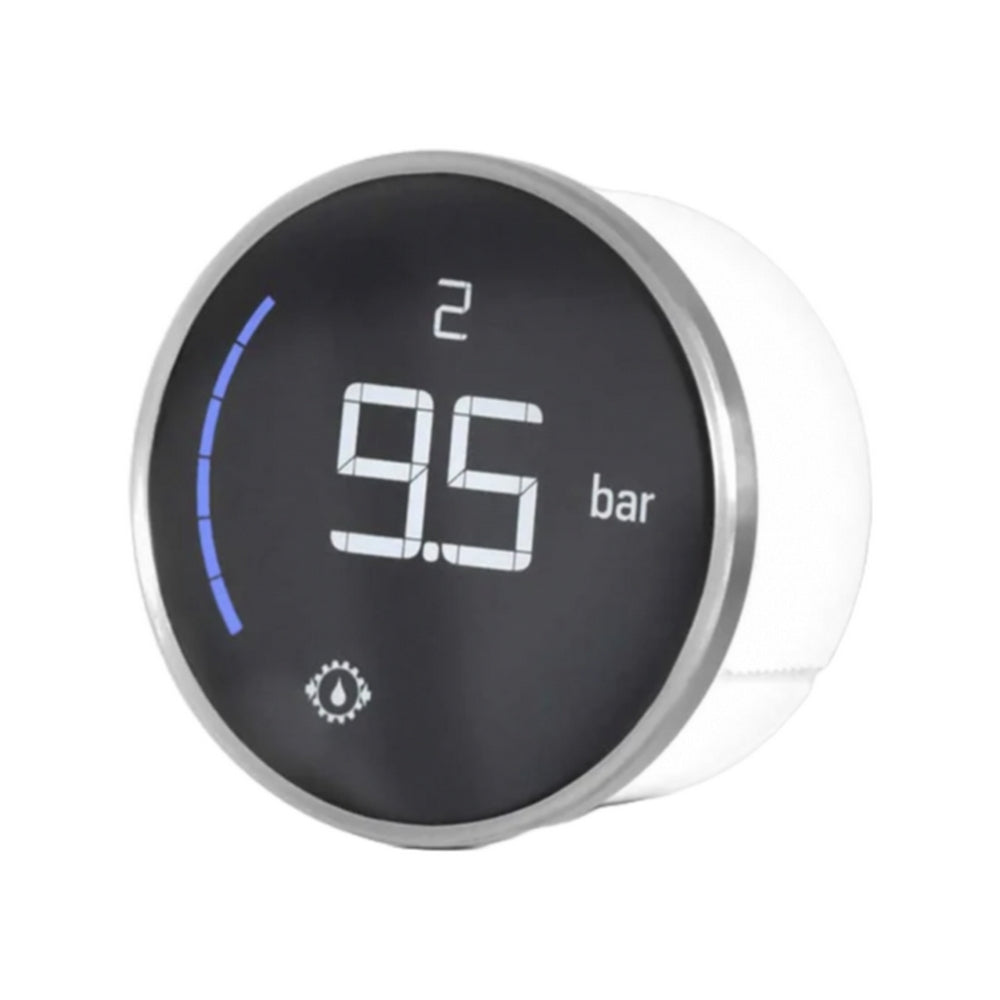

Veratron VMH 14 Multifunction 52mm Display - B00109901

(£82.46 Inc. VAT at 20%)
10-15 Day Delivery
Product Description+

A compact and elegant gauge that can display a variety of data from your boat’s systems. This round all-in-one gauge is part of the VMH premium instruments series, designed to create a harmonized dashboard for your vessel.

The VMH 14 can be easily configured to display eight different data types, such as trim, voltmeter, fuel level, water temperature, transmission, oil temperature and pressure, engine oil temperature and pressure. You can choose the data you want to see on the bright digital display with coloured bar graph, which allows for a quick and intuitive understanding of the data and notification of the alarms.

The VMH 14 is compatible with any VMH master device, such as the VMH 35, which can receive data from various sensors and sources via NMEA 2000, analog, or resistive inputs. The VMH 14 connects to the master device via the EasyLink connection, which provides power and data transmission with a single cable. You can also use your smartphone to configure the VMH 14 thanks to the wireless AirWave technology and the Veratron App.

The VMH 14 is ideal for primary and secondary helm stations, either as a single unit or as part of a bank of units. It has a stylish black-glass design with a brushed stainless-steel ring, a mineral glass front lens, and an optically bonded IBN segment display. It has a standard 52 mm housing and a protection class of IP X7.


  • Stylish black-glass design with brushed stainless-steel ring
  • Perfect match for your VMH master device
  • Digital display with configurable colour bar graph
  • Easily configured with smartphone App
  • 8 different data types supported


  • Nominal voltage: 12 / 24 V (from EasyLink connection)
  • Operating voltage: 9 - 32 V
  • Current consumption: ≤ 15 mA (normal mode)
  • Protection class: IP X7
  • Dimensions: 60 mm (outer) 52 mm (mounting hole)
  • Front ring: Brushed stainless steel
  • Front lens: Mineral glass
  • Display: Optically bonded IBN segment display
  • Connectivity: EasyLink, NFC
  • Connectors: AMP SuperSeal 1.5
Download User Manual
