Veratron Linkup Gateway - J1939 to NMEA 2000 - B00042401

(£157.08 Inc. VAT at 20%)
10-15 Day Delivery
Product Description+

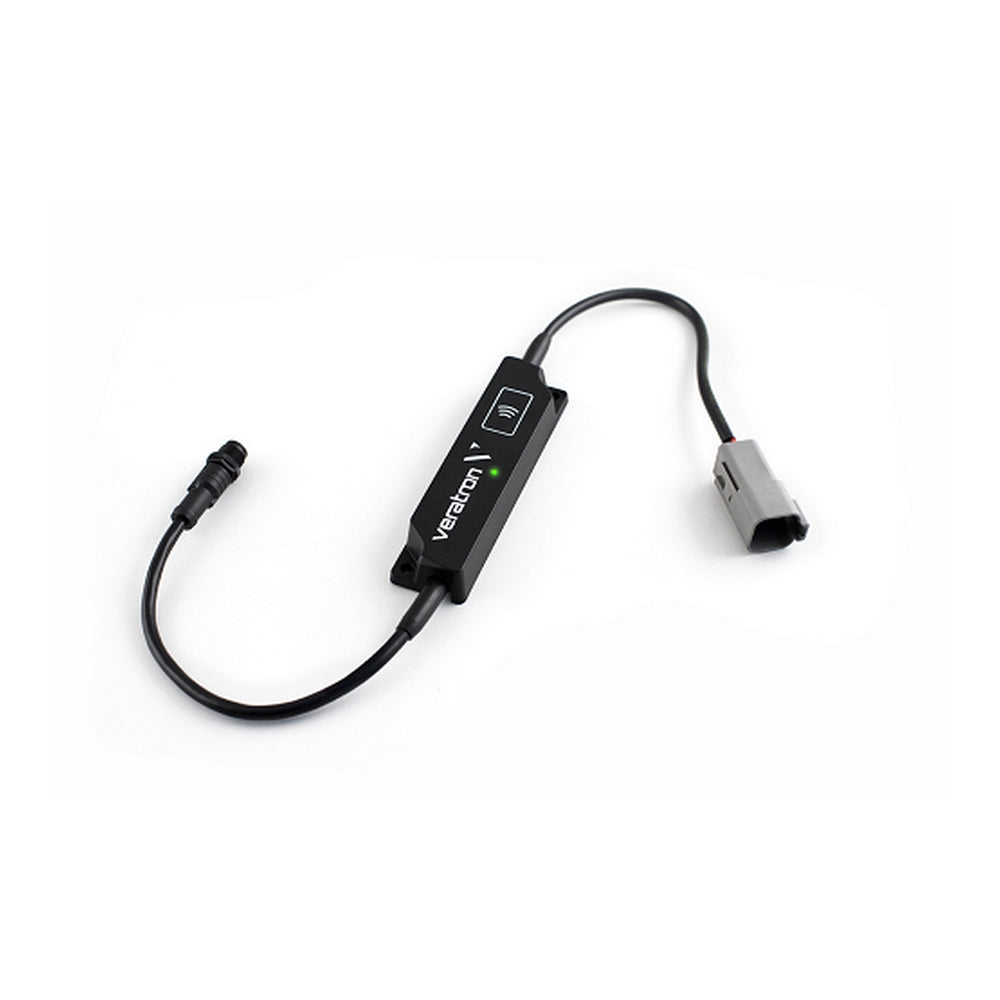

The Veratron Link-up Gateway J1939 will bridge all your CAN engine data, transmitted on the CAN-J1939-Bus, to the NMEA2000® standard, making all the engine and diagnostic information available for any NMEA 2000-capable display.

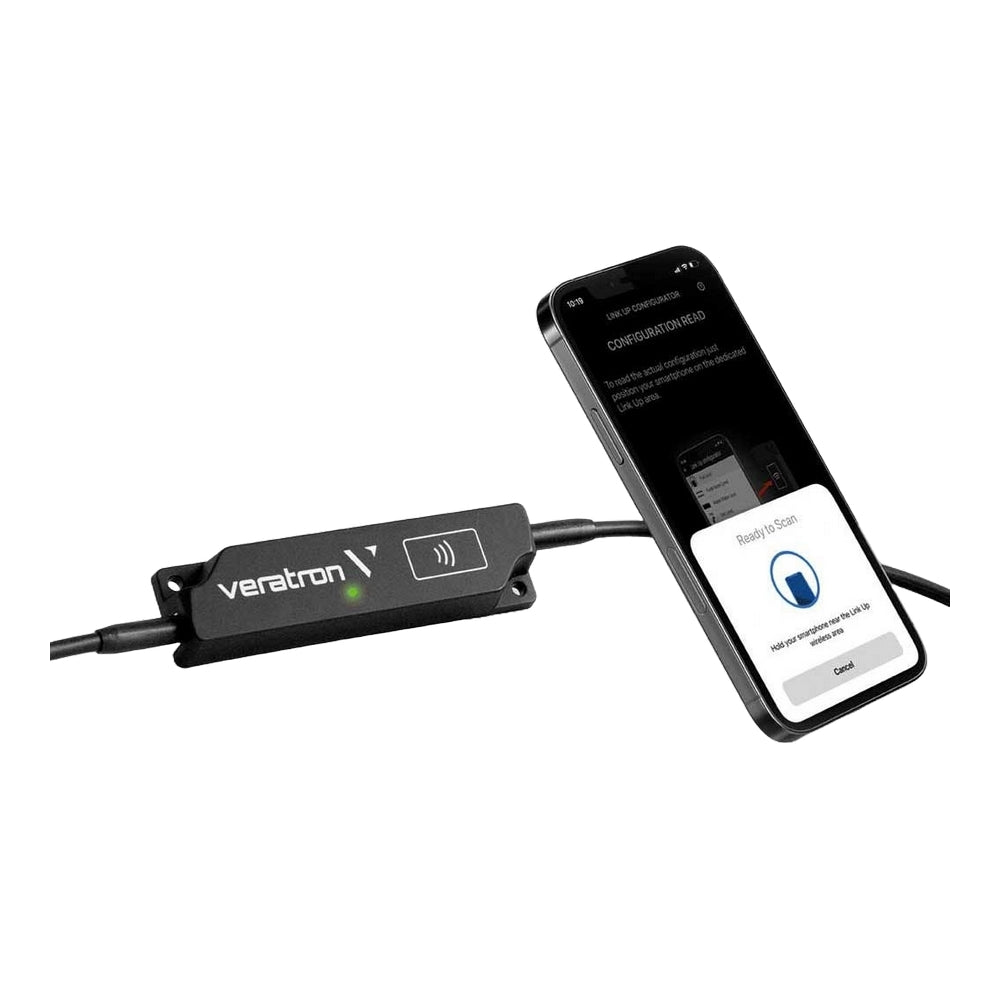

The Veratron Link-up Gateway has a wireless configuration feature that allows you to set up the device using a companion mobile app available for Android and iOS devices. Allowing you to easily configure the device using the mobile app and a wireless NFC interface.

It has a low current consumption and a high protection class, making it suitable for harsh marine environments. Because of its air-sealed housing, the device can be installed in an engine compartment according to ISO 8846:1990 (protection against ignition of surrounding flammable gases). the product is CE, Reach and RoHS compliant.

Fast, Powerless, Secure, Safe and Cost-Effective.


  • Function: Rudder, Battery, Clock, Engine revolution, Exhaust gas temperature, Speed, Trim, Fuel level, Oil temperature, Coolant temperature, Air pressure, Engine hours, Boost pressure, Transmission oil pressure, Engine oil pressure
  • NMEA 2000® certified
  • Wireless configuration through companion mobile app
  • Status LED
  • Plug-and-play installation and configuration
  • Approved for engine compartment installation according to ISO 8846:1990


  • Inputs: SAE J1939
  • Output: NMEA 2000
  • Current consumption: ≤ 100 mA
  • Nominal voltage: 12 V (from NMEA 2000® network)
  • Connector: Deutsch DT04-6P (Male)
  • Wireless interface: NFC
  • Operating temperature: -30°C to 80°C
  • Dimensions: 125 mm x 32 mm (+cables)
  • Cable length: 25cm
  • Protection class: IP X9/K
  • Compliance: CE, UKCA, Reach, RoHS, ISO8846:1990
          Download User Manual
