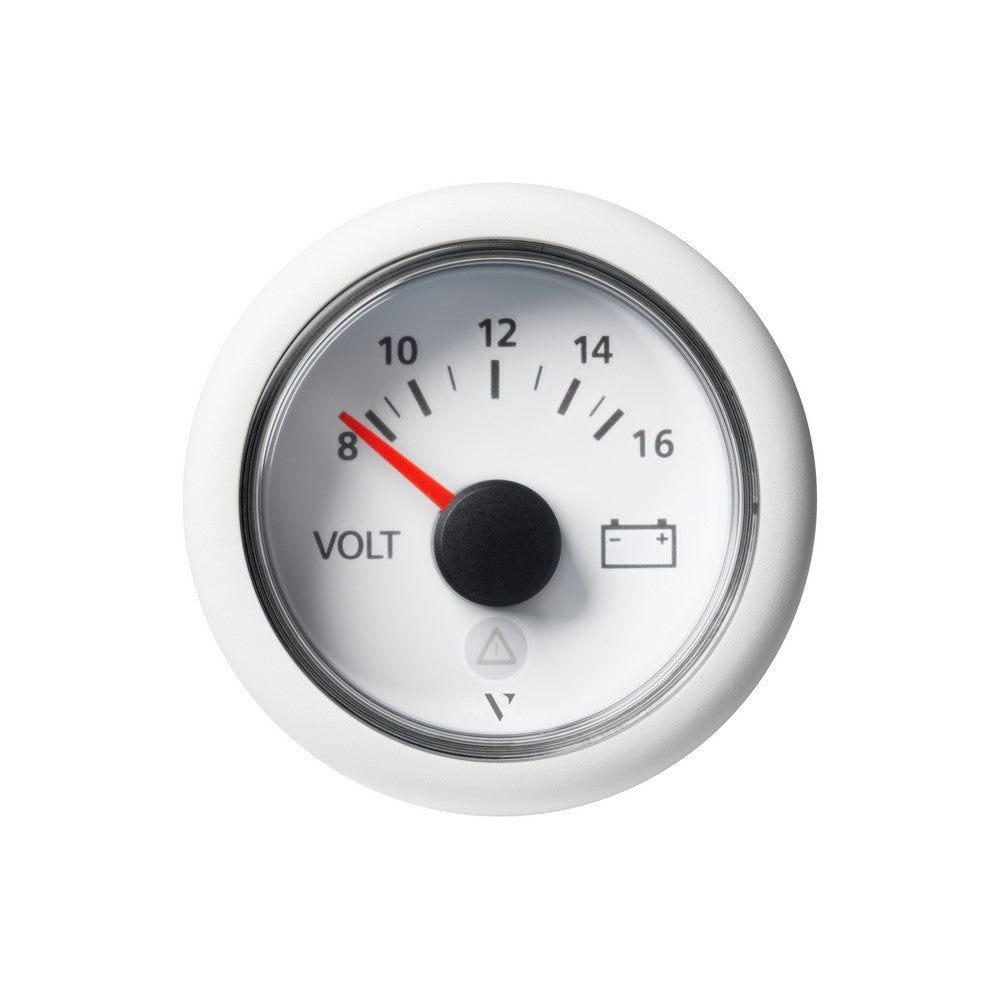

Veratron VDO Viewline Voltmeter 8-16V - 52mm - White

The ViewLine voltmeter displays the status of generator and battery and their loads on a voltage scale. Values exceeding the normal charging voltages can therefore be monitored exactly. Even potential deep discharges can be detected.

• 8 pole Tyco / Hirschmann MQS plug
• +/- 3.6° angle degree accuracy over the entire display range
• Operating voltage 8-32 V
• Current consumption < 150 mA, with integrated warning light (LED)
• 90° display angle
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm hole diameter
• 59 mm outside diameter
• 50 mm installation depth

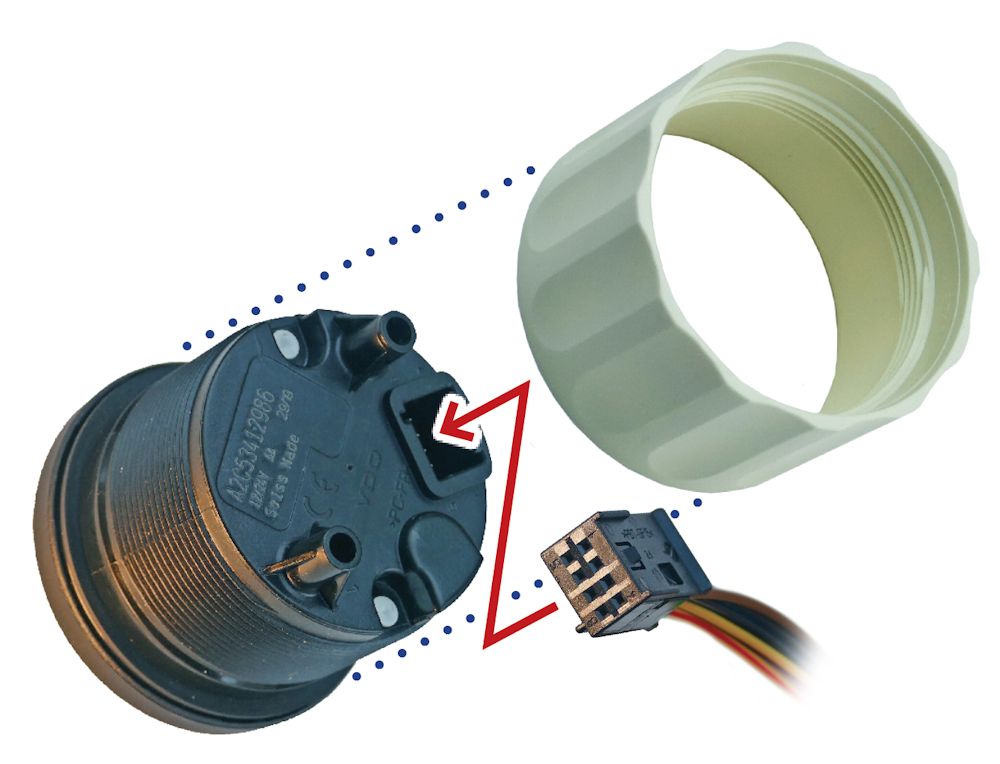

What's in the Box?

• Voltmeter gauge
• Adapter cable 8 pole
• Round bezel
• Spinlock nut
• Rubber seal

Download User Manual
