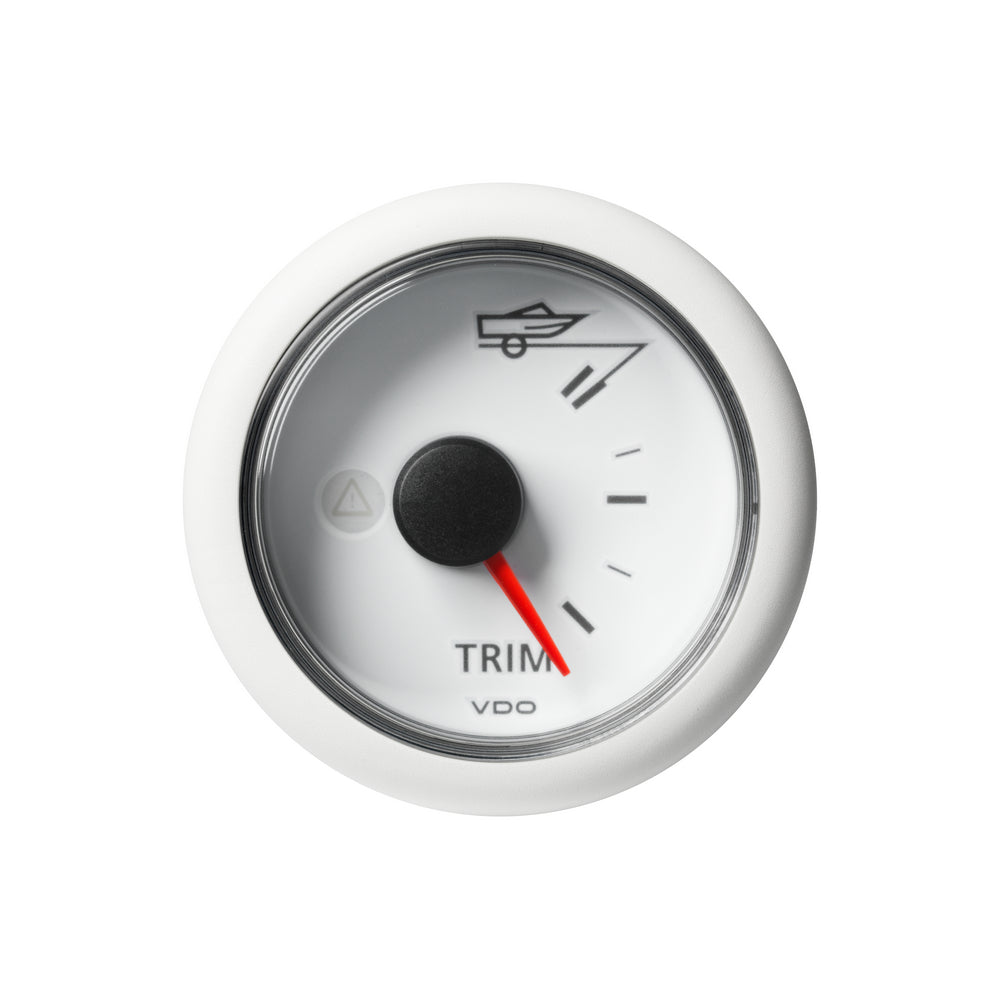

Veratron VDO Viewline Trim Gauge - 52mm - White

The ViewLine trim gauge provides information about the position of the engine in relation to the boat‘s stern. In this way the skipper always knows whether the drive is in the raised or lowered position. He can also optimize the boat‘s trim.

• 8 pole Tyco / Hirschmann bush housing
• + / - 3.6° angle degree accuracy over the entire display range
• Operating voltage 8-32 V
• Current consumption < 150 mA, with integrated warning light (LED)
• Input Ohm: 167-10 Ω
• 90° display angle
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm hole diameter
• 59 mm outside diameter
• 50 mm installation depth

What's in the Box?

• Trim gauge
• Adapter cable 8 pole
• Round bezel
• Spinlock nut
• Rubber seal

Download User Manual
