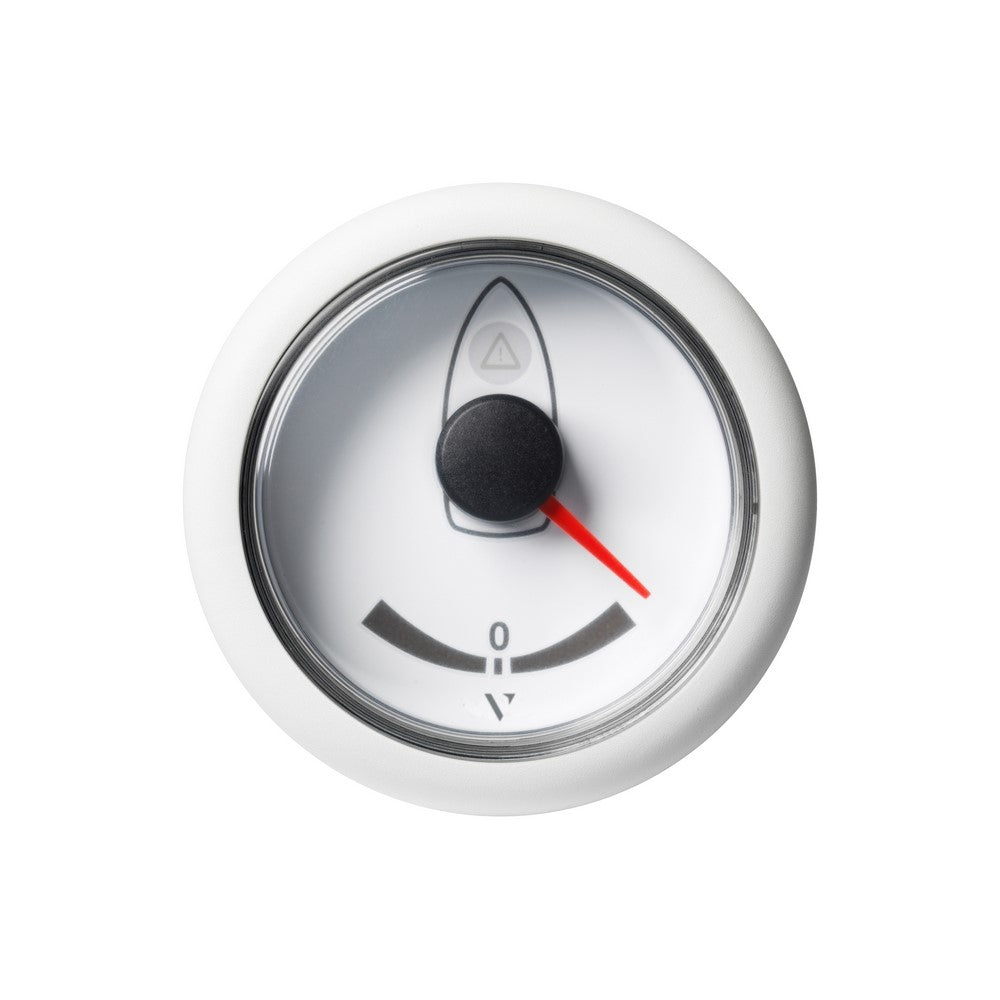

Veratron VDO Viewline Rudder Angle Position Gauge - 52mm - White

The ViewLine rudder angle gauge for wheel-controlled yachts displays the current rudder position at all times. An important cockpit gauge for accident-free maneuvers in narrow waterways.

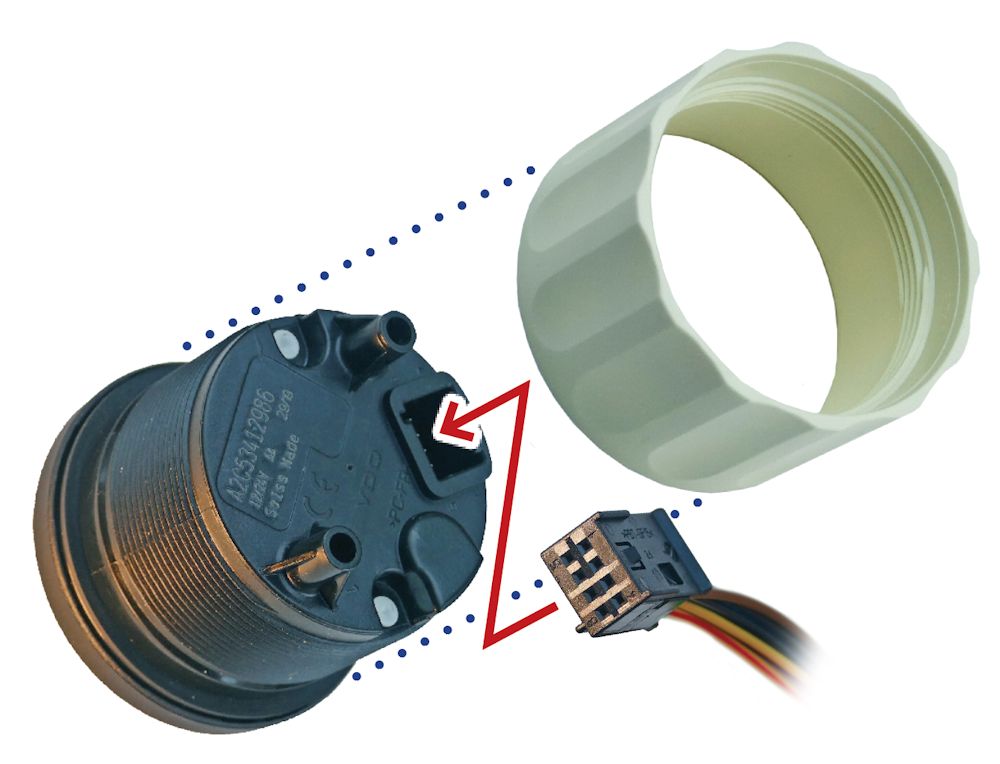

• 8 pole Tyco / Hirschmann bush housing
• Operating voltage 8-32 V
• Current consumption < 150 mA
• Input Ohm: 3-180 Ω
• Needle Range: 40° Port to 40° Starboard
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm hole diameter
• 59 mm outside diameter
• 50 mm installation depth

What's in the Box?

• Rudder angle gauge
• Adapter cable 8 pole
• Round bezel
• Spinlock nut
• Rubber seal

Download User Manual
