A2C59514199

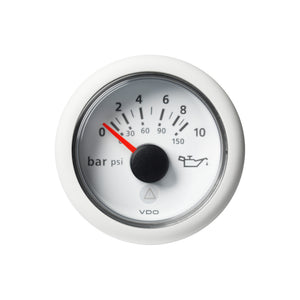

Veratron VDO Viewline Pressure Gauge 0-10 Bar - 52mm - White

(£61.43 Inc. VAT at 20%)
Product Description+

The ViewLine pressure gauge detects fluctuations in engine oil pressure.

  • 8 pole Tyco / Hirschmann MQS plug
  • +/- 3.6° angle degree accuracy over the entire display range
  • Input Ohm: 10-184 Ω
  • Operating voltage 8-32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm hole diameter
  • 59 mm outside diameter
  • 50 mm installation depth

What's in the Box?

  • Oil pressure gauge
  • Adapter cable 8 pole
  • Round bezel
  • Spinlock nut
  • Rubber seal
Download User Manual
