Stainless Steel LED Push Switch with Connector - 12V Blue

(£9.24 Inc. VAT at 20%)
Product Description+

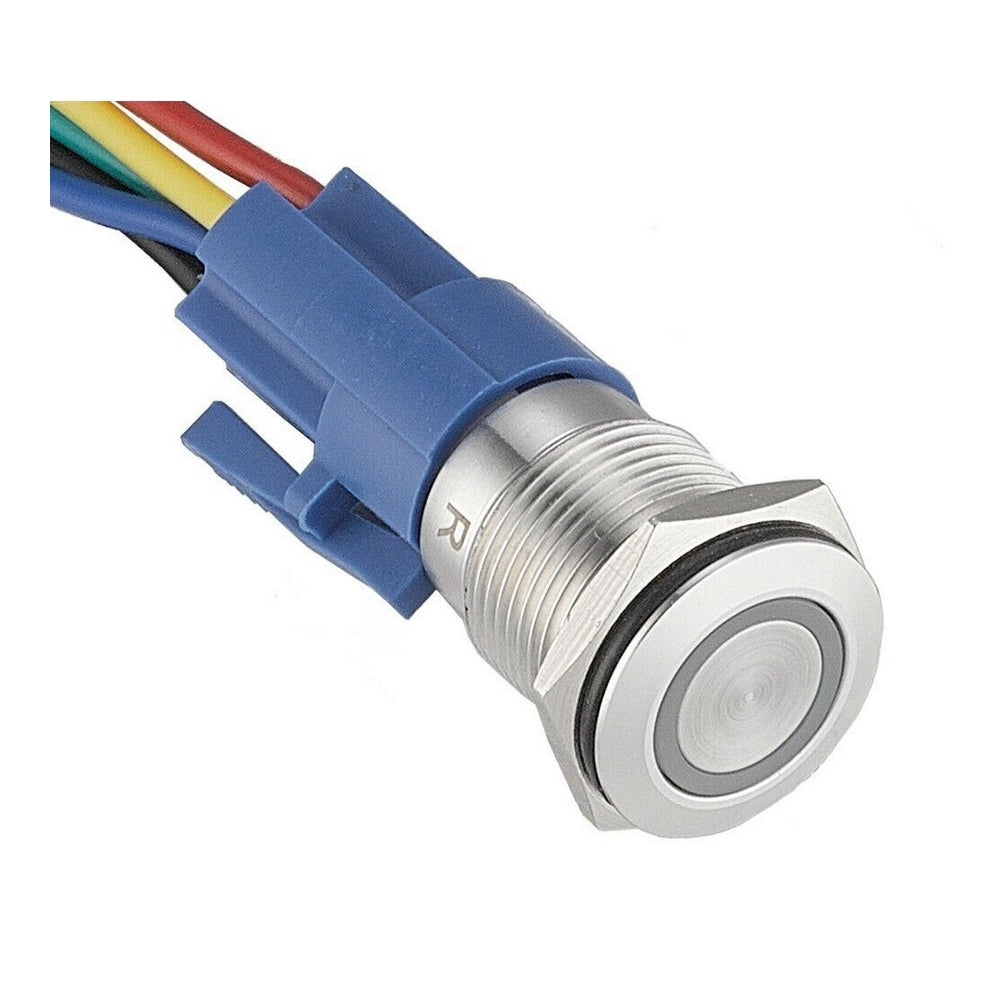

Stainless steel switches featuring an LED ring light. Pre-wired connector included.

Ideal for a wide range of interior or exterior applications. These through panel mount switches are IP67 rated when installed and ideal for switching lighting or installing into custom switch panels.

  • Function: On/Off
  • Select Switch Option (Latching or Non-Latching)
  • Normally open or Normally Closed (select terminal on back)
  • Voltage: 12V (Illumination)
  • Amp Rating: 5A (Max)
  • Material: Polished 304 Stainless Steel

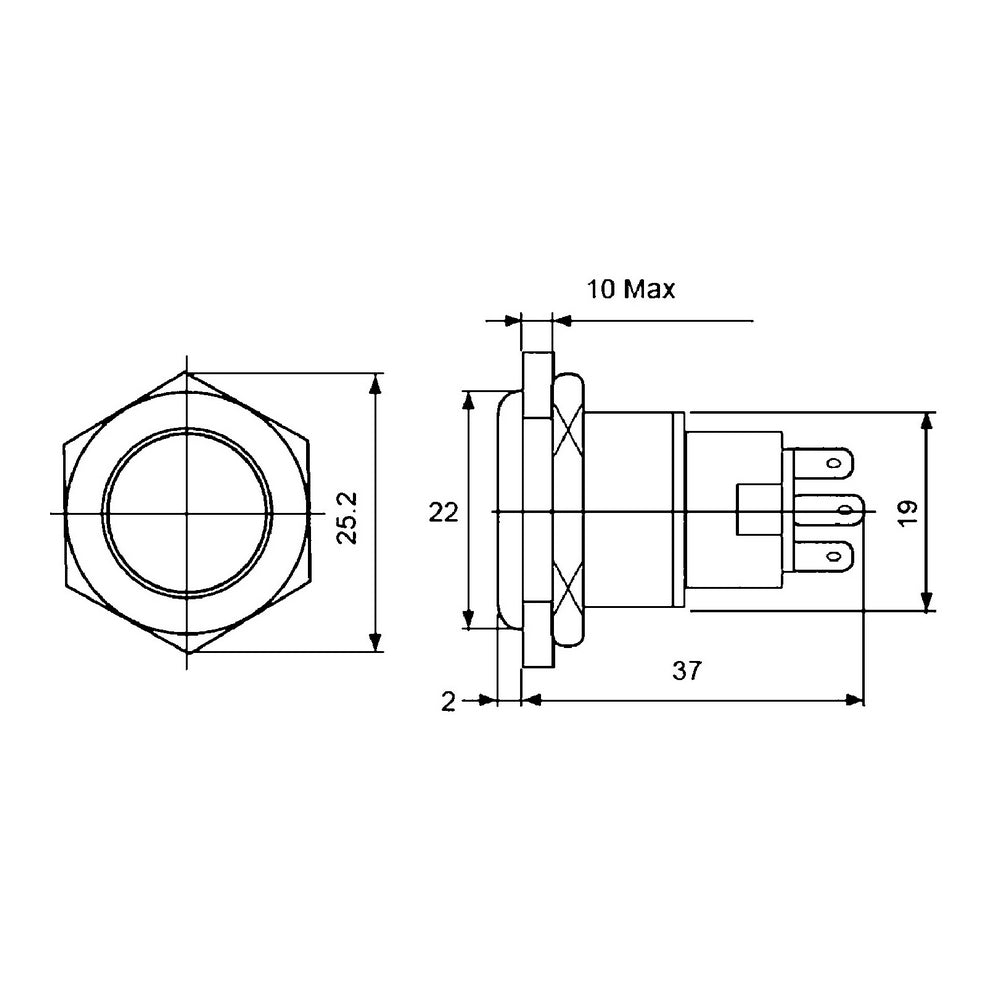

  • Switch Hole Diameter: 19mm
  • Panel Thickness: 10mm (Max)
  • 5 Pin (2.8mm)

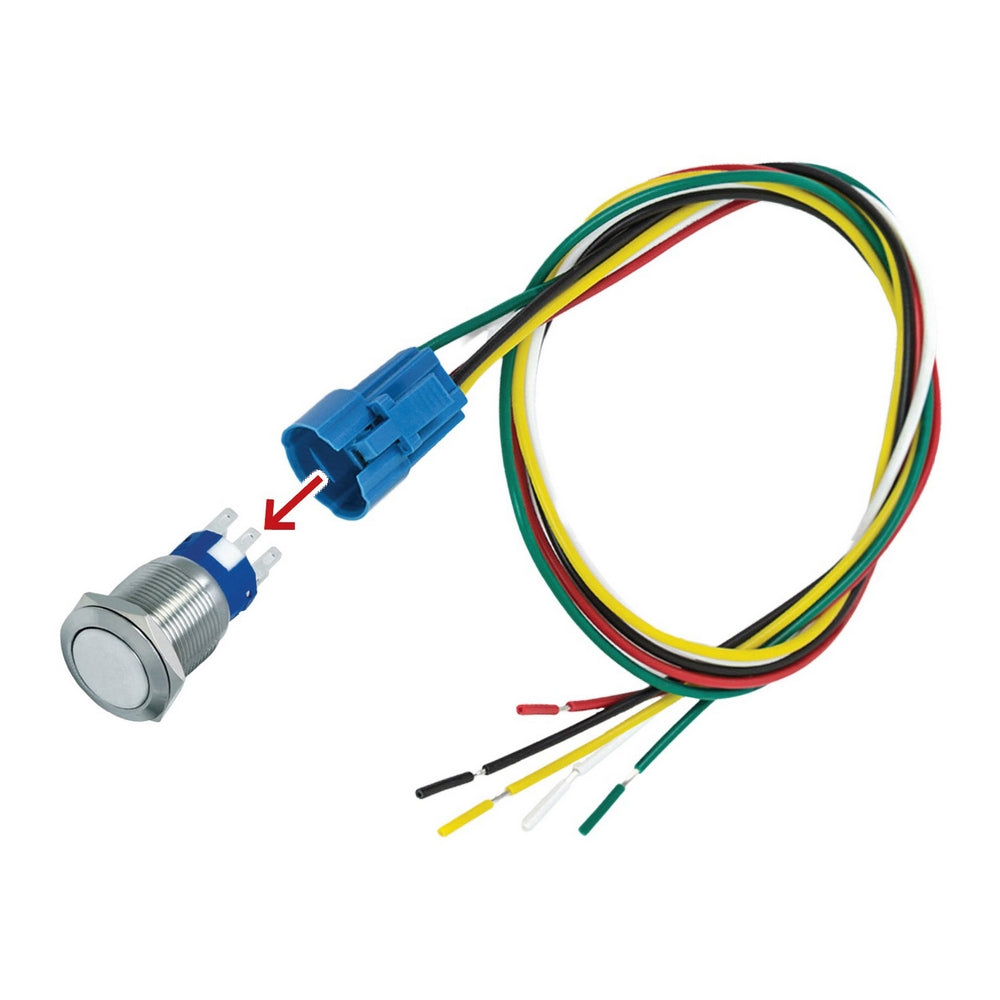

  • Pre-Wired Connector Included

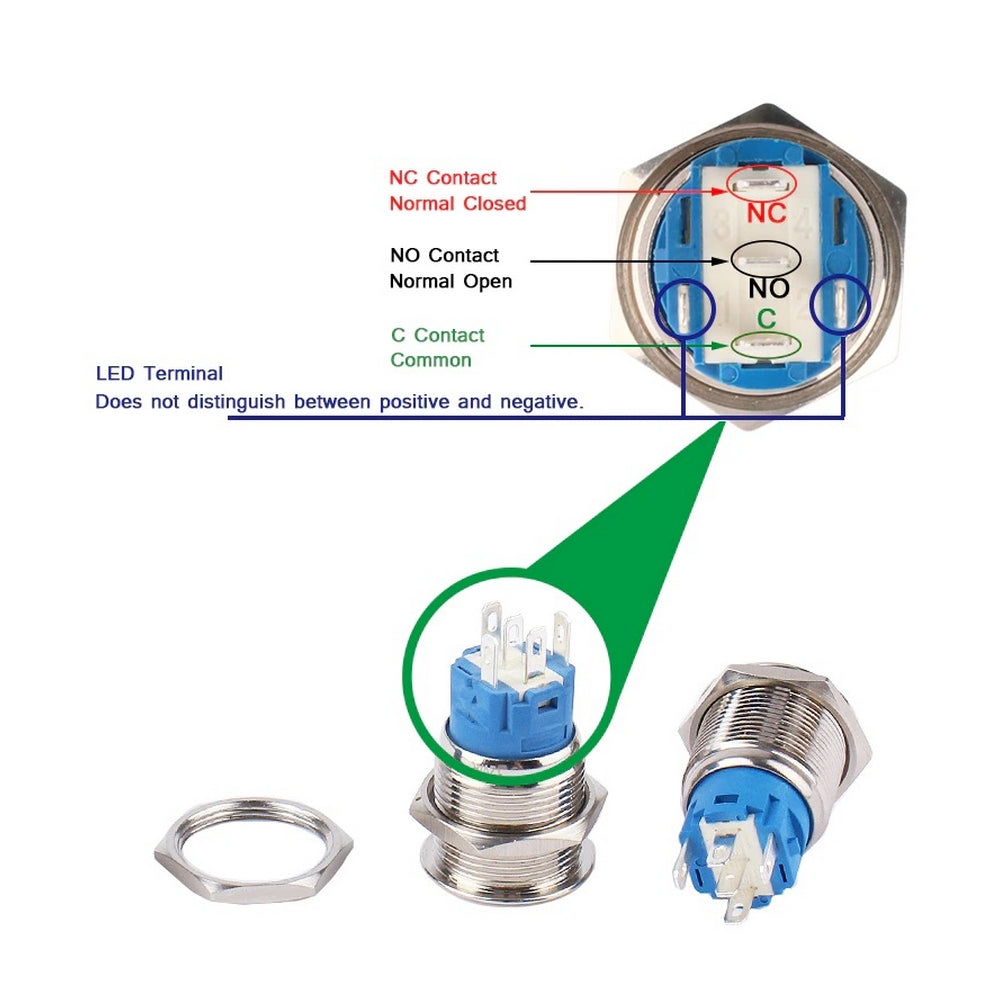

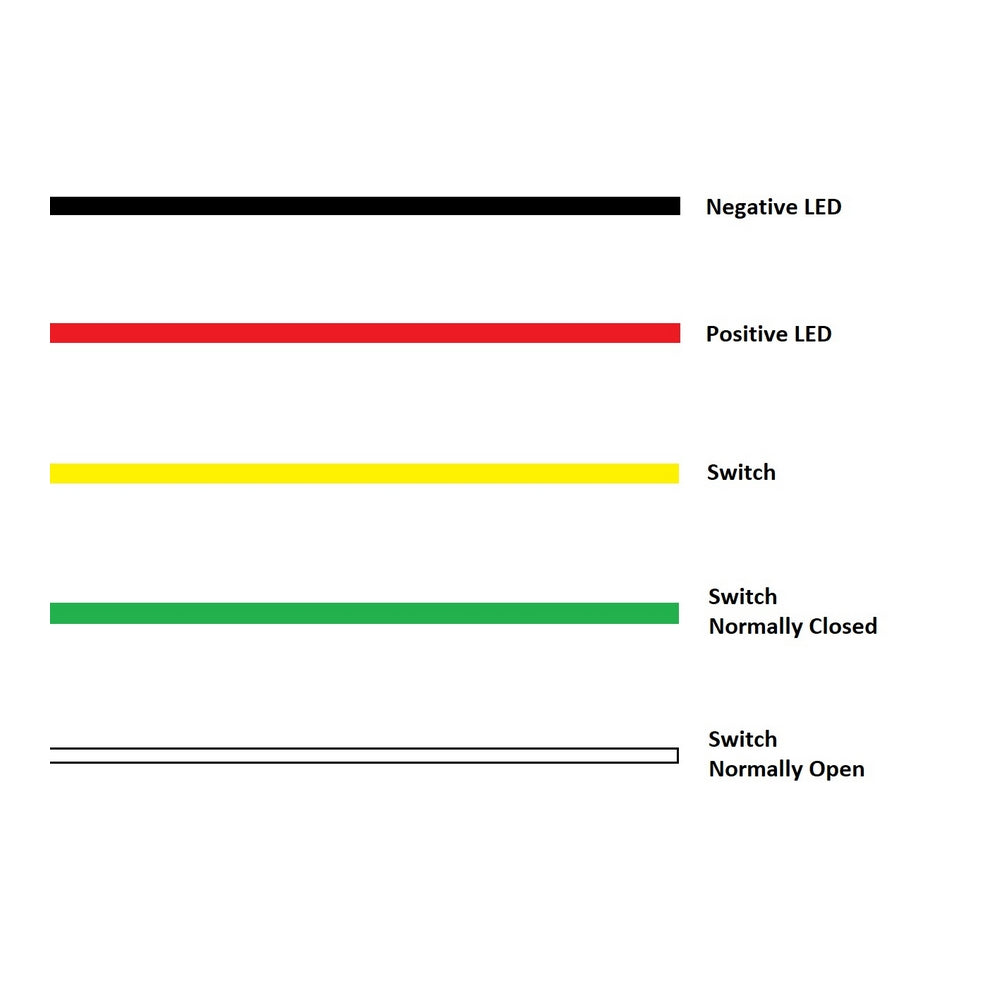

See image for switch pin diagram. Pre-wired connector colours:

  • Red = Positive
  • Black = Negative
  • Yellow = Switch
  • White = Normally Open Contact
  • Green = Normally Closed Contact
