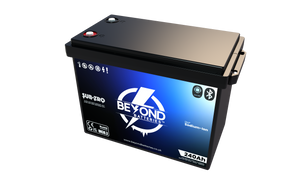

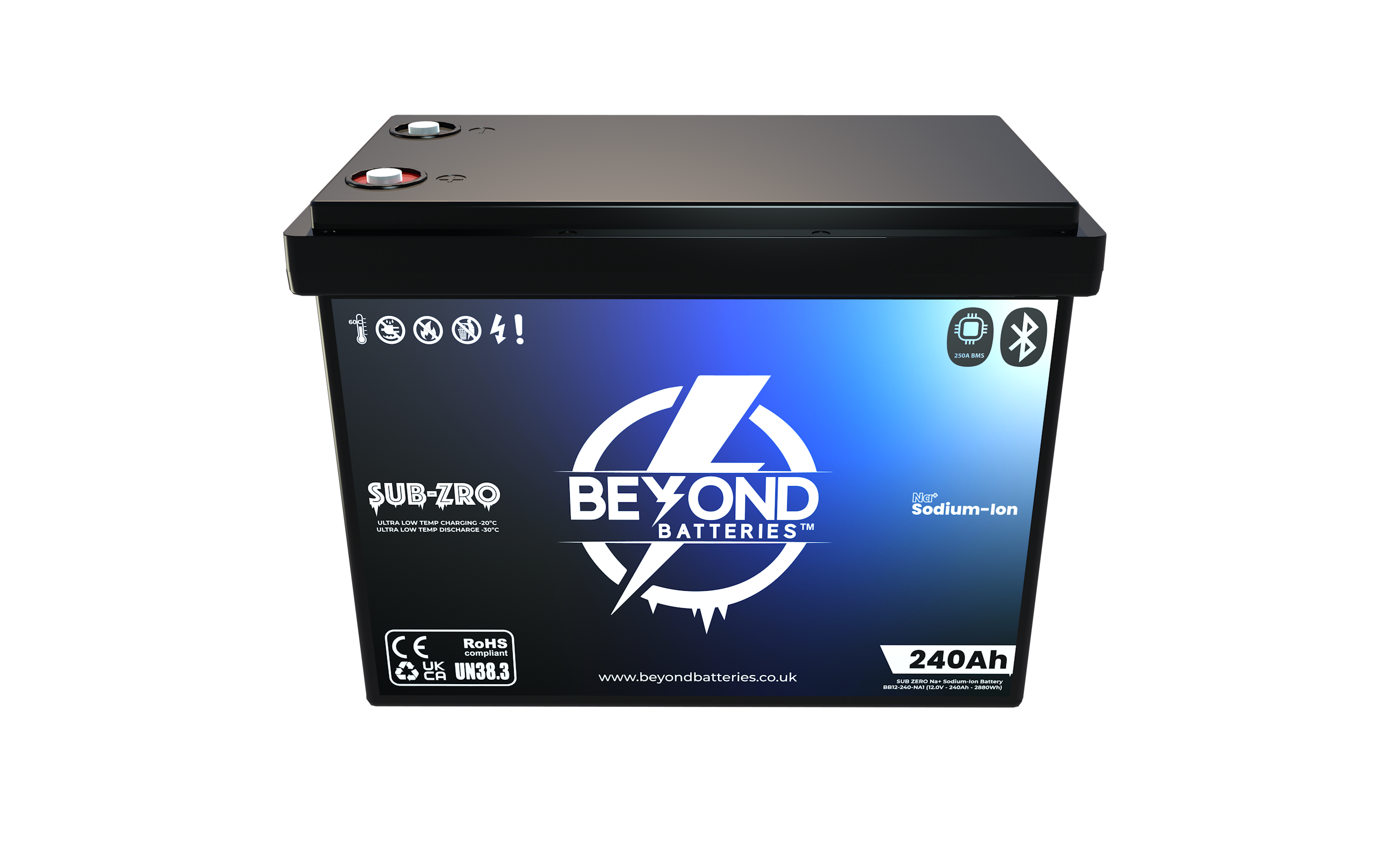

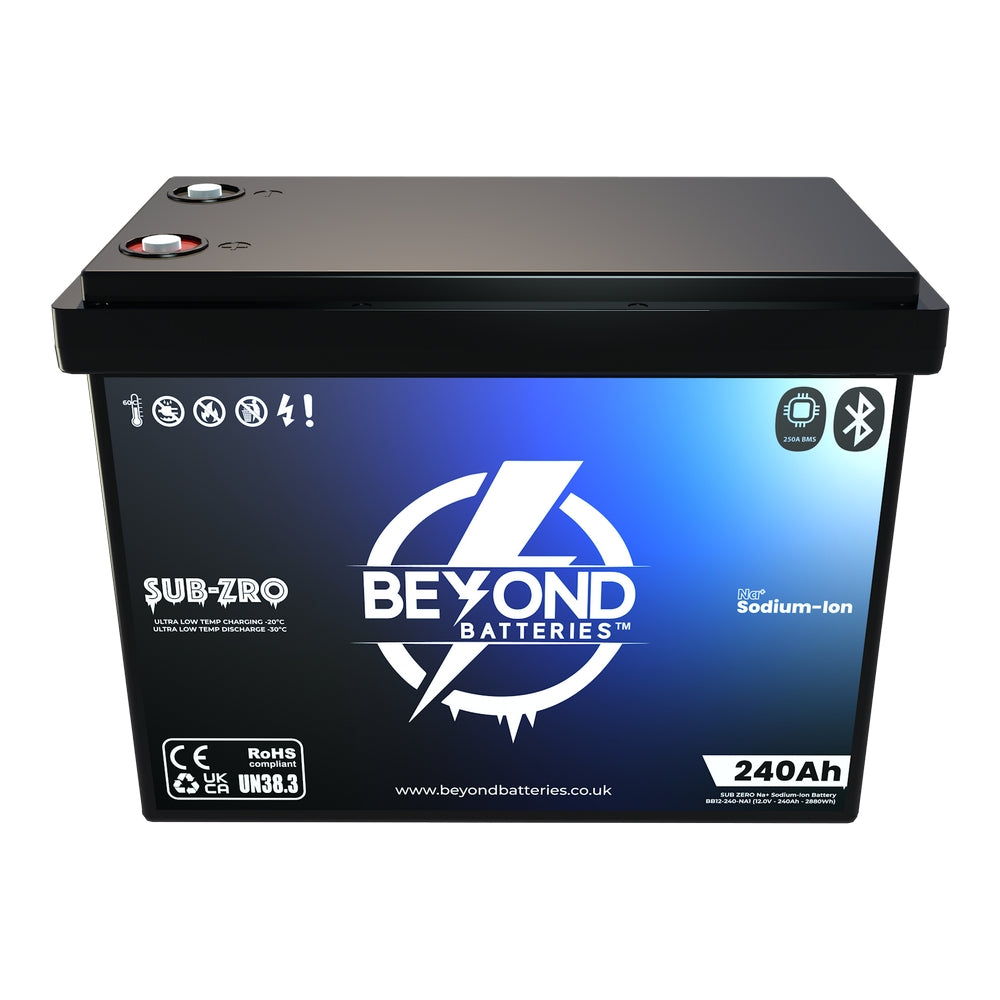

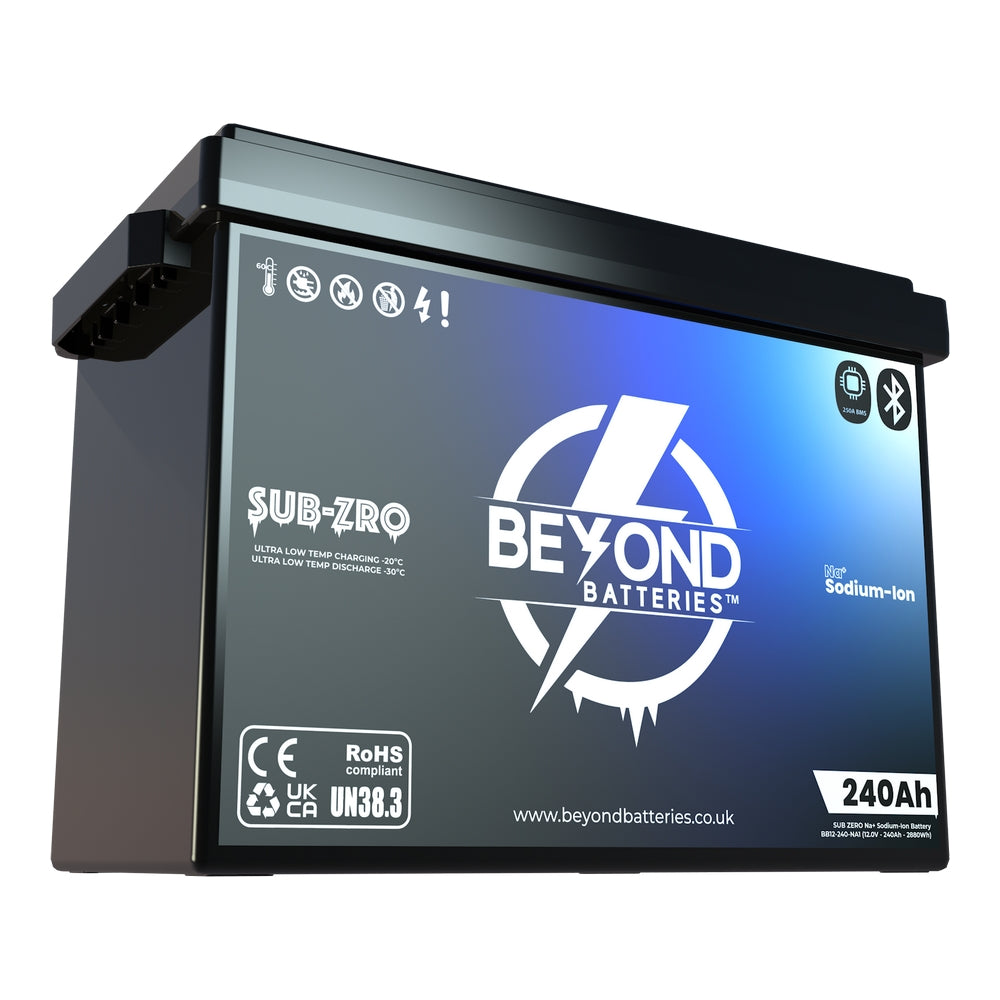

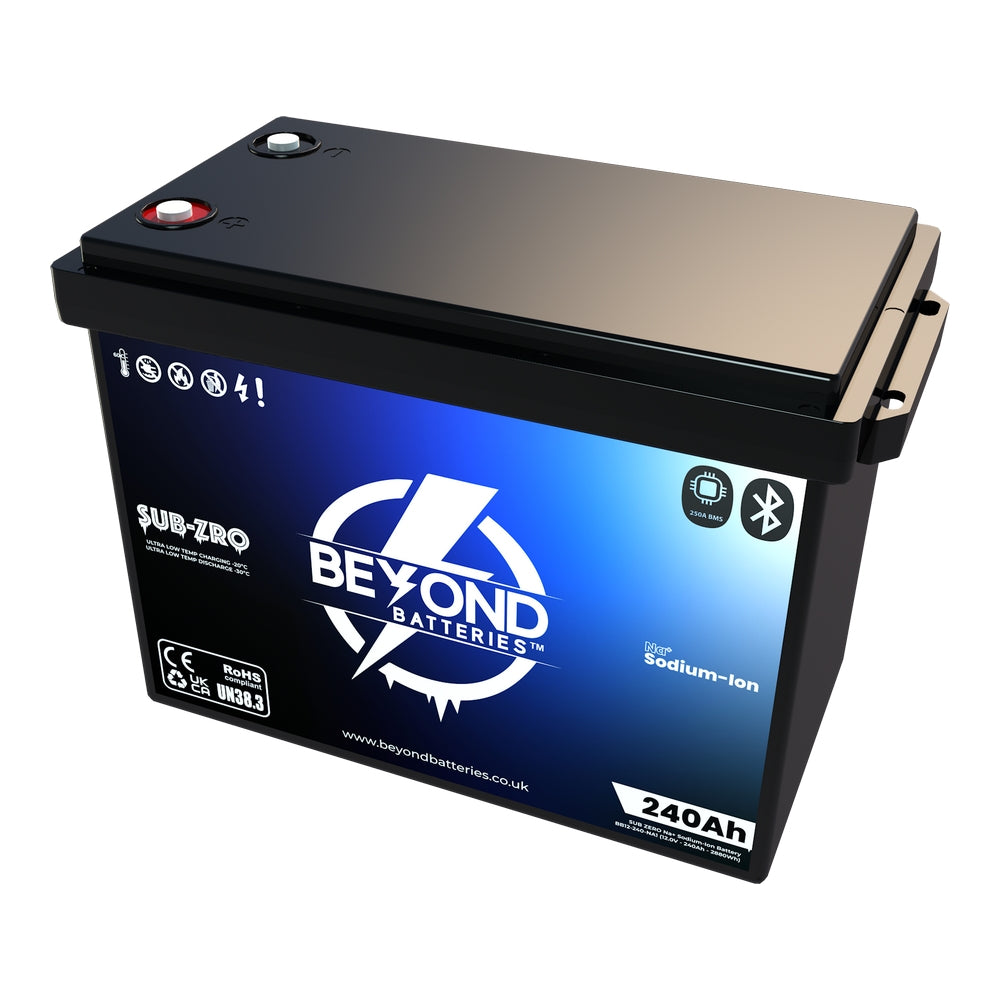

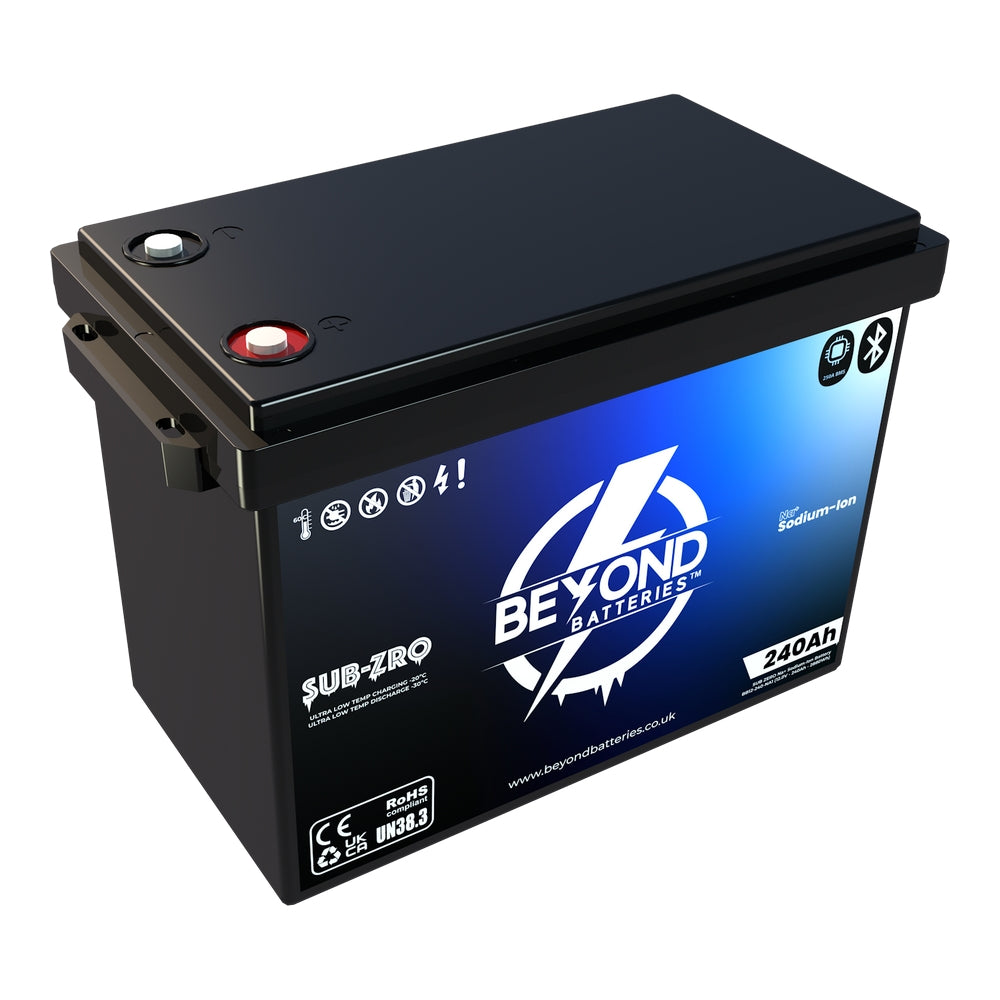

NA240 - Sodium-Ion 240Ah / 2,880Wh - 12V Low Temperature (-30°C) Battery with Bluetooth
NA240 - Sodium-Ion 240Ah / 2,880Wh - 12V Low Temperature (-30°C) Battery with Bluetooth
NA240 - Sodium-Ion 240Ah / 2,880Wh - 12V Low Temperature (-30°C) Battery with Bluetooth
NA240 - Sodium-Ion 240Ah / 2,880Wh - 12V Low Temperature (-30°C) Battery with Bluetooth
NA240 - Sodium-Ion 240Ah / 2,880Wh - 12V Low Temperature (-30°C) Battery with Bluetooth

NA240 - Sodium-Ion 240Ah / 2,880Wh - 12V Low Temperature (-30°C) Battery with Bluetooth

SKU: MISC-WS
Brand: Beyond Batteries

£842.40 inc VAT£702.00 ex VAT

Description

The NA240 by Beyond Batteries™ represents the next generation in sustainable, off-grid energy storage. Built using sodium-ion (Na+) chemistry—a safer, more environmentally friendly alternative to lithium—the NA240 is engineered to excel in severe cold climates without requiring internal heating elements. Delivering 2,880Wh of energy from Grade-A prismatic cells, it is designed for demanding high-discharge applications across marine, leisure, and commercial setups.

  • Energy Capacity: 2,880Wh
  • Output / Peak: Max continuous 250A output with a 500A peak for high-use power startups
  • Charging: 2-hour fast charge
  • Dimensions & Weight: 385 x 204 x 272 mm, 26 kg
  • Cycle Life: Extended 4,500 cycles at 70% depth of discharge (DoD)
  • Monitoring: Integrated Bluetooth monitoring via iOS/Android app & advanced BMS
  • Key Applications: Ideal for large security towers, traffic signals & VMS, leisure, marine, and inverter systems for AC mains power
In stock
5 Day Delivery
NA240 - Sodium-Ion 240Ah / 2,880Wh - 12V Low Temperature (-30°C) Battery with Bluetooth

£842.40 inc VAT£702.00 ex VAT

£842.40 inc VAT£702.00 ex VAT

    Description Description Description
    Features Features Features
    Specifications Specifications Specifications
    Download Download Download

The NA240 by Beyond Batteries™ represents the next generation in sustainable, off-grid energy storage. Built using sodium-ion (Na+) chemistry—a safer, more environmentally friendly alternative to lithium—the NA240 is engineered to excel in severe cold climates without requiring internal heating elements. Delivering 2,880Wh of energy from Grade-A prismatic cells, it is designed for demanding high-discharge applications across marine, leisure, and commercial setups.

  • Energy Capacity: 2,880Wh
  • Output / Peak: Max continuous 250A output with a 500A peak for high-use power startups
  • Charging: 2-hour fast charge
  • Dimensions & Weight: 385 x 204 x 272 mm, 26 kg
  • Cycle Life: Extended 4,500 cycles at 70% depth of discharge (DoD)
  • Monitoring: Integrated Bluetooth monitoring via iOS/Android app & advanced BMS
  • Key Applications: Ideal for large security towers, traffic signals & VMS, leisure, marine, and inverter systems for AC mains power

Sustainability - The use of Sodium in batteries is better for the environment than lithium alternatives.

Ultra Low Temperatures - Charge from -20℃ & discharge as low as -30℃ Without the need for battery heaters.

High Capacity - Compact & powerful, the NA240 delivers 2880Wh for high-discharge demand.

Grade A Cells - Beyond Batteries uses only Grade A cells for reliable, long-lasting performance.

BMS - 250A high-integrity Battery Management System (BMS) ensures safe, reliable performance, with low temperature protection to keep cells safe in cold conditions.

Bluetooth Monitoring - Use Android & iOS devices to monitor power, state of charge & battery health.

Rapid Charge & Discharge - 1 hour fast charge, 250A continuous output, and 500A peak for high-use power.

Safety First - Na⁺ - Sodium-ion has very low fire risk. Advanced BMS for protection & longevity.

Cycle Life - Provides 4500 cycles at 70% depth of discharge.

Applications - Ideal for large security towers, traffic signals & VMS, leisure & marine. For use with inverters for AC mains power.

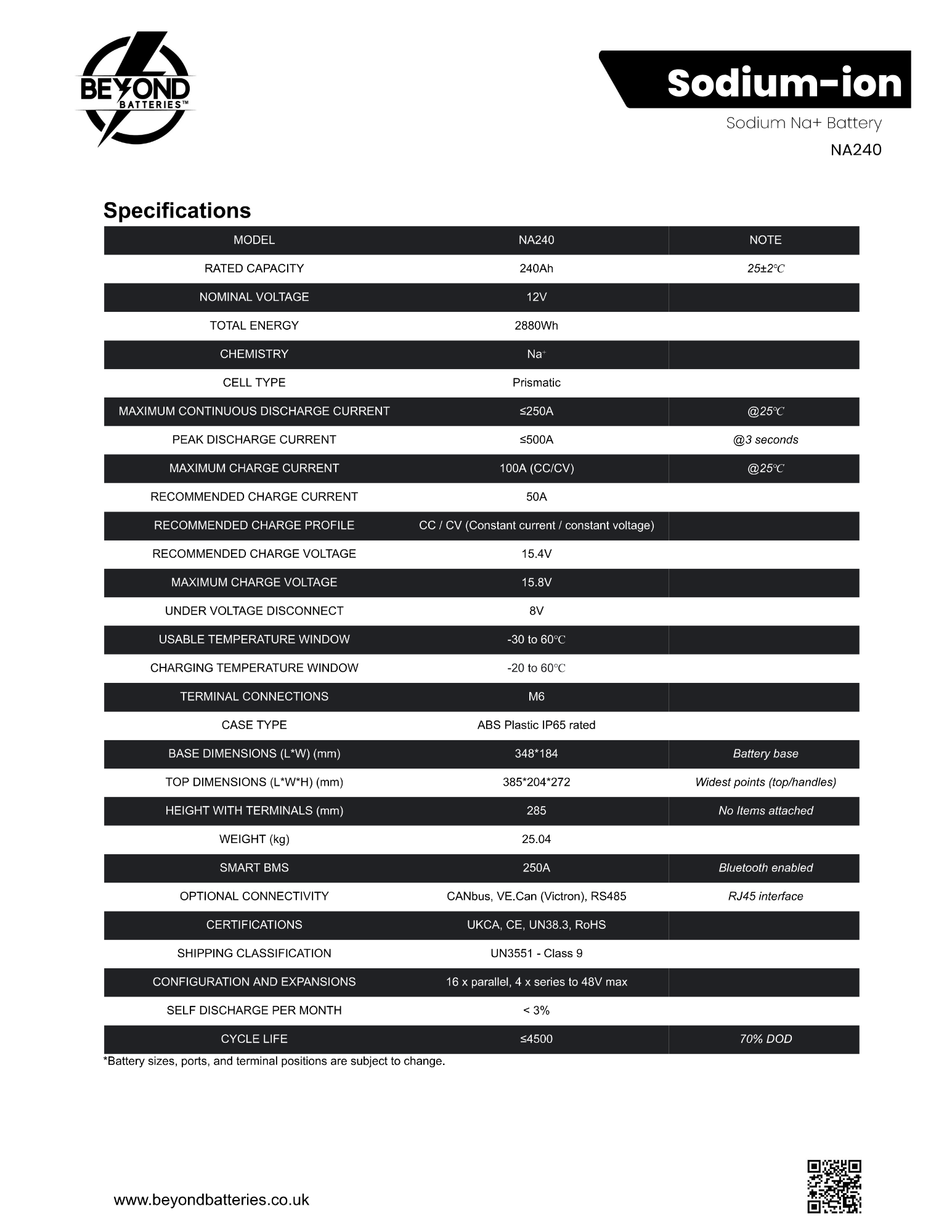

Model: NA240
Rated Capacity: 240Ah (Note: 25±2°C)
Nominal Voltage: 12V
Total Energy: 2880Wh
Chemistry: Na+
Cell Type: Prismatic
Maximum Continuous Discharge Current: ≤250A (Note: @25°C)
Peak Discharge Current: ≤500A (Note: @3 seconds)
Maximum Charge Current: 100A (CC/CV) (Note: @25°C)
Recommended Charge Current: 50A
Recommended Charge Profile: CC/CV (Constant current/constant voltage)
Recommended Charge Voltage: 15.4V
Maximum Charge Voltage: 15.8V
Under Voltage Disconnect: 8V
Usable Temperature Window: -30 to 60°C
Charging Temperature Window: -20 to 60°C
Terminal Connections: M6
Case Type: ABS Plastic IP65 rated

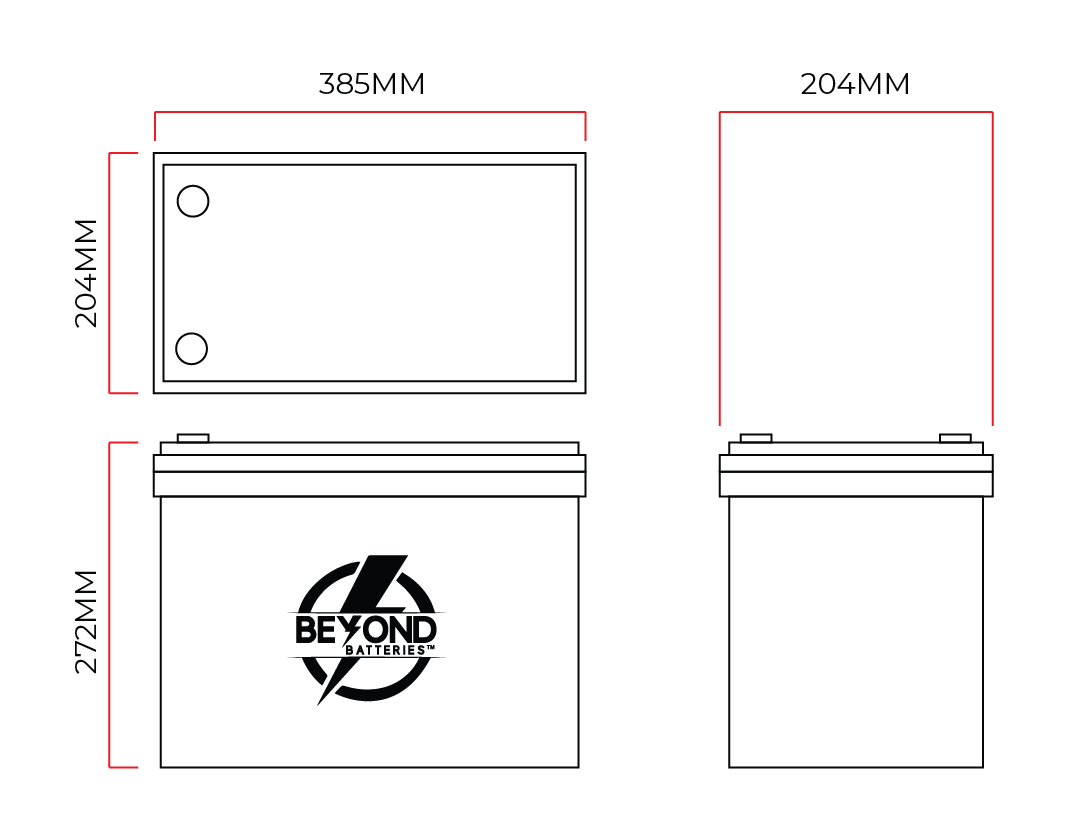

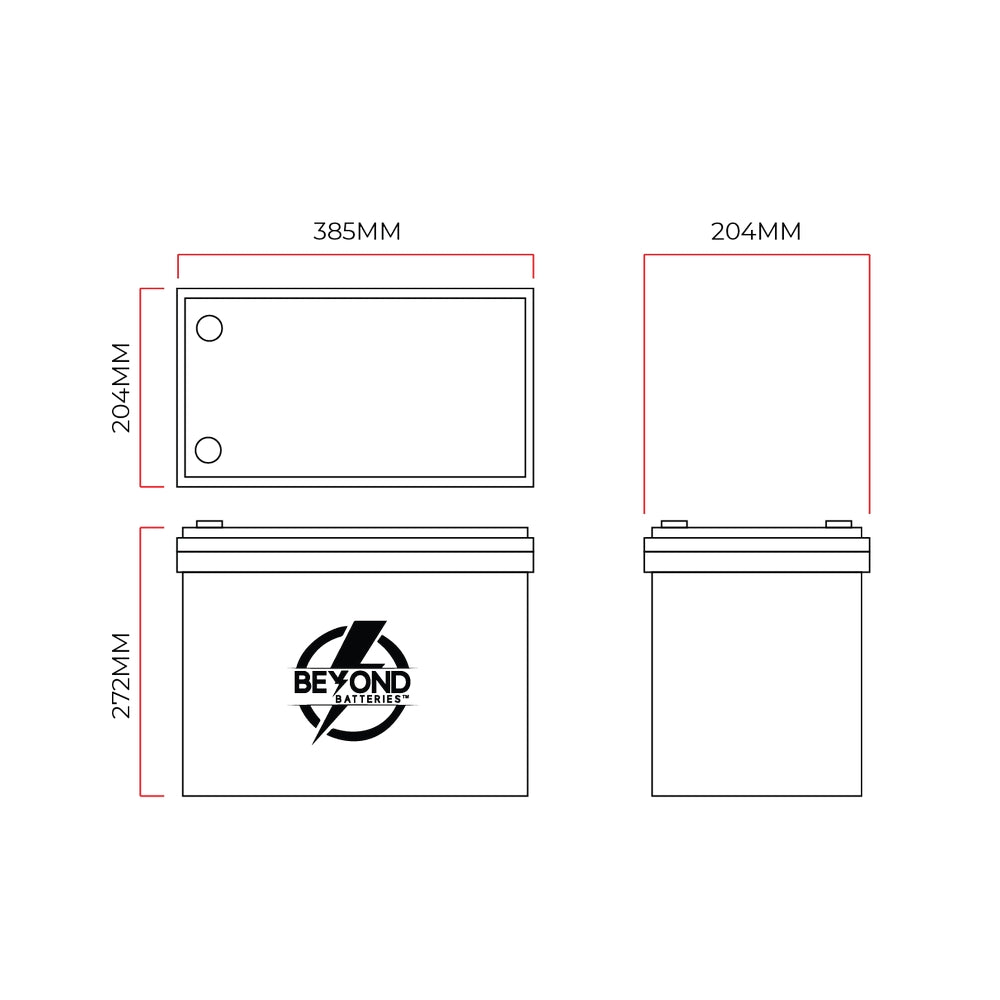

Base Dimensions (L*W) (mm): 348 x 184
Top Dimensions (L*W*H) (mm): 385 x 204 x 272
Height with Terminals (mm): 285
Weight (kg): 25.04
Smart BMS: 250A (Note: Bluetooth enabled)
Optional Connectivity: CANbus, VE.Can (Victron), RS485 (Note: RJ45 interface)
Certifications: UKCA, CE, UN38.3, RoHS
Shipping Classification: UN3551-Class 9
Configuration and Expansions: 16 x parallel, 4 x series to 48V max
Self Discharge per Month: <3%
Cycle Life: ≤4500 (Note: 70% DOD)
