NA200 - Sodium-Ion 200Ah / 2400Wh - 12V Low Temperature (-30°C) Battery with Bluetooth

SKU: MISC-WS
Brand: Beyond Batteries

£631.80 inc VAT£526.50 ex VAT

Description

The NA200 by Beyond Batteries™ provides 200Ah (2,560Wh) of high-capacity sodium-ion power, built for heavy-duty marine, off-grid power systems, and industrial energy storage.

Cold-Weather Ready:
Industry-leading sub-zero capability allowing charging down to -20°C and discharging to -30°C.

Rapid Charging & High Discharge:
Delivers high continuous current while supporting fast recharge cycles.

Greener Energy Storage:
Sustainable sodium chemistry reducing reliance on lithium and cobalt supply chains.

Advanced BMS Protection:
Smart management system featuring Bluetooth and communications interface support.

In stock
5 Day Delivery
NA200 - Sodium-Ion 200Ah / 2400Wh - 12V Low Temperature (-30°C) Battery with Bluetooth

£631.80 inc VAT£526.50 ex VAT

£631.80 inc VAT£526.50 ex VAT

The NA200 by Beyond Batteries™ provides 200Ah (2,560Wh) of high-capacity sodium-ion power, built for heavy-duty marine, off-grid power systems, and industrial energy storage.

Cold-Weather Ready:
Industry-leading sub-zero capability allowing charging down to -20°C and discharging to -30°C.

Rapid Charging & High Discharge:
Delivers high continuous current while supporting fast recharge cycles.

Greener Energy Storage:
Sustainable sodium chemistry reducing reliance on lithium and cobalt supply chains.

Advanced BMS Protection:
Smart management system featuring Bluetooth and communications interface support.

Sustainability - The use of Sodium in batteries is better for the environment than lithium alternatives.

Ultra Low Temperatures - Charge from -20°C & discharge as low as -30°C Without the need for battery heaters.

High Capacity - Compact & powerful, the NA200 delivers 2400Wh for heavy-duty off-grid performance.

Grade A Cells - Beyond Batteries uses only Grade A cells for reliable, long-lasting performance.

BMS - 250A high-integrity Battery Management System
(BMS) ensures safe, reliable performance, with low temperature protection to keep cells safe in cold conditions.

Bluetooth Monitoring - Use Android & iOS devices to monitor power, state of charge & battery health.

Rapid Charge & Discharge - 2-hour fast charge,
250A continuous output, and 500A peak for high-use power.

Safety First - Na⁺ - Sodium-ion has very low fire risk. Advanced BMS for protection & longevity.

Cycle Life - Provides 4500 cycles at 70% depth of discharge.

Applications - Ideal for large security towers,
traffic signals & VMS, leisure & marine. For use with inverters for AC mains power.

Model: NA200

Rated Capacity: 200Ah (Note: 25±2°C)

Nominal Voltage: 12V

Total Energy: 2400Wh

Chemistry: Na

Cell Type: Prismatic

Maximum Continuous Discharge
Current:
≤250A (Note: @25°C)

Peak Discharge Current:
≤500A (Note: @3 seconds)

Maximum Charge Current:
400A (Pulse) - 100A (CC/CV) (Note: @25°C)

Recommended Charge Current:
100A

Recommended Charge Profile:
CC/CV (Constant current / constant voltage)

Recommended Charge Voltage:
15.8V

Maximum Charge Voltage:
16V

Under Voltage Disconnect:
8V

Usable Temperature Window:
-30 to 60°C

Charging Temperature Window:
-20 to 60°C

Terminal Connections: M6

Case Type: ABS Plastic
IP65 rated

Base Dimensions (L*W) (mm):
348 x 184 (Note: Battery base)

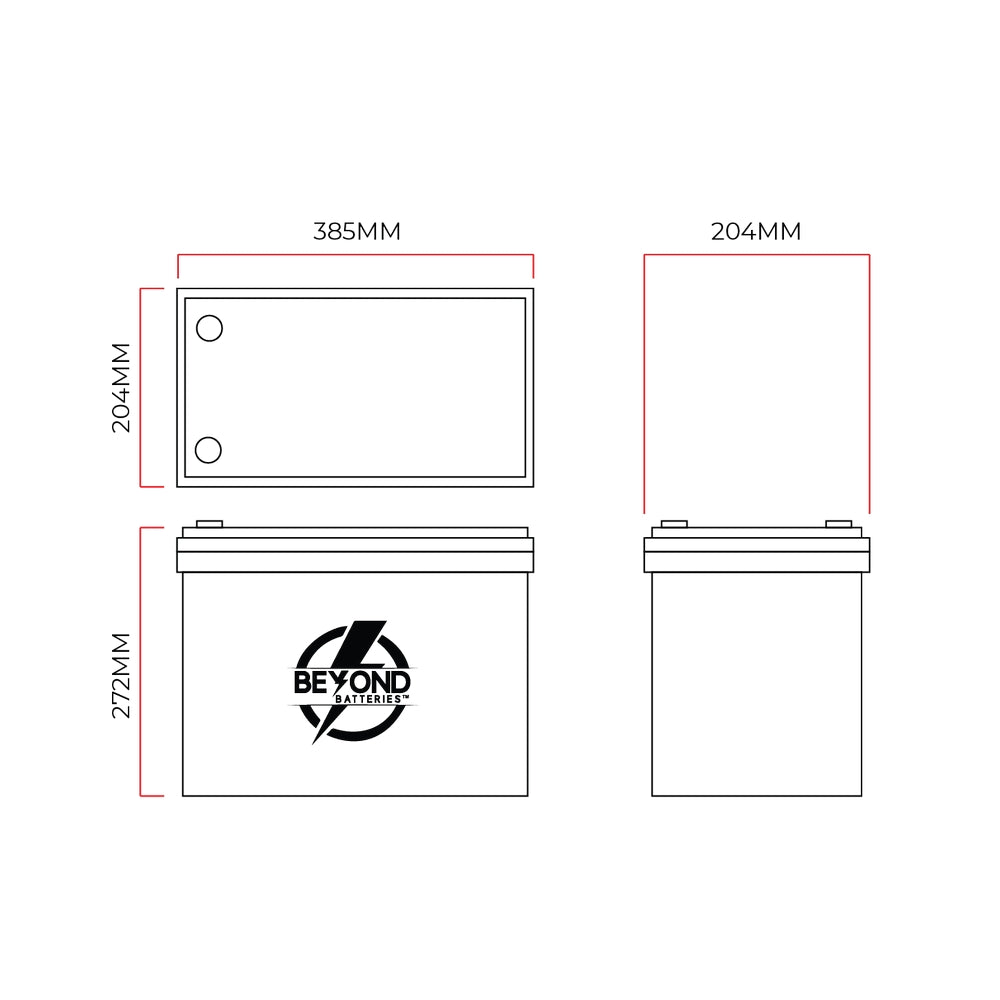

Top Dimensions (LWH)
(mm):
385 x 204 x 272 (Note: Widest points (top/handles))

Height with Terminals (mm):
285 (Note: No Items attached)

Weight (kg): 24.2

Smart BMS: 250A (Note:
Bluetooth enabled)

Optional Connectivity:
CANbus, VE.Can (Victron), RS485 (Note: RJ45 interface)

Certifications: UKCA, CE,
UN38.3, RoHS

Shipping Classification:
UN3551 Class 9.

Configuration and Expansions:
16 x parallel, 4 x series to 48V max

Self Discharge per Month:
< 3%

Cycle Life: ≤4500 (Note:
70% DOD)
