MFB1-1

Mega-Midi Fuse Box

(£27.89 Inc. VAT at 20%)
Product Description+

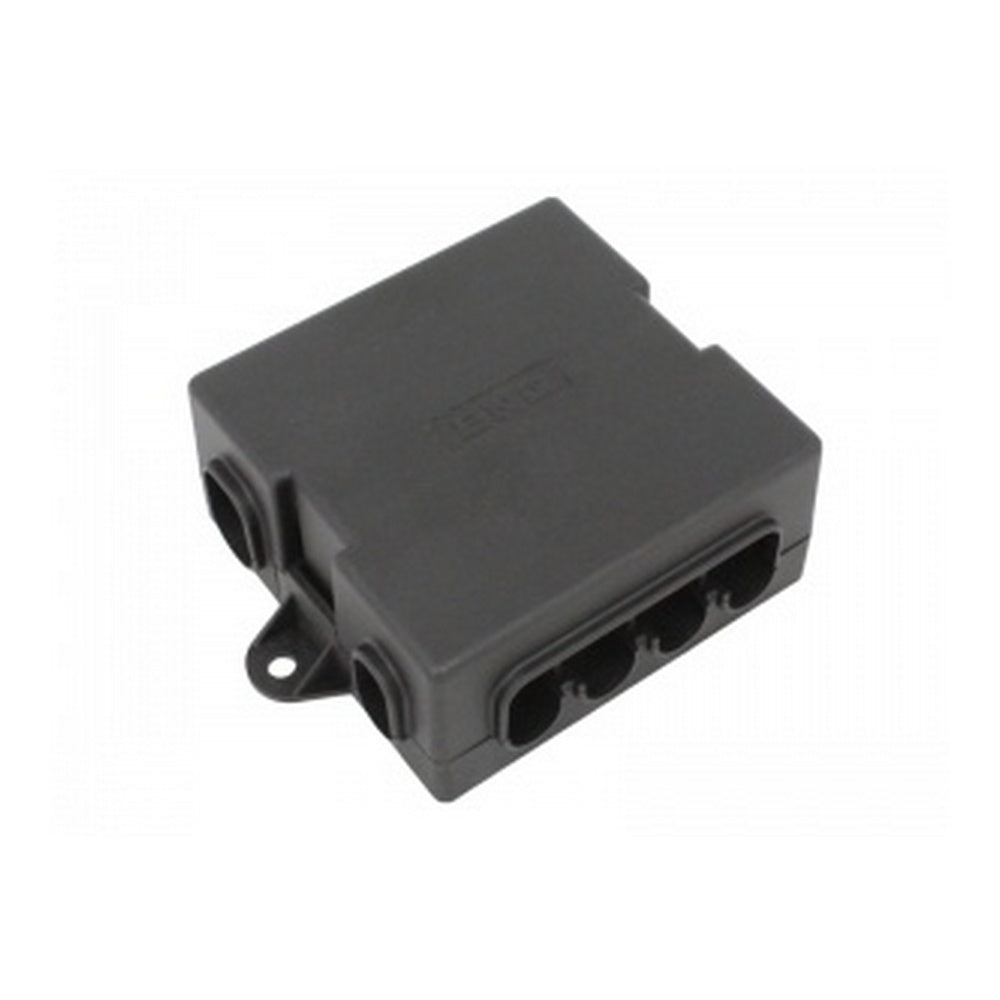

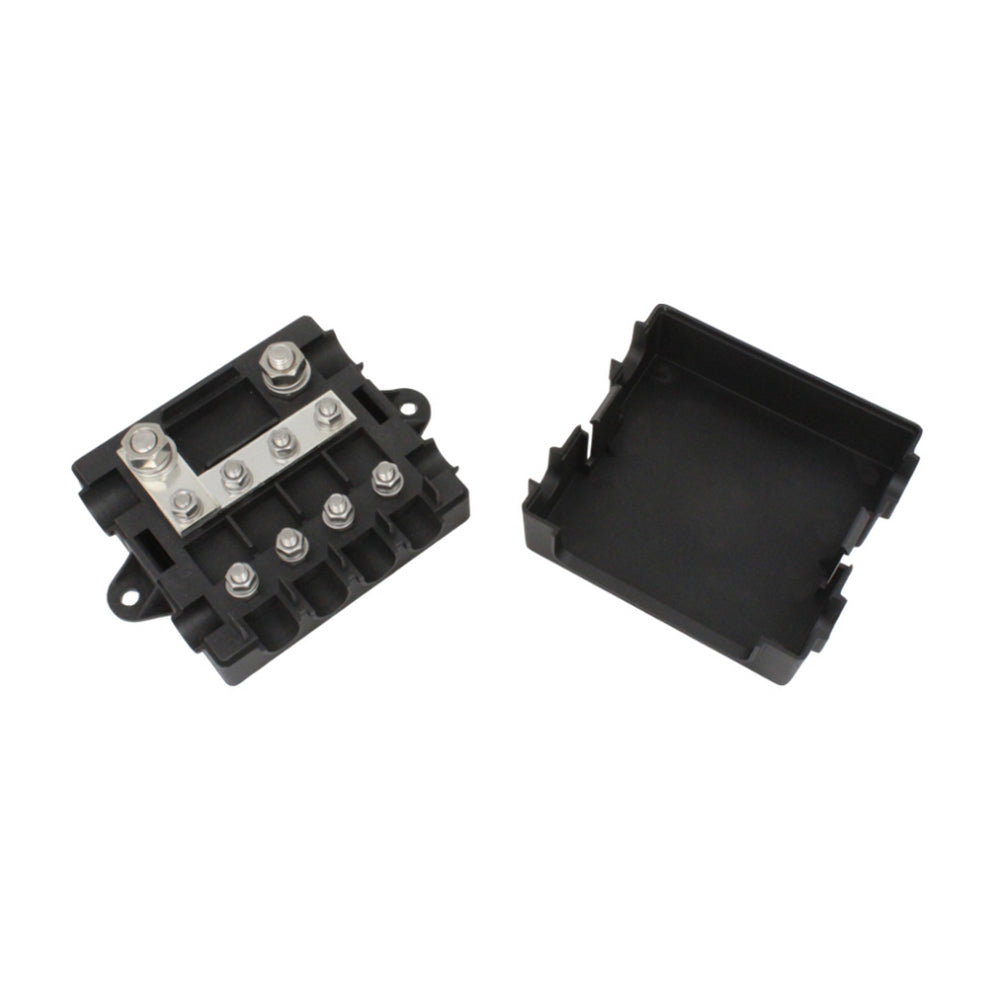

Compact and tough fuse box for distributing power to multiple electrical systems around a vehicle. The main feed in is to a mega fuse location which then feeds a further 4 midi (or strip) fuse locations via 2 copper strips. The box features a tethered, snap-on lid for quick and easy access. Fuses not included.

  • The Mega fuse location has 2 cable entry options with a further 6 cable entry options for the 4 midi fuse locations, providing a number of versatile wiring configurations to suit your application.
  • Nuts and locking washers are provided for all fuse locations and the body of the box incorporates 2 feet for mounting to a flat surface.
  • Connection post sizes: 2 x M8, 8 x M5
  • Tinned copper strips
  • Overall size (with lid closed): 116 (L) x 94 (W) x 38(H) mm

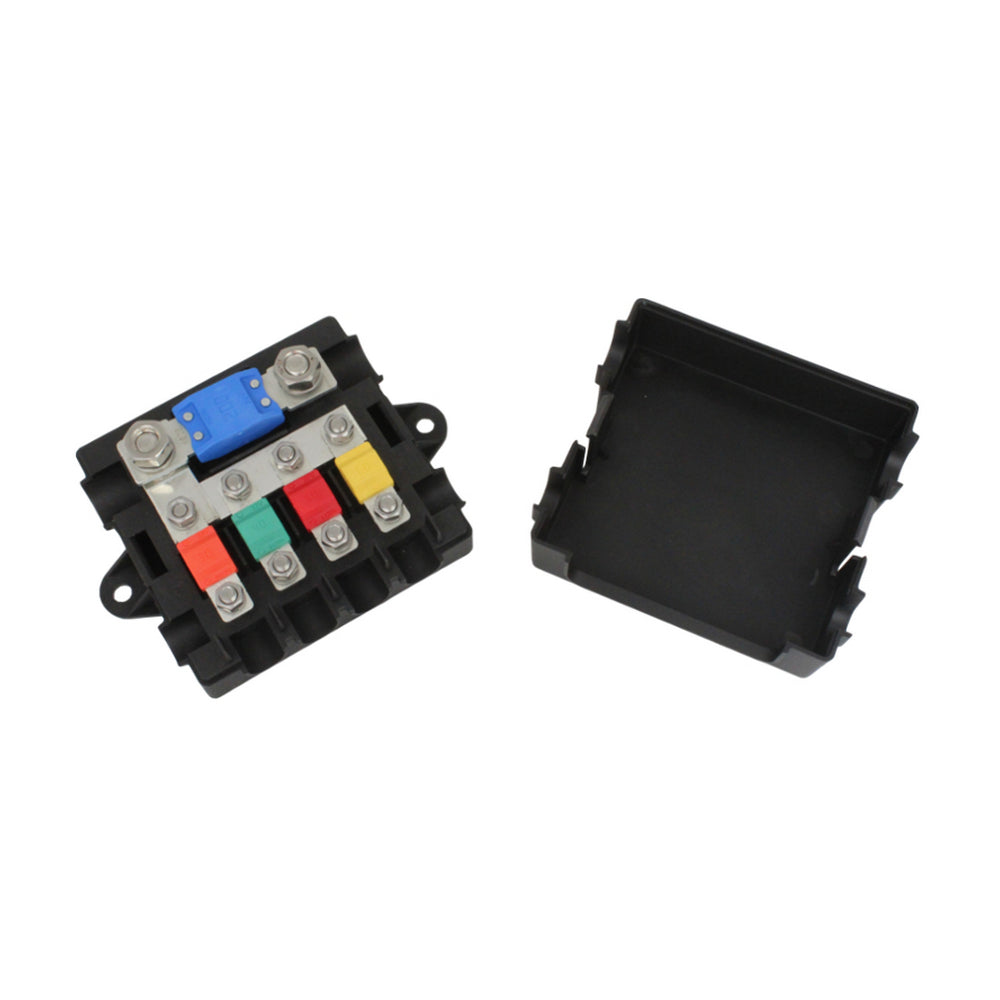

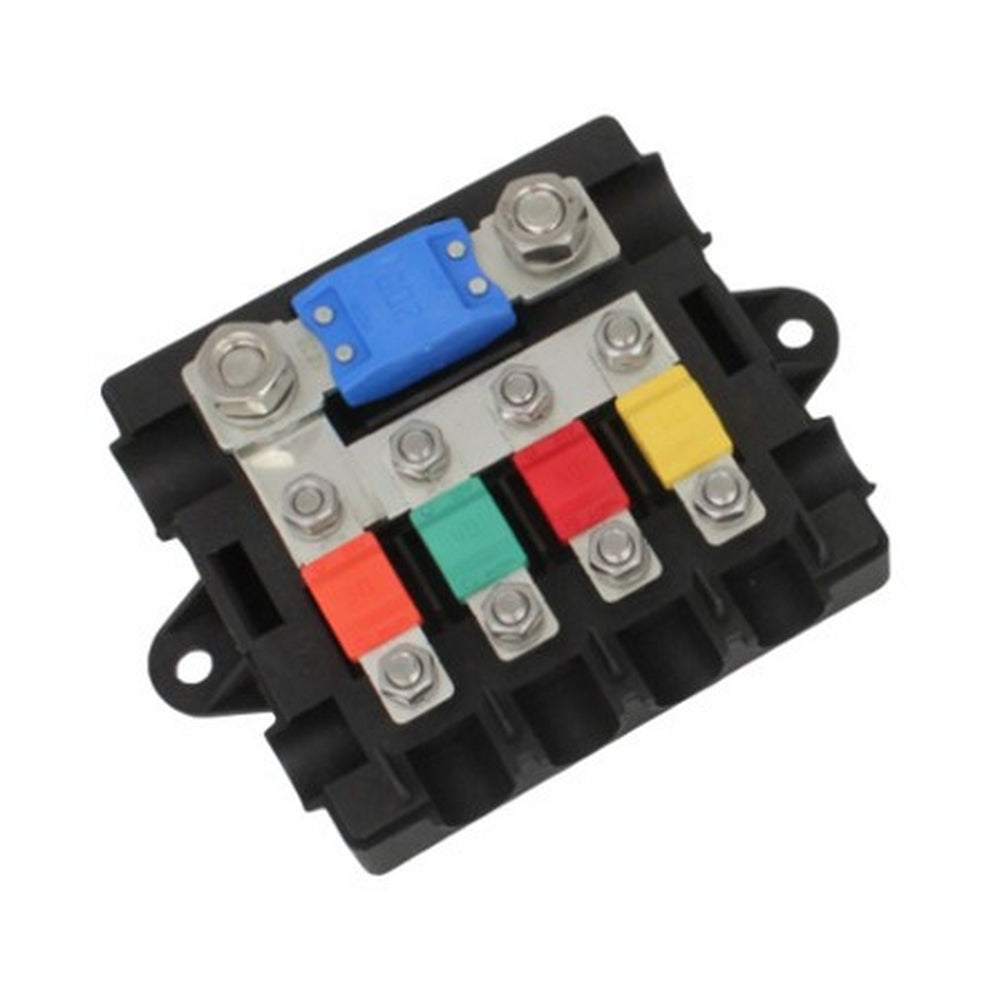

  • Note: The fuses should be installed underneath the copper strips so that they sit flat and are not distorted when the nuts are tightened down.
