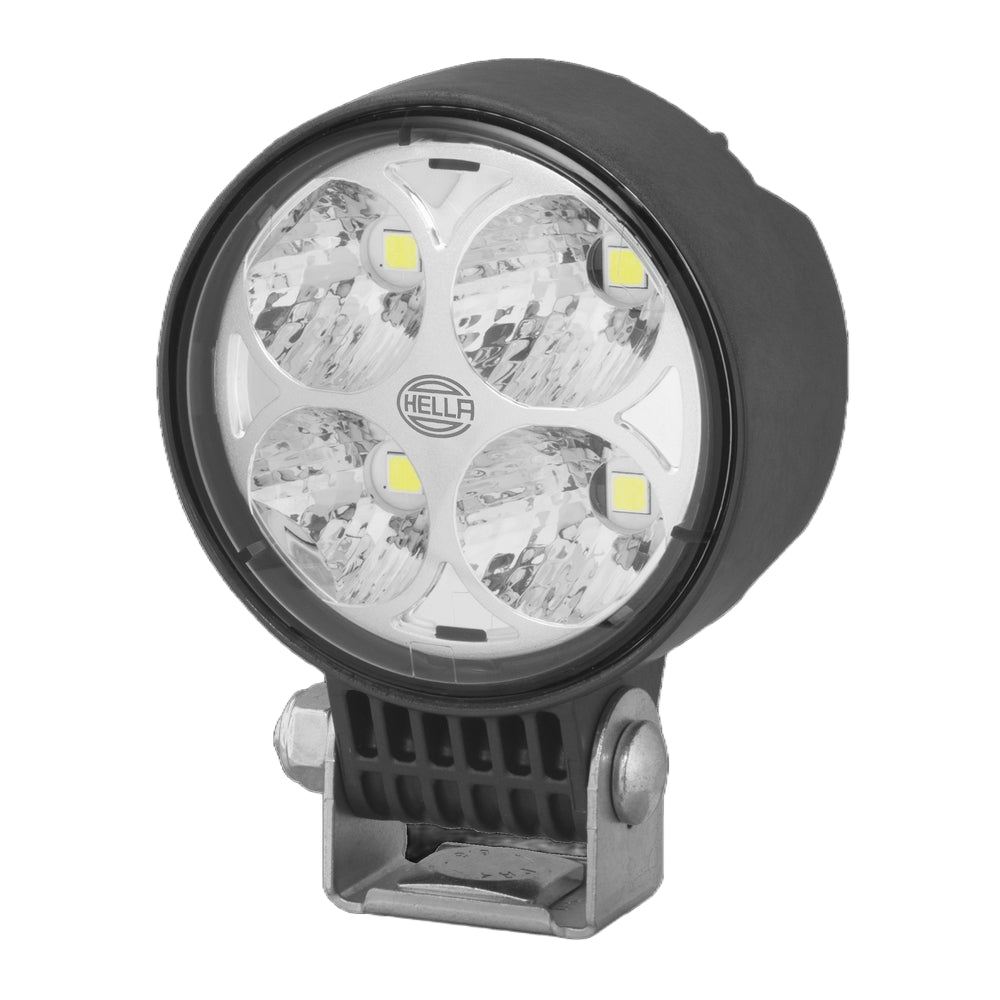

Hella Marine Module 70-S Long Range LED Floodlight 9-32V

The Hella Marine Module 70-S LED Floodlight is a compact, high-output, energy-efficient LED replacement for traditional halogen lighting. Delivering an impressive 1,850 lumens while consuming just 17W, it features advanced thermal polymer housing and intelligent temperature control for reliable performance in harsh marine environments.

Key Features:

• High-Efficiency LED Performance: Delivers 1,850 lumens of output while using significantly less power than halogen alternatives.

• Advanced Thermal Management: Engineered with cooling fins and temperature-controlled automatic dimming to maintain maximum light output without overheating.

• Corrosion-Resistant Build: Constructed from a durable, heat-dissipating thermal polymer housing with a high impact-resistant plastic cover lens.


• Long Range Spot Optics: Engineered specifically for focused, long-distance illumination ideal for high-mounting positions on masts or flying bridges.

• Secure Upright or Pendant Mounting: Equipped with a robust stainless steel bracket designed for stable mounting either above or below mounting surfaces.

• Fully Submersible Protection: Completely dust- and waterproof (IP 6K7 / IP 6K9K), designed to withstand high-pressure washdowns and operational submersion.

Specifications:

• Light Output: 1,850 Lumens

• Beam Pattern: Close Range (Deck / Working Area Illumination)

• Colour Temperature: 6500K (Daylight White)

• Operating Voltage: 9–32V DC Multi-voltage (12/24V DC nominal)

• Power Consumption: 17W (1.29A @ 12V DC / 0.61A @ 24V DC)

• IP Rating: IP 6K7, IP 6K9K (Completely sealed)

• Materials: Advanced Thermal Polymer housing, plastic lens, Stainless Steel bracket

• Mounting: Upright or Pendant

• Connection: 2-pin DEUTSCH DT connector (requires DT cable, sold separately)

• Circuit Protection: Polarity reversal & overvoltage protection

• Compliance: ECE-R10, ADR/GGVSEB, RCM, CISPR 25 Class 5 (12V) / Class 4 (24V)
