TBS DCM 1xM10 Single Insulated Stud
TBS DCM 1xM10 Single Insulated Stud

TBS DCM 1xM10 Single Insulated Stud

SKU: TBS/5071180
Brand: TBS

£10.85 inc VAT£9.04 ex VAT

Description

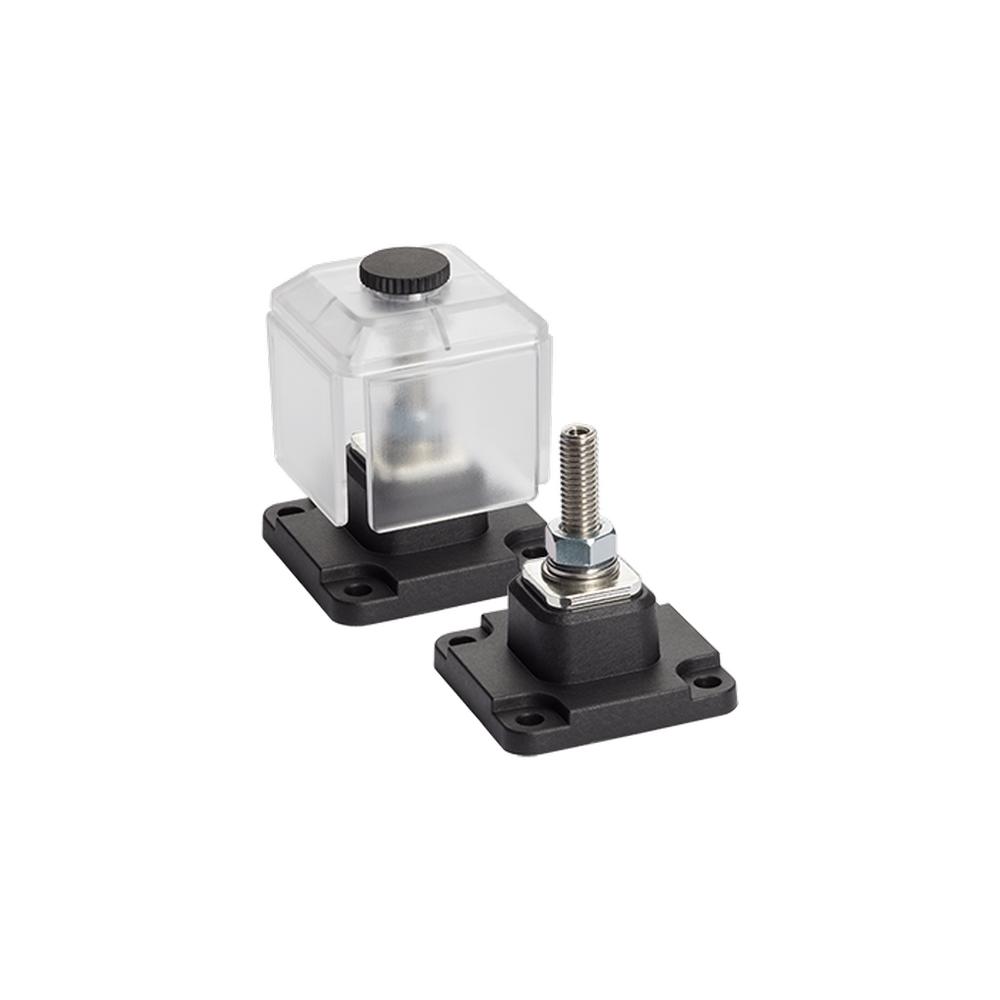

The DC Modular single insulated studs are ideal parts to extend cables, add power taps or form termination end-points.

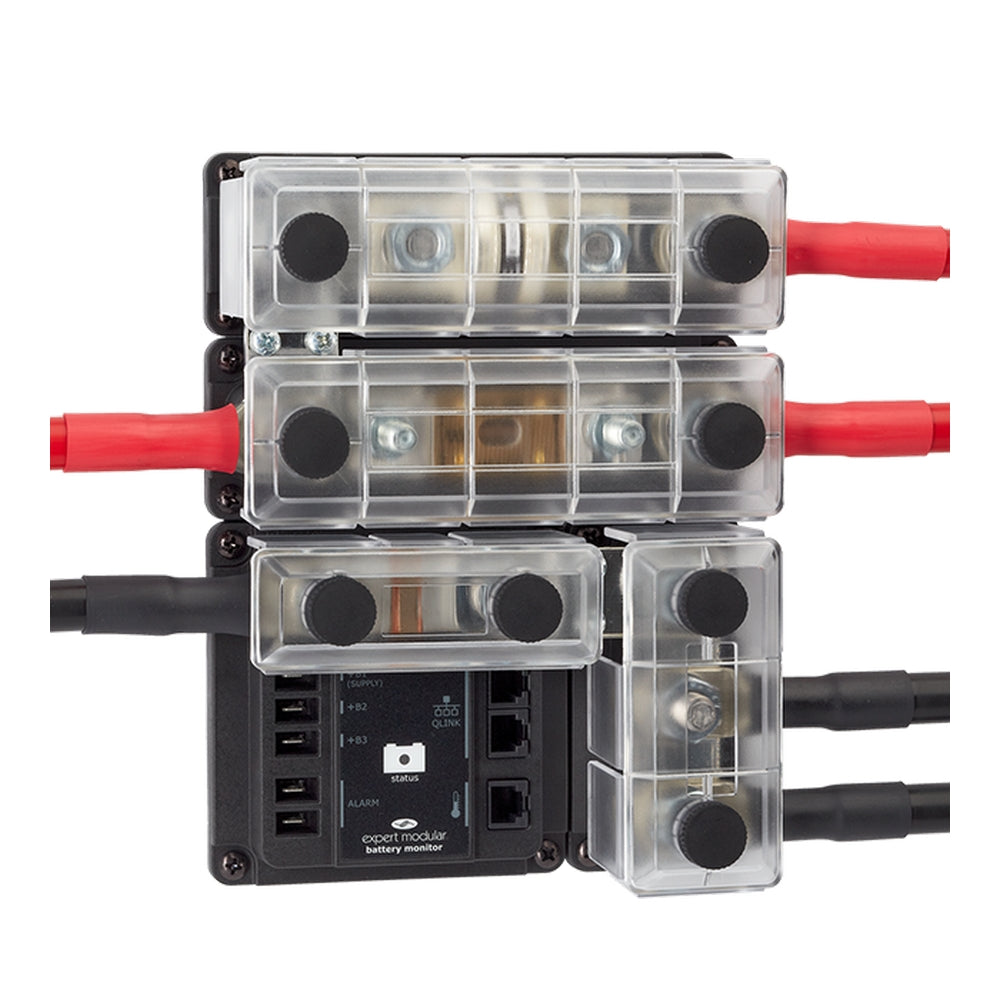

The solid and compact design, as well as the possibility to link these up with other DC Modular family members, make these products the best choice for all professional
DC power systems. The insulated studs are available with M8 or M10 stud sizes.

In stock
TBS DCM 1xM10 Single Insulated Stud

£10.85 inc VAT£9.04 ex VAT

£10.85 inc VAT£9.04 ex VAT

    Description Description Description
    Features Features Features

The DC Modular single insulated studs are ideal parts to extend cables, add power taps or form termination end-points.
The solid and compact design, as well as the possibility to link these up with other DC Modular family members, make these products the best choice for all professional
DC power systems. The insulated studs are available with M8 or M10 stud sizes.

Features:

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Common interconnection heights for easy combining of multiple products using link plates
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Top sides of transparent covers are equipped with recessed locations to properly add custom labels (Dual insulated stud only)
  • Smart terminal design allows dual mirrored cable lug connections
  • Easy in-system connection access due to top locked covers

Product Info:

  • 1 x M10 Single Stud
  • Max Voltage: 60V DC
  • Operating Temperature Range: -25°C - +80°C
  • Dimensions: 50 x 50 x 64.56 (L x W x H)
