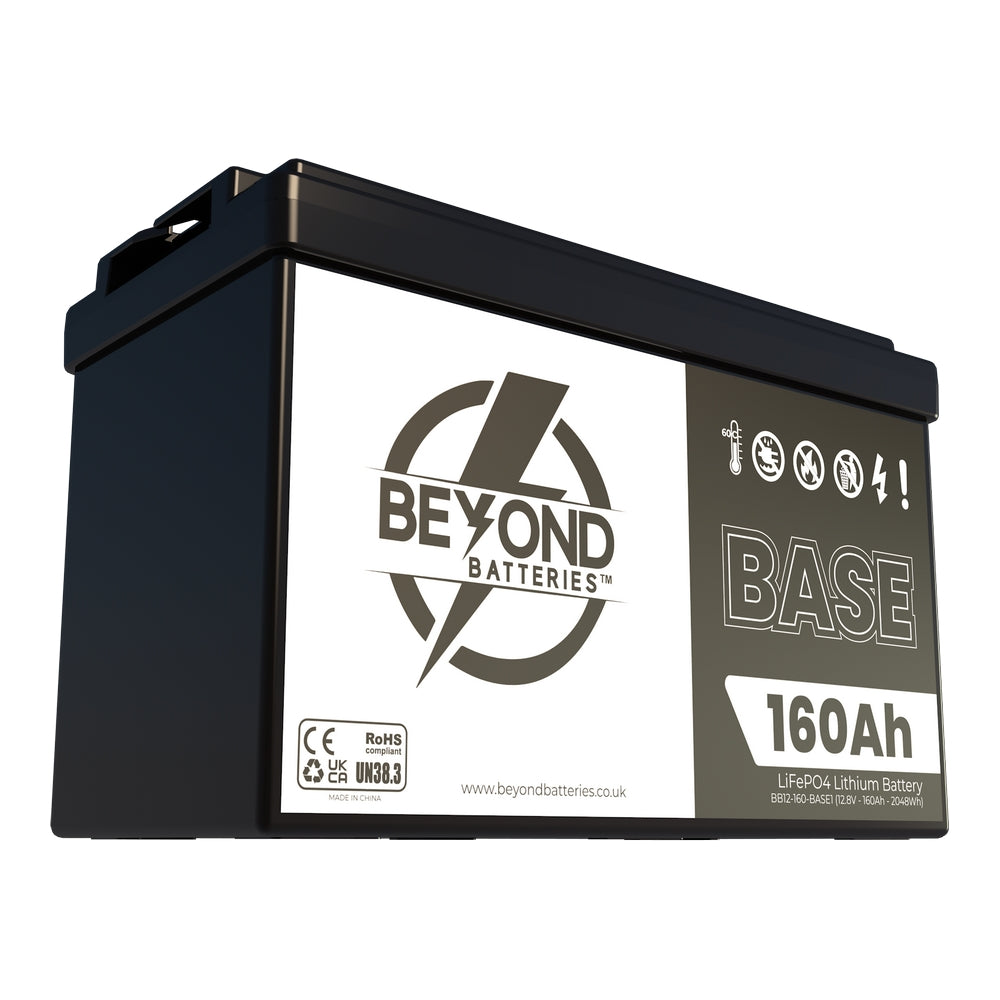

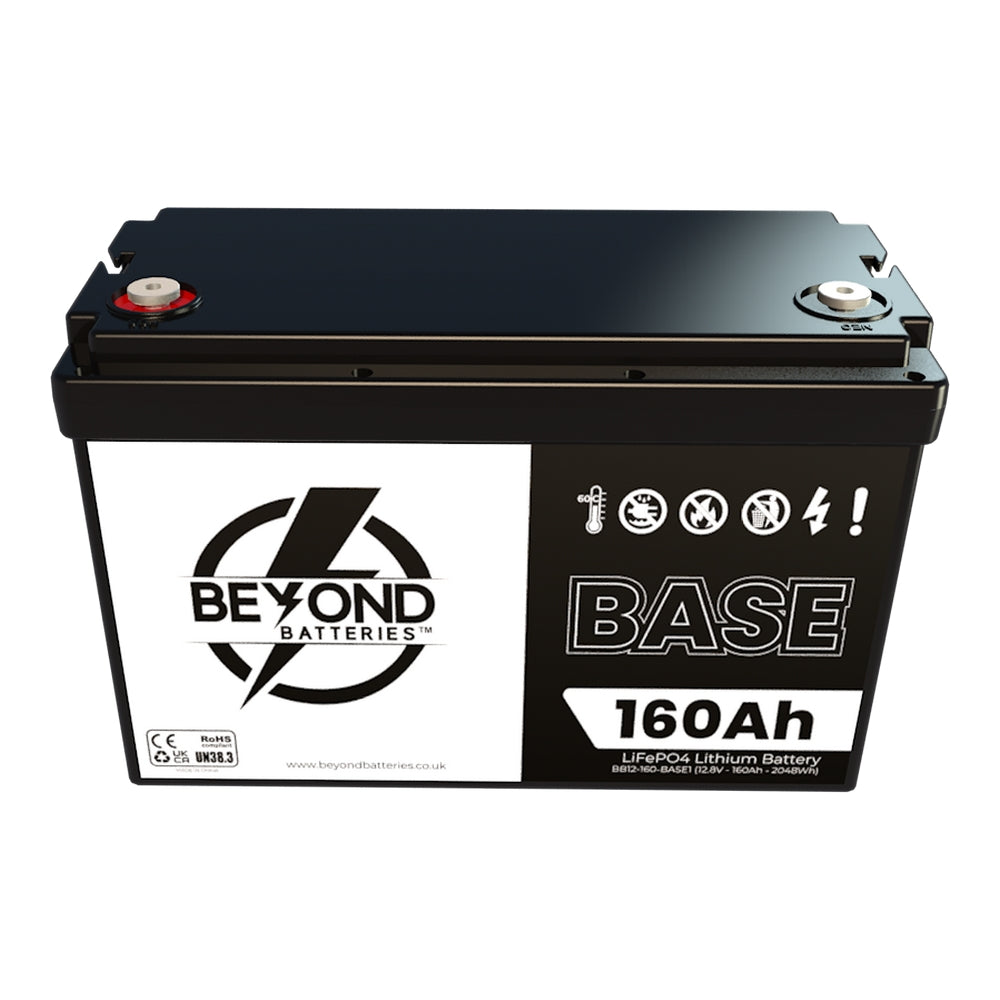

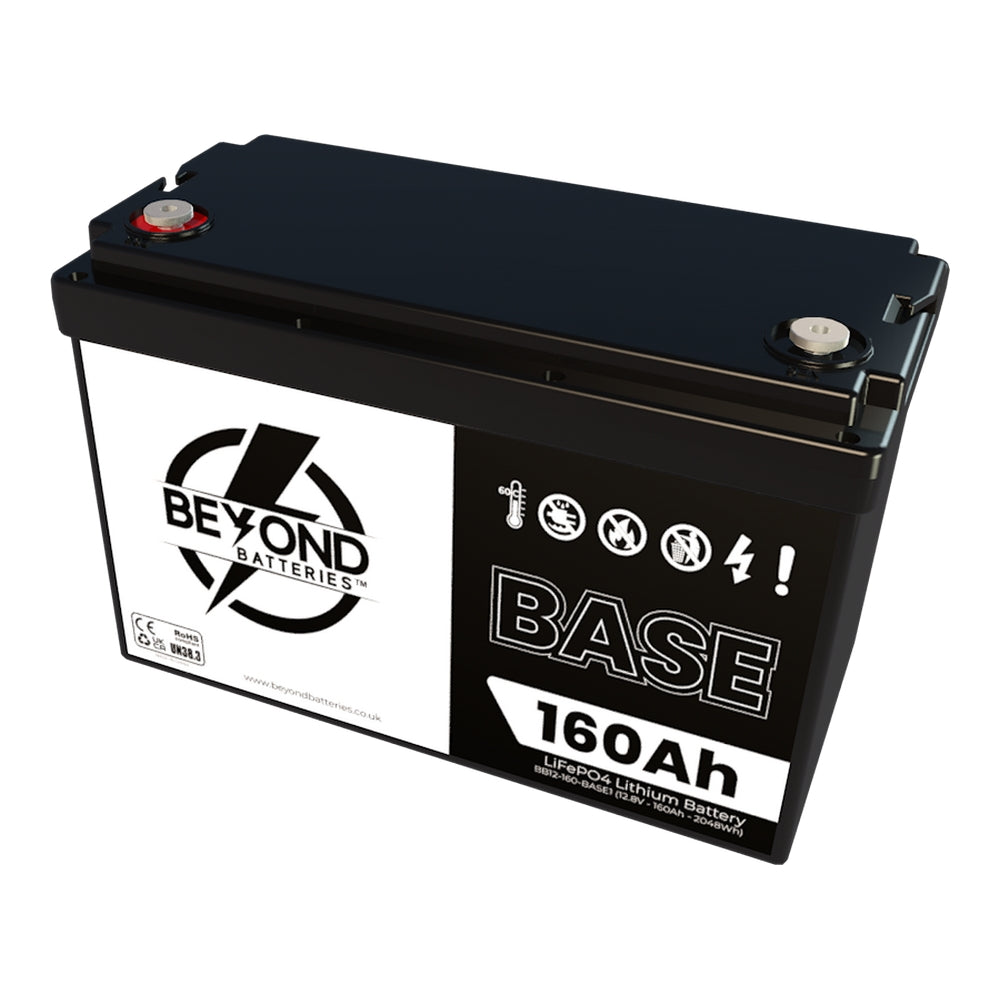

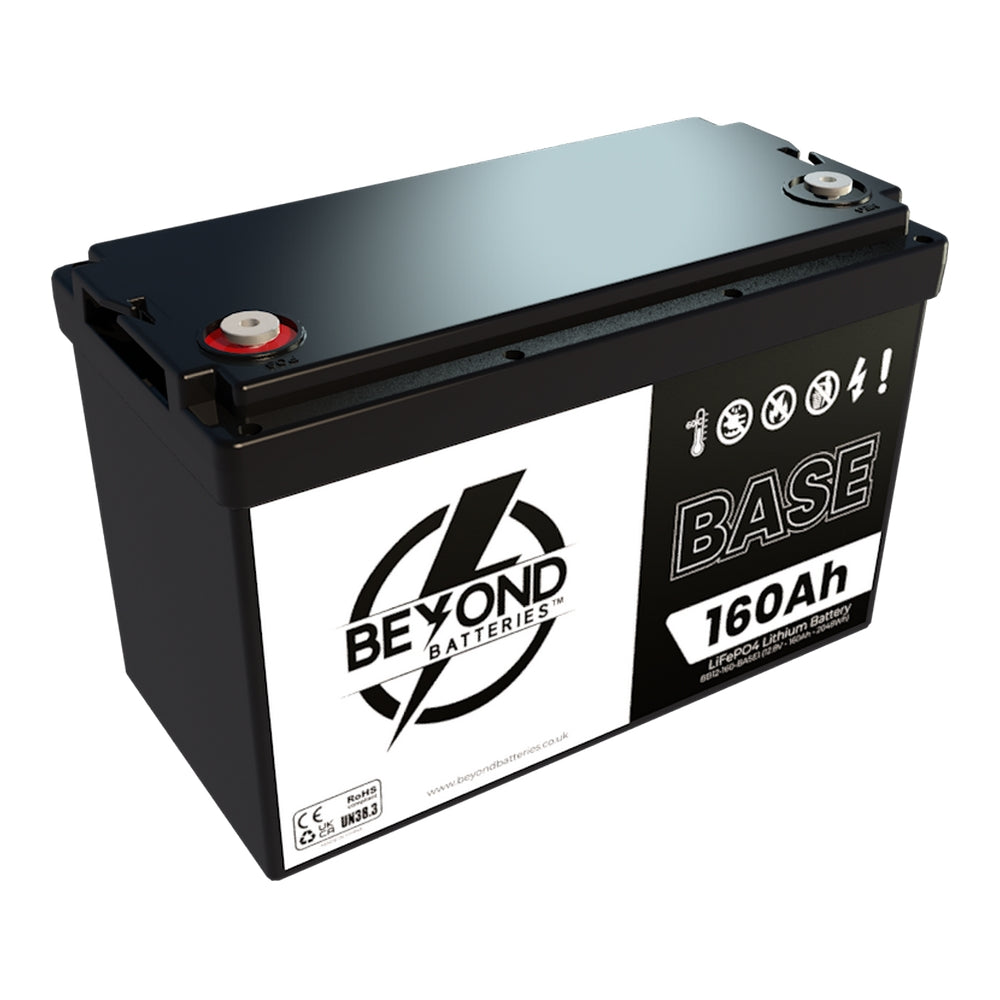

BASE160 - 160Ah / 2048Wh 12.8V Budget Friendly Lithium Battery with Bluetooth

SKU: MISC-WS
Brand: Beyond Batteries

£350.99 inc VAT£292.49 ex VAT

Description

The BASE160 by Beyond Batteries™ provides 160Ah (2,048Wh) of high-capacity LiFePO4 lithium power. A no-frills, cost-effective power solution engineered for durability and performance on a budget, it now comes equipped with Bluetooth to keep essential equipment running without compromise.

Fast Charge & Discharge:

Delivers a continuous 200A output with a 400A peak current for demanding power start-ups and inverter loads.

Advanced BMS & Safety:

Safe LiFePO4 chemistry with a high-integrity 200A BMS for comprehensive protection, low-temperature safeguards, and a long cycle life (6,000 cycles at 80% DoD).

Smart Monitoring:

Features Bluetooth monitoring for Android and iOS devices to track real-time power, state of charge, and overall battery health.

Compact & Lightweight Design:

Weighing just 15kg, this lightweight solution is engineered for high-capacity marine, campervan, and off-grid power systems.

In stock
5 Day Delivery
BASE160 - 160Ah / 2048Wh 12.8V Budget Friendly Lithium Battery with Bluetooth

£350.99 inc VAT£292.49 ex VAT

£350.99 inc VAT£292.49 ex VAT

The BASE160 by Beyond Batteries™ provides 160Ah (2,048Wh) of high-capacity LiFePO4 lithium power. A no-frills, cost-effective power solution engineered for durability and performance on a budget, it now comes equipped with Bluetooth to keep essential equipment running without compromise.

Fast Charge & Discharge:

Delivers a continuous 200A output with a 400A peak current for demanding power start-ups and inverter loads.

Advanced BMS & Safety:

Safe LiFePO4 chemistry with a high-integrity 200A BMS for comprehensive protection, low-temperature safeguards, and a long cycle life (6,000 cycles at 80% DoD).

Smart Monitoring:

Features Bluetooth monitoring for Android and iOS devices to track real-time power, state of charge, and overall battery health.

Compact & Lightweight Design:

Weighing just 15kg, this lightweight solution is engineered for high-capacity marine, campervan, and off-grid power systems.

High Capacity - Compact & powerful, the BASE160 delivers 2,048Wh for heavy-duty off-grid performance.

Grade A Cells - Beyond Batteries uses only Grade A cells for reliable, long-lasting performance.

BMS - 200A high-integrity Battery Management System (BMS) ensures safe, reliable performance, with temperature protection to keep cells safe in cold conditions.

Rapid Charge & Discharge - Fast charge capabilities, 200A continuous output, and 400A peak for high-use power.

Safety First - Safe LiFePO4 chemistry with an advanced BMS for protection & longevity.

Cycle Life - Provides up to 6,000 cycles at 80% depth of discharge.

Applications - Ideal for leisure & marine, off-grid storage, and modular configurations up to 51.2V.

Model: BASE160

Rated Capacity: 160Ah (Note: 25±2°C)

Nominal Voltage: 12.8V

Total Energy: 2048Wh

Chemistry: LiFePO4

Cell Type: Prismatic

Maximum Continuous Discharge Current: ≤200A

Peak Discharge Current: ≤400A (Note: @3 seconds)

Maximum Charge Current: ≤80A (Note: @25°C)

Recommended Charge Current: 40A

Recommended Charge Profile: CC/CV (Constant current /
constant voltage)

Recommended Charge Voltage: 14.4V

Maximum Charge Voltage: 14.6V

Under Voltage Disconnect: 10V

Usable Temperature Window: -20 to 60°C

Charging Temperature Window: 0 to 45°C

Terminal Connections: M8

Case Type: ABS Plastic IP65 rated

Base Dimensions (L*W) (mm): 320 x 160 (Note: Battery
base)

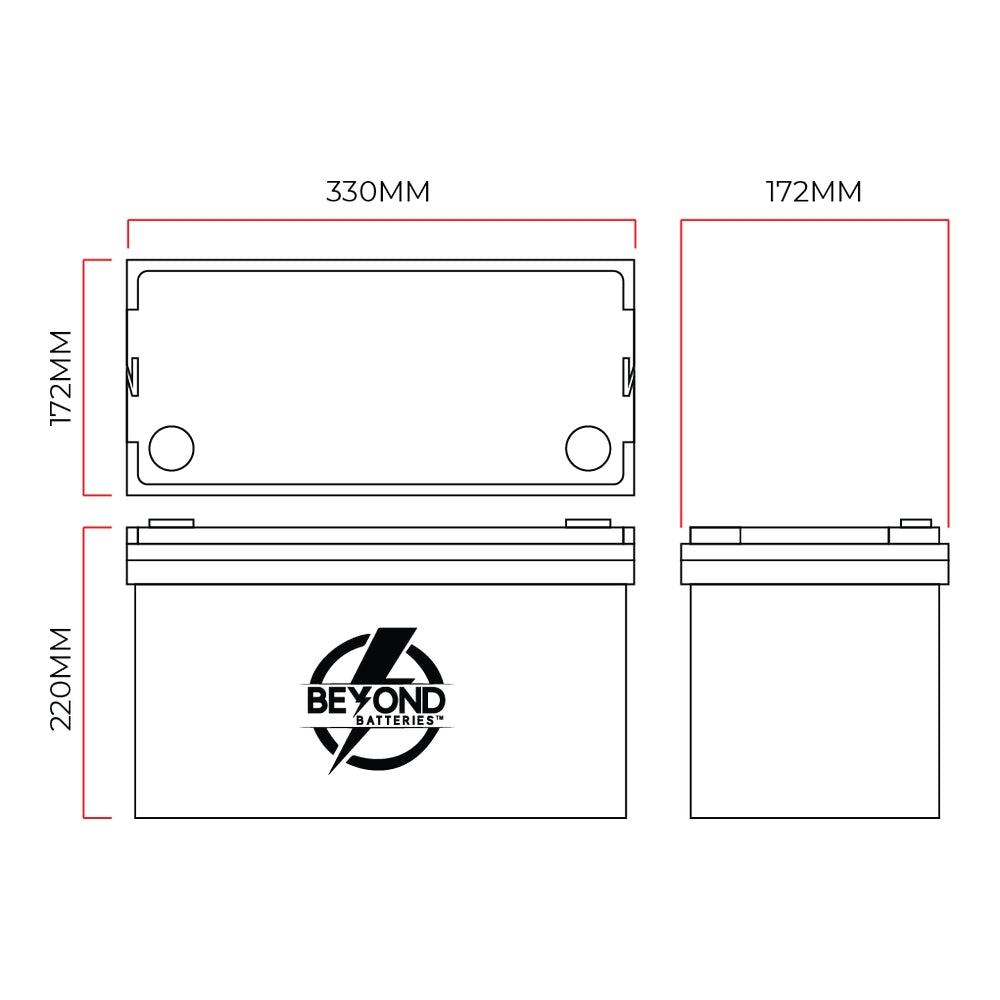

Top Dimensions (LWH) (mm): 330 x 172 x 220
(Note: Widest points (top/handles))

Height with Terminals (mm): 228 (Note: No items
attached)

Weight (kg): 15

Built-In BMS: 200A

Storage Temperature: -10°C~30°C

Certifications: UKCA, CE, UN38.3, RoHS

Shipping Classification: UN3480 - Class 9

Configuration and Expansions: 16 x parallel, 4 x
series to 51.2V max

Self Discharge per Month: < 3%

Cycle Life: ≤6000 (Note: 80% DOD)
