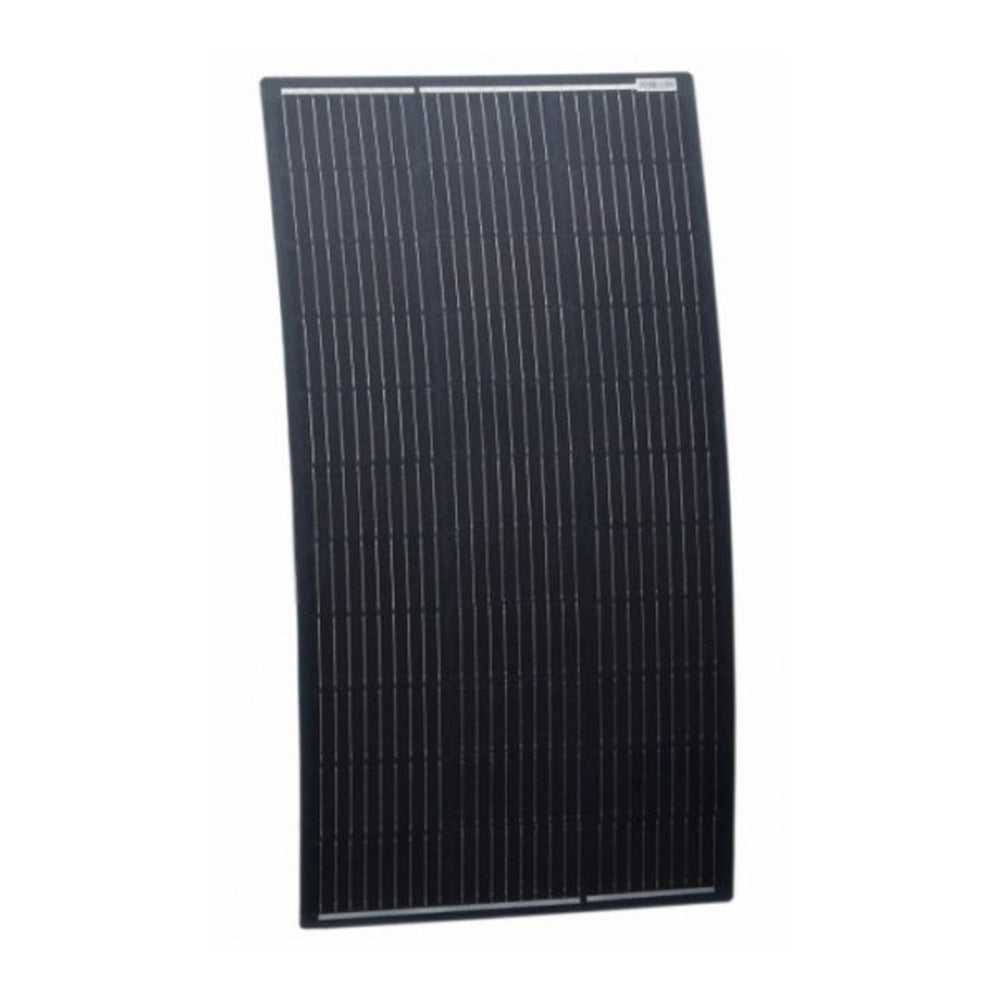

200W BLACK SEMI-FLEXIBLE SOLAR PANEL WITH REAR JUNCTION BOX

(£377.38 Inc. VAT at 20%)
2-3 Day Delivery
Product Description+

Highly durable semi-flexible solar panel reinforced with fibreglass plastic and a strong ETFE surface and made from monocrystalline solar cells.

In addition to the fibreglass reinforcement, the surface is made of strong ETFE material which has a longer service life compared to standard semi-flexible solar panels. As a result, these particular semi-flexible solar panels are extremely hard-wearing and less prone to cracking, delamination and corrosion. The lightly textured coating of this panel creates an anti-reflective surface which allows the panel to absorb a far greater amount of light, thereby increasing efficiency.

The textured surface of this solar panel reduces the reflection of light whilst maximising the absorption of light from every possible angle. This ensures high performance in low light or cloudy conditions, or when the light falls at an angle (in the morning, evening, or winter).

  • Robust construction using plastic reinforced with glass fibre creates a sturdy and durable solar panel.
  • Special textured surface significantly reduces light reflection and improves performance in low light and cloudy conditions.
  • Highly flexible design makes this panel ideal for curved roofs and surfaces where bonding is preferable (though it can also be fixed by bolts or screws).
  • The panel is incredibly light and very thin (just 2mm) which is great for all vehicles.
  • High resistance to salt water environments makes it perfect for boats and marine applications.
  • Sealed waterproof design ensures it can be used in all weather conditions.
  • Each panel is fitted with a set of cables. The cable comes with waterproof MC4 connectors which can be used for easy connectivity to your existing system, for linking several panels together or for connecting 4mm extension cable.

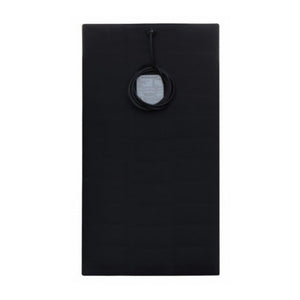

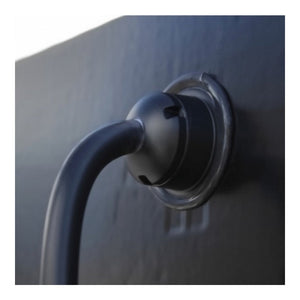

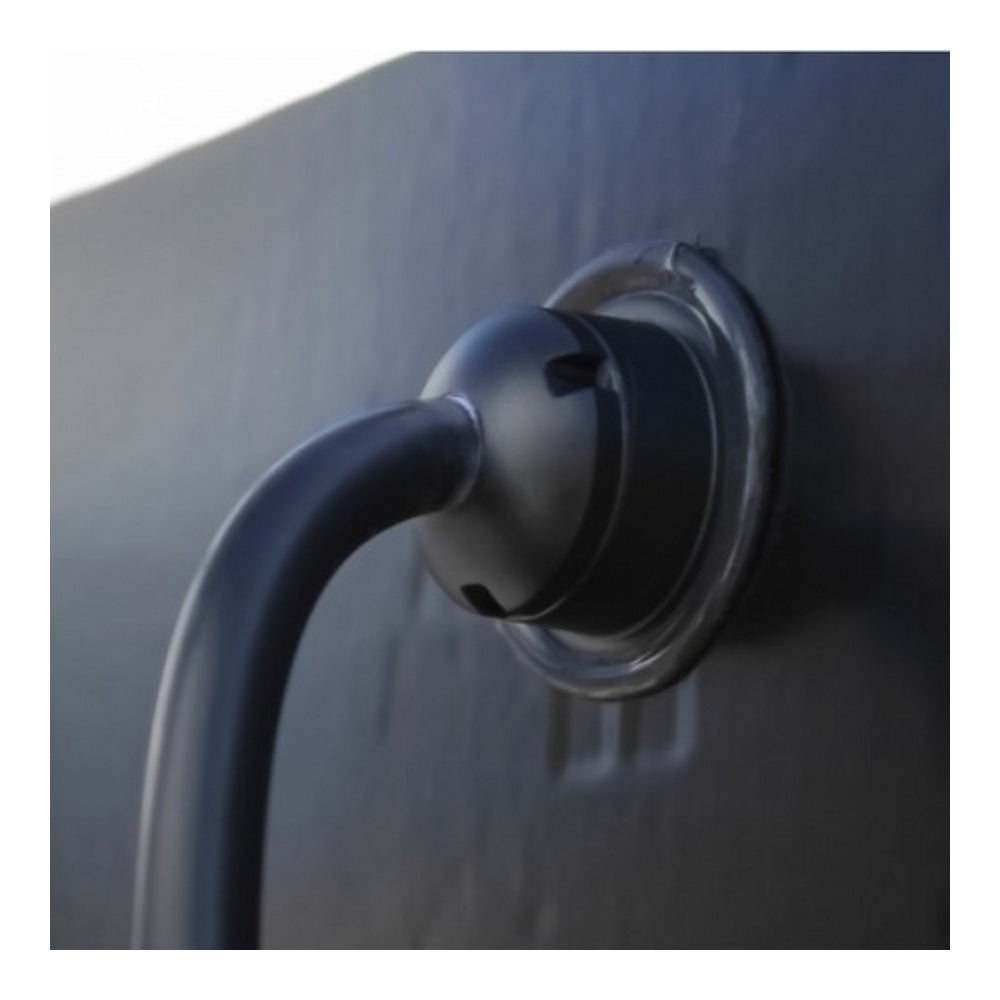

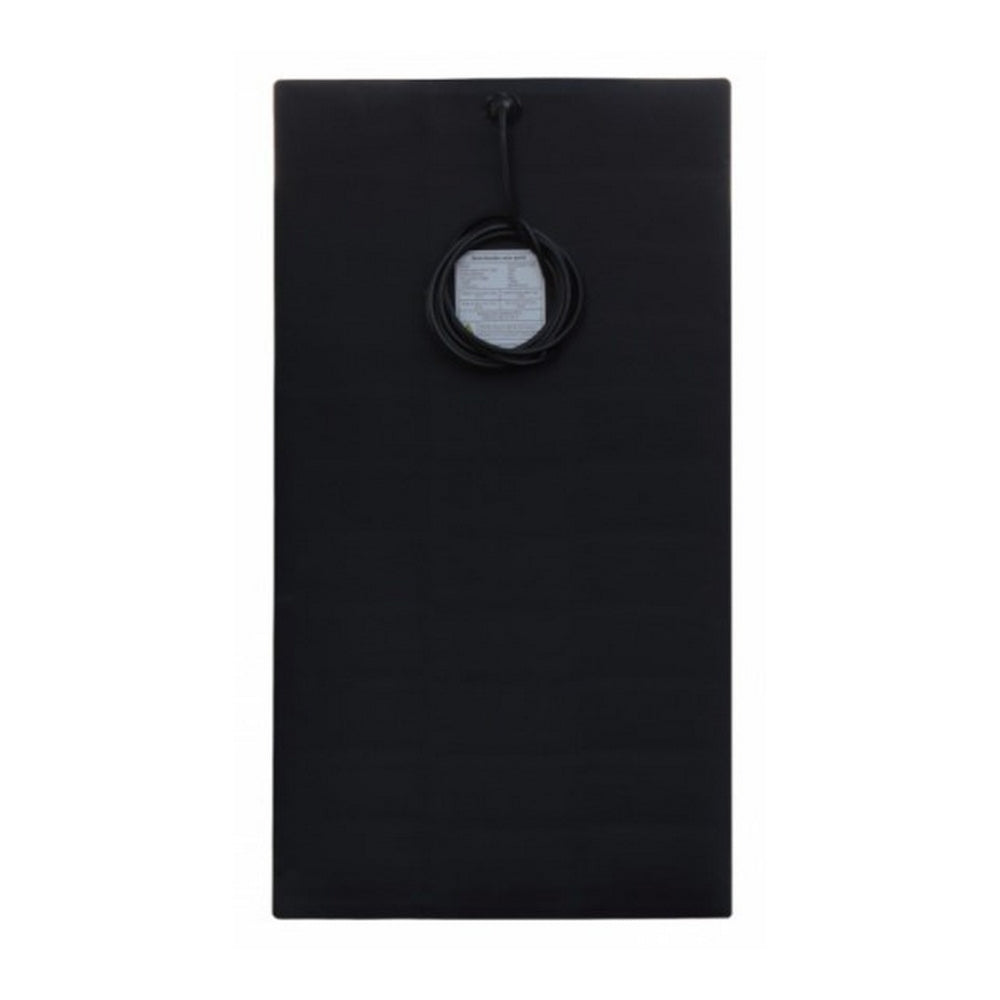

  • Rear junction box at the rear giving a complete flat and professional finish.
  • Black finish ideal for discreet and better finish on darker coloured surfaces.
  • 3 metre dual core cable for easy installation.

Specifications:

  • Peak power: 200W
  • Maximum power voltage: 17.6V
  • Maximum power current: 11.36A
  • Open circuit voltage: 23.8V
  • Short circuit current: 12.05A

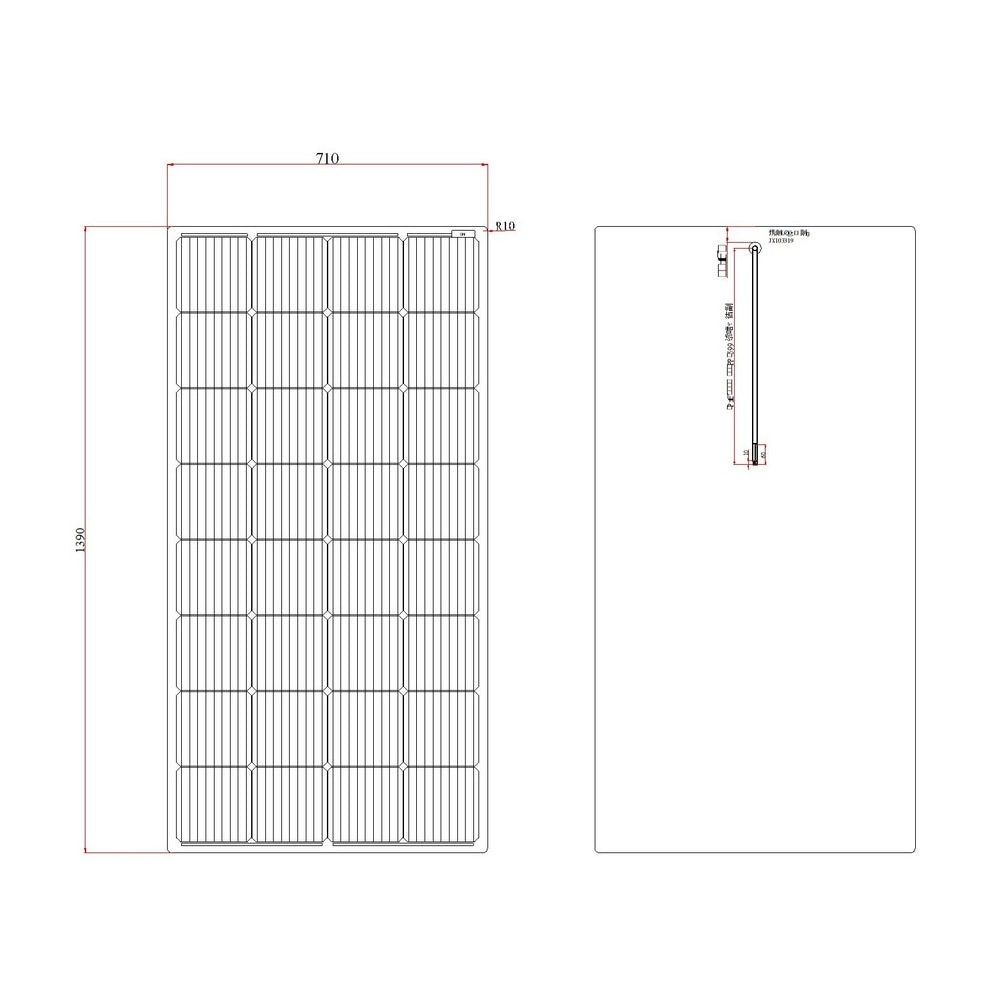

  • Solar Panel dimensions: 1390 x 710 x 2 mm
  • Junction Box diameter: 30 mm
  • Weight: 3.65 kg
  • Cable: 3m dual core solar cable attached (4mm)
  • 3 Year Warranty
Download Handling and Installation Manual
