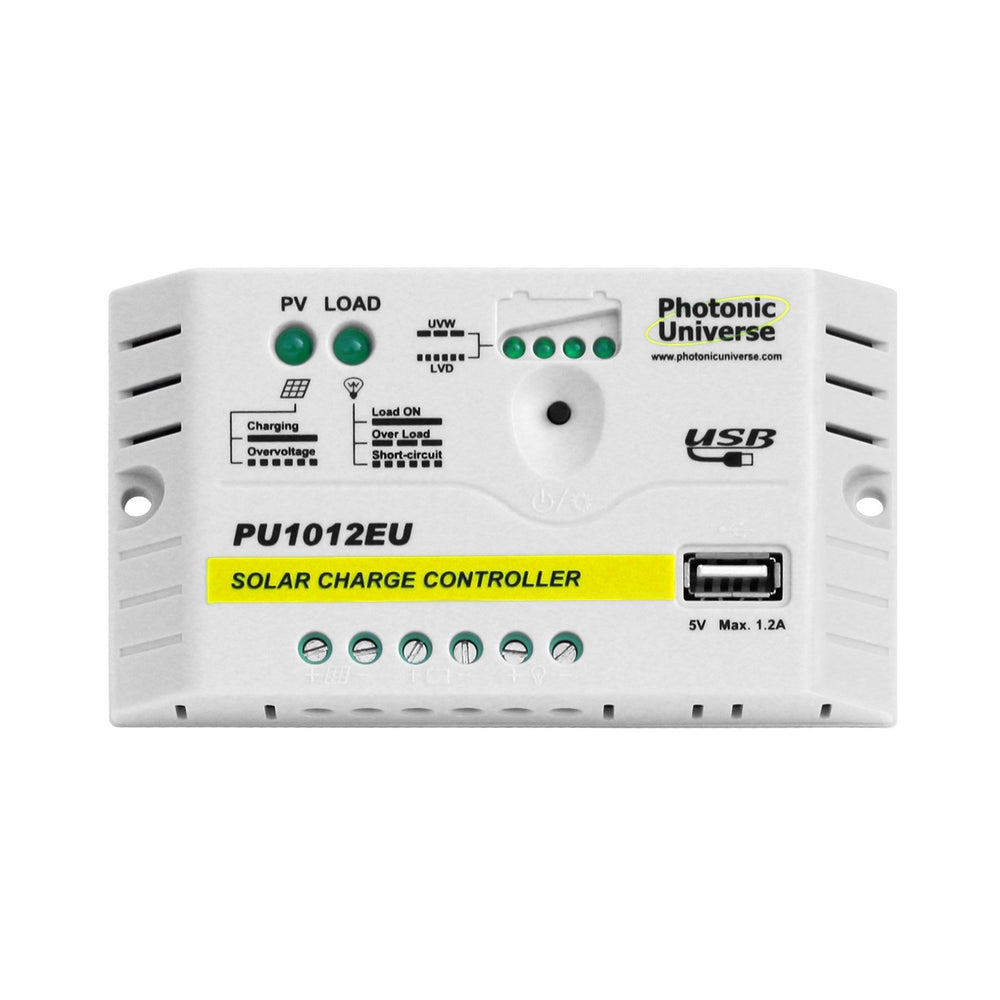

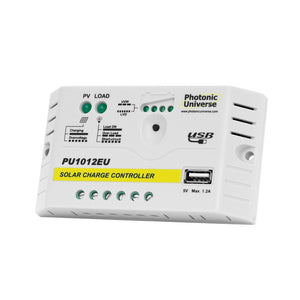

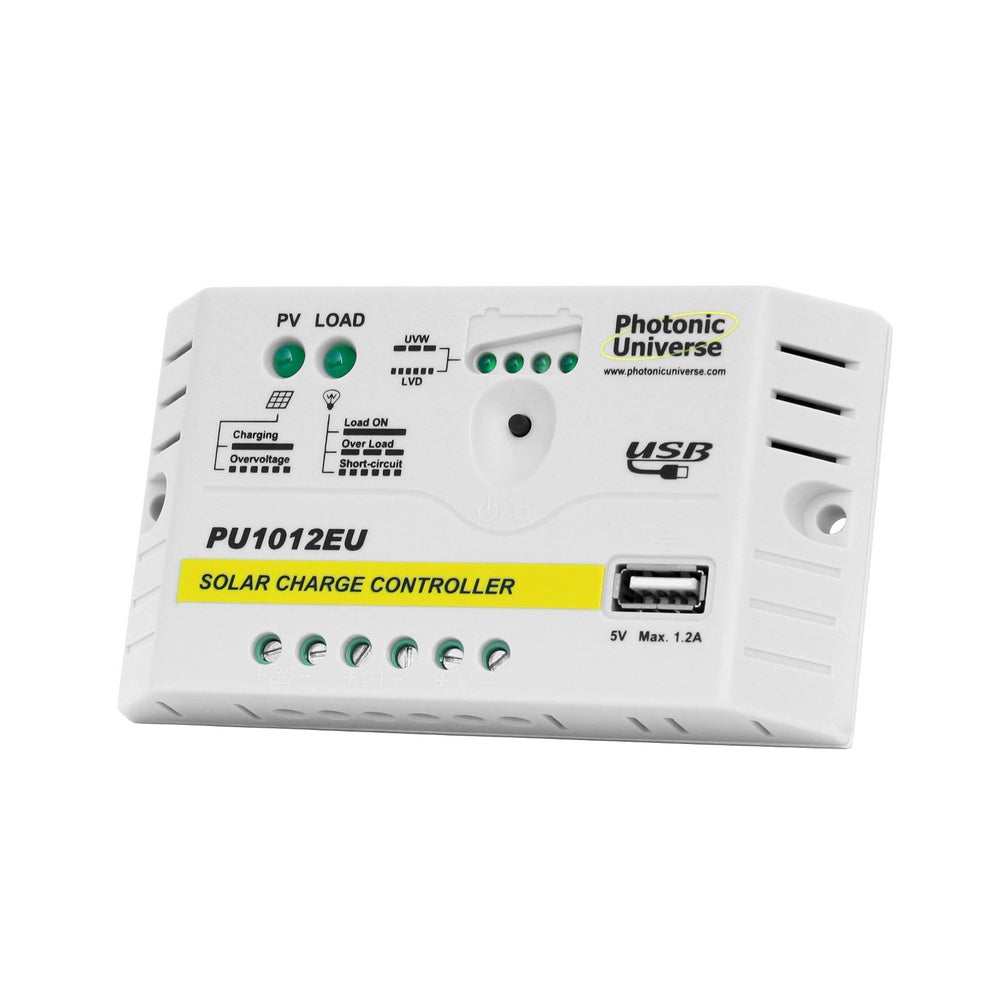

SOL/CHARGER-PWM

10A PWM SOLAR CHARGE CONTROLLER FOR PANELS UP TO 160W

(£17.80 Inc. VAT at 20%)
Product Description+

Solar charge controller intelligently designed to simultaneously protect and charge a 12V battery.

Features a full range of safety functions such as protection against reverse current at night (from the battery back through the solar panel), over charge / discharge, overvoltage, over load, short circuit etc. The PWM (Pulse Width Modulation) technology used in this controller increases charge acceptance and prolongs the life of your battery.

  • Suitable for panels up to 160W
  • Charging current: 10A
  • Load current: 5A
  • Rated voltage: 12V
  • 3 pairs of terminals (solar panel, battery, load) for wire up to 4mm², load terminals for connecting 12V loads (such as lights) if desired
  • A 5V USB port (1.2A output) offering fast charging of USB compatible devices
  • LED indicators to show the battery state of charge as well as the status of the solar panel and 12V load. An "on/off" button is also available for the load.
  • Compatible with sealed, gel and flooded batteries - battery type can be selected
  • Dimensions: 120.3 x 67 x 21.8 mm
