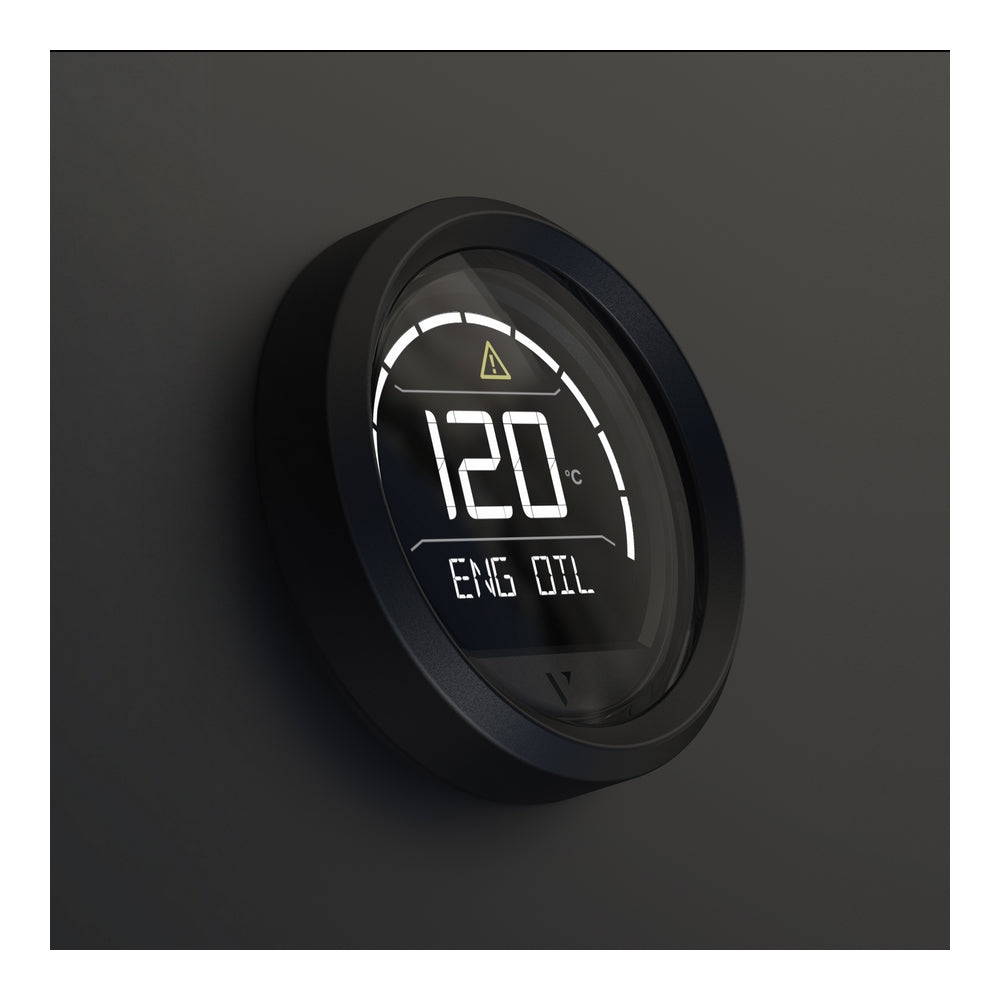

Veratron VL Digital Multifunction Gauge - Black - 52mm

Key Features

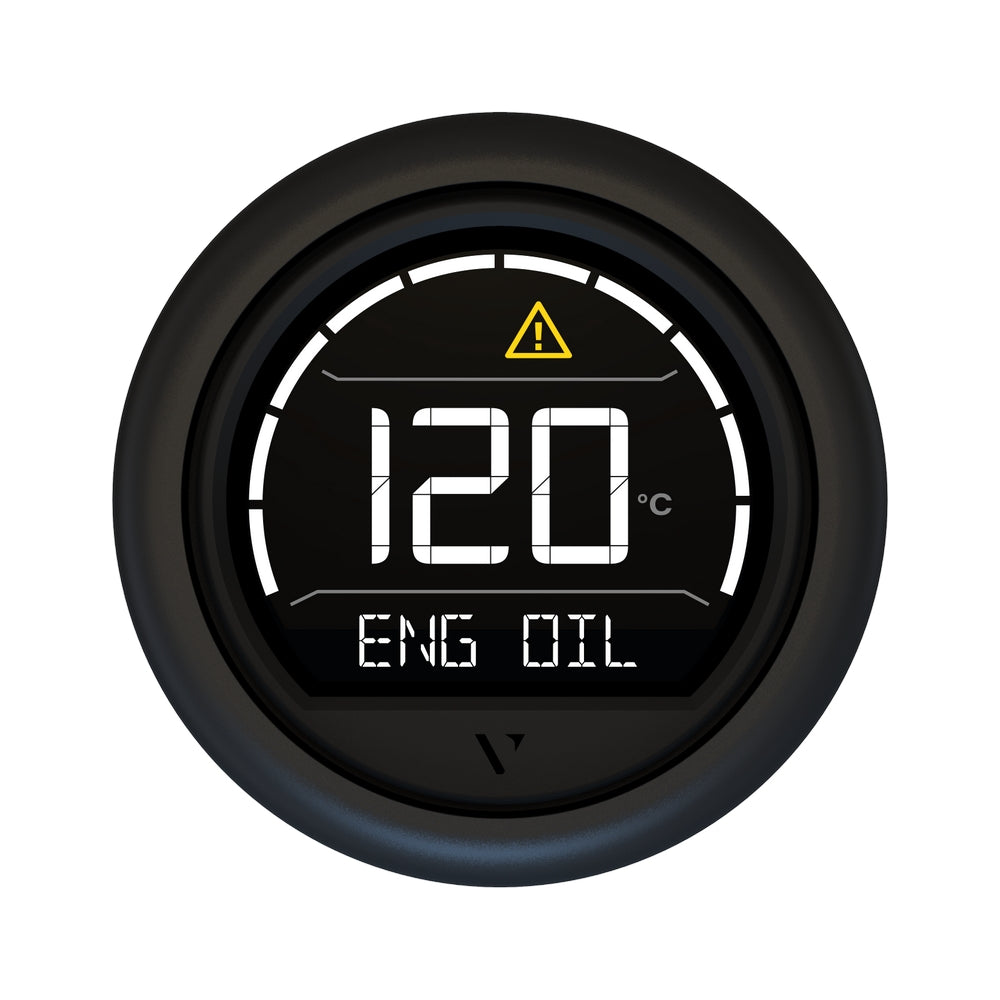

• High-Contrast IBN Display: Utilises Integrated Black Nematics (IBN) technology to provide a true black background and vibrant colour segments, ensuring exceptional readability even in direct sunlight and at wide viewing angles.
• PMMA Single Lens: Features a durable, high-clarity PMMA lens with specialised anti-glare and anti-fog treatments for permanent visibility in harsh marine environments.

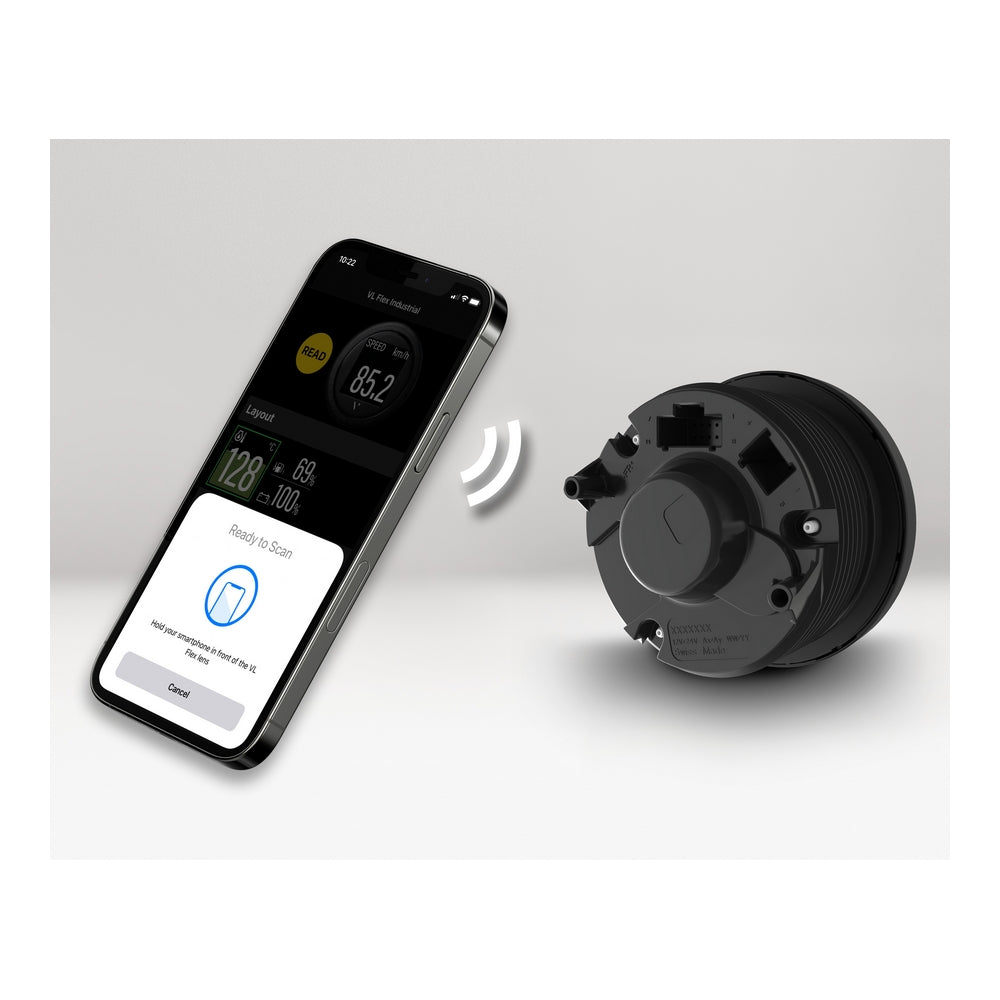

• Effortless NFC Setup: Program the unit in seconds via the smartphone app; no physical buttons or complex wiring required for configuration.
• Universal Input Support: Capable of reading data from analogue sensors (resistive, frequency, 0–5V) or directly from the digital NMEA 2000®/CAN bus network.
• Visual Alarms: Includes a programmable alarm system where the display segments or bar graphs change colour to alert the operator when critical thresholds are met.
• Built-in Gateway: Can convert analogue sensor data into NMEA 2000® signals, allowing other devices on your network to read the information.
• Robust Marine Build: Features an IP67 waterproof rating (front and rear) to ensure reliable performance in open cockpits.

Technical Specifications

• Display: High-contrast IBN colour display
• Lens: PMMA single lens with anti-glare and anti-fog treatment

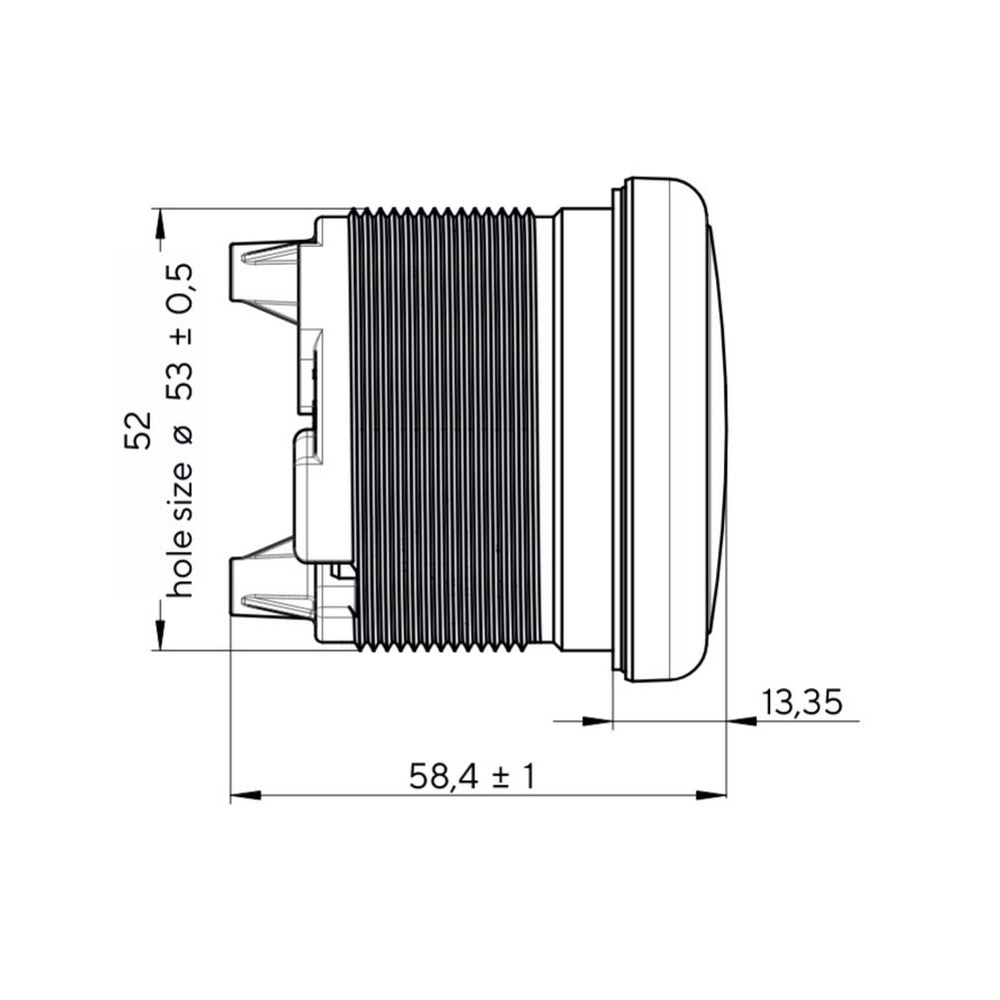

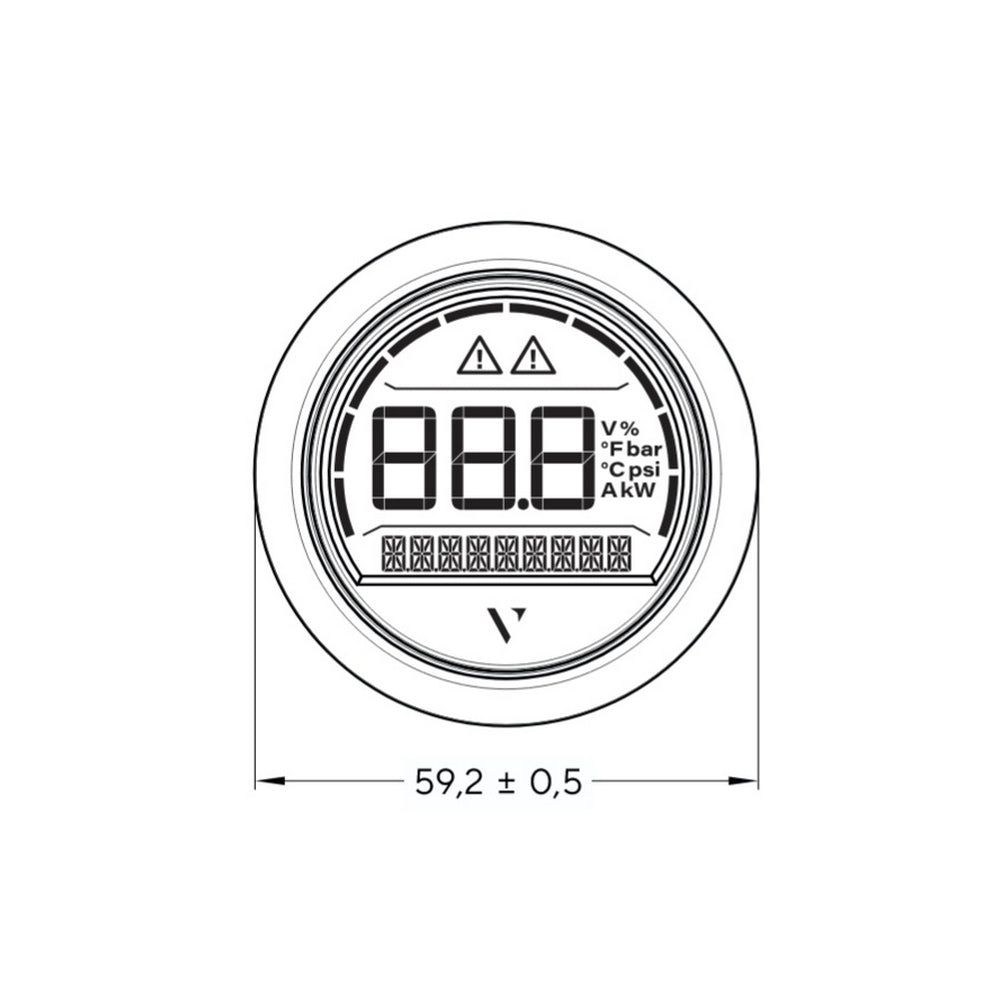

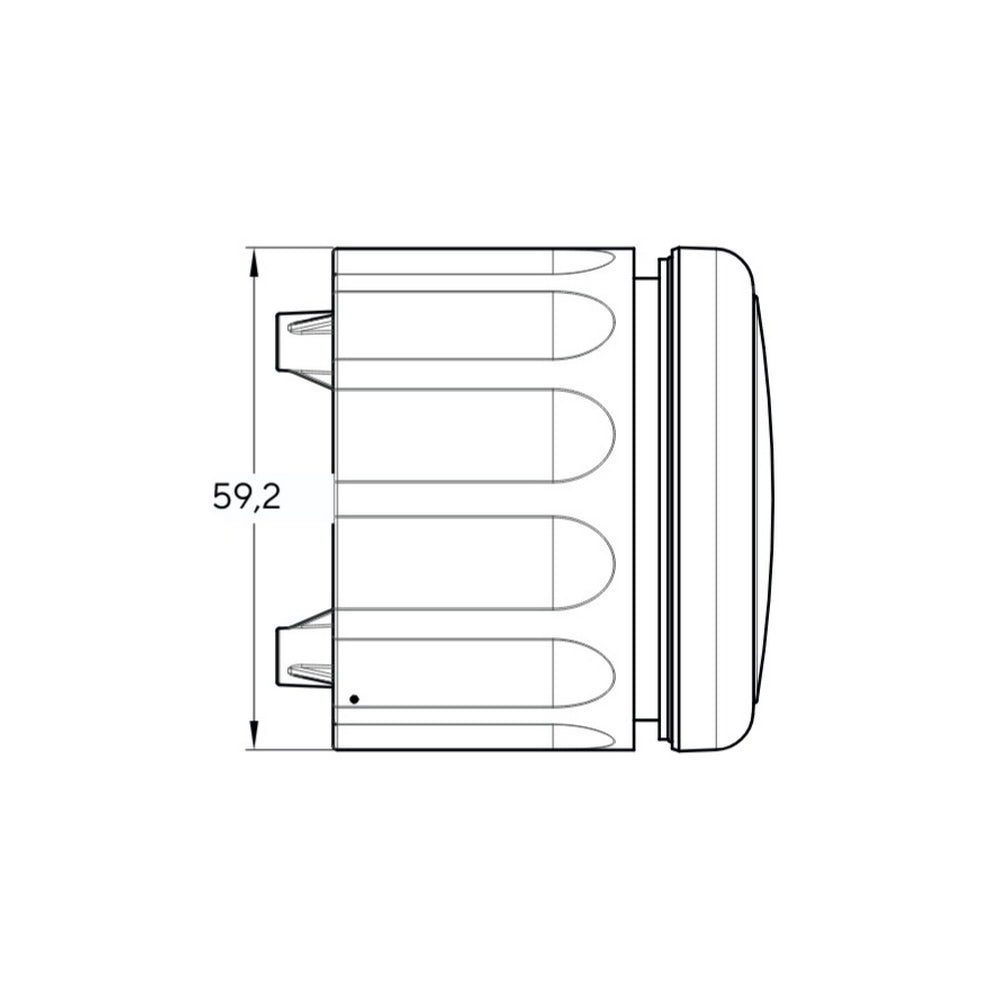

• Installation Diameter: 52 mm (2 1/16")
• Operating Voltage: 12 / 24 V (8–32 V range)
• Current Consumption: ≤ 50 mA (at maximum illumination)
• Protection Class: IP67 (front and rear)
• Analogue Inputs: 1x Resistive (0–1000 Ω), 1x Frequency (W, Ind, Hall, Generator), and 1x Voltage (0–5 V)
• Digital Ports: NMEA 2000®, LIN Bus, SAE J1939 (CAN)
• Wireless Interface: NFC (Near Field Communication)

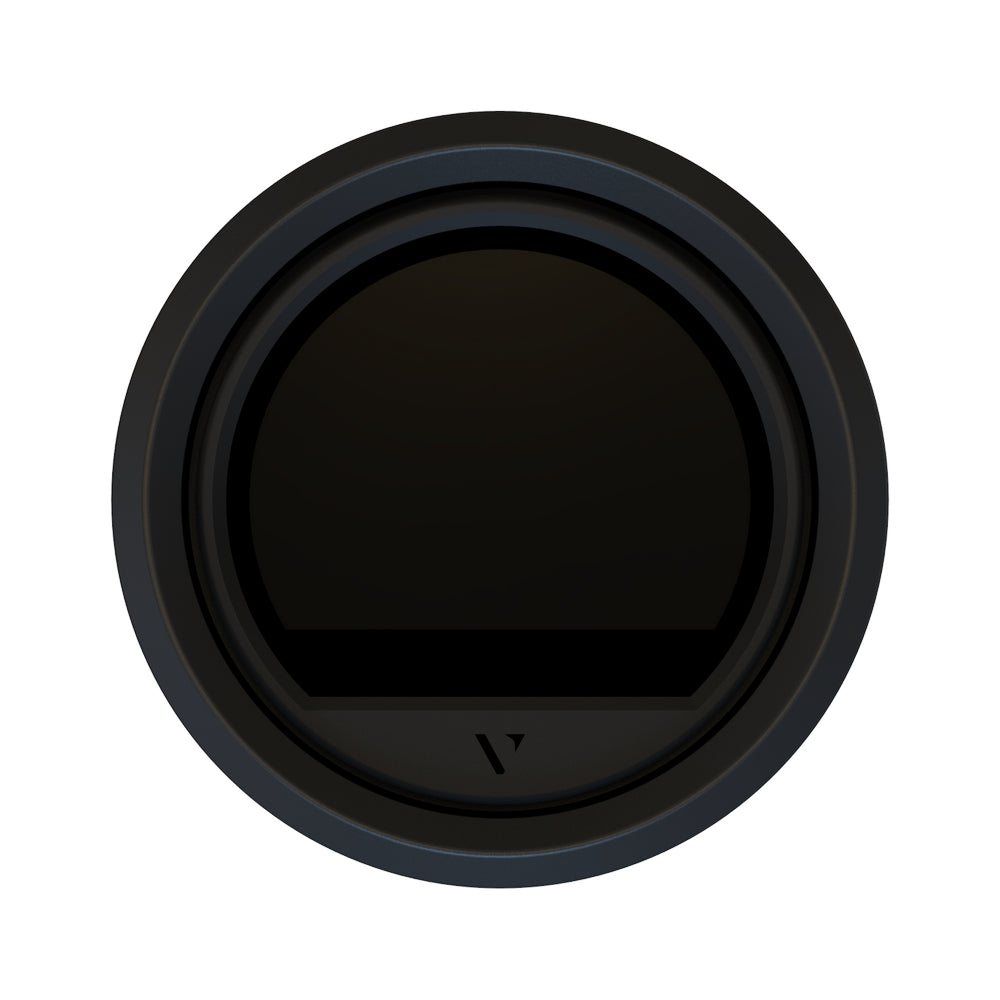

• Bezel: Black round (exchangeable with other ViewLine style bezels)
• Operating Temperature: -20 °C to +70 °C

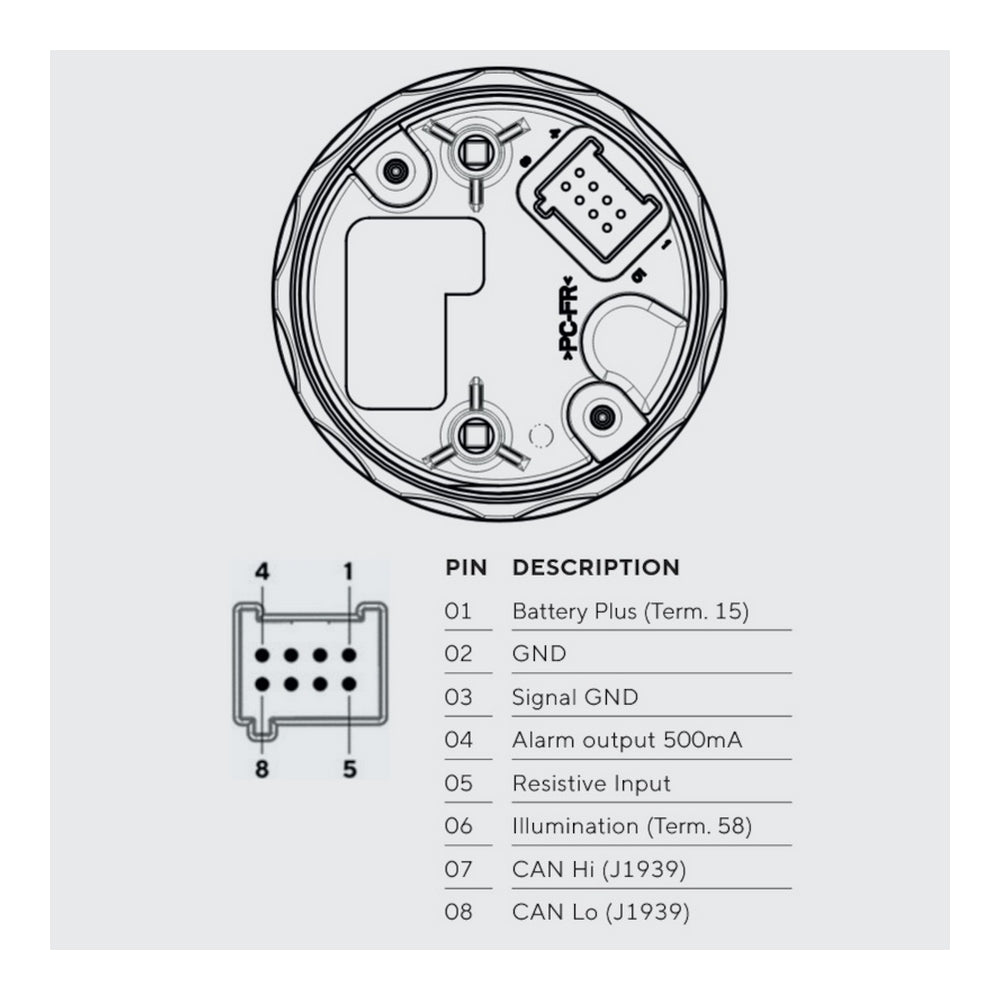

• Connector: 8-pin Tyco / Hirschmann MQS plug
