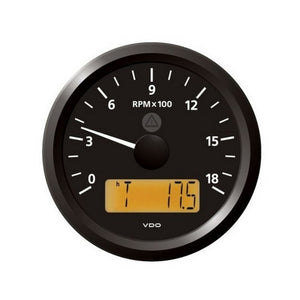

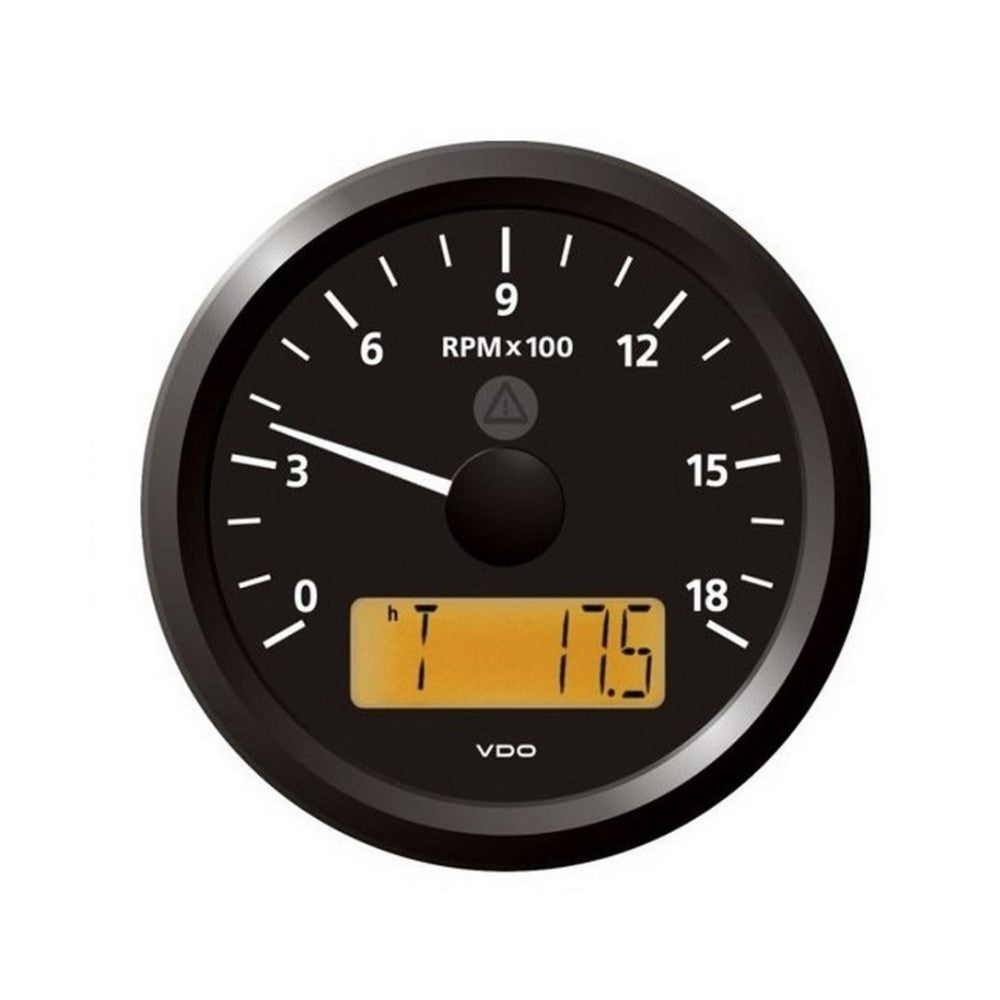

Veratron VDO Viewline 1800 RPM Tachometer with E/H - 85mm - Black Dial

The ViewLine rev counter with or without operating hours counter (OHC) can be connected to conventional marine engines (no data bus).

• Operating voltage 8 - 32 V
• Indication error < 2.5 % over the entire display range
• Current consumption < 175 mA, with warning light (LED)
• Output for acoustic alert (option)
• Various sensor inputs (Alternator, Ignition Coil, Generator and Inductive)
• LC display size 37 mm x 11 mm
• Individually programmable display e. g., for clock, trip, odometer, etc. via externally switchable button or PC software (ViewLine programming tool)
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 85 mm hole diameter
• 93 mm outside diameter
• 50 mm installation depth

What's in the box?

• Tachometer gauge
• Adapter cable 8 pole
• Adapter cable 14 pole
• Round triangular bezel
• Pushbutton configuration
• Spinlock nut
• Rubber seal

Download User Manual
