A2C1750500001

Veratron Tubular Fuel Sensor - 500mm - 90-4ohm

(£79.78 Inc. VAT at 20%)
Product Description+

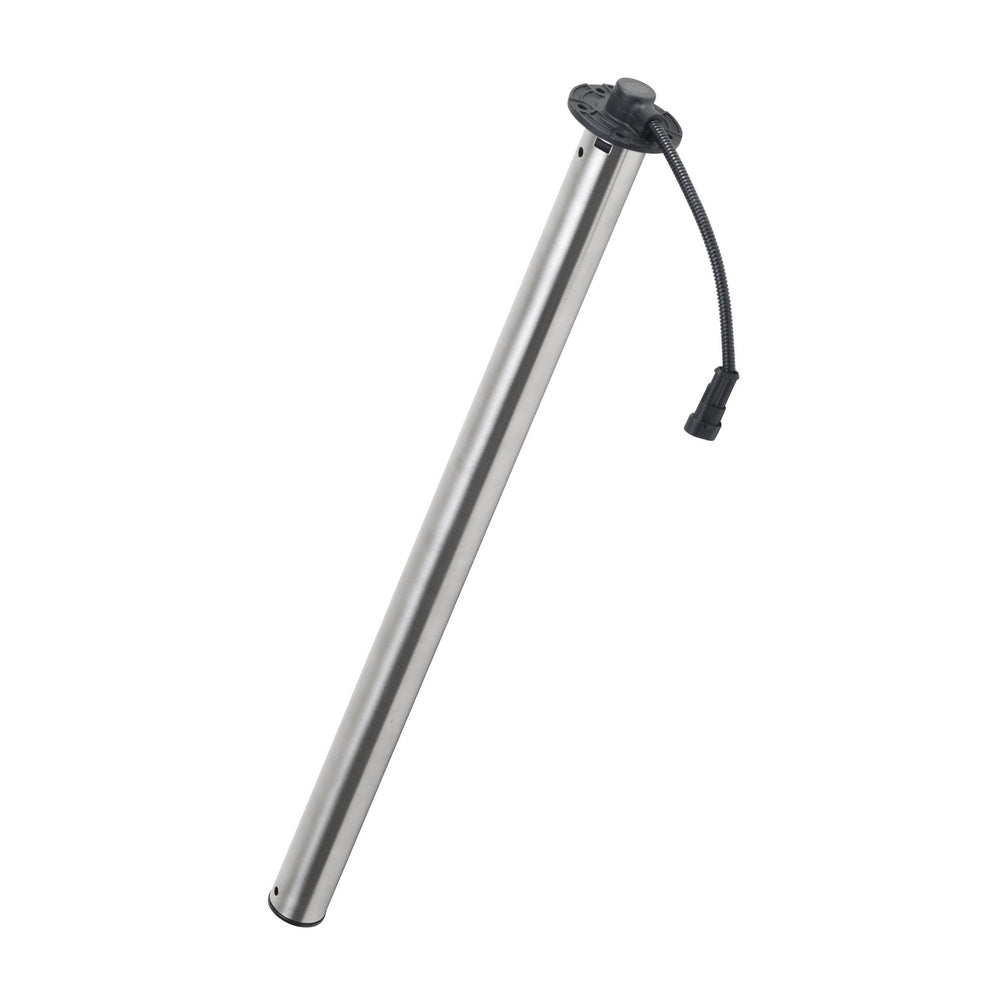

Deep-Pipe Level Sensor is ideal for use in fuel or water tanks. Its 38mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state. Please ensure that the length chosen is at least 4mm from the base of the fuel tank once fitted.

  • TE Superseal Connector IP67
  • Compensation chamber
  • Flange: PA66 GF30
  • Wiring harness with length of 200 mm
  • Signal range: 90-4ohm
  • Lengh: 500mm

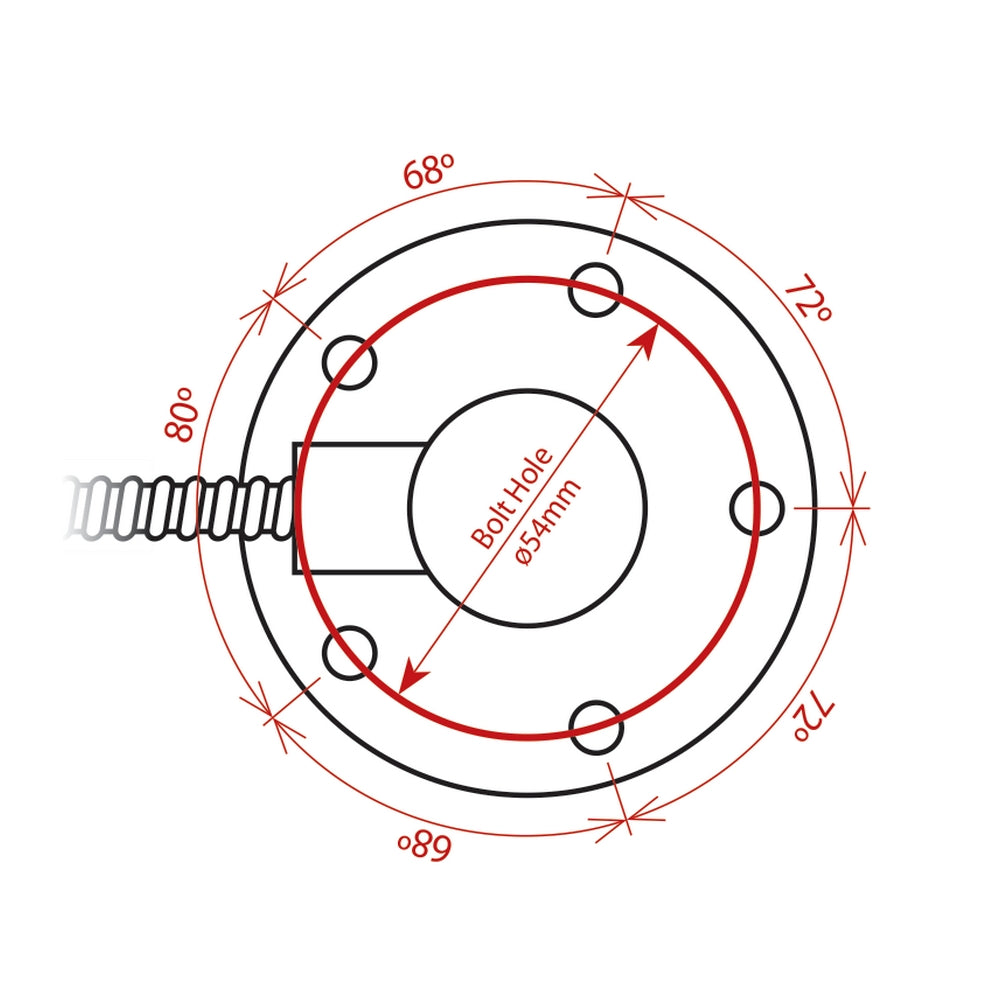

  • Mounting diameter: 54 mm
  • IP67 protection rating
  • Optional 2 way superseal connector available
