OCEANLED Underwater Light - Discover D3 - ULTRA WHITE

(£238.79 Inc. VAT at 20%)
Product Description+

The new Discover Series D3 underwater LED light from OceanLED

Superior Protection, Total Peace of Mind.
The Discover D3 is rated at IP69k, the highest achievable rating of protection against water ingress. IP69k goes one step further than the industry standard IP68, giving you additional protection and peace of mind. The rear of the light is protected from in-hull temporary submersion for boats where rough seas and waves sometimes flood the stern.

Compact Design
The D3’s compact dimensions make it ideal for tight fitting areas or smaller boats.

Advanced Signature Optics - Wide Surface Beam
The Discover D3 benefits from OceanLED’s signature optics (90° x 20°), producing an unrivaled optimal lighting effect.

Advanced Signature Optics - Narrow side Beam
The OceanLED signature optics produce a narrow side beam, that has minimal light loss, focusing the beam where you need it and penetrating further through the water.


  • Fixture Lumens (Ultra White): 700
  • Beam Angle: Rectangular 90° x 20°
  • Min-Max Operating voltage: DC 10-30V DC
  • Current / Amp draw: (12V DC) 0.7A@12V DC
  • Current / Amp draw: (24V DC) 0.3A@24V DC
  • Correlated Colour Temp (White): 6500k
  • IP Rating (Front Face): IP69k
  • Rear Temporary Submersion Protection: Yes
  • LED Manufacturer: CR
  • Driver type: Internal
  • Active Thermal Control (ATC): Yes

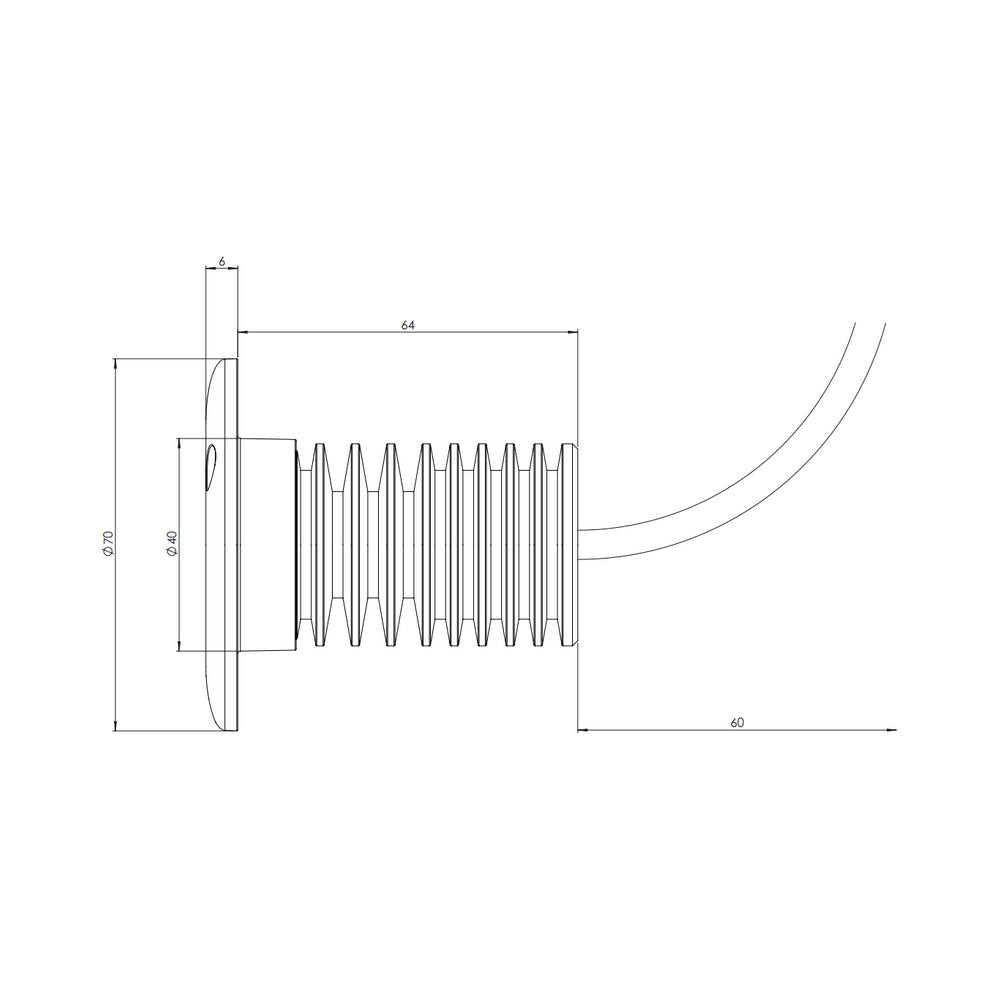

  • Total Diameter (Including Bezel): 70mm
  • Diameter Of Body: 40mm
  • Profile Of Fixture: 70mm
  • Cable length: 2m
  • Hole Cut-Out: 44mm
  • Material (Bezel): UV protected, anti corrosive polymer
  • Material (Light Body): Hard Anodised Aluminium
  • CE Approved: Yes

Mounting Recommendations

  • Boat size: Up to 10m
  • Transom / Hull spacing: 0.5 - 1.2m
  • Installation depth below waterline: 150-200mm
  • Maximum Recommended Hull Thickness: 50mm
Download OceanLED Discover Series Spec Sheet
