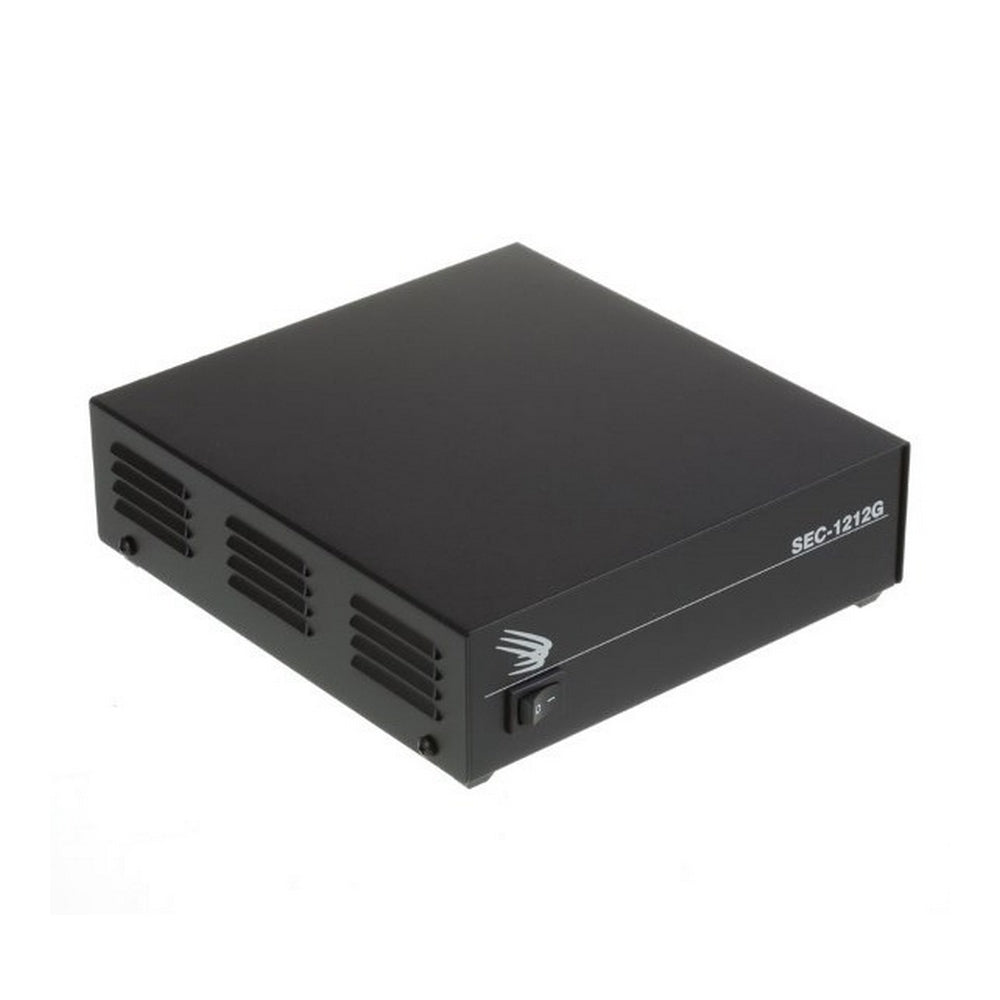

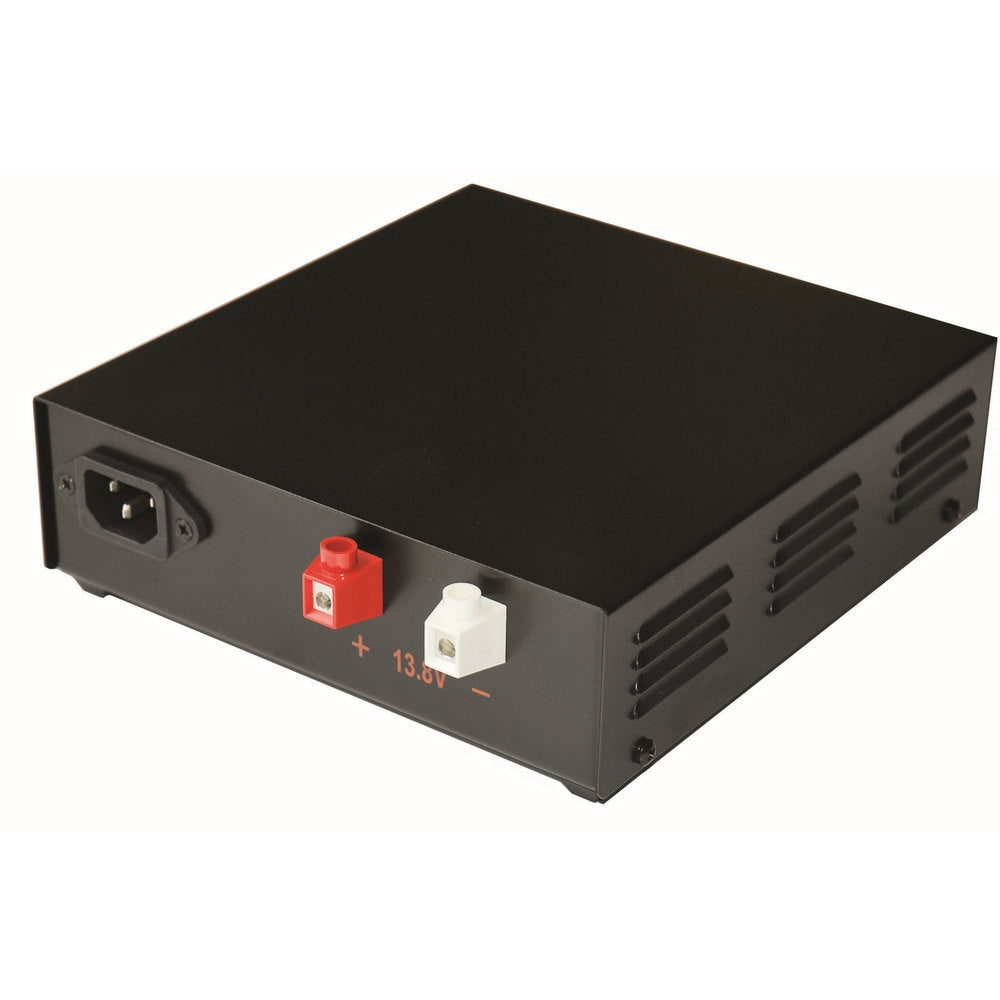

Samlex 12V 10A AC-DC Power Supply
Samlex 12V 10A AC-DC Power Supply

Samlex 12V 10A AC-DC Power Supply

SKU: SA/SEC1212
Brand: Samlex

£162.00 inc VAT£135.00 ex VAT

Description
  • Advanced switch-mode technology
  • Reliable power with minimum weight and size
  • Circuit innovations minimize output voltage ripple and RFI
  • 115-230Vac input 50/60Hz
  • Power factor correction
  • 2 year warranty
  • Input: 115-230V AC
  • Output: 13.8V DC
  • Output (Continuous): 9.5A
  • Output Limiting: 10A
  • Fuse Rating: 2.5A
  • Cooling: Convection
  • Protection: Short Circuit, Overload, Reverse Polarity, Over Temperature
  • Operating Temperature: 0-40°C
  • DC Output: 5mm Screw
  • AC Input: Power Cord with European Schuko Plug
  • Size: 190 x 180 x 60mm
  • Standards: EN 61000-6-3 EN 61000-6-2 EN 61000-3-2 EN 61000 -3-3 EN 60950
  • Energy Efficiency Certification: CEC / DOE / MEPS
  • Safety Standard: UL60950-1 EN60950-1 (ETL)
  • EMI Standard: EN55022 class B EN61000-3-2,3
  • EMS Standard: EN61000-4-2,3,4,5,6,8,11
  • FCC: Part 15 subpart B class B
  • C-Tick: AN/NZS CISPR22 class B
Low in stock
