Anti Vandal Stainless Steel Push Switch with Connector

Stainless steel switches featuring an LED ring light. Pre-wired connector included.

Ideal for a wide range of interior or exterior applications. These through panel mount switches are IP67 rated when installed and ideal for switching lighting or installing into custom switch panels.

• Function: On/Off
• Select Switch Option (Latching or Non-Latching)
• Normally open or Normally Closed (select terminal on back)
• Voltage: 12V (Illumination)
• Amp Rating: 5A (Max)
• Material: Polished 304 Stainless Steel

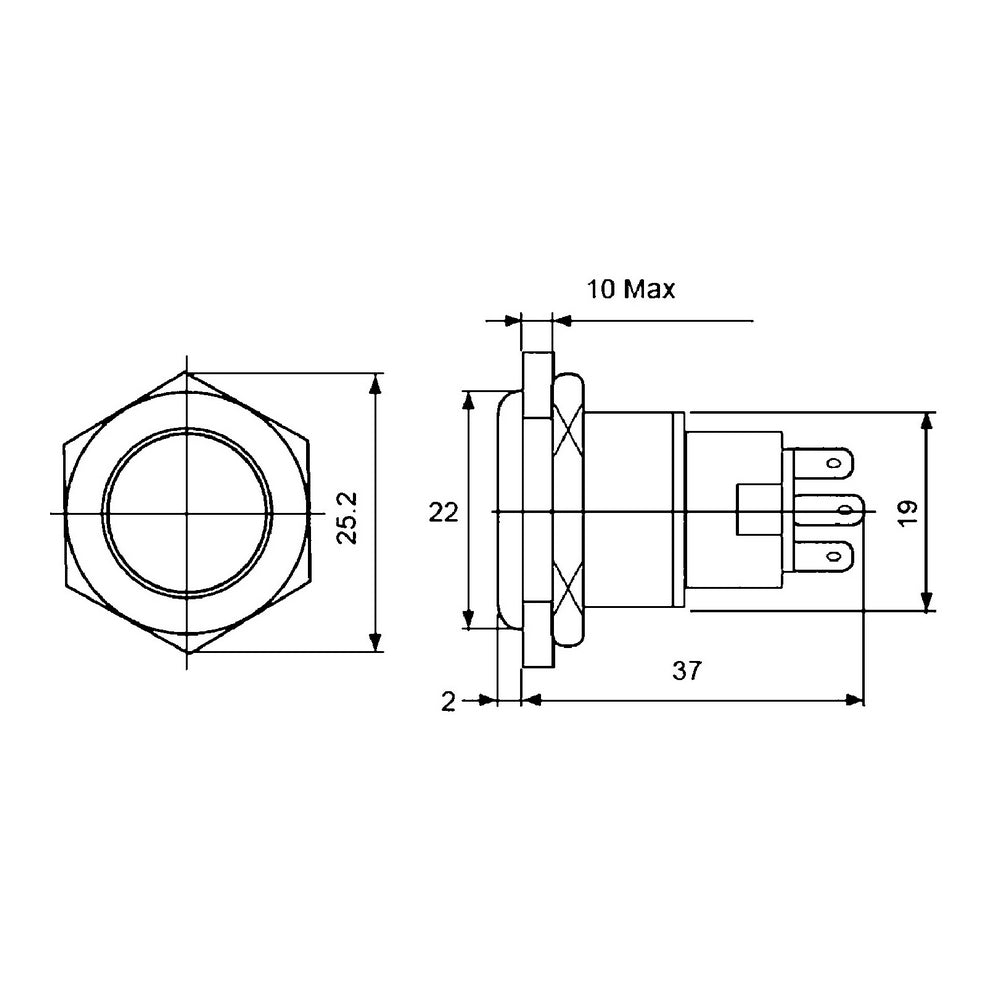

• Switch Hole Diameter: 19mm
• Panel Thickness: 10mm (Max)
• 5 Pin (2.8mm)

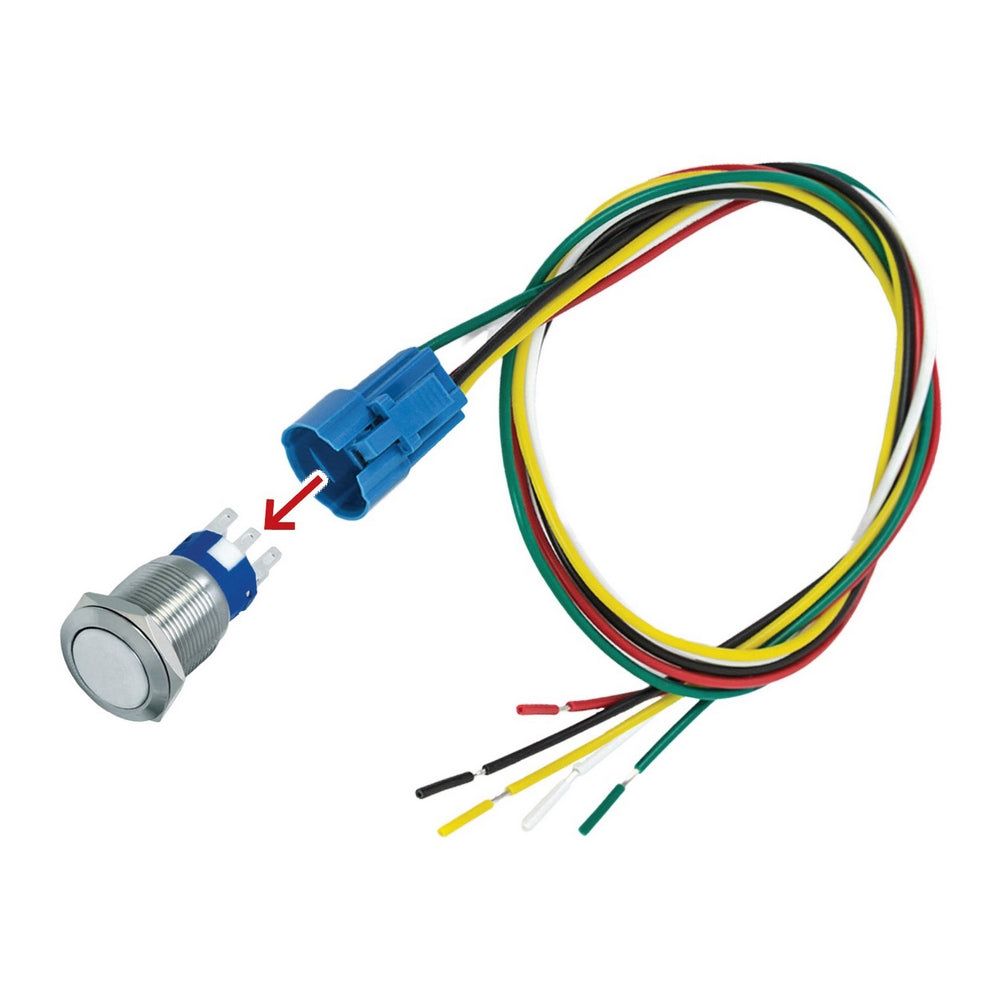

• Pre-Wired Connector Included

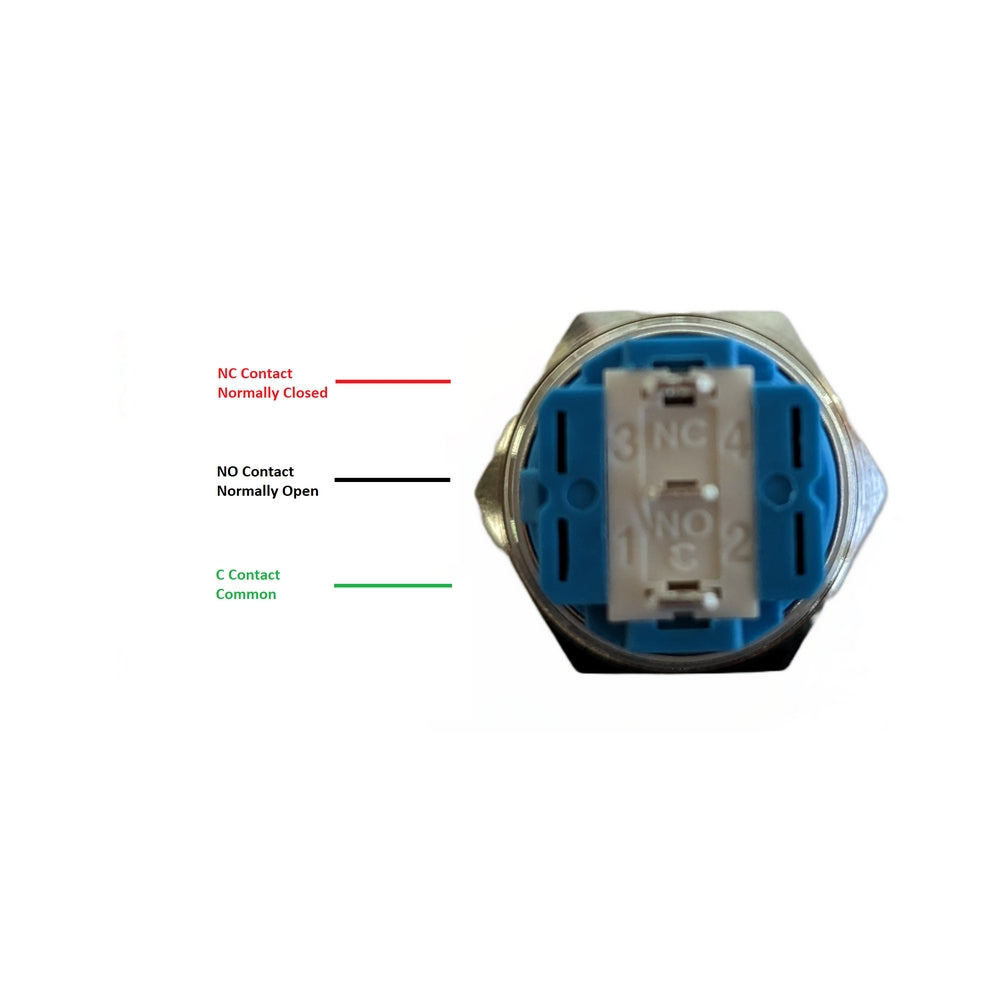

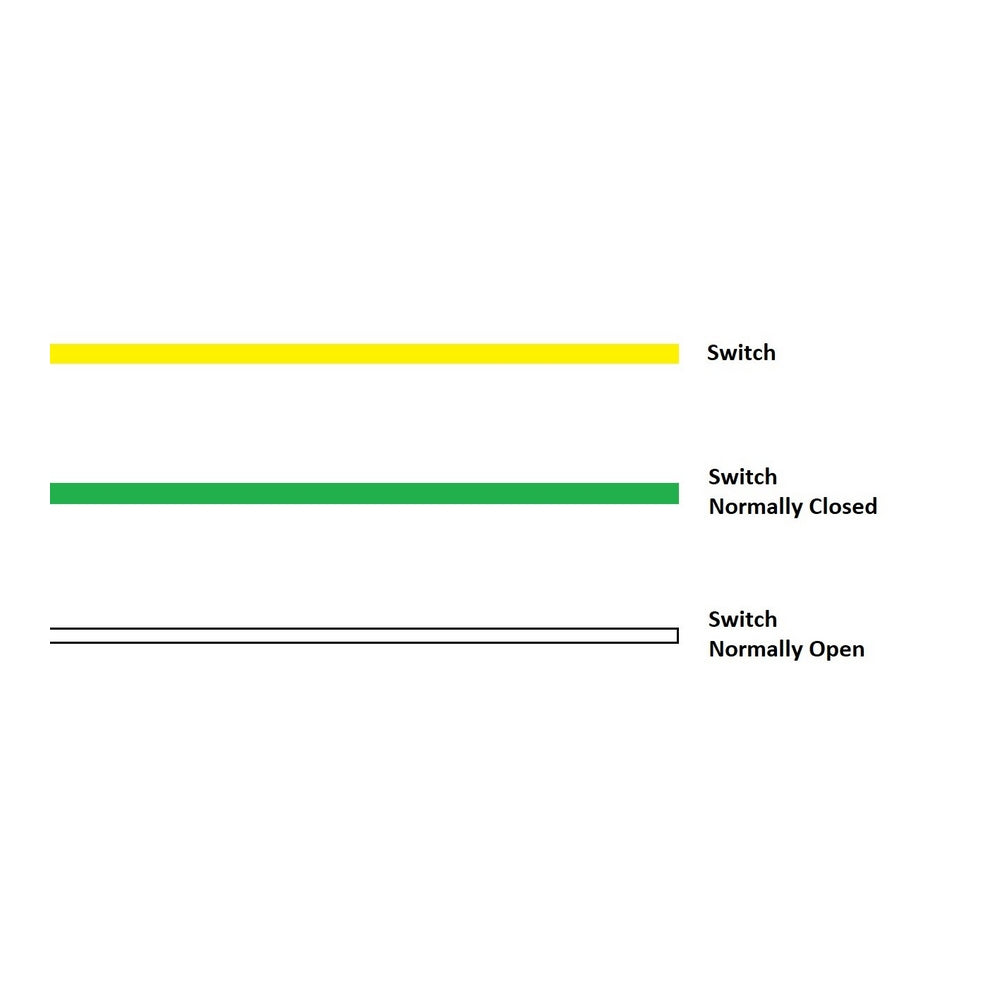

See image for switch pin diagram. Pre-wired connector colours:

• Red = Positive
• Black = Negative
• Yellow = Switch
• White = Normally Open Contact
• Green = Normally Closed Contact
