Copper Tube Pin 95mm²

Copper tube pins are designed for the secure termination of cables into terminal blocks and equipment where a lug or crimp ring is not suitable. Manufactured from tinned copper, these pins provide excellent electrical conductivity and corrosion resistance, making them ideal for the harsh conditions found in marine and automotive environments. They offer a compact, robust solution for managing high-current connections in confined spaces.

• Key Advantages: These pins provide a firm, reliable connection when clamping into screw-type terminal blocks, preventing wire splaying and ensuring a high-contact-area termination. The solid construction helps maintain electrical integrity under vibration.
• Pro Tip: Heat shrink is required to ensure safe electrical insulation and a neat finish. We recommend using adhesive-lined heat shrink; it provides robust insulation and melts upon heating to create an airtight seal, completely preventing water ingress and protecting the joint from corrosion.

Click here for adhesive-lined heat shrink options.

Click here for crimping tool options.

Features:

• Terminal Body: Copper
• Plating: Bright Electro Tin
• Cable Size (mm²): 95

• Sold Individually

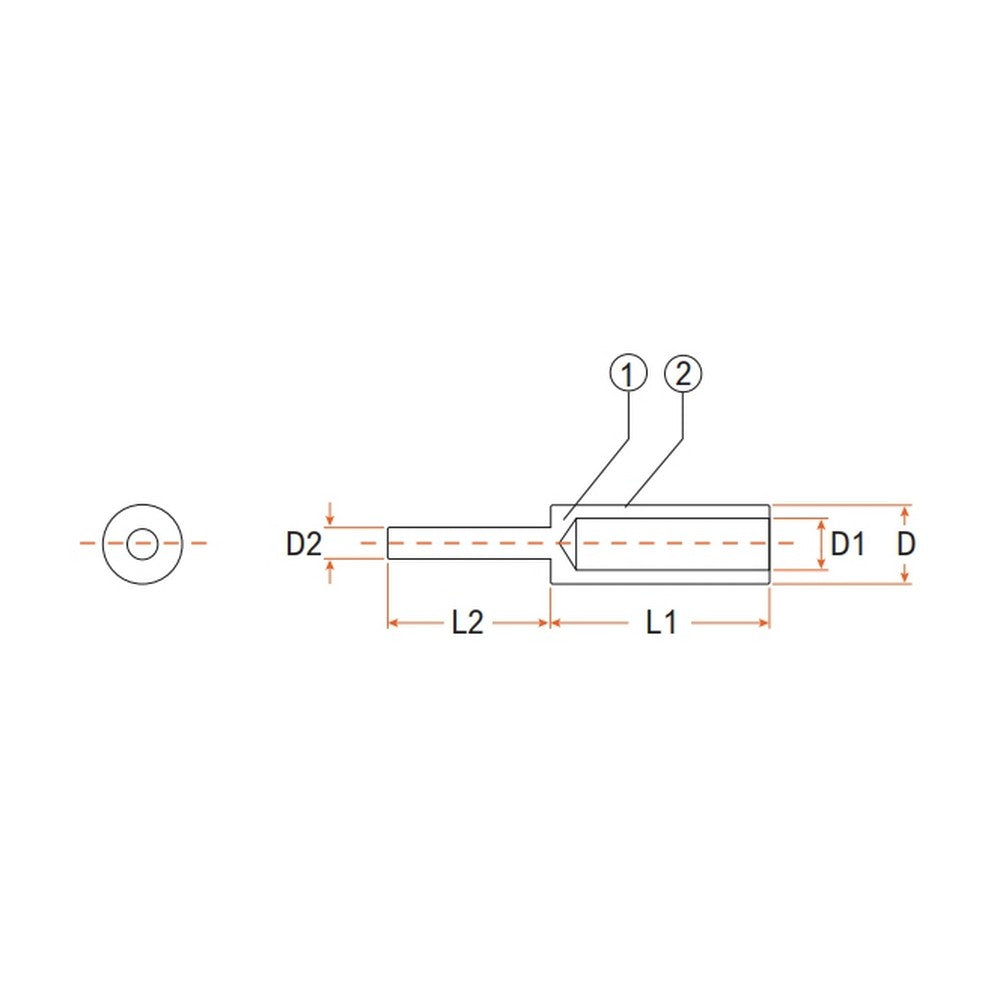

Dimensions:

• D: 17.0mm
• D1: 13.2mm
• D2: 7.5mm
• L1: 27.5mm
• L2: 18.4mm
