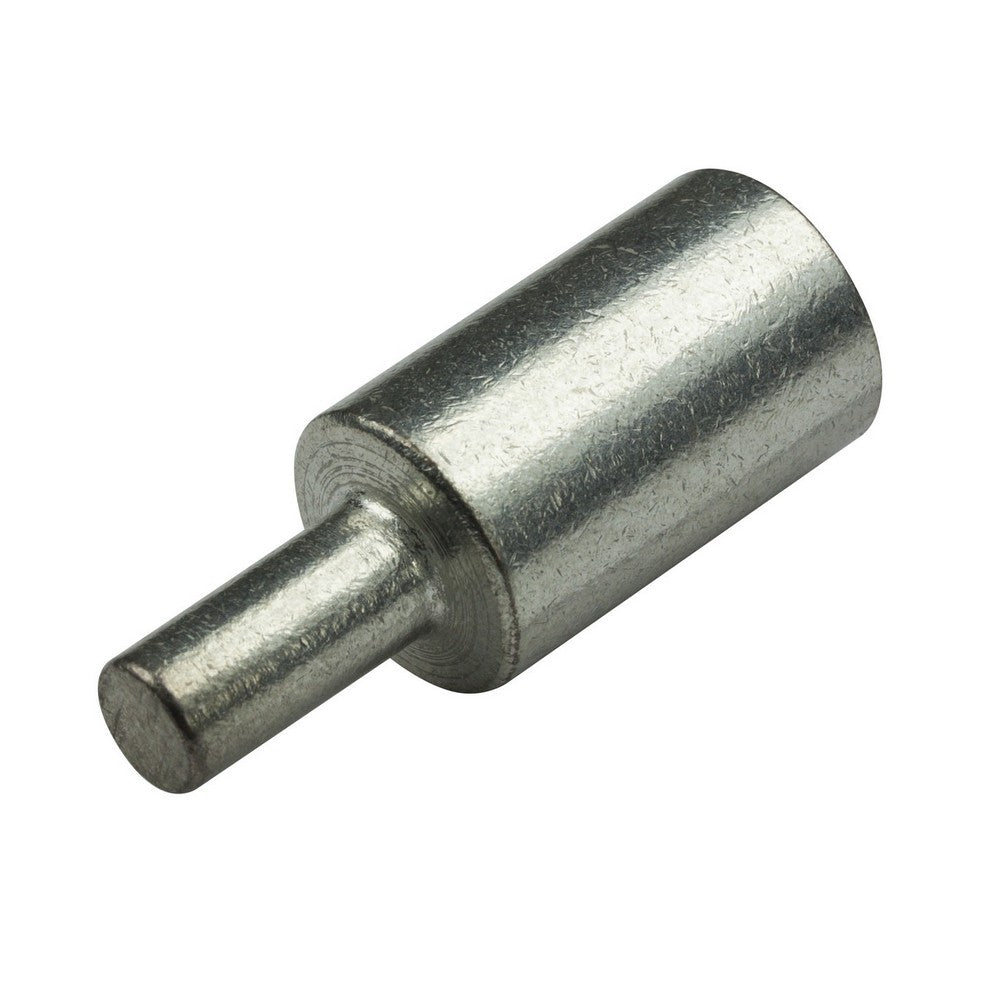

Copper Tube Pin 16mm²

Copper tube pins are ideal for connecting cables carrying higher currents. They provide excellent corrosion resistance and conductivity, and the pin makes these terminals ideal for terminating conductors into contact blocks.

Example applications: inverters, chargers and solar equipment.

• Terminal Body: Copper
• Plating: Bright Electro Tin
• Cable Size (mm²): 16

• Sold Individually

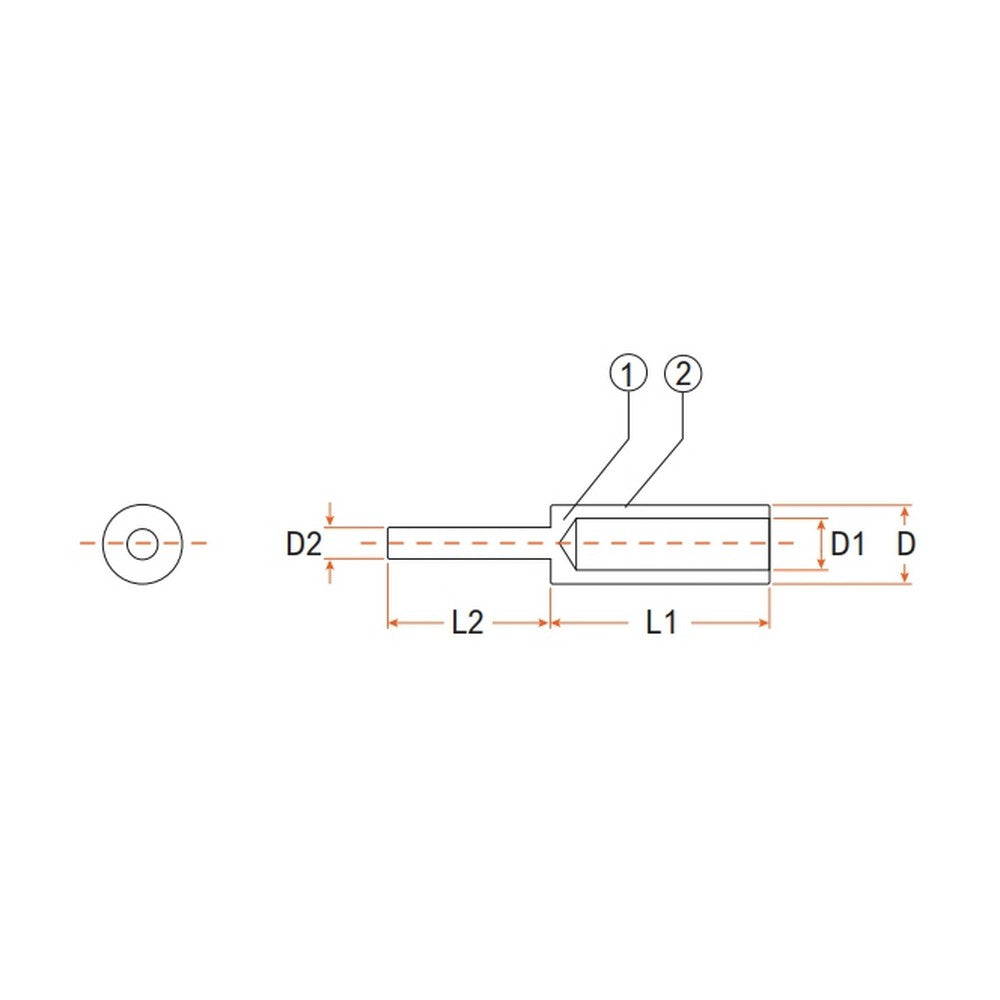

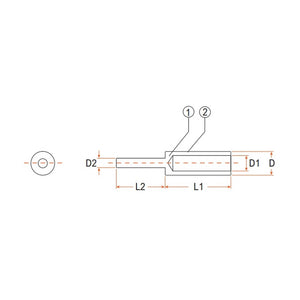

Dimensions:

• D: 7.0mm
• D1: 5.3mm
• D2: 3.7mm
• L1: 16.6mm
• L2: 13.6mm
