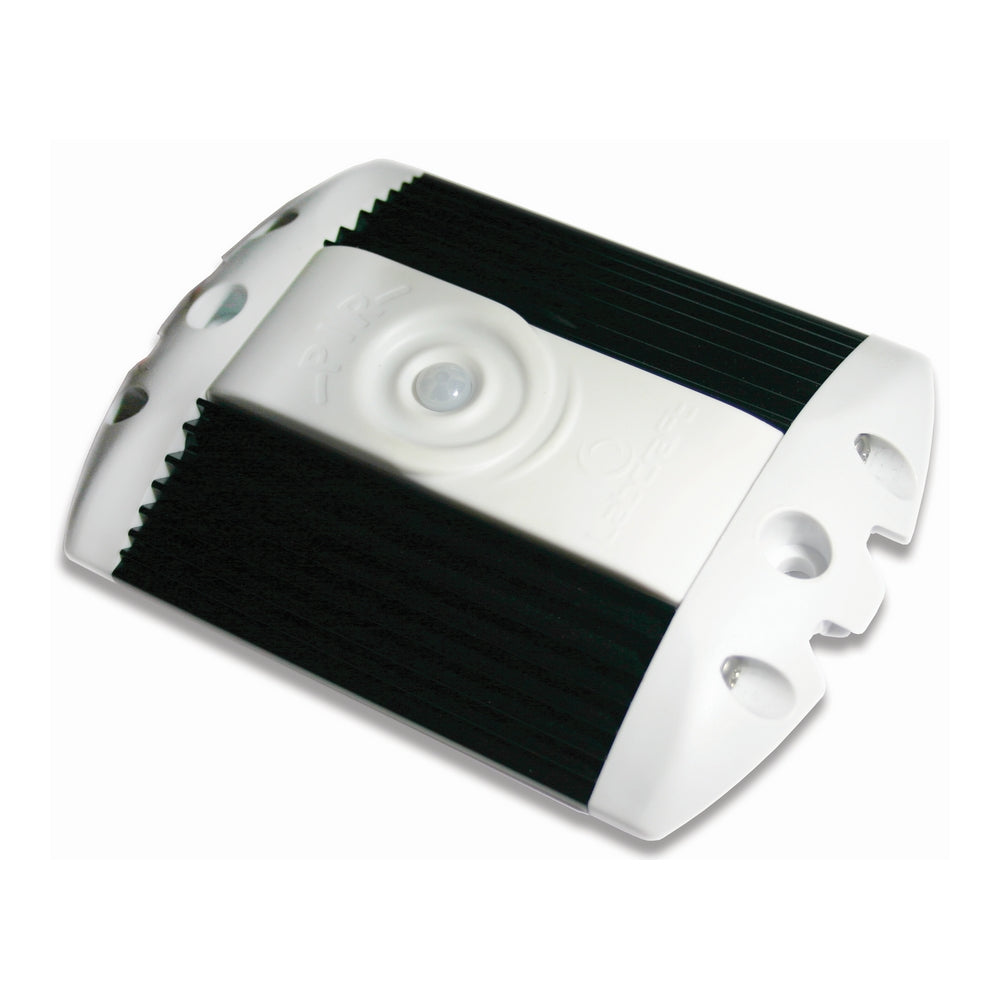

Labcraft Master PIR Motion Sensor Switch

SKU: MISC-WS
Brand: Labcraft

£12.00 inc VAT£10.00 ex VAT

Description

The Labcraft Master PIR Motion Sensor Switch delivers intelligent, automatic lighting control, perfect for commercial vehicles, motorhomes, and utility areas. Engineered for robust 12V/24V systems, this passive infrared (PIR) sensor detects body heat movement to instantly illuminate your space upon entry. It automatically switches lights off after a set time (typically 5 minutes) once movement ceases, significantly reducing battery drain and saving energy.

Features

  • Automatic PIR Detection: Instantly switches on lights by detecting body heat and movement.
  • Energy Saving Timer: Lights automatically switch off after movement ceases.
  • Robust & Low Profile: Slim design and E-Mark certified for automotive use.

Specification

  • Voltage: 12V DC (10-15V)
  • Max Load Current: 4.5 Amps (A)
  • On-Time Once Triggered: Typically 5 minutes (300 seconds)
  • Off-Load Current Draw: Approx. 40 mA (0.04A)
  • Sensor Angle: 88 degrees

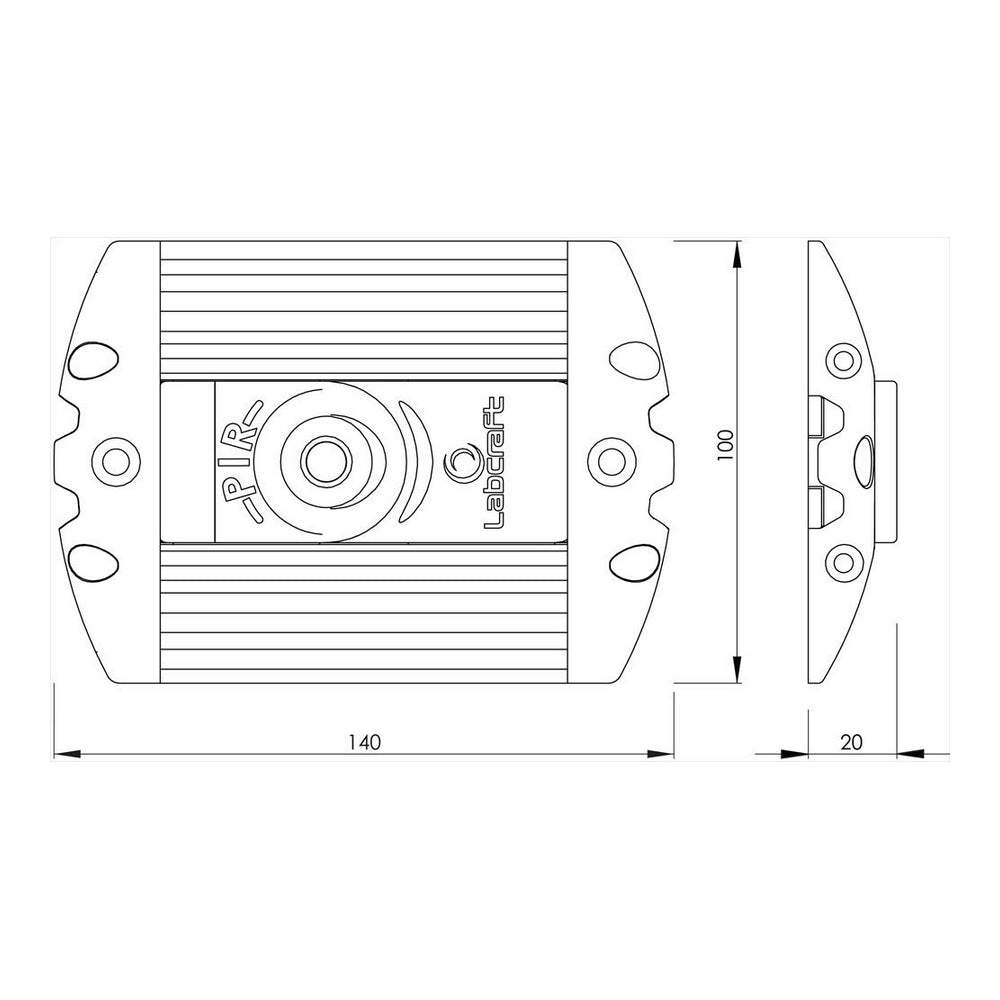

  • Mounting: 2-Point Surface Mount Fixing
  • Construction: Anodised Aluminium and Plastic/ABS
  • Operating Temp Range: -30° to +40°
  • IP Rating: IP67
Out of stock
Labcraft Master PIR Motion Sensor Switch

£12.00 inc VAT£10.00 ex VAT

£12.00 inc VAT£10.00 ex VAT

The Labcraft Master PIR Motion Sensor Switch delivers intelligent, automatic lighting control, perfect for commercial vehicles, motorhomes, and utility areas. Engineered for robust 12V/24V systems, this passive infrared (PIR) sensor detects body heat movement to instantly illuminate your space upon entry. It automatically switches lights off after a set time (typically 5 minutes) once movement ceases, significantly reducing battery drain and saving energy.

Features

  • Automatic PIR Detection: Instantly switches on lights by detecting body heat and movement.
  • Energy Saving Timer: Lights automatically switch off after movement ceases.
  • Robust & Low Profile: Slim design and E-Mark certified for automotive use.

Specification

  • Voltage: 12V DC (10-15V)
  • Max Load Current: 4.5 Amps (A)
  • On-Time Once Triggered: Typically 5 minutes (300 seconds)
  • Off-Load Current Draw: Approx. 40 mA (0.04A)
  • Sensor Angle: 88 degrees
  • Mounting: 2-Point Surface Mount Fixing
  • Construction: Anodised Aluminium and Plastic/ABS
  • Operating Temp Range: -30° to +40°
  • IP Rating: IP67
