Hella NaviLED PRO Navigation Lights

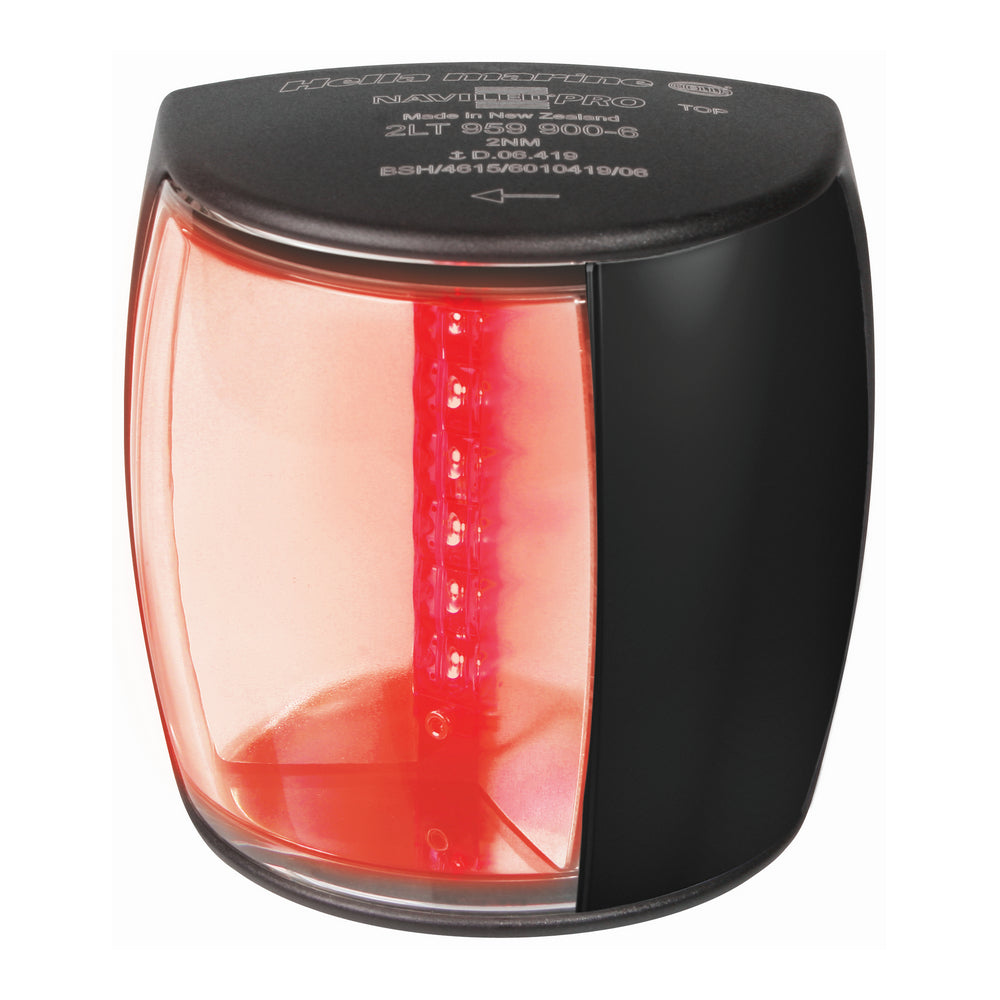

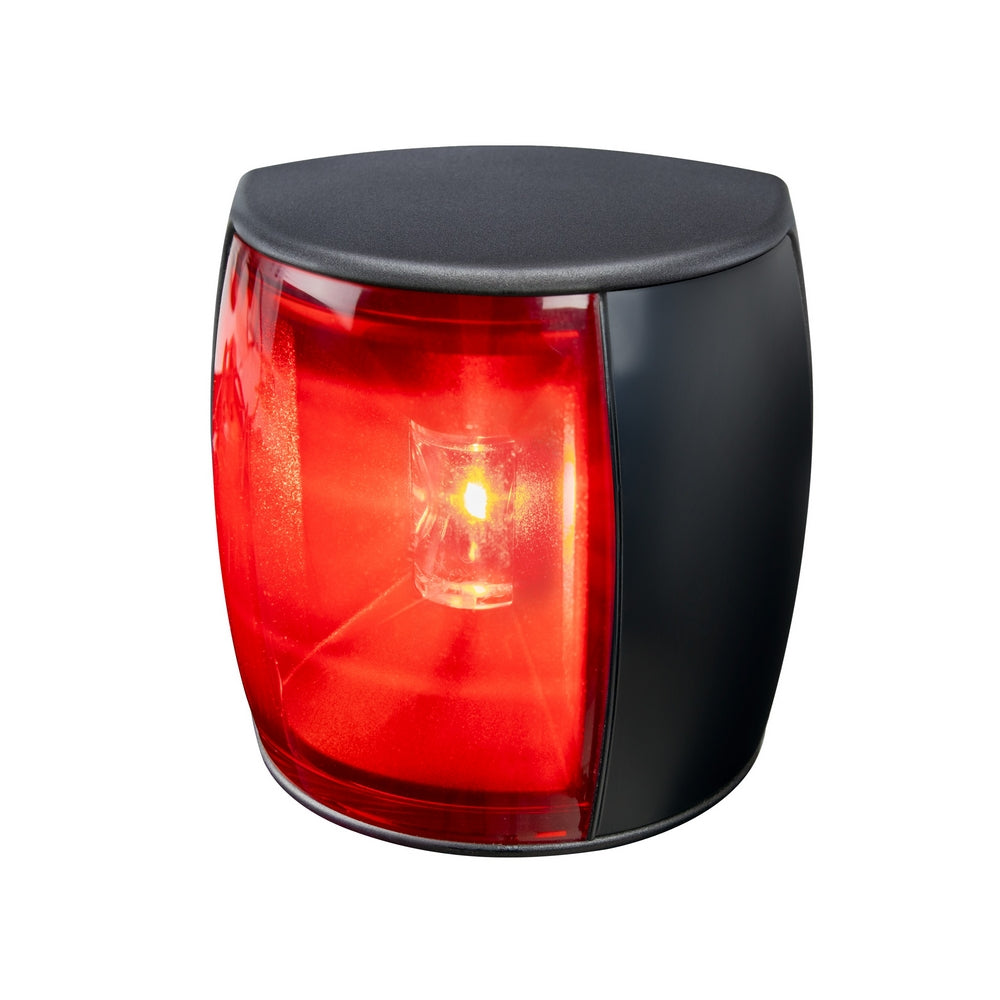

The Hella NaviLED PRO series port light is an exceptionally durable and energy-efficient navigation lamp, designed to offer enhanced safety and reliability for vessels up to 50 metres in length. It's a premium product, proven on commercial, military, and recreational boats worldwide.

A key advantage of the NaviLED PRO series over competing products is its superior durability and reliability. Its high-impact, UV-resistant acrylic housing is fully sealed to an IP67 rating, ensuring it is impervious to water, corrosion, and extreme weather. Additionally, its advanced Multivolt™ electronics protect against severe voltage fluctuations and reverse polarity, guaranteeing consistent performance. These lights are also EMC compliant, featuring built-in suppression that prevents interference with critical onboard equipment such as VHF radios and AIS systems. This commitment to quality and engineering is backed by a 5-year Hella marine warranty, offering you complete peace of mind.

Key Features

• Ultra-Low Power Consumption: Uses less than 10% of the energy of a conventional bulb, saving battery power.
• Completely Sealed: IP67 rated, providing full protection against water ingress, corrosion, and UV damage.
• Multivolt™ Electronics: Operates reliably on both 12V and 24V DC systems (9-33V DC input).
• Precision Optics: Delivers 100% accurate light output with enhanced visibility at sea.

Technical Specifications & Approvals

• Dimensions (H x W x D): 90mm x 87mm x 57mm
• Minimum Visible Distance: 2 Nautical Miles.
• Power Consumption: <2W (<0.17A @ 12V / <0.09A @ 24V DC).
• Cable: 2.5m of pre-wired twin-core marine cable.
• Housing: Black.
• Lens: High-impact and UV-resistant acrylic.
• Approvals: IMO Col Reg 72, USCG (United States Coast Guard), ABYC C-5, Maritime NZ, Wheelmark (MED), Red Ensign, CE, RCM.

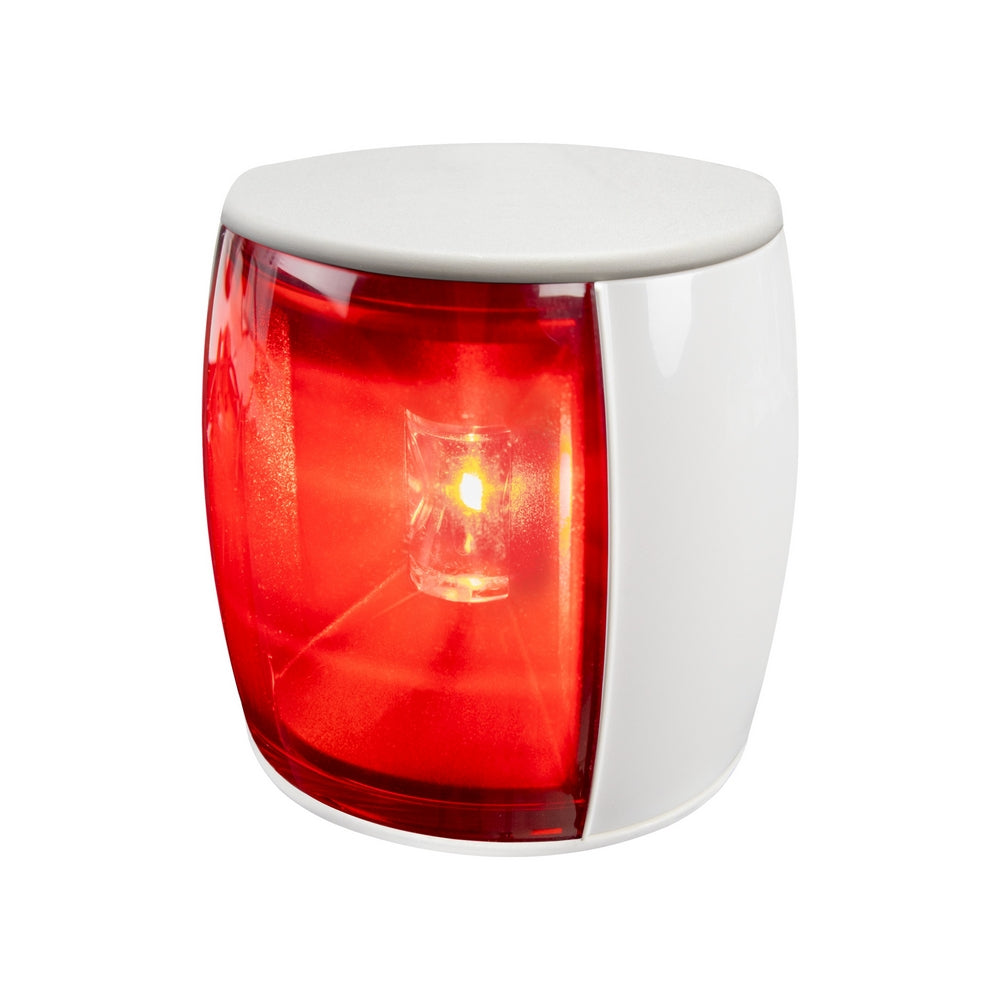

The Hella NaviLED PRO series port light is an exceptionally durable and energy-efficient navigation lamp, designed to offer enhanced safety and reliability for vessels up to 50 metres in length. It's a premium product, proven on commercial, military, and recreational boats worldwide.

A key advantage of the NaviLED PRO series over competing products is its superior durability and reliability. Its high-impact, UV-resistant acrylic housing is fully sealed to an IP67 rating, ensuring it is impervious to water, corrosion, and extreme weather. Additionally, its advanced Multivolt™ electronics protect against severe voltage fluctuations and reverse polarity, guaranteeing consistent performance. These lights are also EMC compliant, featuring built-in suppression that prevents interference with critical onboard equipment such as VHF radios and AIS systems. This commitment to quality and engineering is backed by a 5-year Hella marine warranty, offering you complete peace of mind.

Key Features

• Ultra-Low Power Consumption: Uses less than 10% of the energy of a conventional bulb, saving battery power.
• Completely Sealed: IP67 rated, providing full protection against water ingress, corrosion, and UV damage.
• Multivolt™ Electronics: Operates reliably on both 12V and 24V DC systems (9-33V DC input).
• Precision Optics: Delivers 100% accurate light output with enhanced visibility at sea.

Technical Specifications & Approvals

• Dimensions (H x W x D): 90mm x 87mm x 57mm
• Minimum Visible Distance: 2 Nautical Miles.
• Power Consumption: <2W (<0.17A @ 12V / <0.09A @ 24V DC).
• Cable: 2.5m of pre-wired twin-core marine cable.
• Housing: White.
• Lens: High-impact and UV-resistant acrylic.
• Approvals: IMO Col Reg 72, USCG (United States Coast Guard), ABYC C-5, Maritime NZ, Wheelmark (MED), Red Ensign, CE, RCM.

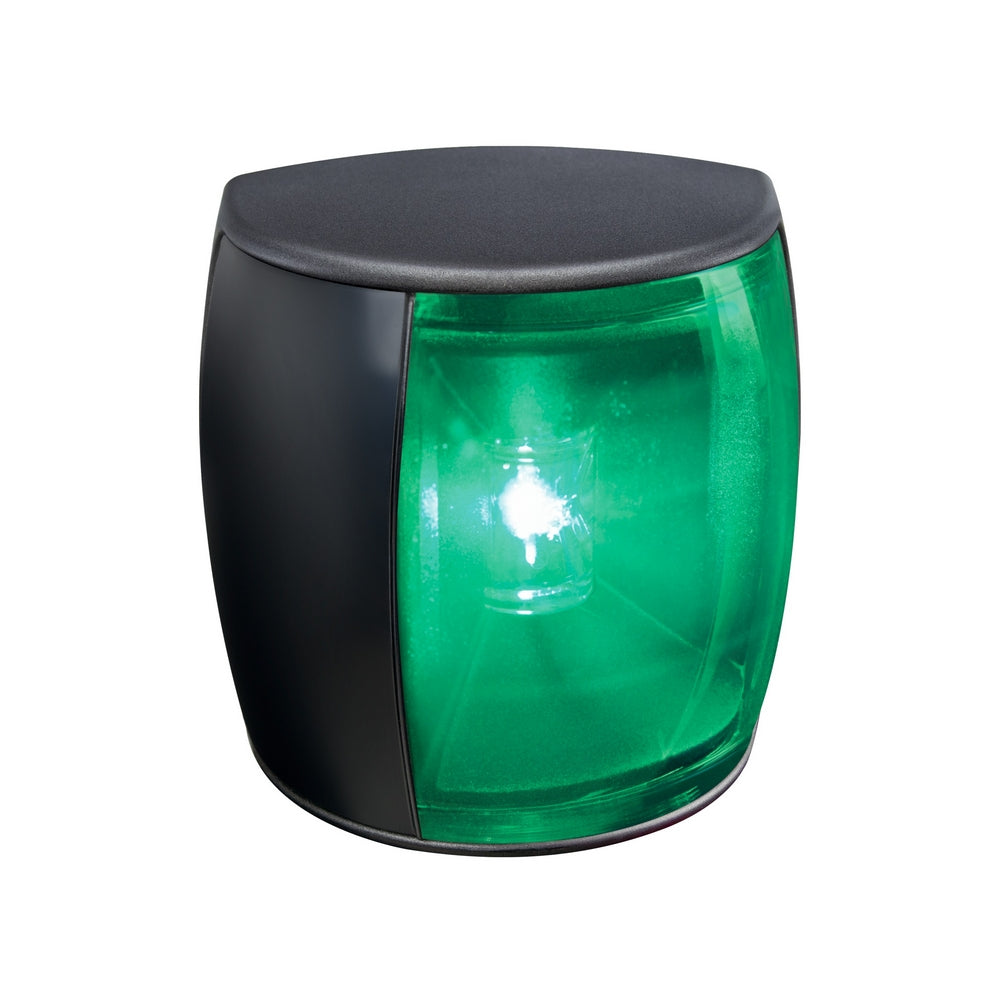

The Hella NaviLED PRO series starboard light is an exceptionally durable and energy-efficient navigation lamp, designed to offer enhanced safety and reliability for vessels up to 50 metres in length. It's a premium product, proven on commercial, military, and recreational boats worldwide.

A key advantage of the NaviLED PRO series over competing products is its superior durability and reliability. Its high-impact, UV-resistant acrylic housing is fully sealed to an IP67 rating, ensuring it is impervious to water, corrosion, and extreme weather. Additionally, its advanced Multivolt™ electronics protect against severe voltage fluctuations and reverse polarity, guaranteeing consistent performance. These lights are also EMC compliant, featuring built-in suppression that prevents interference with critical onboard equipment such as VHF radios and AIS systems. This commitment to quality and engineering is backed by a 5-year Hella marine warranty, offering you complete peace of mind.

Key Features

• Ultra-Low Power Consumption: Uses less than 10% of the energy of a conventional bulb, saving battery power.
• Completely Sealed: IP67 rated, providing full protection against water ingress, corrosion, and UV damage.
• Multivolt™ Electronics: Operates reliably on both 12V and 24V DC systems (9-33V DC input).
• Precision Optics: Delivers 100% accurate light output with enhanced visibility at sea.

Technical Specifications & Approvals

• Dimensions (H x W x D): 90mm x 87mm x 57mm
• Minimum Visible Distance: 2 Nautical Miles.
• Power Consumption: <2W (<0.17A @ 12V / <0.09A @ 24V DC).
• Cable: 2.5m of pre-wired twin-core marine cable.
• Housing: Black.
• Lens: High-impact and UV-resistant acrylic.
• Approvals: IMO Col Reg 72, USCG (United States Coast Guard), ABYC C-5, Maritime NZ, Wheelmark (MED), Red Ensign, CE, RCM.

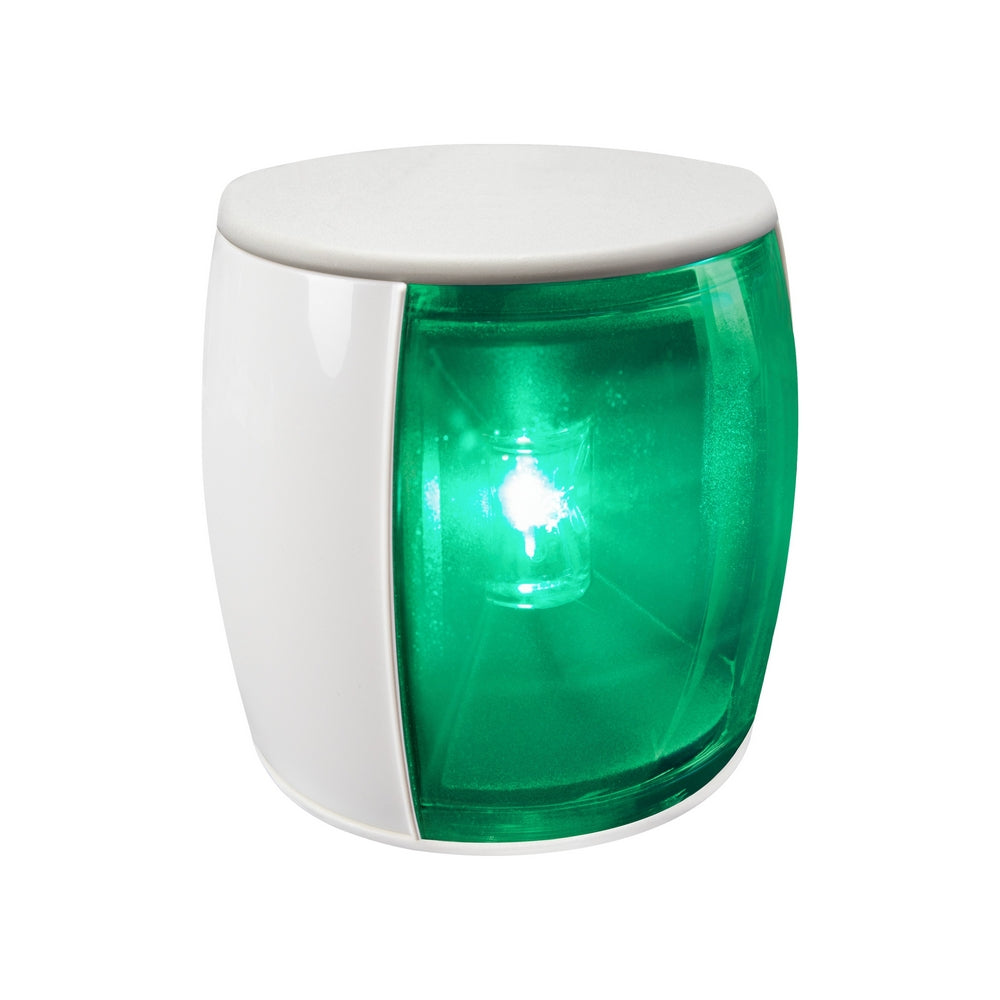

The Hella NaviLED PRO series starboard light is an exceptionally durable and energy-efficient navigation lamp, designed to offer enhanced safety and reliability for vessels up to 50 metres in length. It's a premium product, proven on commercial, military, and recreational boats worldwide.

A key advantage of the NaviLED PRO series over competing products is its superior durability and reliability. Its high-impact, UV-resistant acrylic housing is fully sealed to an IP67 rating, ensuring it is impervious to water, corrosion, and extreme weather. Additionally, its advanced Multivolt™ electronics protect against severe voltage fluctuations and reverse polarity, guaranteeing consistent performance. These lights are also EMC compliant, featuring built-in suppression that prevents interference with critical onboard equipment such as VHF radios and AIS systems. This commitment to quality and engineering is backed by a 5-year Hella marine warranty, offering you complete peace of mind.

Key Features

• Ultra-Low Power Consumption: Uses less than 10% of the energy of a conventional bulb, saving battery power.
• Completely Sealed: IP67 rated, providing full protection against water ingress, corrosion, and UV damage.
• Multivolt™ Electronics: Operates reliably on both 12V and 24V DC systems (9-33V DC input).
• Precision Optics: Delivers 100% accurate light output with enhanced visibility at sea.

Technical Specifications & Approvals

• Dimensions (H x W x D): 90mm x 87mm x 57mm
• Minimum Visible Distance: 2 Nautical Miles.
• Power Consumption: <2W (<0.17A @ 12V / <0.09A @ 24V DC).
• Cable: 2.5m of pre-wired twin-core marine cable.
• Housing: White.
• Lens: High-impact and UV-resistant acrylic.
• Approvals: IMO Col Reg 72, USCG (United States Coast Guard), ABYC C-5, Maritime NZ, Wheelmark (MED), Red Ensign, CE, RCM.

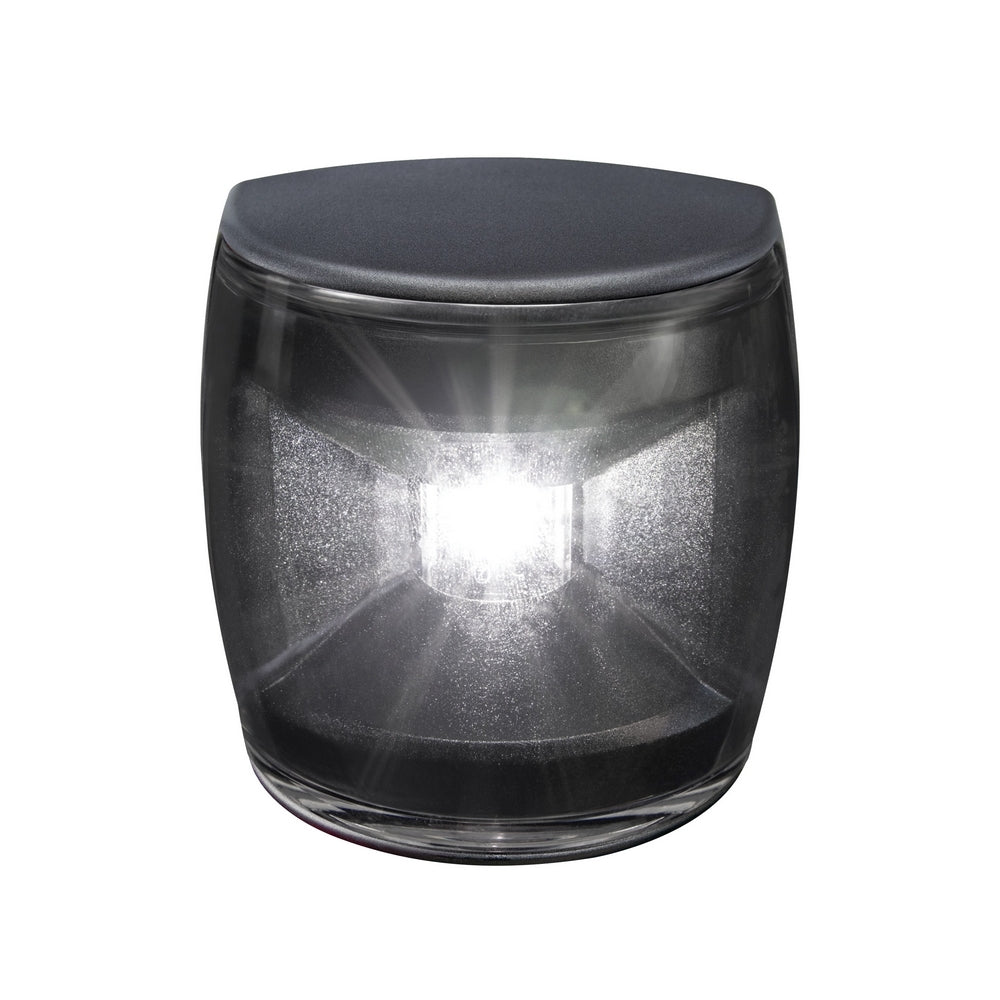

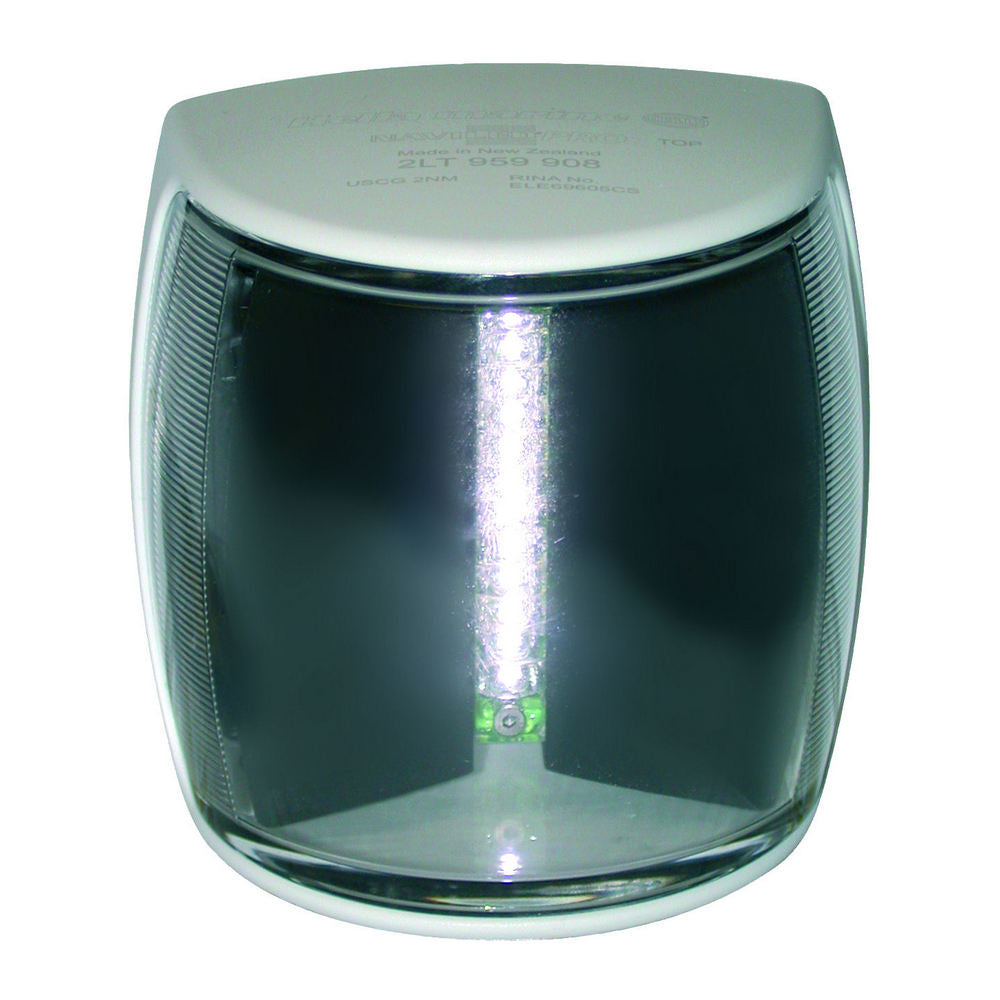

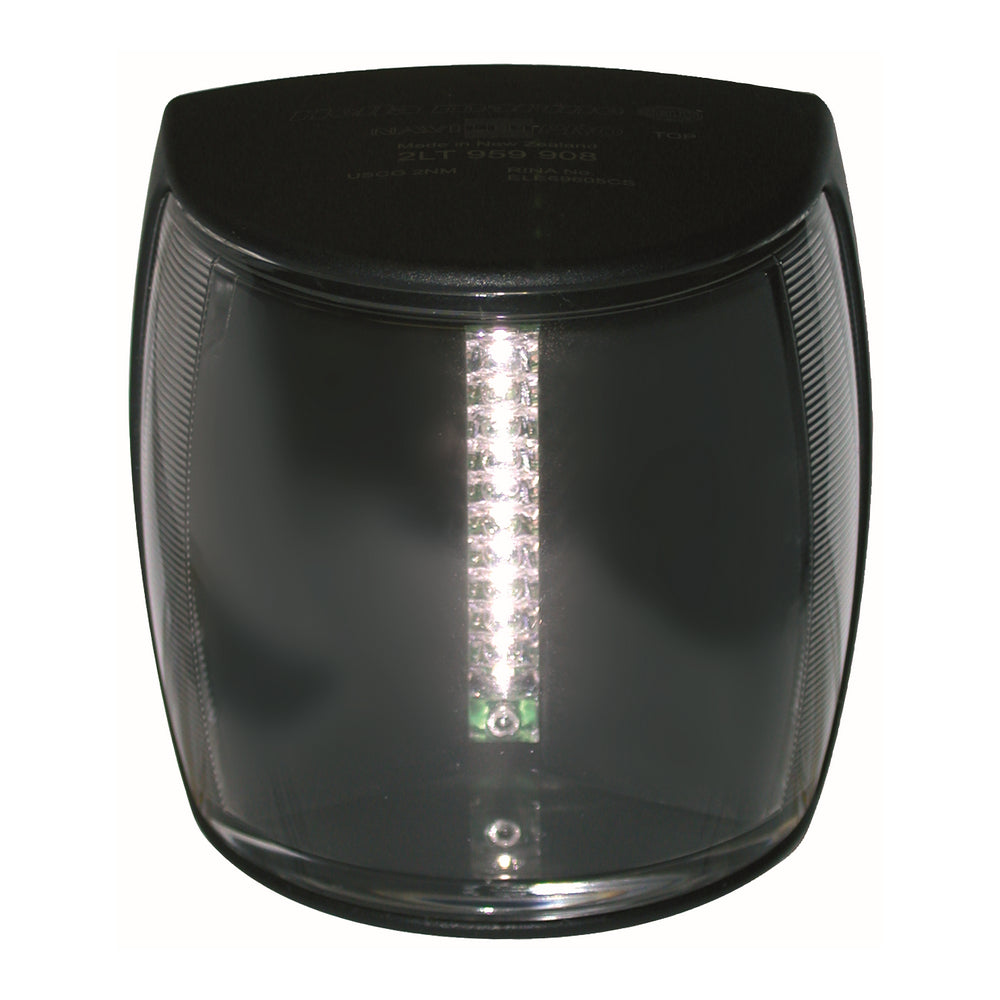

The Hella NaviLED PRO series stern light is an exceptionally durable and energy-efficient navigation lamp, designed to offer enhanced safety and reliability for vessels up to 50 metres in length. It's a premium product, proven on commercial, military, and recreational boats worldwide.

A key advantage of the NaviLED PRO series over competing products is its superior durability and reliability. Its high-impact, UV-resistant acrylic housing is fully sealed to an IP67 rating, ensuring it is impervious to water, corrosion, and extreme weather. Additionally, its advanced Multivolt™ electronics protect against severe voltage fluctuations and reverse polarity, guaranteeing consistent performance. These lights are also EMC compliant, featuring built-in suppression that prevents interference with critical onboard equipment such as VHF radios and AIS systems. This commitment to quality and engineering is backed by a 5-year Hella marine warranty, offering you complete peace of mind.

Key Features

• Ultra-Low Power Consumption: Uses less than 10% of the energy of a conventional bulb, saving battery power.
• Completely Sealed: IP67 rated, providing full protection against water ingress, corrosion, and UV damage.
• Multivolt™ Electronics: Operates reliably on both 12V and 24V DC systems (9-33V DC input).
• Precision Optics: Delivers 100% accurate light output with enhanced visibility at sea.

Technical Specifications & Approvals

• Dimensions (H x W x D): 90mm x 87mm x 57mm
• Minimum Visible Distance: 2 Nautical Miles.
• Power Consumption: <2W (<0.17A @ 12V / <0.09A @ 24V DC).
• Cable: 2.5m of pre-wired twin-core marine cable.
• Housing: White.
• Lens: High-impact and UV-resistant acrylic.
• Approvals: IMO Col Reg 72, USCG (United States Coast Guard), ABYC C-5, Maritime NZ, Wheelmark (MED), Red Ensign, CE, RCM.

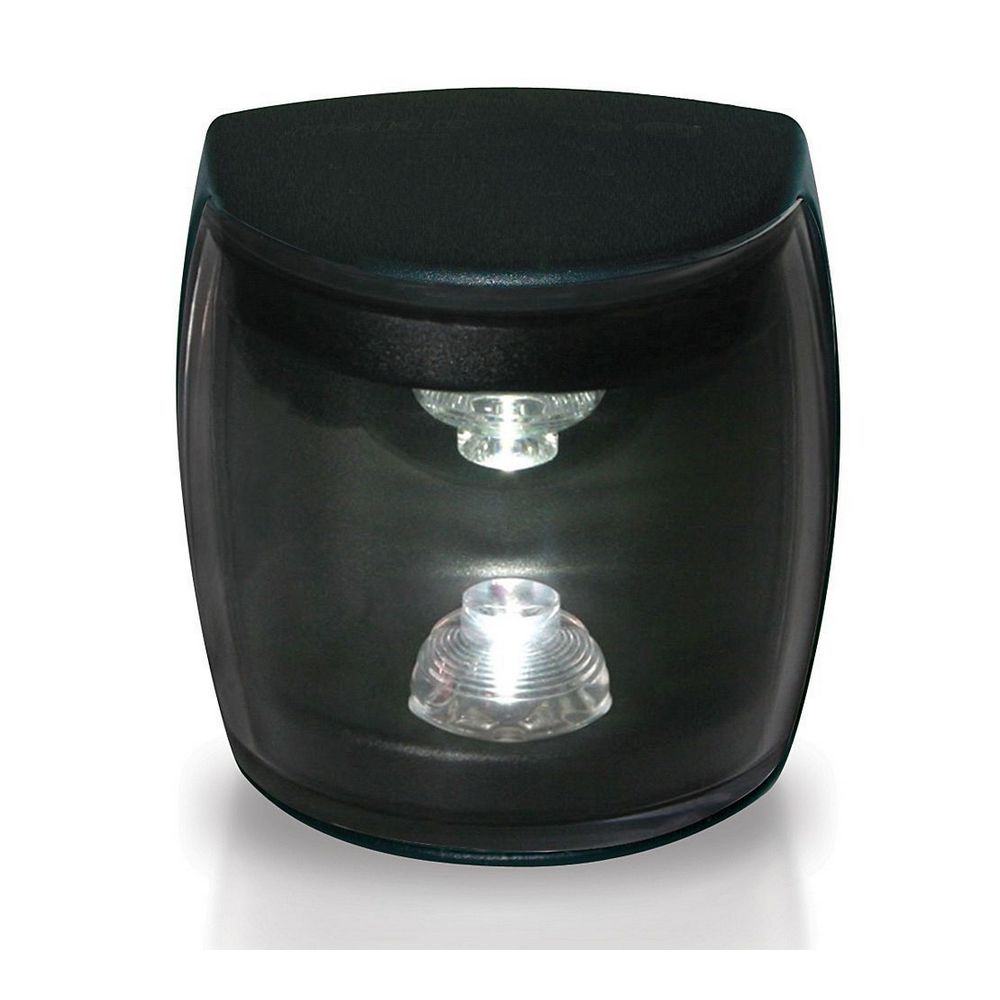

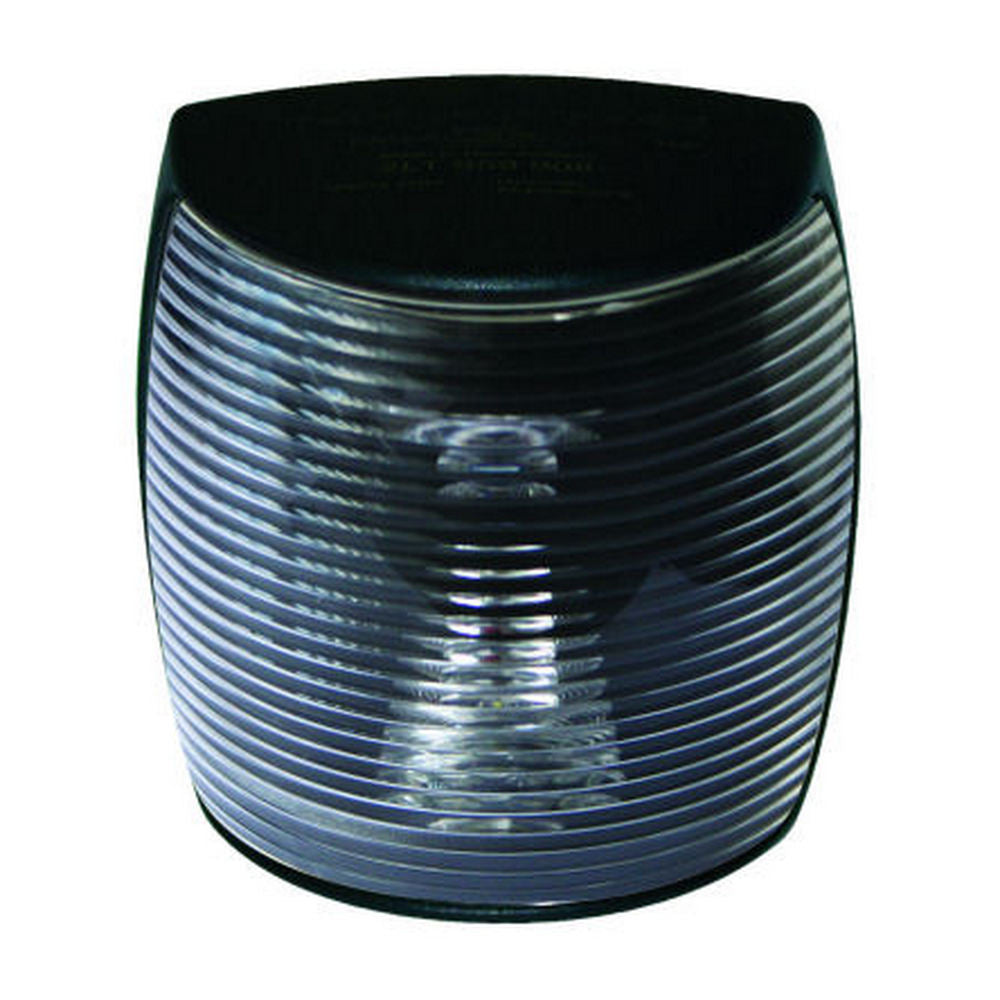

The Hella NaviLED PRO series masthead light is an exceptionally durable and energy-efficient navigation lamp, designed to offer enhanced safety and reliability for vessels up to 50 metres in length. It's a premium product, proven on commercial, military, and recreational boats worldwide.

A key advantage of the NaviLED PRO series over competing products is its superior durability and reliability. Its high-impact, UV-resistant acrylic housing is fully sealed to an IP67 rating, ensuring it is impervious to water, corrosion, and extreme weather. Additionally, its advanced Multivolt™ electronics protect against severe voltage fluctuations and reverse polarity, guaranteeing consistent performance. These lights are also EMC compliant, featuring built-in suppression that prevents interference with critical onboard equipment such as VHF radios and AIS systems. This commitment to quality and engineering is backed by a 5-year Hella marine warranty, offering you complete peace of mind.

Key Features

• Ultra-Low Power Consumption: Uses less than 10% of the energy of a conventional bulb, saving battery power.
• Completely Sealed: IP67 rated, providing full protection against water ingress, corrosion, and UV damage.
• Multivolt™ Electronics: Operates reliably on both 12V and 24V DC systems (9-33V DC input).
• Precision Optics: Delivers 100% accurate light output with enhanced visibility at sea.

Technical Specifications & Approvals

• Dimensions (H x W x D): 90mm x 87mm x 57mm
• Minimum Visible Distance: 3 Nautical Miles.
• Power Consumption: <2.5W (<0.2A @ 12V / <0.1A @ 24V DC).
• Cable: 2.5m of pre-wired twin-core marine cable.
• Housing: Black.
• Lens: Clear High-impact and UV-resistant acrylic.
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC C-5, Maritime NZ,&nbsp;Wheelmark (MED), IMO Col Reg 72, USCG, ABYC C-5, Maritime NZ, CE, UKCA, Red Ensign.

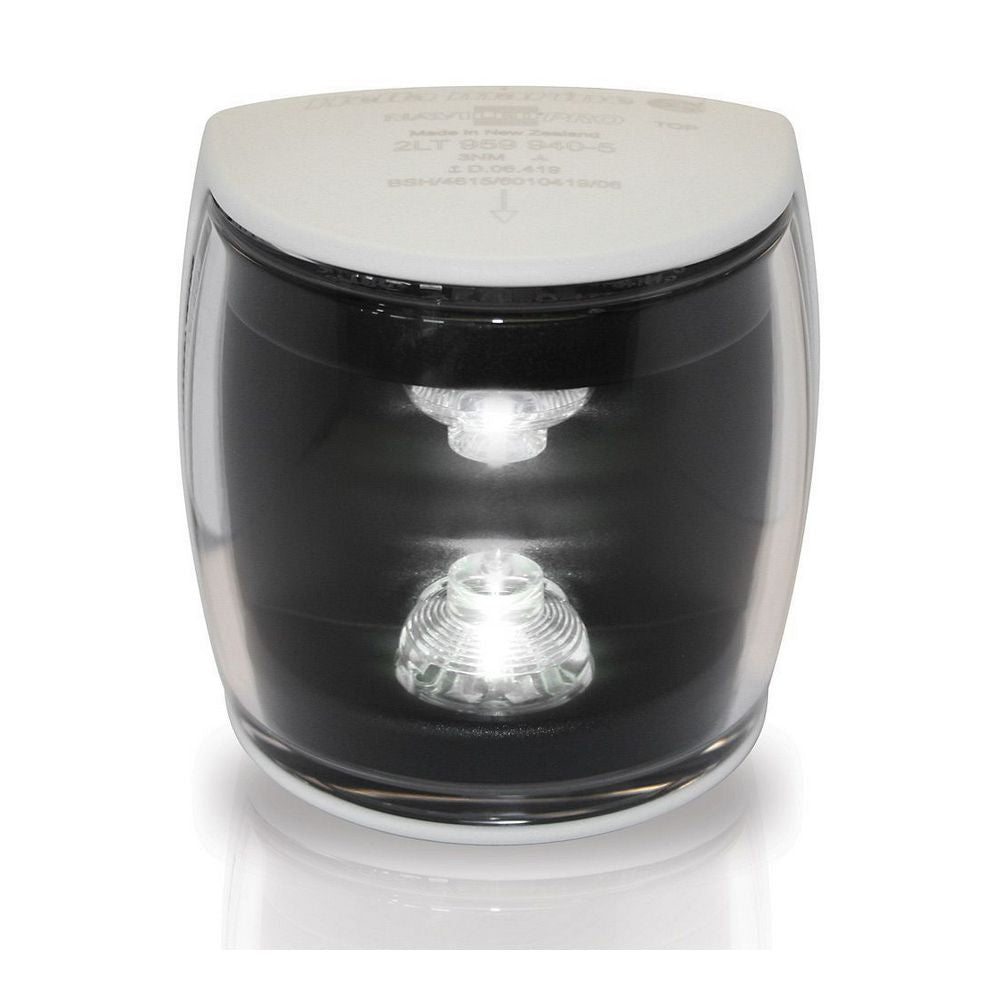

The Hella NaviLED PRO series masthead light is an exceptionally durable and energy-efficient navigation lamp, designed to offer enhanced safety and reliability for vessels up to 50 metres in length. It's a premium product, proven on commercial, military, and recreational boats worldwide.

A key advantage of the NaviLED PRO series over competing products is its superior durability and reliability. Its high-impact, UV-resistant acrylic housing is fully sealed to an IP67 rating, ensuring it is impervious to water, corrosion, and extreme weather. Additionally, its advanced Multivolt™ electronics protect against severe voltage fluctuations and reverse polarity, guaranteeing consistent performance. These lights are also EMC compliant, featuring built-in suppression that prevents interference with critical onboard equipment such as VHF radios and AIS systems. This commitment to quality and engineering is backed by a 5-year Hella marine warranty, offering you complete peace of mind.

Key Features

• Ultra-Low Power Consumption: Uses less than 10% of the energy of a conventional bulb, saving battery power.
• Completely Sealed: IP67 rated, providing full protection against water ingress, corrosion, and UV damage.
• Multivolt™ Electronics: Operates reliably on both 12V and 24V DC systems (9-33V DC input).
• Precision Optics: Delivers 100% accurate light output with enhanced visibility at sea.

Technical Specifications & Approvals

• Dimensions (H x W x D): 90mm x 87mm x 57mm
• Minimum Visible Distance: 3 Nautical Miles.
• Power Consumption: <2.5W (<0.2A @ 12V / <0.1A @ 24V DC).
• Cable: 2.5m of pre-wired twin-core marine cable.
• Housing: White.
• Lens: Clear High-impact and UV-resistant acrylic.
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC C-5, Maritime NZ, Wheelmark (MED), IMO Col Reg 72, USCG, ABYC C-5, Maritime NZ, CE, UKCA, Red Ensign.

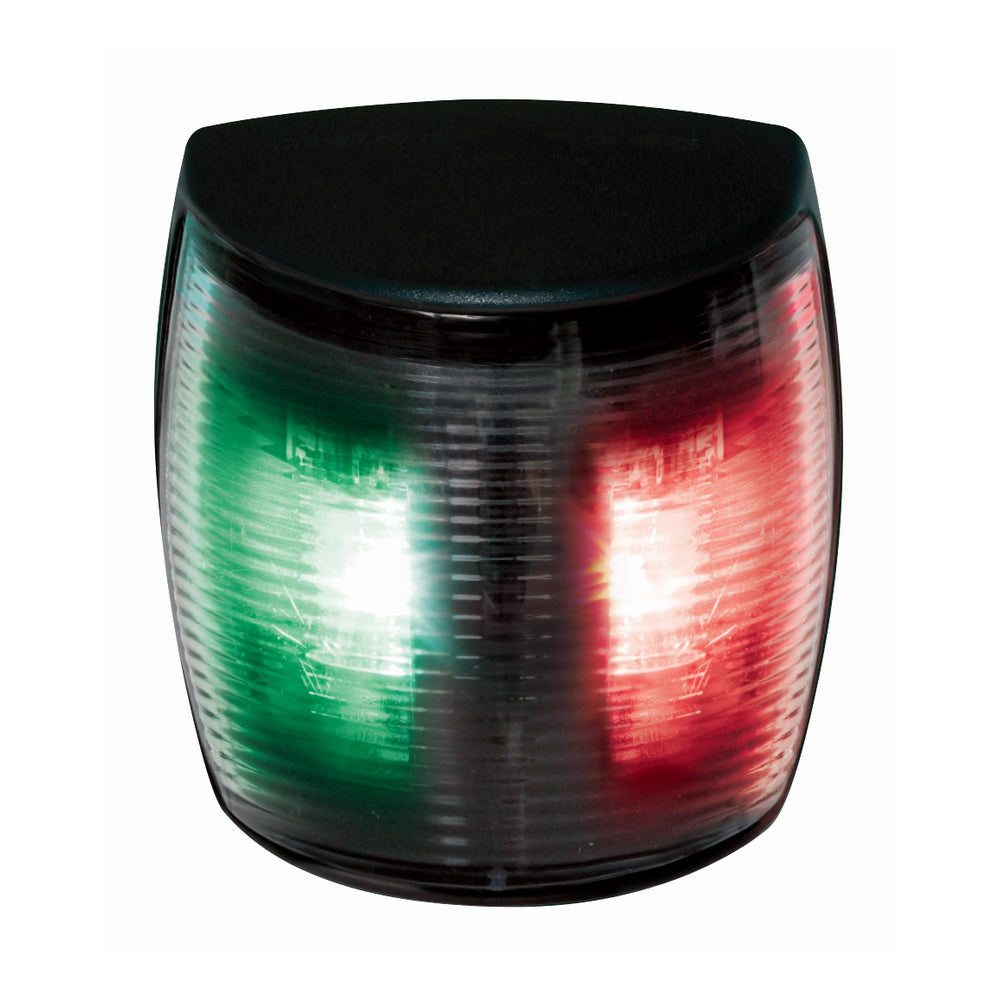

The Hella NaviLED PRO series bi-colour light is an exceptionally durable and energy-efficient navigation lamp, designed to offer enhanced safety and reliability for vessels up to 50 metres in length. It's a premium product, proven on commercial, military, and recreational boats worldwide.

A key advantage of the NaviLED PRO series over competing products is its superior durability and reliability. Its high-impact, UV-resistant acrylic housing is fully sealed to an IP67 rating, ensuring it is impervious to water, corrosion, and extreme weather. Additionally, its advanced Multivolt™ electronics protect against severe voltage fluctuations and reverse polarity, guaranteeing consistent performance. These lights are also EMC compliant, featuring built-in suppression that prevents interference with critical onboard equipment such as VHF radios and AIS systems. This commitment to quality and engineering is backed by a 5-year Hella marine warranty, offering you complete peace of mind.

Key Features

• Ultra-Low Power Consumption: Uses less than 10% of the energy of a conventional bulb, saving battery power.
• Completely Sealed: IP67 rated, providing full protection against water ingress, corrosion, and UV damage.
• Multivolt™ Electronics: Operates reliably on both 12V and 24V DC systems (9-33V DC input).
• Precision Optics: Delivers 100% accurate light output with enhanced visibility at sea.

Technical Specifications & Approvals

• Dimensions (H x W x D): 90mm x 87mm x 57mm
• Minimum Visible Distance: 2 Nautical Miles.
• Power Consumption: <2W (<0.17A @ 12V / <0.09A @ 24V DC).
• Cable: 2.5m of pre-wired twin-core marine cable.
• Housing: Black.
• Lens: Clear High-impact and UV-resistant acrylic.
• Approvals: Wheelmark (MED), BSH, IMO Col Reg 72, USCG, Maritime NZ, CE, UKCA, Red Ensign.

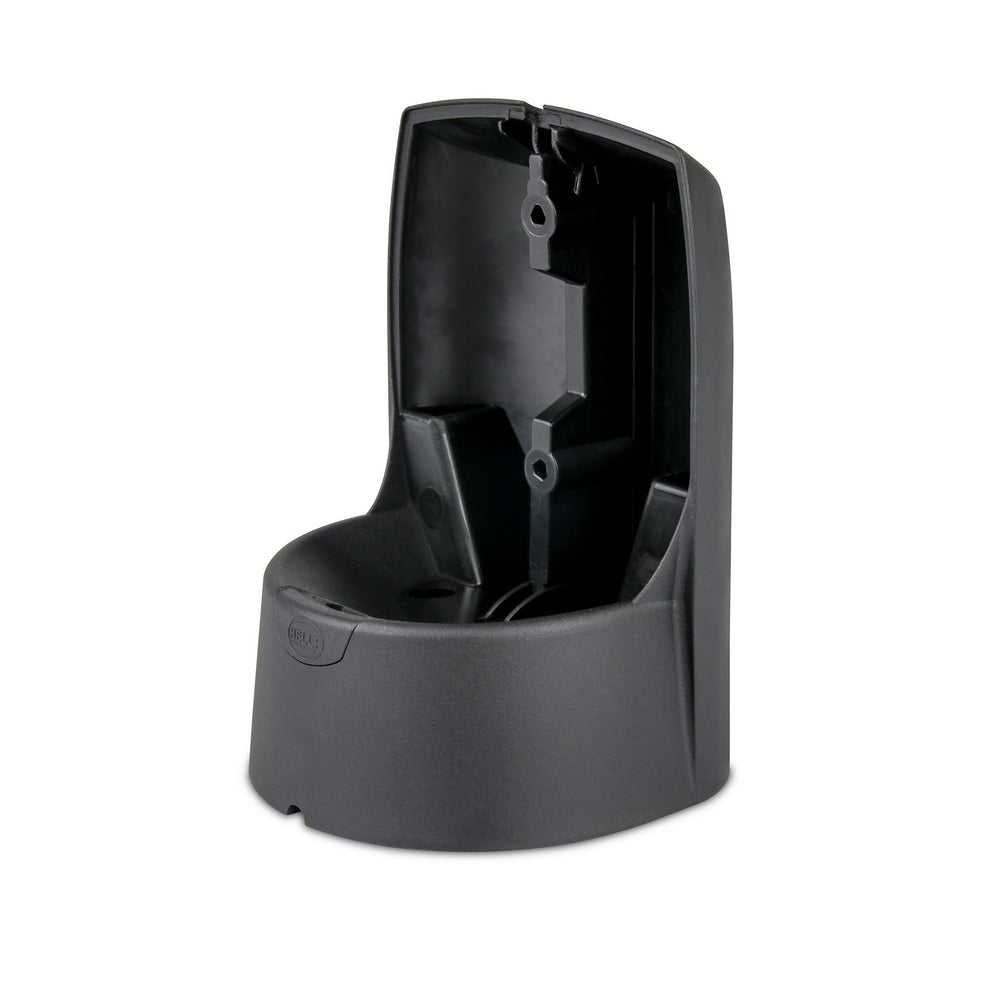

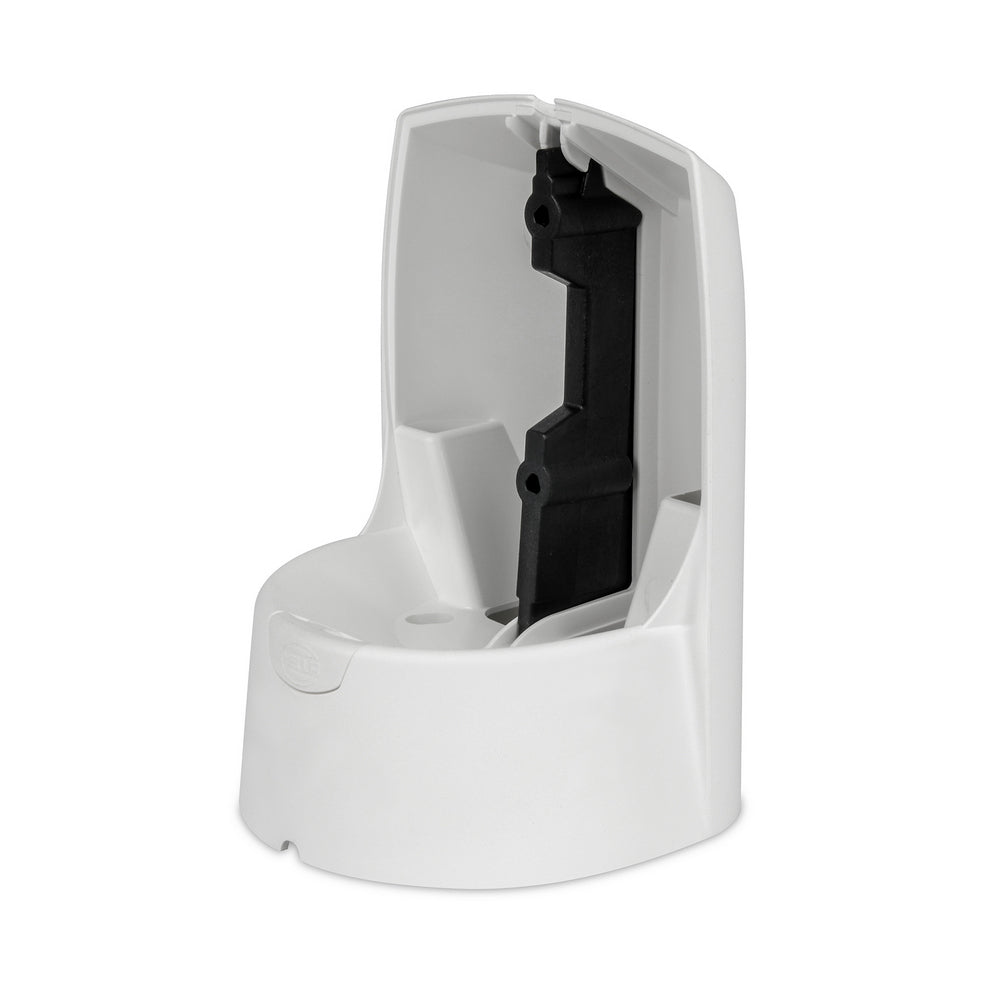

The new Horizontal Deck Mount Adaptor for NaviLED PRO Series. Now the lamps can be mounted on horizontal surfaces, expanding the mounting options and catering to customers with larger vessels.

• Mount NaviLED PRO lamps on horizontal surfaces
• Fits existing product range including Port, Starboard, Stern, Masthead, Bi-colour
• Increases physical dimensions for larger vessels
• Innovative design hides fastenings
• Space for cable gland beneath adaptor
• UV and impact resistant material
• 128 x 90 x 90mm

In addition to the increased mounting configurations, large vessels often prefer a larger fitting to match proportionately with the size of the boat. This new adaptor increases the physical appearance of the lamp by 50%.

The new Horizontal Deck Mount Adaptor for NaviLED PRO Series. Now the lamps can be mounted on horizontal surfaces, expanding the mounting options and catering to customers with larger vessels.

• Mount NaviLED PRO lamps on horizontal surfaces
• Fits existing product range including Port, Starboard, Stern, Masthead, Bi-colour
• Increases physical dimensions for larger vessels
• Innovative design hides fastenings
• Space for cable gland beneath adaptor
• UV and impact resistant material
• 128 x 90 x 90mm

In addition to the increased mounting configurations, large vessels often prefer a larger fitting to match proportionately with the size of the boat. This new adaptor increases the physical appearance of the lamp by 50%.
